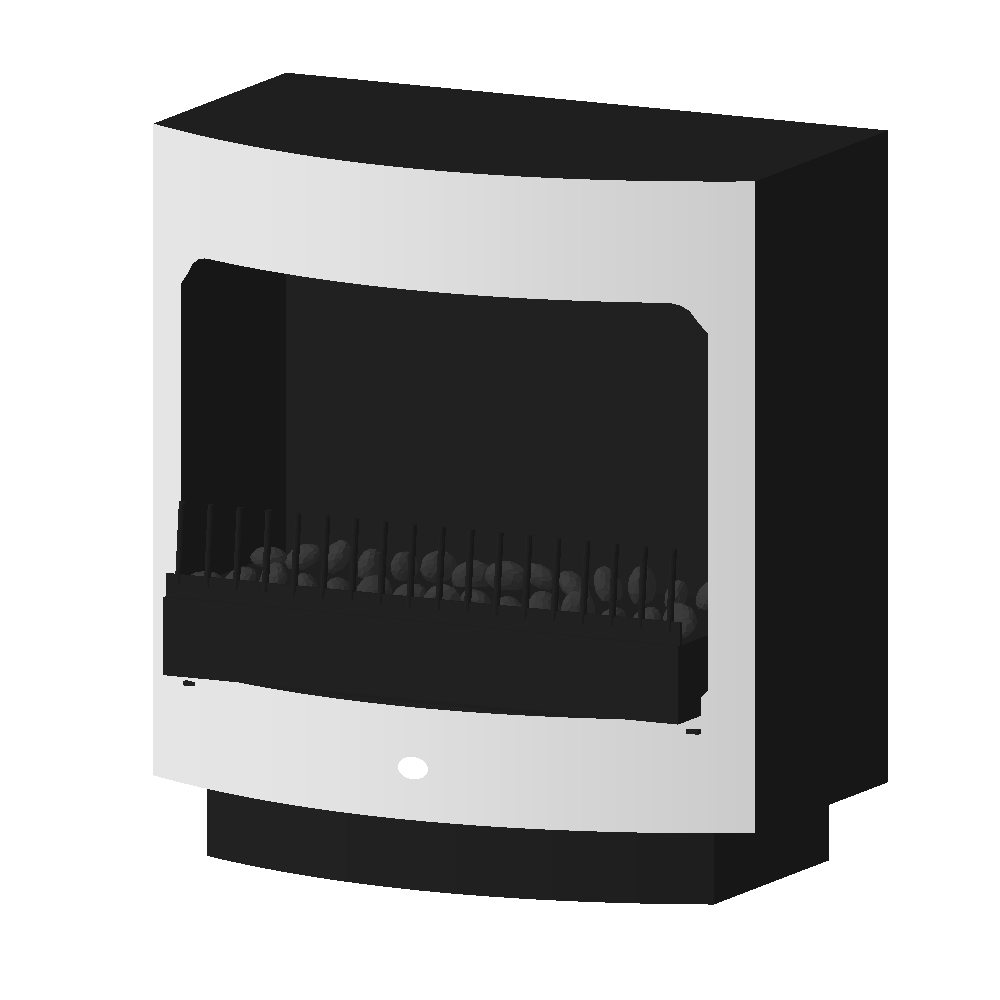

Open interactive view · Open dimension drawing
| Upper casing height | 750 mm |
| Plinth height | 90 mm |
| Casing width | 760 mm |
| Overall height | 840 mm |
| Overall depth including curved front | 440 mm |
| Body depth to front chord | 335 mm |
| Plinth straight side depth | 290 mm |
| Plinth width | 640 mm |
| Plinth overall depth | 365 mm |
| Coal gas grate width | 650 mm |
| Coal gas grate depth | 270 mm |
| Coal gas grate height | 200 mm |
