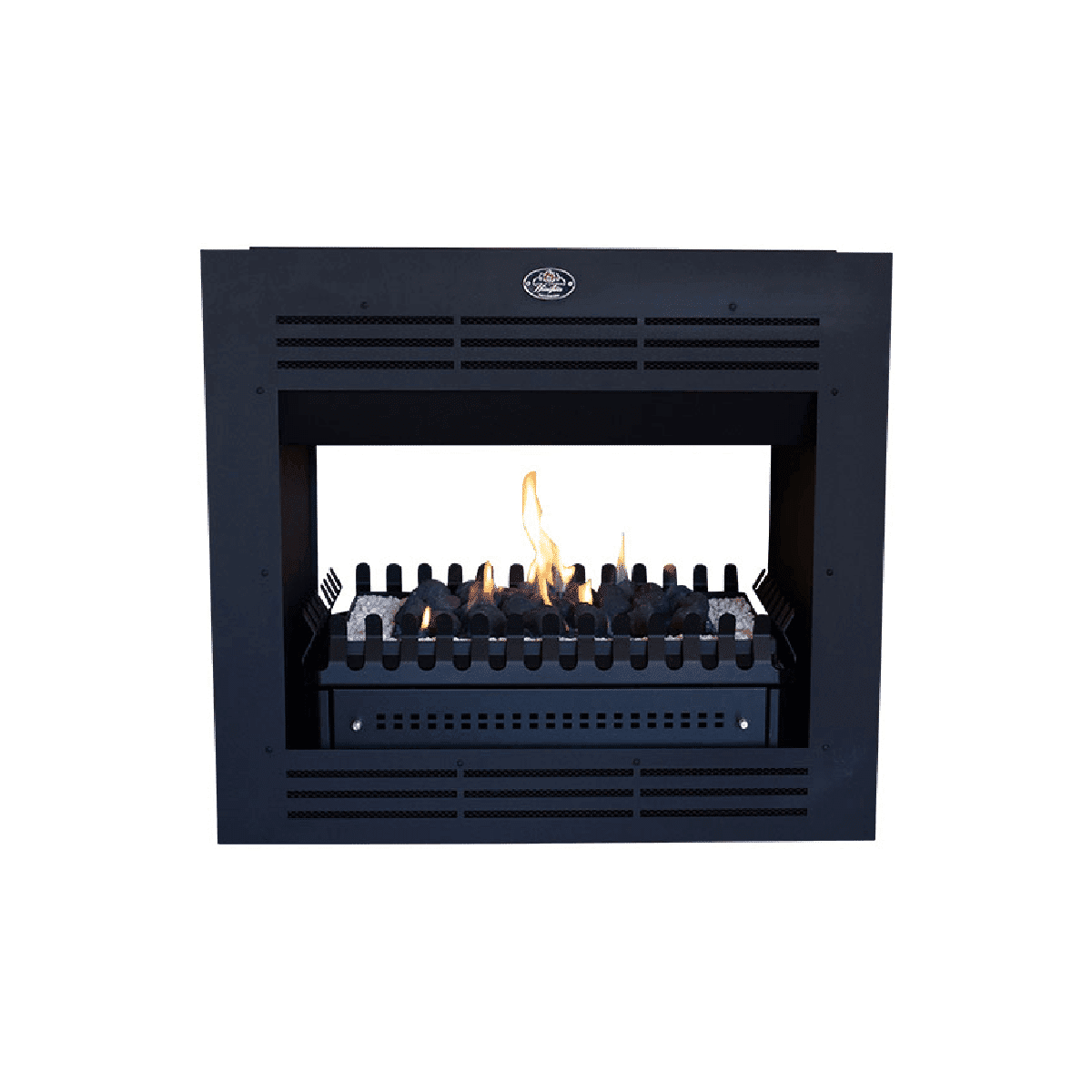

HomeFires Built-in 940 Double sided Firebox Vent Free Fireplace

One gas fire to share between two rooms, seen from both sides.

Original price was: R32,110.00.Current price is: R29,799.00.

Save R2,311
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU GASBVFDBI940+GASGR700VFDOUB

In stock Delivery ETA: 5–7 working days

About your fireplace

Gas
LPG · at most 0.79 kg of gas an hour
Included
Double-sided firebox with a mild-steel body and façade, and the coal gas grate for LPG
Not included
Gas supply, gas connection, building work and installation

Free delivery in Central Gauteng on orders from R5,500. Other areas: delivery cost on request.

How delivery works

DeliveryHow it works

Because most of our products are huge, it’s difficult for us to keep stock of all of them. For this reason, we deliver a lot of our products directly from our suppliers and manufacturers, to offer you a great price and a fresh braai and a warm fireplace.

PRIORITY DELIVERYWe will make sure you are kept in the loop at every single step of the way and we will have your order processed as a priority. Tracking number included.

FREE DELIVERYLook, it’s free but we are unable to provide an exact time or take specific delivery requests as we are at the mercy of our suppliers. We still do our best to deliver as quickly as possible and in most cases we are much quicker than the stated turn around time.

Mail us for any queries.
[email protected]

Your total R29,799.00

Delivery cost to be confirmed.

Get a Quote

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE DOUBLE-SIDED 940

Enjoy the HomeFires 940 Double-sided Vent Free Firebox from two rooms.

Build the HomeFires 940 Double-sided Vent Free Firebox into the wall between two rooms, or into a divider in the middle of the floor, and the same fire glows on both sides. It is an open, vent-free gas firebox, so there is no chimney to build. The coal gas grate is set up for LPG and uses at most 0.79 kg of gas an hour.

  1. Coal gas grate, set up for LPG705 × 460 mm
  2. Open, vent-free fireboxNo flue or chimney
  3. Fire on show from both sidesBetween two rooms or mid-floor
  4. Mild-steel body and façade
  5. Gas useAt most 0.79 kg an hour
HomeFires 940 double-sided gas firebox alight in a wall between lounge and dining room, a family at the dining table seen through the flames

SUPPER ON THE OTHER SIDE

Curl up here, catch supper through the flames.

Settle into the couch while the flames flicker over the coal bed, and watch the family gather round the table on the other side of the fire. Built into the wall between lounge and dining room, one gas fire brings both spaces together on a winter evening.

The dividing wall, furniture, rugs, plants, candles and tableware are not included. Arrange the building work and the gas connection with an independent installer.

A LITTLE PRACTICAL THINKING

Plan the wall, then share the fire.

THE ROOMS

Two rooms, one fire.

Build it into the wall between two rooms, or into a divider in the middle of the floor. Either way, the fire is on show from both sides.

THE GAS

Set up for LPG.

The coal gas grate runs on LPG and uses at most 0.79 kg of gas an hour. Use that figure with your gas installer to plan your gas supply. On natural gas? Ask us first.

THE FIRE

An open fire, no flue.

This is an open, vent-free gas firebox, so there is no chimney to build. Your installer confirms that your rooms and their ventilation suit it before it goes in.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
HomeFires 940 Double-sided Vent Free Firebox dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Façade width × height
940 × 835 mm
Body width × height
765 × 760 mm
Body depth
480 mm
Width across the side housings
870 mm
Façade above the body
50 mm
Façade below the body
25 mm
Side housing depth
205 mm
Side housing setback from the front
135 mm
Coal gas grate width × depth
705 × 460 mm
Material
Mild-steel body and façade

Plan the façade and the side housings together.

The 940 × 835 mm façade sits in front of a body 765 mm wide, 760 mm high and 480 mm deep, and the side housings take the width to 870 mm. These are product dimensions, not a building opening, so have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Build it into the wall between two rooms, or into a divider in the middle of the floor.
  • The fire is on show from both sides.
  • It is an open, vent-free gas firebox, so there is no chimney to build. Your gas installer confirms that your rooms and their ventilation suit it before it goes in.
  • The coal gas grate comes with it, set up for LPG. At most 0.79 kg of gas an hour.
  • If your home runs on natural gas, ask us before you order.
  • The gas supply, the gas connection, building work and installation are not included.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • HomeFires 940 Double-sided Vent Free Firebox
  • Built-in gas fireplace between two rooms: open and vent free, mild-steel body and façade, coal gas grate
  • 01 FRONT VIEW
  • 940 façade width
  • 835 façade height
  • The dashed line is the body behind the façade.
  • 02 SIDE VIEW
  • 50 above
  • 760 body height
  • 25 below
  • 480 body depth
  • Front at the left. The other room at the right.
  • 03 TOP VIEW
  • 50 housing
  • 135 setback
  • 205 housing depth
  • 870 across the housings
  • 765 body width
  • Front at the bottom. The other room at the top.
  • 04 GAS GRATE, FRONT AND TOP
  • 705 wide
  • 460 deep
  • Top view: fingers at the front and the back.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Build it into the wall between two rooms, or into a divider in the middle of the floor.
  • The fire is on show from both sides.
  • It is an open, vent-free gas firebox, so there is no chimney to build. Your gas installer confirms that your rooms
  • and their ventilation suit it before it goes in.
  • The coal gas grate comes with it, set up for LPG. At most 0.79 kg of gas an hour.
  • If your home runs on natural gas, ask us before you order.
  • The gas supply, the gas connection, building work and installation are not included.

GOOD TO KNOW

Plan your setup.

Plan the gas, the wall and both rooms with your installer before you build.

What is included?

The double-sided 940 firebox, with its mild-steel body and façade, and the coal gas grate, set up for LPG. The gas supply, the gas connection, the building work and the installation are not included.

Which gas does it use?

LPG. At its maximum, the coal gas grate uses 0.79 kg of gas an hour.

Can it run on natural gas?

This bundle comes with the LPG coal gas grate. HomeFires also makes natural-gas grates in this range, with their own gas specification. If your home runs on natural gas, ask us before you order.

Does it need a flue or chimney?

No. This is an open, vent-free gas firebox. Your gas installer confirms that your rooms and their ventilation suit the fireplace before it is fitted.

Where can it go?

Build it into the wall between two rooms, or into a divider in the middle of the floor. The fire is on show from both sides.

How big is the gas grate?

The coal gas grate is 705 mm wide and 460 mm deep. It sits inside the firebox and comes with it.

How much space do I need?

The façade is 940 mm wide and 835 mm high. Behind it, the body is 765 mm wide, 760 mm high and 480 mm deep, and the side housings take the width to 870 mm. The façade reaches 50 mm above and 25 mm below the body. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances.

Where are the side housings?

Seen from above, each side housing starts 135 mm back from the front of the body and is 205 mm deep. The right housing stands 50 mm out from the body. Plan the recess around them with your installer.

How big a room will it warm?

Send us the size of the rooms you want to warm. We confirm the right room size for this firebox with HomeFires before you order.

What safety features does it have?

Ask us before you order. We confirm the safety devices of this exact gas grate with HomeFires, and your gas installer checks the setup for your rooms.

What does the guarantee cover?

Ask us for the guarantee terms of this firebox and gas grate before you order.

Can you help with my setup?

Yes. Send a photo and measurements for a product and configuration quote. We do not install, so arrange the building work and the gas connection with an independent gas installer.
