THE ROOM
Space for a long fire.
We recommend the 1200 Drop-In for rooms up to 544 m³ (163 m²). Without permanent ventilation, the room must be at least 210 m³, and it must not be a bedroom, bathroom, toilet or sauna.
Sale!
About your fireplace
- Heat
- 11.4 kW max input · Rooms up to 163 m²
- Included
- Fireplace, burner, black ash and white decorative stones, two vent covers, manual
- Not included
- Non-flammable housing, gas supply pipework and fitting by a SAQCC Gas installer
- Guarantee
- Two years, terms and conditions apply
Chad-O-Chef 1200 Drop-In Fireplace
A long gas fire set into your plinth, with no flue or chimney to build.
From: R17,799.00
Save R1,201In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsLONG, LOW AND FLUELESS
Built into the room, not onto the wall.
The 1200 Drop-In is an indoor gas fireplace with no flue to build. It drops into a non-flammable housing, the body sits out of sight below the frame, and a long line of flame rises from black ash framed by white stones. Press the piezo spark to light it, and an oxygen depletion pilot keeps watch while it burns.
Not for bedrooms, bathrooms, toilets or saunas. Keep a TV and anything combustible away from the space above the fireplace.
- Flueless, with an oxygen depletion pilotFor indoor use
- Piezo spark ignition
- LPG or natural gas, as separate modelsFitted by a SAQCC Gas registered installer
- Two brick-sized vents below the unitIn the non-flammable housing
- Black ash with a white stone surroundAsk us about black coals or fire glass
- Installation manualUnder Plan your setup
STAY A LITTLE LONGER
Long flames for long winter evenings.
Supper's done, the city lights flicker on beyond the glass and the conversation moves to the sofa. A long row of flames dances in the stone plinth, and the lounge end of the open-plan room becomes the place everyone wants to be. Pour one more rooibos and let the evening run late.
The stone plinth and its long grilles, the wall art, furniture and décor are not included. Plan the housing, ventilation and gas connection with a registered gas installer.
PLAN THE ROOM AROUND THE FIRE
Get the room and the housing right.
THE HOUSING
Air from below, flames on top.
The non-flammable housing needs two brick-sized ventilation holes below the unit. The two supplied vent covers finish them neatly, so plan them with the 1,120 × 260 mm cut-out from the start.
THE FINISH
Your frame, your stones.

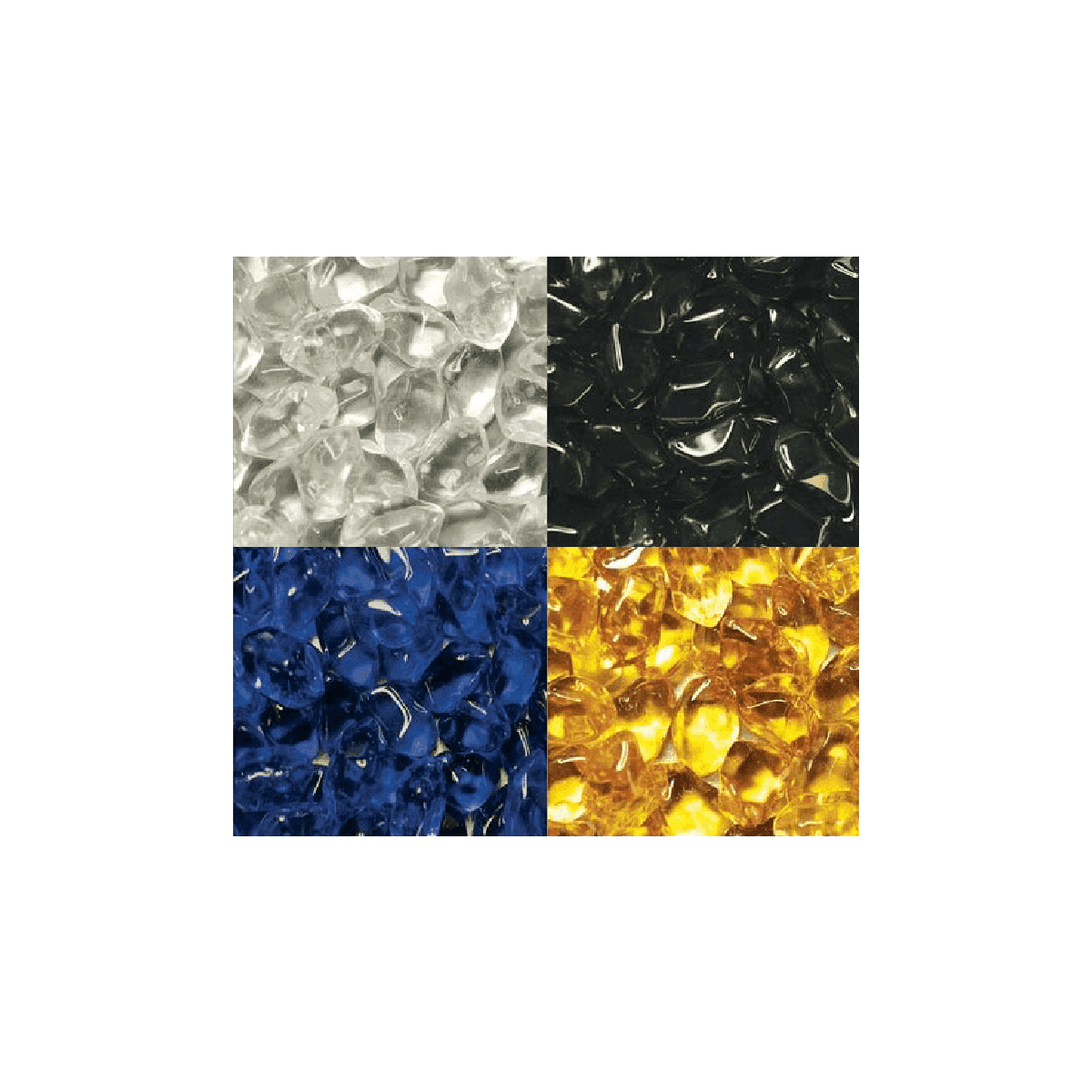

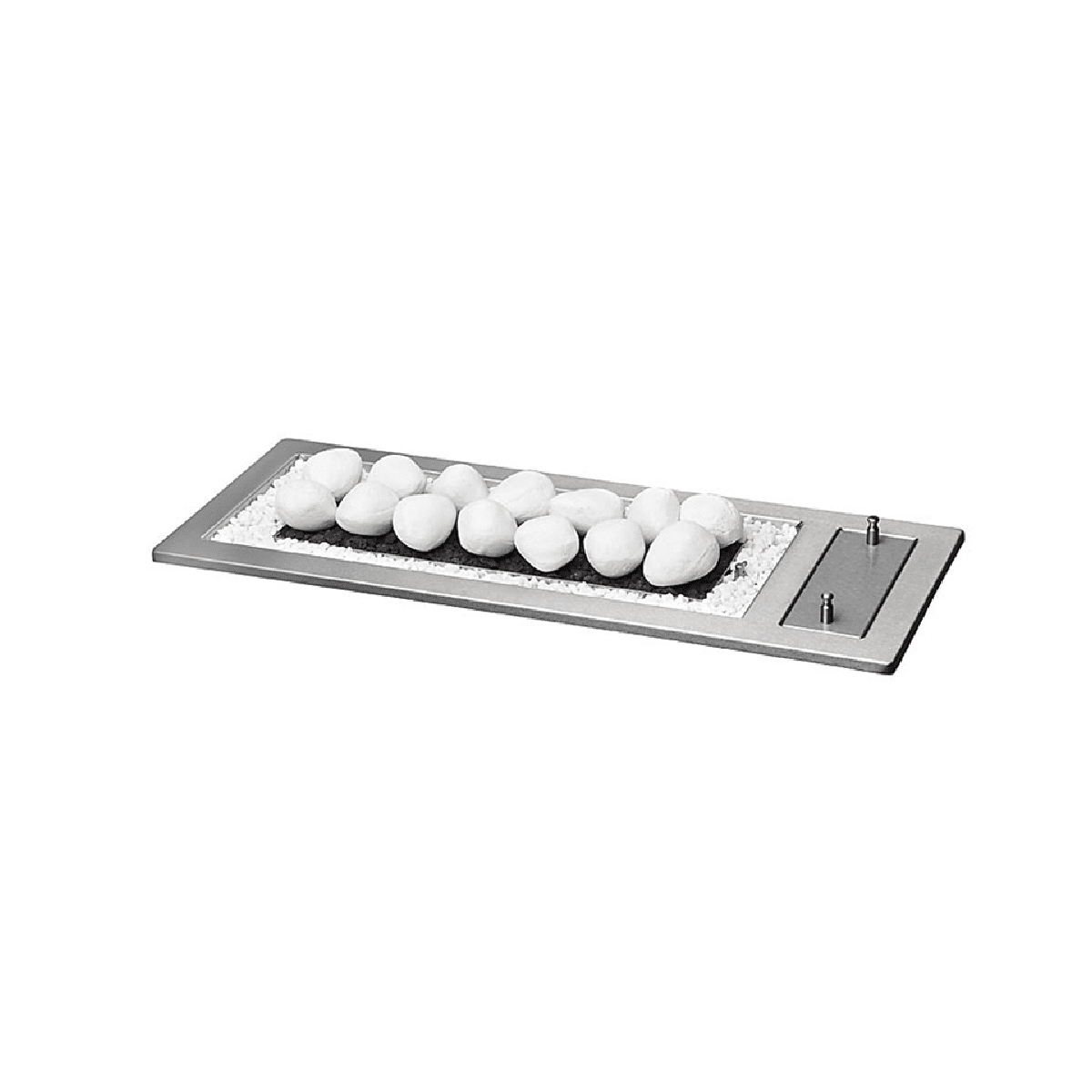

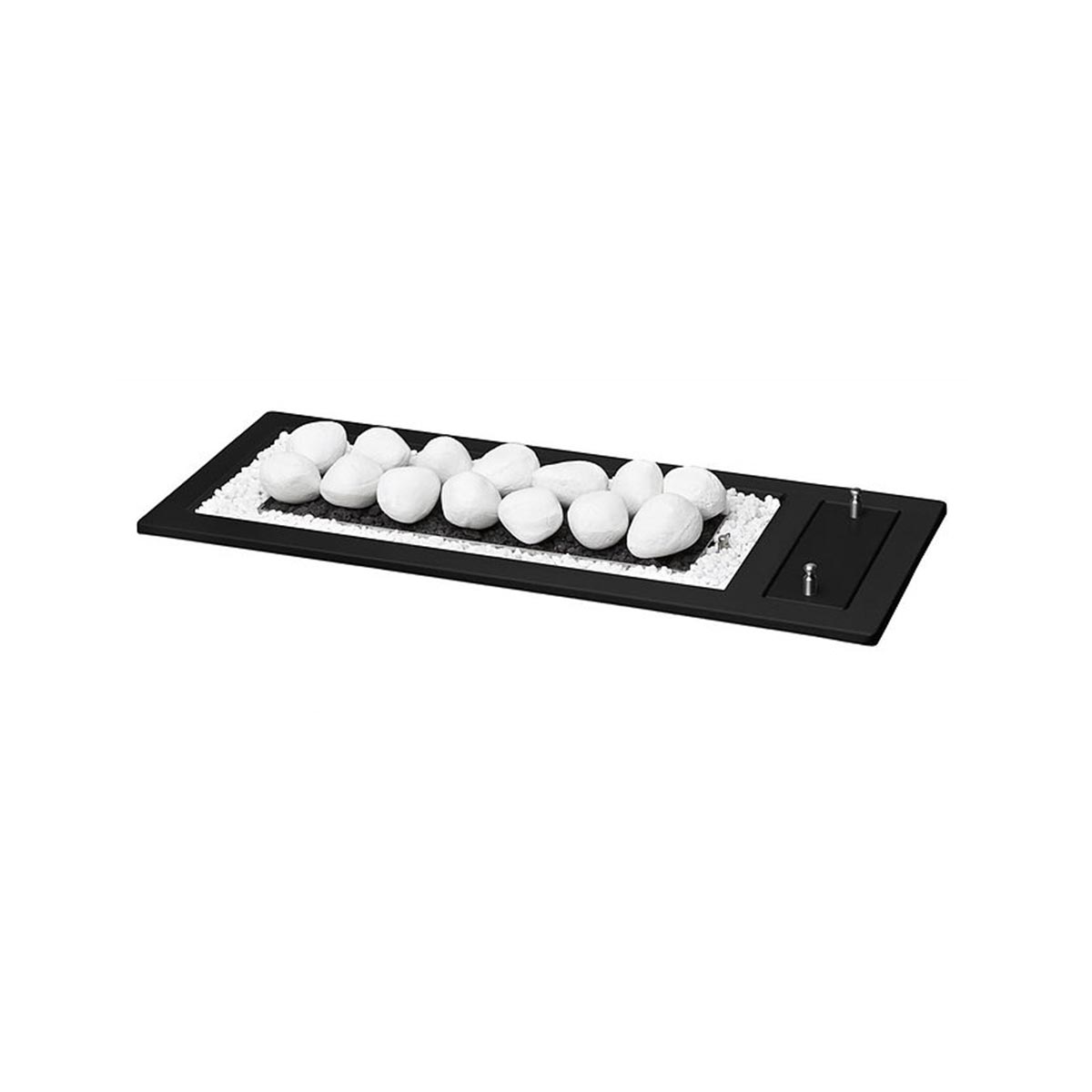

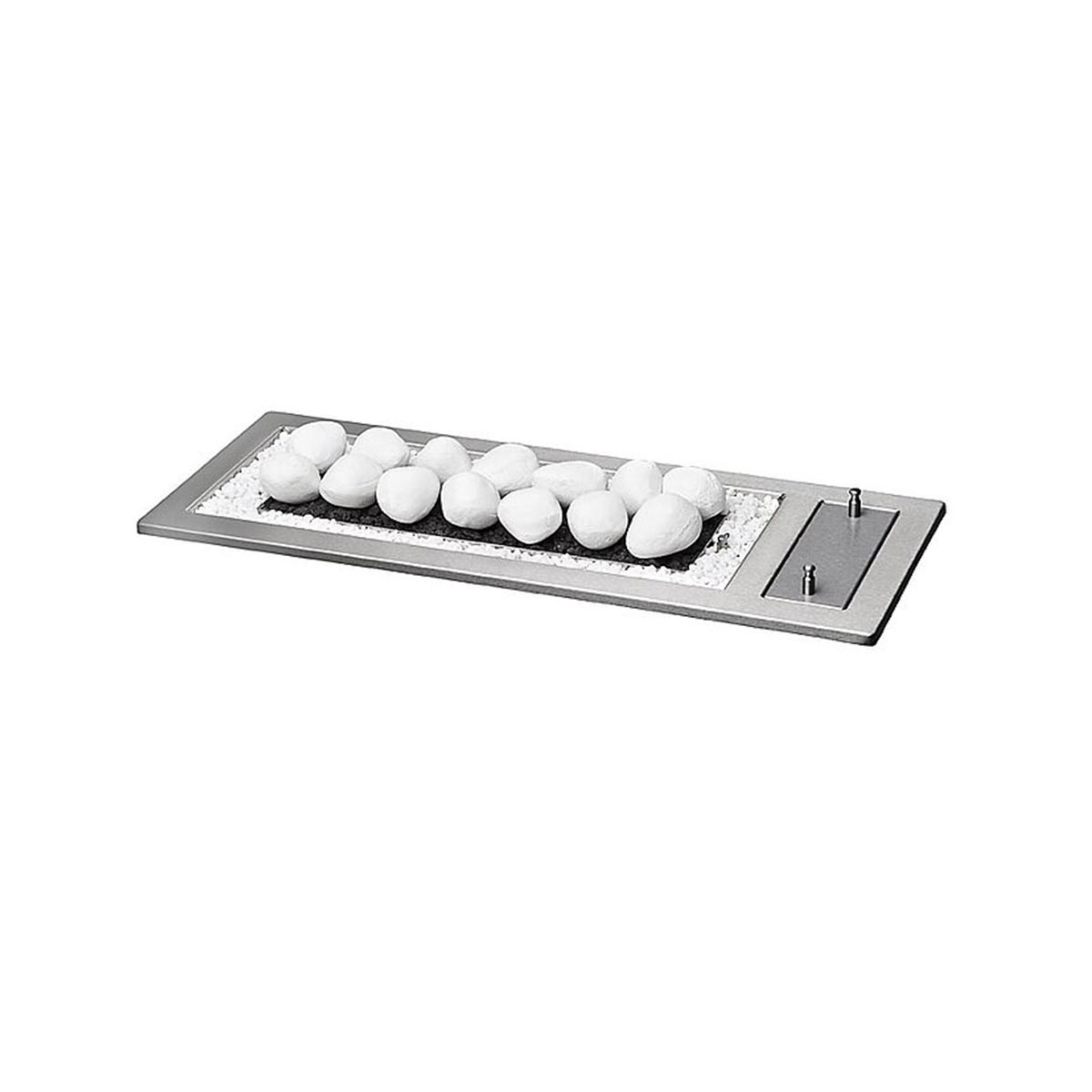

Choose a brushed stainless-steel frame or a matt black mild-steel frame. Black ash with a white stone surround is the standard burner finish, with large black coals or fire glass as alternatives.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Frame width × depth
- 1,180 × 300 mm
- Cut-out width × depth
- 1,120 × 260 mm
- Body height below the frame
- 150 mm
- Body depth below the frame
- 230 mm
- Vent cover width × height, each
- 260 × 110 mm
- Room without permanent ventilation
- At least 210 m³
- Gas
- LPG or natural gas (separate models)
- Ignition
- Piezo spark
- Frame finish
- Brushed stainless or matt black
- Frame material
- Stainless steel or mild steel
Plan the cut-out, housing and air together.
The 1,180 × 300 mm frame sits over a 1,120 × 260 mm cut-out, and the body reaches 150 mm below the frame while the controls stand above it. These are product sizes, not a building plan: your registered gas installer checks the actual unit, the housing and the clearances.

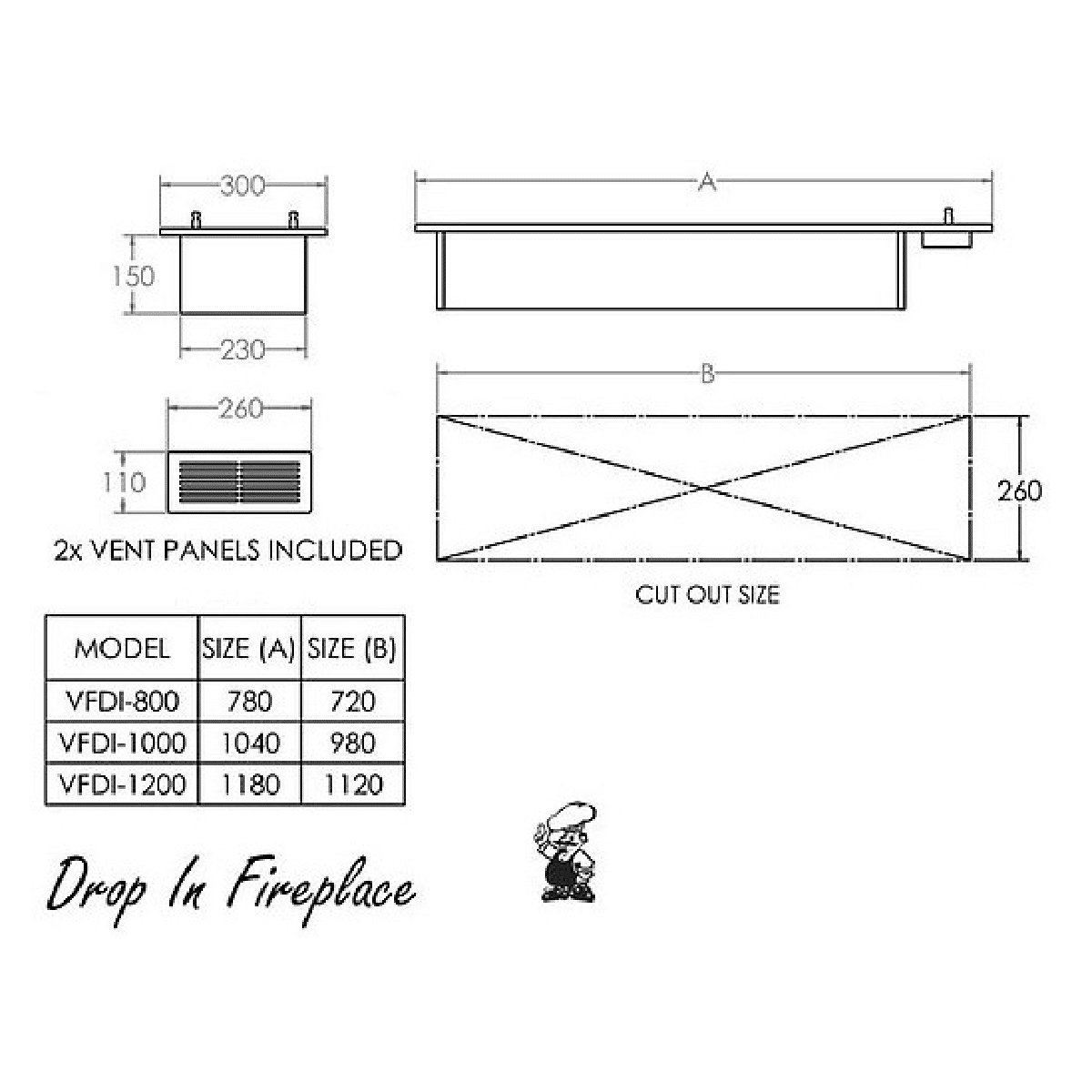

The drawing as text
- ALL SIZES IN MILLIMETRES
- Chad-O-Chef 1200 Drop-In Fireplace
- Drop-in flueless gas fireplace: burner in a stone tray, controls at the right
- 01 FRONT VIEW
- 1,180 frame width
- 02 SIDE VIEW
- 300 frame depth
- 150 below the frame
- 230 body depth
- Front at the right.
- The controls stand
- above the frame.
- 03 TOP VIEW
- 1,180 frame width
- 300 frame depth
- Front at the bottom.
- Controls at the right.
- 04 CUT-OUT IN THE HOUSING
- 1,120 cut-out width
- 260 cut-out depth
- The frame rests on the edge
- of the cut-out.
- 05 VENT COVER (TWO SUPPLIED)
- 260 width
- 110 height
- Two vent covers are supplied.
- The housing must not burn. It needs two brick-sized
- ventilation holes below the unit; the covers finish them.
- 06 CLEARANCES, FRONT (SMALLER SCALE)
- Ceiling
- Floor
- 800 to the ceiling
- 100 each side
- 07 CLEARANCES, SIDE (SMALLER SCALE)
- 1,000 to furniture
- Front at the right.
- PLANNING NOTES
- Keep 500 from curtains and fabric at the sides.
- Keep 100 to the floor, carpet included.
- Do not install it within 500 of an air vent.
- A heat-resistant masonry shelf may be fitted 800 above the fireplace.
- Never put a TV or other electrical equipment above it, and nothing that can burn.
- Without permanent ventilation the room must be at least 210 m³.
- For a smaller room, your gas installer must plan permanent ventilation.
- Do not install it in a bedroom, bathroom, toilet or sauna.
- A gas installer registered with SAQCC Gas must install it.
- Gas connection: Ø8 compression inlet.
GOOD TO KNOW
Plan your setup.
Read the instruction manual with your gas installer before you plan the plinth.
What is included?
The 1200 Drop-In fireplace with the frame you choose, the burner, the decorative stones (black ash for the burner and white stones around it), two vent covers and the instruction manual. The non-flammable housing, the gas supply pipework and the installation are not included.
Which gas does it use?
Chad-O-Chef makes the 1200 Drop-In for LPG, with a separate model for natural gas. Confirm your gas type with us before you order. The LPG model uses at most 0.84 kg of gas an hour, at an operating pressure of 2.8 kPa; the natural-gas model works at 2.1 kPa.
What size room is it for?
We recommend it for rooms up to 544 m³ (163 m²); the right size depends on insulation, building materials and climate. Without permanent ventilation, the room must be at least 210 m³.
Does it need a flue or chimney?
No. It is an indoor flueless gas fireplace, so there is no flue or chimney to build. An oxygen depletion system on the pilot (ODS min 18.5% oxygen) is part of its safety setup. Check the room and ventilation answers below before you choose its place.
Which rooms can it go in?
Not in a bedroom, bathroom, toilet or sauna. Without permanent ventilation, the room must be at least 210 m³; for a smaller room, your gas installer must plan permanent ventilation. We also recommend that it is not installed within 500 mm of any air vent.
How is it installed?
It drops into a 1,120 × 260 mm cut-out in a non-flammable housing. The housing needs two brick-sized ventilation holes below the unit, and the two vent covers finish them. A gas installer registered with SAQCC Gas for your gas type installs it and connects the gas at the 8 mm compression inlet.
How much clear space does it need?
To combustible materials, keep at least 100 mm at the sides (500 mm to curtains and fabric), 800 mm to the ceiling, 100 mm to the floor, carpet included, and 1,000 mm to combustible furniture in front. Your installer follows the full manual.
Can I put a shelf or a TV above it?
A heat-resistant masonry shelf may be fitted 800 mm above the fireplace. Never put a TV or other electrical equipment above it, and keep anything that can burn away from the space above the fire.
Which frame and stones can I choose?
Choose a brushed stainless-steel or a matt black mild-steel frame on this page: each fireplace comes with one frame. Black ash with a white stone surround is the standard burner finish. Large black coals or fire glass are alternatives, so ask us before you order.
What does the guarantee cover?
The fireplace has a two-year Chad-O-Chef guarantee, subject to its terms and conditions. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and measurements for a product and configuration quote. We do not install, so arrange installation with an independent gas installer, registered with SAQCC Gas.
