THE OUTLET
Top or rear exit.
Choose a top or rear outlet to suit your duct route. Both use a 200 × 200 mm ducting exit.
About your product
- Included
- Hood, grease filter, drip tray, light fitting
- Not included
- Extractor motor, ducting, mock flue, damper, weather dome
- Guarantee
- 3 years

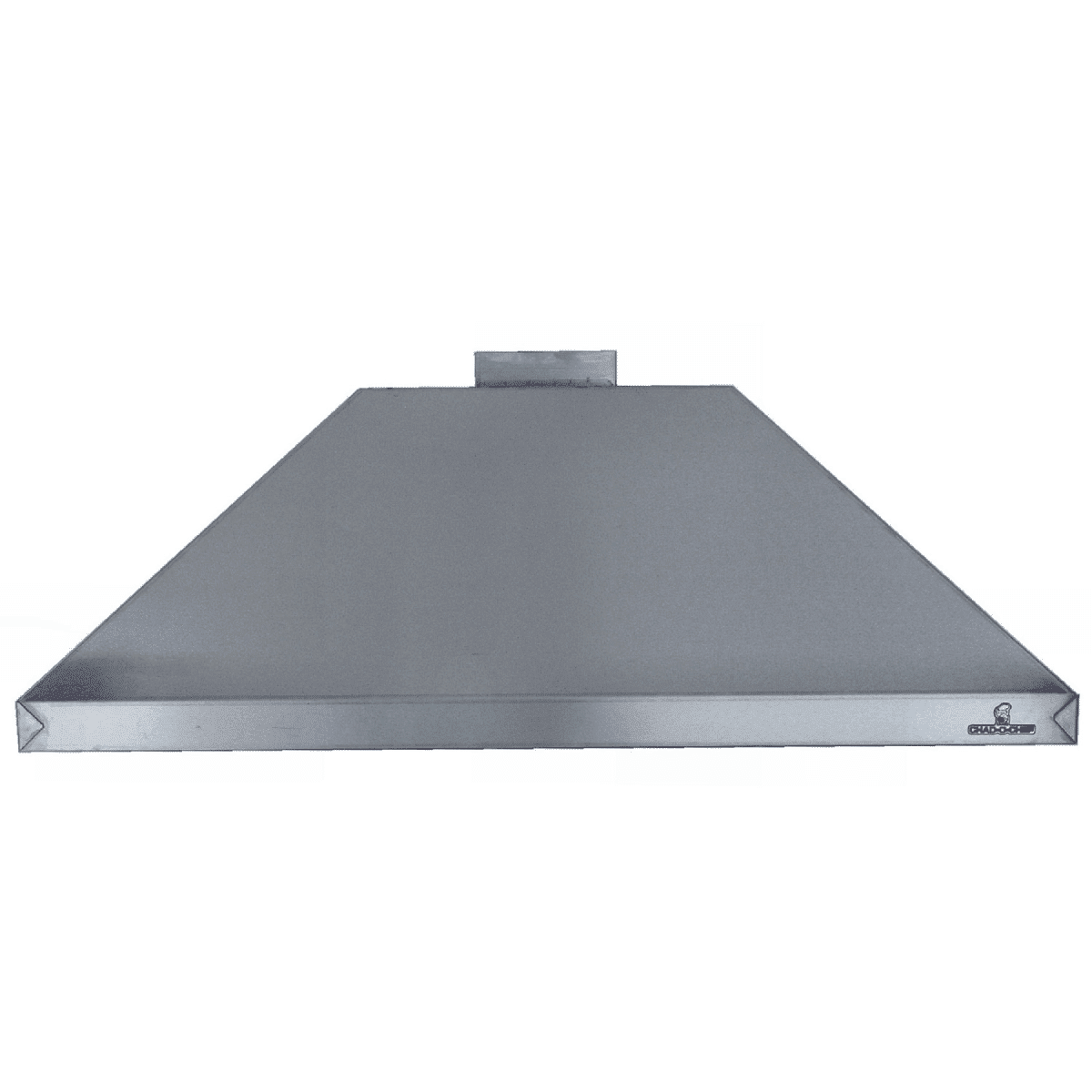

Chad-O-Chef Wall Mounted Extractor Hood 1250
A wall-mounted stainless-steel hood that draws smoke away from your gas braai.
From: R16,899.00
In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsPART OF YOUR EXTRACTION SYSTEM
Draw the smoke up and away.
Mount the hood on the wall above your gas braai and it gathers the cooking smoke before it drifts over your guests. A grease filter and a drip tray catch the fat, and the light fitting shines on the grill when the braai runs into the evening. Pair it with the extractor motor and ducting that suit your space.
- Grease filter and drip trayCatch the fat
- Light fittingLights up the grill
- 200 × 200 mm ducting exitTop or rear, as you choose
- Extractor motor and ductingSold separately
- Installer confirms mounting height and duct route
COOK UNDER COVER
Keep the cooking area together.
Plan a cooking corner under the patio roof, with the hood drawing smoke up and out while the food cooks and the conversation carries on around the counter.
The gas braai, counter, motor, ducting, mock flue and furniture are not included. Have an installer confirm the mounting height, wall support and duct route.
A LITTLE PRACTICAL THINKING
Plan the whole extraction system.
THE GRADE
Inland or coastal steel.
Inland grade 304 stainless steel suits general conditions. Coastal grade 316 is made for severely corrosive conditions, such as near the sea.
THE SYSTEM
Add the motor and ducting.
The hood collects the smoke; an extractor motor and ducting carry it outside. The motor, ducting, mock flue, damper and weather dome are sold separately, so ask us for a configuration quote.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Width × depth
- 1,250 × 630 mm
- Height
- 430 mm
- Flat top width
- 510 mm
- Ducting exit
- 200 × 200 mm
- Outlet
- Top or rear
- Stainless steel grade
- Inland 304 or coastal 316
Plan the hood, motor and duct route together.
The hood is 1,250 mm wide, 630 mm deep and 430 mm high. These are product dimensions; have an installer confirm the mounting height, wall support, braai coverage, motor capacity and duct route.

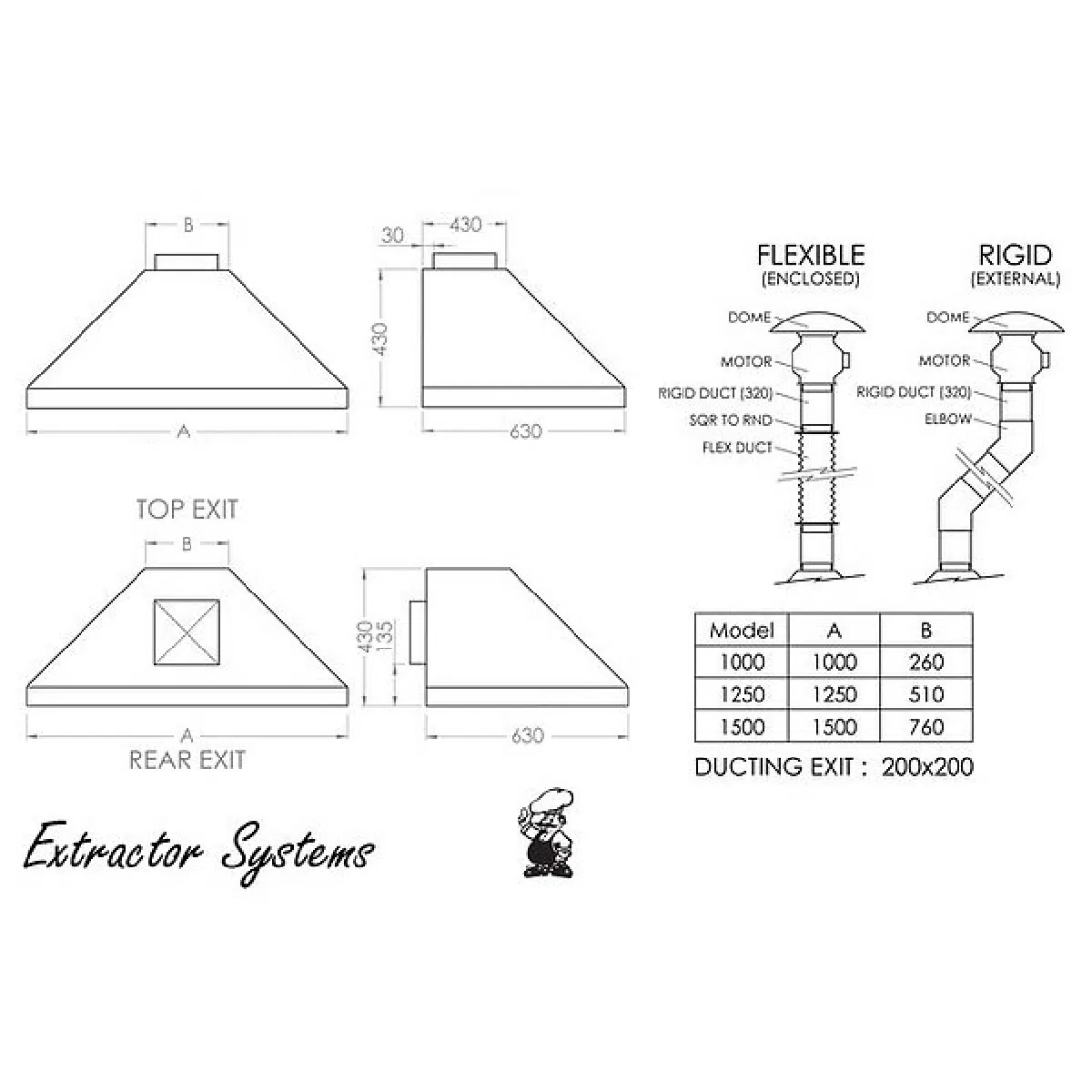

The drawing as text
- ALL SIZES IN MILLIMETRES
- Chad-O-Chef Wall Mounted Extractor Hood 1250
- Stainless-steel hood for above a gas braai; top or rear duct exit, motor sold separately
- 01 TOP EXIT, FRONT VIEW
- 510 top width
- 200 duct
- 1,250 width
- 430 height
- 02 TOP EXIT, SIDE VIEW
- 200 duct
- 630 depth
- 430 height
- Wall at the left. Front at the right.
- 03 REAR EXIT, FRONT VIEW
- 200 duct
- 200 duct
- Dashed: the duct exit in the back of the hood.
- 04 REAR EXIT, SIDE VIEW
- 200 duct
- 630 depth
- Wall at the left. The duct exit is at the back.
- PLANNING NOTES
- The hood goes on the wall above a gas braai and collects the cooking smoke.
- It comes with a grease filter, a drip tray and a light fitting.
- Choose a top or a rear duct exit. The duct exit is 200 × 200.
- The motor, the ducting, the mock flue, the damper and the weather dome are not included.
- The installer must confirm the mounting height, the wall support, the braai coverage, the motor and the duct route.
GOOD TO KNOW
Plan your setup.
Plan the hood, motor and ducting together before you build.
What is included?
The 1,250 mm wall-mounted hood in your chosen steel grade, with a grease filter, a drip tray and a light fitting. The ducting, mock flue, extractor motor, damper and weather dome are sold separately.
Is the extractor motor included?
No. The motor, ducting, mock flue, damper and weather dome are separate system components. Send us your braai size, the height to the ceiling and your duct route for a configuration quote.
Top or rear outlet: which do I need?
Choose the outlet that suits your duct route: top for ducting straight up, rear for ducting through the wall behind the hood. Both have a 200 × 200 mm ducting exit.
How big is it?
The hood is 1,250 mm wide, 630 mm deep from the wall and 430 mm high. The top section that carries the outlet is 510 mm wide.
Which steel grade should I choose?
Inland grade 304 stainless steel suits general conditions. Coastal grade 316 is made for severely corrosive conditions, such as near the sea.
Will it suit my braai?
Chad-O-Chef designed the hood to extract the smoke from gas braais. Its size alone does not decide how well it extracts: have an installer check the mounting height, how well the hood covers the braai and the motor capacity for your space.
How is it mounted?
It mounts on the wall above the braai. Have an installer confirm that the wall can carry it and set the mounting height for your braai.
Can you help with my setup?
Send a photo and measurements of your braai area for a product and configuration quote. Arrange installation with an independent installer; we do not provide installation services.
