Homefires 1200 Combo Built-in Braai (With 3 burner insert)

Light the gas for a fast supper or build a fire for a long one, in one built-in braai.

From: Original price was: R29,660.00.Current price is: R27,899.00.

Save R1,761

SKU BRAAIB1200COMBO+GASBRSH9903FLAT+TABLECOMBO580S

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

TWO WAYS TO BRAAI

Gas for weeknights.
Coals for weekends.

On a busy evening, press the piezo ignition and cook on three gas burners under stainless round-bar grids. When the weekend comes, light wood or charcoal in the table braai and settle in for a proper fire. Hang a potjie on the hook, empty the ash drawer when it's cold, and close the doors on a tidy braai.

  1. Homefires 9903 flat-top gas grillerThree cast-iron burners, stainless steel
  2. Stainless round-bar grids and vaporiser platesDrip tray and dust cover lid
  3. Model 580 table braai for wood or charcoalGrid, potjie hook, removable ash drawer
  4. 3 mm mild-steel body with top and bottom doorsBlack finish
  5. Light fitting, insulation material, touch-up paint
  6. Installation manualUnder Plan your setup
Homefires 1200 Combo Built-in Braai in a packed-stone wall, three mielies on the grid over glowing coals, the gas griller off, aloes in flower beside it

MIELIES OVER THE COALS

Mielies on the coals.
The gas can wait.

Midday sun on the stone wall, aloes in flower and a basket of fresh mielies on the counter. Today the coals do the cooking: three mielies turn slowly on the grid and the first ones are already in a bowl on the table. The gas griller stays ready for the chops later on.

The stone wall, counters, plants, basket, table, chairs, food and tableware are not included. Plan the flue, gas connection and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Keep every round coming.

THE GAS

Three burners, one click.

Three cast-iron burners sit under stainless round-bar grids, and the piezo ignition lights them without matches. Stainless vaporiser plates and a drip tray sit below, and the dust cover lid keeps the griller clean between braais.

THE FIRE

A proper fire when there's time.

The table braai takes wood or charcoal under a 550 × 460 mm grid that you can set at the height the fire needs. Hang a potjie on the hook for something slow, and pull out the removable ash drawer once the ash is cold.

THE BUILD

Neat when the braai is over.

The body is 3 mm mild steel with a black finish. Top and bottom doors close the front when you're done, and the light fitting keeps the braai going after dark.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

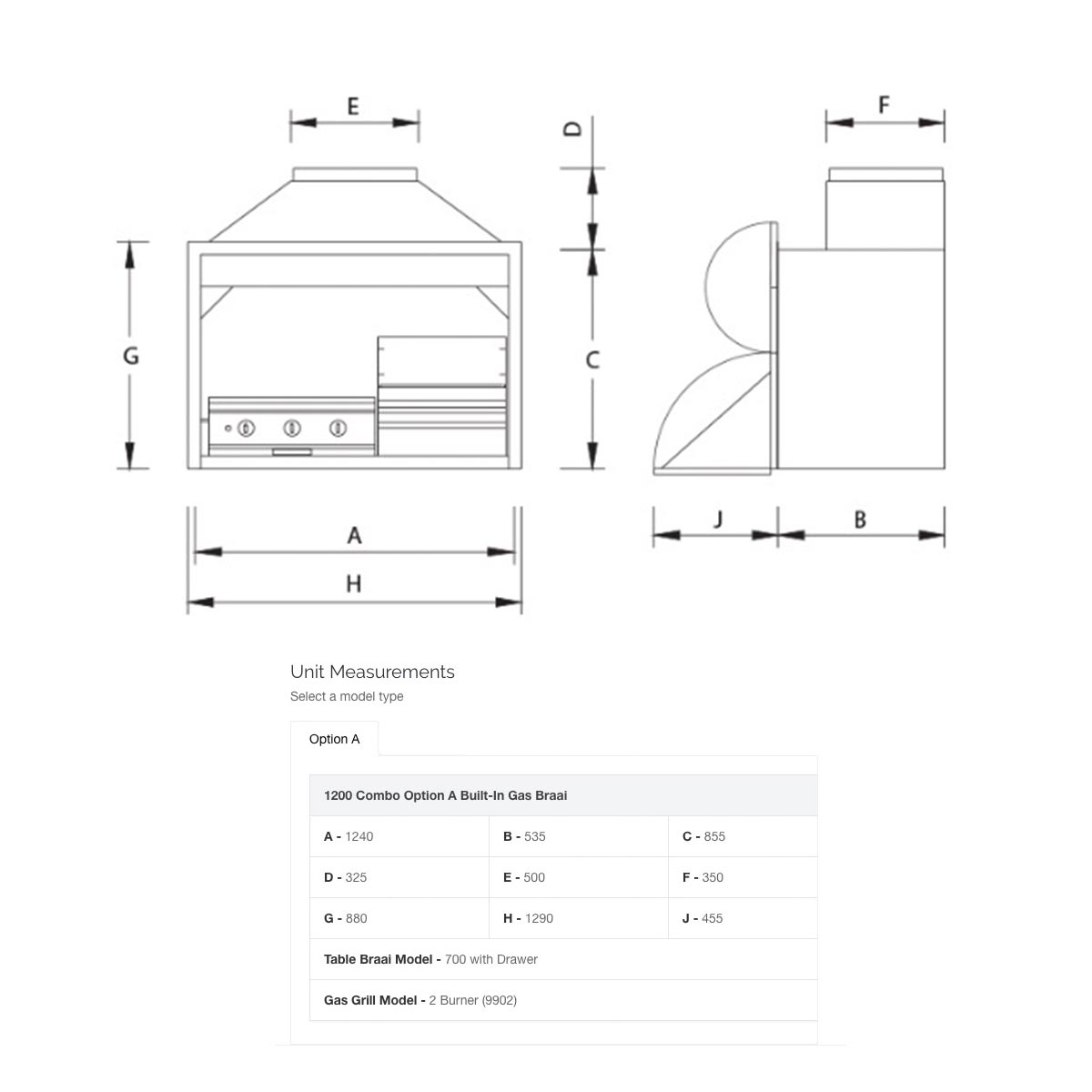

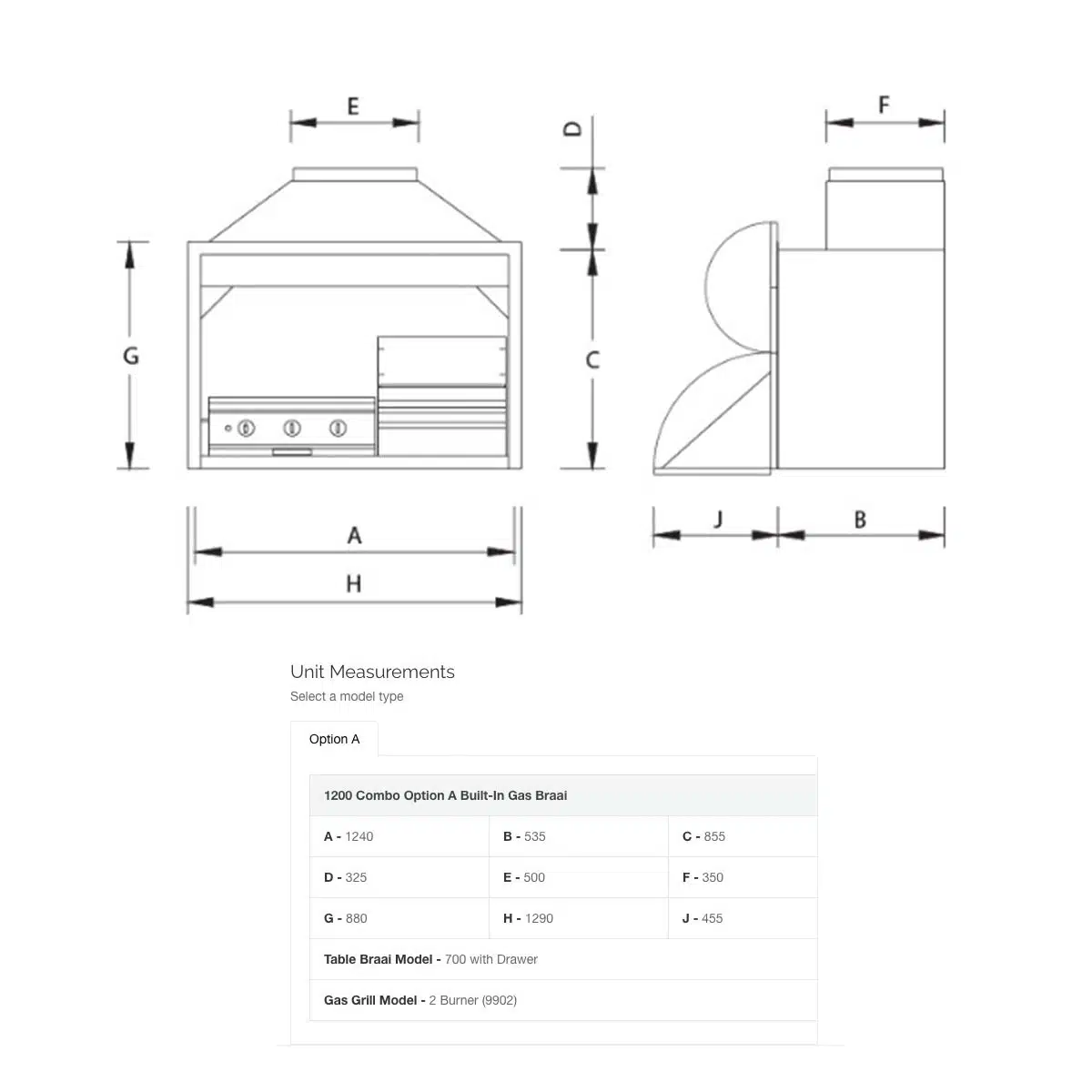

Homefires 1200 Combo 3 Burner Built-in Braai dimension drawing: front, side and top views and clearances, in millimetres.
Download the dimension drawing
Body width
1,240 mm
Body height, without the gather
855 mm
Gather above the body
325 mm
Front frame width × height
1,290 × 880 mm
Gather outlet width × depth
500 × 350 mm
Open lower door, in front of the body
455 mm
Gas griller depth × height
500 × 222 mm
Charcoal grid width × depth
550 × 460 mm
Table braai width × depth
580 × 480 mm
Material
3 mm mild steel, black

Confirm the depth before you build.

Ask us to confirm the body depth before you plan the recess. The 855 mm body height does not include the 325 mm gather or the flue, and these are product dimensions, not a building opening.

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1200 Combo Built-in Braai with 3 Burner Insert
  • Built-in braai: a 3-burner gas griller and a model 580 table braai for wood or charcoal
  • 01 FRONT VIEW
  • 500 gather outlet
  • 880 frame height
  • 550 charcoal grid
  • 580 table braai
  • 1,240 body width
  • 1,290 including frame
  • 02 SIDE VIEW
  • 350 outlet depth
  • 455 door open
  • Front at the right. Lower door open.
  • Ask us for the body depth before you build.
  • 325 gather
  • 855 body
  • 03 TOP VIEW
  • 500 gather outlet
  • 350 outlet depth
  • 1,290 including frame
  • Front at the bottom. White: the gather outlet.
  • 04 CLEARANCES (SMALLER SCALE)
  • 250 side
  • 250 side
  • 1,500 above the cooking surface
  • The gas griller from the front.
  • No combustible material inside the dashed line.
  • 05 GAS GRILLER FROM THE FRONT
  • 222 high
  • A 3-burner griller, model 9903.
  • 06 GAS GRILLER FROM THE SIDE
  • 500 depth
  • 222 high
  • Front at the right.
  • 07 TABLE BRAAI FROM THE FRONT
  • 580 width
  • 430 high
  • 08 TABLE BRAAI FROM ABOVE
  • 580 width
  • 480 depth
  • 460 grid
  • 550 charcoal grid
  • Front at the bottom.
  • 09 GAS GRID PANELS
  • 397 grid panels
  • 347 grid
  • 200 grid
  • Front at the bottom. Two grid panels.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 455 in front of the body: keep this space clear.
  • The body is 3 mm mild steel with a black finish.
  • Included: top and bottom doors, a light fitting, insulation material and touch-up paint.
  • The gas griller needs a registered gas installer and a completion certificate.
  • The table braai has a height-adjustable grid, a potjie hook and a removable ash drawer.
  • The flue pipe (500 x 350), the collar and the cowl are options and are sold separately.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 1200 Combo braai: a black 3 mm mild-steel body with top and bottom doors, a Homefires 9903 stainless-steel flat-top gas griller with three burners, and a model 580 table braai for wood or charcoal with a grid and a removable ash drawer. A potjie hook, a light fitting, insulation material and touch-up paint come with it. The flue pipe, collar and cowl are optional add-ons.

Which fuel can I use?

Gas on the gas griller, and wood or charcoal in the table braai. The two sections cook separately.

Which gas does it use?

It is listed for LPG at 2.8 kPa. There's also a natural-gas setting of 2.0 kPa, but only Homefires can convert the griller, so tell us which gas you have before you order. The 9903 griller has a listed heat output of 10.5 kW. That figure is for cooking, not for heating a room.

How much cooking space is there?

The charcoal grid is 550 × 460 mm, and you can adjust its height over the coals. The gas griller has two stainless round-bar grid panels, one of 347 × 397 mm and one of 200 × 397 mm. The potjie hook takes a potjie for slow cooking.

Is the flue included?

No. The flue pipe, collar and cowl are optional add-ons that you can choose on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.

Where does the flue connect?

At the outlet on top of the gather. The gather rises 325 mm above the body, and the outlet is 500 × 350 mm. The Homefires flue parts on this page have a nominal size of 500 × 350 mm. Homefires' installation guidance gives a minimum chimney height of 2,500 mm.

How much space do I need?

The body is 1,240 mm wide and 855 mm high, and the gather rises 325 mm above it. The front frame is 1,290 mm wide and 880 mm high, and the open lower door reaches 455 mm in front of the body. Ask us to confirm the body depth before you build. Homefires' guidance leaves a 20 mm expansion gap at the sides and the back. These are product dimensions, not a building opening.

How far must the gas griller be from combustible materials?

Keep 250 mm at the sides of the griller and 1,500 mm above the cooking surface. Your installer applies these together with the braai's own installation instructions.

Can I get it in stainless steel?

The version on this page has the standard body: mild steel with a black finish. Homefires also makes the body in 3CR12 or 304 stainless steel as a special order, so ask us for a quote if you would like one.

How do I look after it?

Touch-up paint comes with the braai, so you can refresh small marks on the black finish. Empty the ash drawer once the ash is cold, put the dust cover lid on the griller after use, and read the instruction manual for use and care.

What does the guarantee cover?

The firebox has a 15-year Homefires guarantee against faulty workmanship or material under normal use. Replaceable parts are not covered, and maintenance, corrosion and installation exclusions apply. The gas griller has its own 12-month Homefires warranty from the date of purchase, subject to its conditions. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product, gas and flue configuration quote. We do not install. It needs a registered gas installer and a completion certificate, so arrange the installation and the gas connection with an independent, registered installer.
