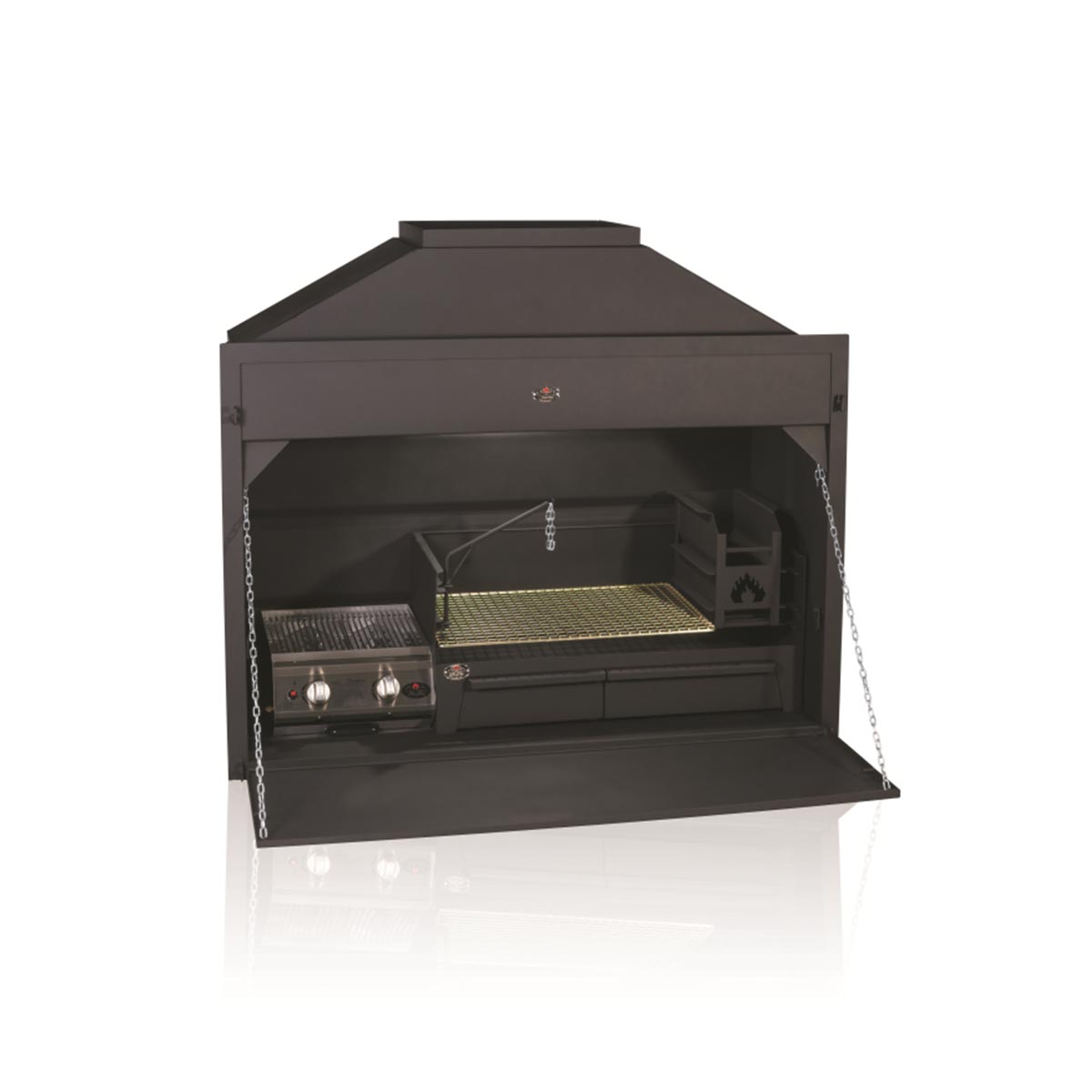

Homefires 1500 Combo Built-in Braai (With 2 burner insert)

Gas for the quick things, wood and coals for the slow ones, all in one built-in braai.

From: Original price was: R32,750.00.Current price is: R30,799.00.

Save R1,951

SKU BRAAIBGAS186+GASBRSH9902FLAT+TABLEB1000DRAWER

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

TWO FIRES, ONE BRAAI

Quick gas, slow coals.
One braai for both.

Press the piezo ignition and the gas griller is ready when supper needs to be quick. When there's time, build a fire in the ember maker of the table braai and rake fresh coals under the grid. Hang a potjie on the hook, switch on the light as the sun goes down, and close the doors once the last plate is cleared.

  1. Homefires 9902 flat-top gas grillerTwo cast-iron burners, stainless steel
  2. Stainless round-bar grids and vaporiser platesDrip tray and dust cover lid
  3. Model 1000 table braai for wood or charcoalEmber maker, drawers, removable ash drawer
  4. 3 mm mild-steel body with top and bottom doorsBlack finish
  5. Light fitting, insulation material, touch-up paint
  6. Installation manualUnder Plan your setup
Homefires 1500 Combo Built-in Braai in a sandstone wall under thatch, a man turning chicken pieces on the gas griller, salad on the table

LUNCH UNDER THE THATCH

Chicken on the gas.
Lunch on the table.

Late morning under the thatch, a few chicken pieces go onto the gas griller while the table braai waits, clean and ready for a fire later in the day. A salad and the first plate of chicken are already on the table, and nobody is in a hurry to leave.

The stone wall, thatched roof, counters, table, chairs, plants, food, drinks and tableware are not included. Plan the flue, gas connection and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Two fires, one easy evening.

THE GAS

Supper in a hurry.

Two cast-iron burners sit under stainless round-bar grids, and the piezo ignition lights them without matches. Stainless vaporiser plates and a drip tray sit below the grids, and the dust cover lid keeps the griller clean between braais.

THE FIRE

Coals when you need them.

Burn wood in the ember maker and rake fresh coals under the 750 × 460 mm grid, then set the grid at the height the fire needs. Hang a potjie on the hook for something slow, and empty the removable ash drawer once the ash is cold.

THE BUILD

Neat when the braai is over.

The body is 3 mm mild steel with a black finish. Top and bottom doors close the front when you're done, and the light fitting keeps the braai going after dark.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

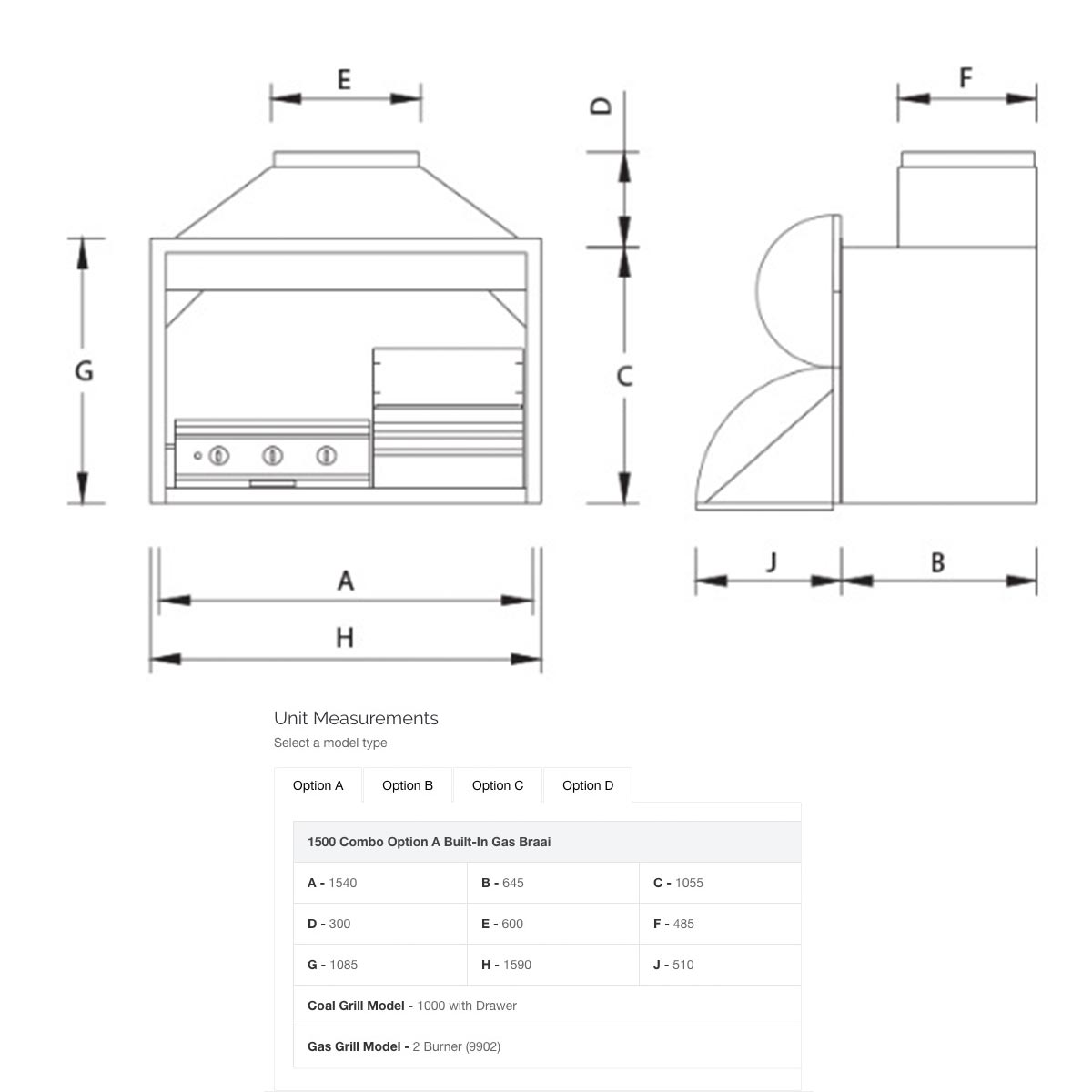

Homefires 1500 Combo 2 Burner Built-in Braai dimension drawing: front, side and top views and clearances, in millimetres.
Download the dimension drawing
Body width × depth
1,540 × 645 mm
Body height, without the gather
1,055 mm
Gather above the body
300 mm
Front frame width × height
1,590 × 1,085 mm
Gather outlet width × depth
600 × 500 mm
Open lower door, in front of the body
510 mm
Gas griller width × depth
410 × 500 mm
Charcoal grid width × depth
750 × 460 mm
Weight
280 kg
Material
3 mm mild steel, black

Plan the body, gather and flue together.

The 1,055 mm body height does not include the 300 mm gather or the flue. These are product dimensions, not a building opening, so have your installer check the actual unit, the open door and the gas clearances.

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1500 Combo Built-in Braai with 2 Burner Insert
  • Built-in braai: a 2-burner gas griller and a model 1000 table braai for wood or charcoal
  • 01 FRONT VIEW
  • 600 gather outlet
  • 1,085 frame height
  • 750 charcoal grid
  • 1,000 table braai
  • 410 griller
  • 1,540 body width
  • 1,590 including frame
  • 02 SIDE VIEW
  • 500 outlet depth
  • 645 body depth
  • 510 door open
  • Front at the right. Lower door open.
  • 300 gather
  • 1,055 body
  • 03 TOP VIEW
  • 600 gather outlet
  • 500 outlet depth
  • 1,590 including frame
  • Front at the bottom. White: the gather outlet.
  • 04 CLEARANCES (SMALLER SCALE)
  • 645 body depth
  • 250 side
  • 250 side
  • 1,500 above the cooking surface
  • The gas griller from the front.
  • No combustible material inside the dashed line.
  • 05 GAS GRILLER FROM THE FRONT (LARGER SCALE)
  • 410 width
  • 222 high
  • A 2-burner griller, model 9902.
  • 06 GAS GRILLER FROM THE SIDE (LARGER SCALE)
  • 500 depth
  • 222 high
  • Front at the right.
  • 07 TABLE BRAAI FROM THE FRONT
  • 1,000 width
  • 530 high
  • 08 TABLE BRAAI FROM ABOVE
  • 1,000 width
  • 480 depth
  • 460 grid
  • 750 charcoal grid
  • Front at the bottom.
  • 09 GAS GRID PANELS (LARGER SCALE)
  • 397 grid panels
  • 200 grid
  • 200 grid
  • Front at the bottom. Two grid panels.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 510 in front of the body: keep this space clear.
  • The body is 3 mm mild steel with a black finish.
  • Included: top and bottom doors, a light fitting, insulation material and touch-up paint.
  • The gas griller needs a registered gas installer and a completion certificate.
  • The table braai has a height-adjustable grid, a potjie hook, a removable ash drawer, an ember maker and drawers.
  • The flue pipe (600 x 500), the collar and the cowl are options and are sold separately.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 1500 Combo braai: a black 3 mm mild-steel body with top and bottom doors, a Homefires 9902 stainless-steel flat-top gas griller with two burners, and a model 1000 table braai for wood or charcoal with a grid, an ember maker, drawers and a removable ash drawer. A potjie hook, a light fitting, insulation material and touch-up paint come with it. The flue pipe, collar and cowl are optional add-ons.

Which fuel can I use?

Gas on the gas griller, and wood or charcoal in the table braai. The two sections cook separately. Burn wood in the ember maker for fresh coals as you cook.

Which gas does it use?

It is listed for LPG at 2.8 kPa. There's also a natural-gas setting of 2.0 kPa, but only Homefires can convert the griller, so tell us which gas you have before you order. The 9902 griller has a listed heat output of 7 kW. That figure is for cooking, not for heating a room.

How much cooking space is there?

The charcoal grid is 750 × 460 mm, and you can adjust its height over the coals. The gas griller has two stainless round-bar grid panels of 200 × 397 mm each. The potjie hook takes a potjie for slow cooking alongside.

Is the flue included?

No. The flue pipe, collar and cowl are optional add-ons that you can choose on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.

Where does the flue connect?

At the outlet on top of the gather. The gather rises 300 mm above the body, and the outlet is 600 × 500 mm. The Homefires flue parts on this page have a nominal size of 600 × 500 mm. Homefires' installation guidance gives a minimum chimney height of 2,500 mm.

How much space do I need?

The body is 1,540 mm wide, 645 mm deep and 1,055 mm high, and the gather rises 300 mm above it. The front frame is 1,590 mm wide and 1,085 mm high, and the open lower door reaches 510 mm in front of the body. Homefires' guidance leaves a 20 mm expansion gap at the sides and the back. These are product dimensions, not a building opening.

How far must the gas griller be from combustible materials?

Keep 250 mm at the sides of the griller and 1,500 mm above the cooking surface. Your installer applies these together with the braai's own installation instructions.

Can I get it in stainless steel?

The version on this page has the standard body: mild steel with a black finish. Homefires also makes the body in 3CR12 or 304 stainless steel as a special order, so ask us for a quote if you would like one.

How do I look after it?

Touch-up paint comes with the braai, so you can refresh small marks on the black finish. Empty the ash drawer once the ash is cold, put the dust cover lid on the griller after use, and read the instruction manual for use and care.

What does the guarantee cover?

The firebox has a 15-year Homefires guarantee against faulty workmanship or material under normal use. Replaceable parts are not covered, and maintenance, corrosion and installation exclusions apply. The gas griller has its own 12-month Homefires warranty from the date of purchase, subject to its conditions. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product, gas and flue configuration quote. We do not install. It needs a registered gas installer and a completion certificate, so arrange the installation and the gas connection with an independent, registered installer.
