Homefires 1500 Combo Built-in Braai (With 3 burner deep insert)

Gas for a quick meal. Coals when you have time.

From: Original price was: R41,480.00.Current price is: R38,999.00.

Save R2,481
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU BRAAIBGAS186+GASBRSS0183FLAT+TABLEB1500COMBO-1

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

GAS AND FIRE, SIDE BY SIDE

Quick gas meals.
Slow wood fires.

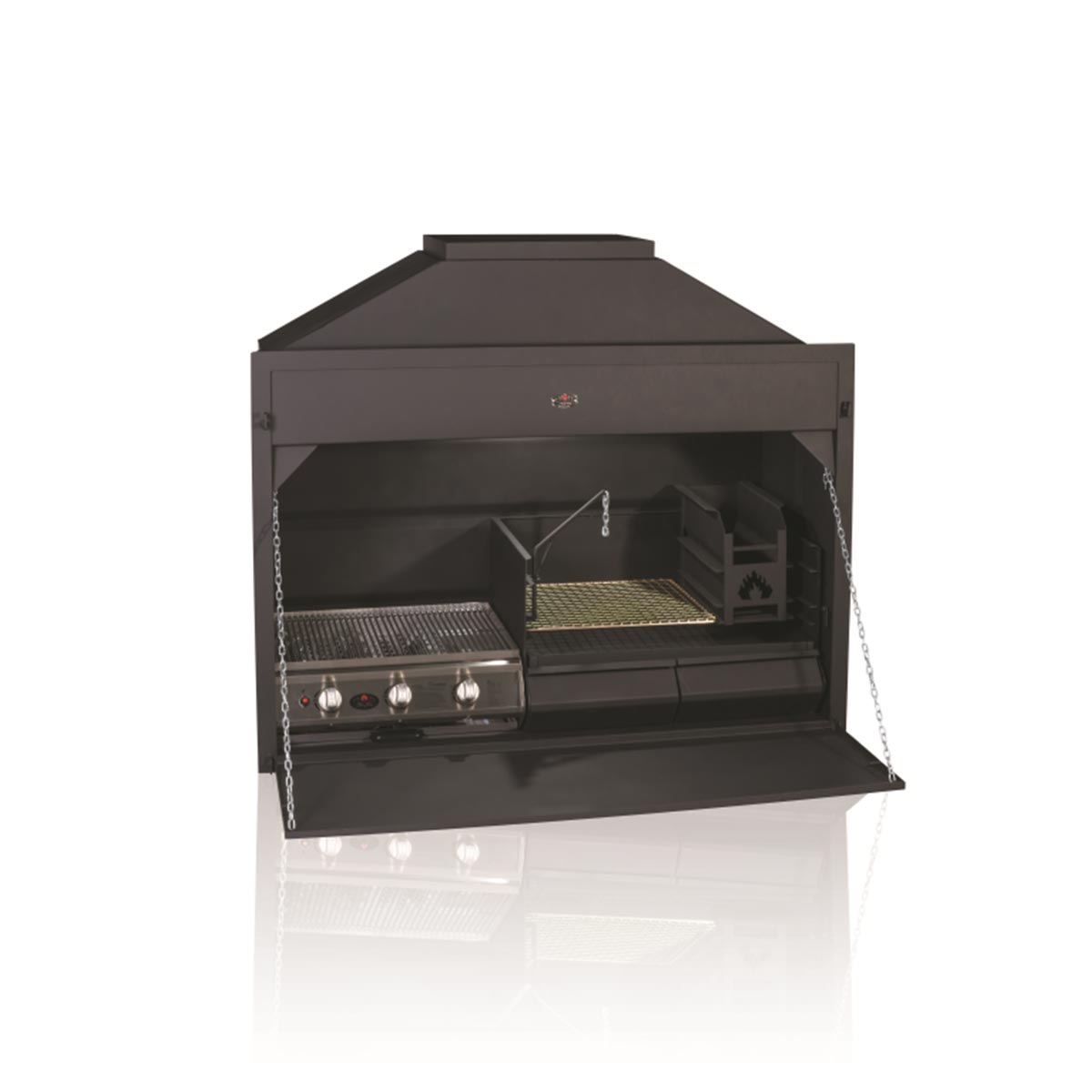

On the Homefires 1500 Combo Braai 3 Burner, light the deep gas insert on the left, with its own controls, for a quick dinner. When there's time, make a fire in the wood and charcoal section on the right: the ember maker keeps fresh coals coming for the adjustable grid, and the potjie hook waits for something slow. Ash drawers below make clean-up simple.

  1. Three-burner deep gas insertOwn controls, on the left
  2. Ember maker and height-adjustable gridIn the charcoal section, on the right
  3. Wood and charcoal go in the right-hand section only
  4. Removable ash drawersBelow the charcoal section
  5. Insulation and touch-up paintIn the box
  6. Installation manualUnder Plan your setup
Homefires 1500 Combo Braai 3 Burner built into a plastered patio wall above stacked logs, a long table set for dinner as a man and a boy carry plates

MAKE YOURSELF AT HOME OUTSIDE

Two ways to make a meal.

Start with a quick gas lunch, or take your time around a wood fire. On a long Saturday, use both: steaks on the gas while a potjie simmers over the coals.

Surround, chimney, counters, gas supply, furniture and food are not included. Arrange gas fitting with a registered gas installer and have an independent installer confirm the support and installation.

GAS AND FIRE, SIDE BY SIDE

Choose how you cook today on the Homefires 1500 Combo Braai 3 Burner.

GAS

Ready for a quick meal.

The three-burner deep flat-top gas grill sits on the left with its own controls. Light it for a quick weeknight meal, with no wait for coals.

WOOD & CHARCOAL

Make time for the fire.

The charcoal section on the right has an ember maker, a height-adjustable 550 × 460 mm grid and a potjie hook. Keep wood and charcoal in this section only, not on the gas burners.

THE ASH

Ash drawers below.

Removable ash drawers sit beneath the charcoal section. Empty them once the ash is cold.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

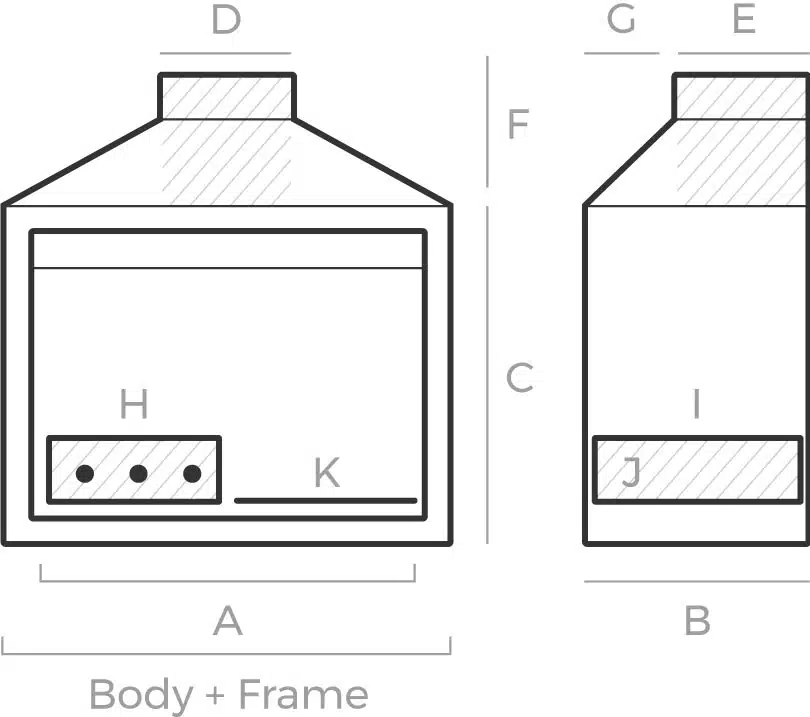

Homefires 1500 Combo Braai 3 Burner dimension drawing, page 1 of 3: front and side views, in millimetres.
Page 1 of 3
Body width × depth
1,540 × 645 mm
Body height
1,055 mm
Front frame width × height
1,590 × 1,085 mm
Gather above the body
300 mm
Flue outlet width × depth
600 × 485 mm
Open door projection
510 mm
Three-burner gas insert · width × depth
660 × 600 mm
Charcoal section · width × depth
820 × 620 mm
Charcoal grid
550 × 460 mm
Material
Black mild steel · stainless-steel gas insert

Plan the body, frame and gather together.

Body and gather heights add to 1,355 mm before the flue, and the finished surround hides the gather. These sizes are for this three-burner model and are not a building opening; have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The body is 1,540 × 645 × 1,055 mm, with 300 mm gather rise and a 1,590 × 1,085 mm frame.
  • Do not let the finished brickwork stick out past the front flange.
  • Leave a 20 mm gap between the body and the brickwork, at the sides and the back.
  • The lower door opens 510 mm in front of the body.
  • The left section has a three-burner deep gas insert with its own controls.
  • Have a registered gas installer fit the gas insert.
  • Solid fuel belongs in the charcoal section.
  • Included: the three-burner deep gas grill and the charcoal table section.
  • Also included: a height-adjustable grid, an ember maker and a potjie hook.
  • Also included: ash drawers, and top and bottom doors.
  • Plan and select the flue components separately for the actual route and the 600 × 485 mm outlet.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1500 Combo Braai with 3 Burner Deep Insert
  • Built-in braai: a three-burner deep gas insert and a separate charcoal section
  • 01 FRONT VIEW
  • 600 flue outlet
  • 1,085 frame height
  • 550 cooking grid
  • 660 gas insert
  • 820 charcoal section
  • 1,540 body width
  • 1,590 including frame
  • Gas insert at the left, charcoal section at the right.
  • 02 SIDE VIEW, DOOR OPEN
  • 485 flue outlet
  • 645 body depth
  • 510 door open
  • 300 gather
  • 1,055 body
  • Front at the right. Lower door open.
  • 03 TOP VIEW WITH THE FLUE OUTLET
  • 600 flue outlet
  • 485 flue outlet
  • 1,540 body width
  • Front at the bottom. White: the flue outlet.
  • 04 CHARCOAL COOKING GRID
  • 645 body depth
  • 550 width
  • 460 depth
  • Front at the bottom.
  • 05 GAS INSERT FROM THE FRONT (LARGER SCALE)
  • 660 width
  • 222 high
  • Three main burners, with their own controls.
  • 06 GAS INSERT FROM THE SIDE (LARGER SCALE)
  • 600 depth
  • 222 high
  • Front at the right.
  • 07 CHARCOAL SECTION, FRONT (LARGER SCALE)
  • 820 width
  • 570 high
  • Ember maker at the right, potjie hook at the left.
  • 08 CHARCOAL SECTION, SIDE (LARGER SCALE)
  • 620 depth
  • 570 high
  • Front at the right.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The body is 1,540 × 645 × 1,055 mm, with 300 mm gather rise and a 1,590 × 1,085 mm frame.
  • Do not let the finished brickwork stick out past the front flange.
  • Leave a 20 mm gap between the body and the brickwork, at the sides and the back.
  • The lower door opens 510 mm in front of the body.
  • The left section has a three-burner deep gas insert with its own controls.
  • Have a registered gas installer fit the gas insert.
  • Solid fuel belongs in the charcoal section.
  • Included: the three-burner deep gas grill and the charcoal table section.
  • Also included: a height-adjustable grid, an ember maker and a potjie hook.
  • Also included: ash drawers, and top and bottom doors.
  • Plan and select the flue components separately for the actual route and the 600 × 485 mm outlet.

GOOD TO KNOW

Plan your setup.

Plan the surround, flue route and gas supply together before building starts.

Read the instruction manual

What is included?

The three-burner deep flat-top gas grill and the charcoal table braai section, with a height-adjustable grid, an ember maker, removable ash drawers, top and bottom doors, a potjie hook, a light fitting, insulation material and touch-up paint. Flue parts, the cowl and the gas supply are not included.

Which fuel goes where?

Gas in the three-burner grill on the left. Wood or charcoal only in the charcoal section on the right, where the ember maker is. Don't put solid fuel on the gas burners.

How big are the two cooking sections?

The gas insert is 660 mm wide, 600 mm deep and 222 mm high. The charcoal section is 820 mm wide, 620 mm deep and 570 mm high, with a 550 × 460 mm height-adjustable grid.

Who connects the gas?

Arrange gas work with a registered gas installer. They confirm the supply, regulator, ventilation and pipe route for the three-burner grill. We provide product and configuration quotes; we do not install.

Is the flue included?

No. Flue pipes and the cowl are sold separately. The flue outlet is 600 × 485 mm. Send a photo and measurements for a flue and configuration quote.

How much space do I need?

The body is 1,540 mm wide, 645 mm deep and 1,055 mm high, and the gather rises 300 mm above it. The front frame is 1,590 mm wide and 1,085 mm high, and the door projects 510 mm when open. These sizes are for the three-burner model. Have your installer check the actual unit, the opening and safe clearances before building.

Can it be installed indoors?

Homefires built-in braais are listed for indoor or outdoor installation. Your installer must follow the installation manual that comes with the unit. Indoors or out, the braai needs suitable masonry support, a correctly designed chimney and the right ventilation for the gas grill. Have a registered gas installer and an independent installer confirm the location.

How do I look after the finish?

Touch-up paint comes with the braai, so you can refresh small marks on the black mild steel. Keep the braai dry and empty cold ash regularly.

What does the guarantee cover?

The firebox has a 15-year Homefires guarantee from the date of purchase against faulty workmanship or materials, including warping, when the fire is made in the ember maker or the ash pan. The grid, ember maker, ash pan and other replaceable parts are not covered, and neither is rust from missing maintenance, misuse or water leaks, or damage from incorrect installation. Keep the braai painted and maintained. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote; we can include a visual preview. Arrange installation with an independent installer and the gas work with a registered gas installer.
