THE ROOMS
Two rooms, one fire.
Build it into the wall between two rooms, or into a divider in the middle of the floor. Either way, the fire is on show from both sides.
Sale!
HomeFires Built-in 940 Double sided Firebox Vent Free Fireplace
One gas fire to share between two rooms, seen from both sides.
Original price was: R32,110.00.R29,799.00Current price is: R29,799.00.
Save R2,311In stock Delivery ETA: 5–7 working days
About your fireplace
- Gas
- LPG · at most 0.79 kg of gas an hour
- Included
- Double-sided firebox with a mild-steel body and façade, and the coal gas grate for LPG
- Not included
- Gas supply, gas connection, building work and installation
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE DOUBLE-SIDED 940
One fire.
Two rooms to enjoy it.

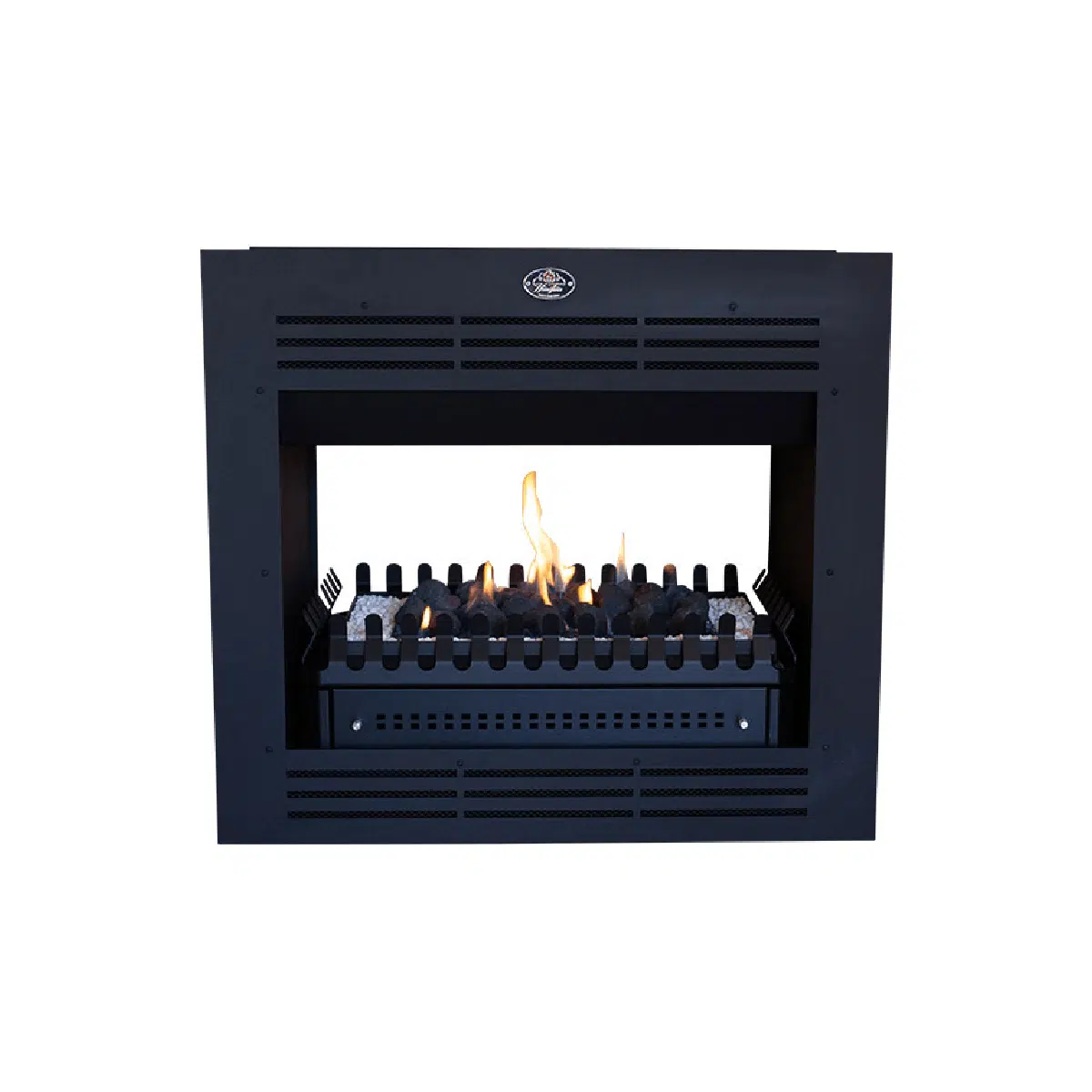

Build the 940 into the wall between two rooms, or into a divider in the middle of the floor, and the same fire glows on both sides. It is an open, vent-free gas firebox, so there is no chimney to build. The coal gas grate is set up for LPG and uses at most 0.79 kg of gas an hour.
- Coal gas grate, set up for LPG705 × 460 mm
- Open, vent-free fireboxNo flue or chimney
- Fire on show from both sidesBetween two rooms or mid-floor
- Mild-steel body and façade
- Gas useAt most 0.79 kg an hour
SUPPER ON THE OTHER SIDE
Curl up here, catch supper through the flames.
Settle into the couch while the flames flicker over the coal bed, and watch the family gather round the table on the other side of the fire. Built into the wall between lounge and dining room, one gas fire brings both spaces together on a winter evening.
The dividing wall, furniture, rugs, plants, candles and tableware are not included. Arrange the building work and the gas connection with an independent installer.
A LITTLE PRACTICAL THINKING
Plan the wall, then share the fire.
THE GAS
Set up for LPG.
The coal gas grate runs on LPG and uses at most 0.79 kg of gas an hour. Use that figure with your gas installer to plan your gas supply. On natural gas? Ask us first.
THE FIRE
An open fire, no flue.
This is an open, vent-free gas firebox, so there is no chimney to build. Your installer confirms that your rooms and their ventilation suit it before it goes in.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Façade width × height
- 940 × 835 mm
- Body width × height
- 765 × 760 mm
- Body depth
- 480 mm
- Width across the side housings
- 870 mm
- Façade above the body
- 50 mm
- Façade below the body
- 25 mm
- Side housing depth
- 205 mm
- Side housing setback from the front
- 135 mm
- Coal gas grate width × depth
- 705 × 460 mm
- Material
- Mild-steel body and façade
Plan the façade and the side housings together.
The 940 × 835 mm façade sits in front of a body 765 mm wide, 760 mm high and 480 mm deep, and the side housings take the width to 870 mm. These are product dimensions, not a building opening, so have your installer check the actual unit and safe clearances.

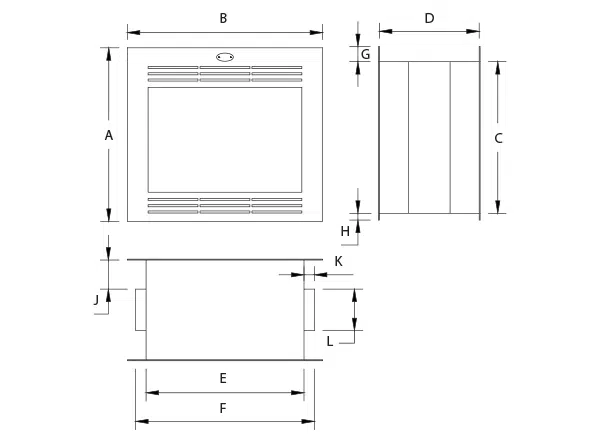

The drawing as text
- HomeFires 940 double-sided gas firebox. All dimensions in mm.
- Front: façade width B 940 mm
- Front: façade height A 835 mm
- Side: body depth D 480 mm
- Side: body height C 760 mm
- Side: façade above the body G 50 mm
- Side: façade below the body H 25 mm
- Plan: body width E 765 mm
- Plan: width across the side housings F 870 mm
- Plan: side housing setback from the front J 135 mm
- Plan: right side housing projection K 50 mm
- Plan: side housing depth L 205 mm
GOOD TO KNOW
Plan your setup.
Plan the gas, the wall and both rooms with your installer before you build.
What is included?
The double-sided 940 firebox, with its mild-steel body and façade, and the coal gas grate, set up for LPG. The gas supply, the gas connection, the building work and the installation are not included.
Which gas does it use?
LPG. At its maximum, the coal gas grate uses 0.79 kg of gas an hour.
Can it run on natural gas?
This bundle comes with the LPG coal gas grate. HomeFires also makes natural-gas grates in this range, with their own gas specification. If your home runs on natural gas, ask us before you order.
Does it need a flue or chimney?
No. This is an open, vent-free gas firebox. Your gas installer confirms that your rooms and their ventilation suit the fireplace before it is fitted.
Where can it go?
Build it into the wall between two rooms, or into a divider in the middle of the floor. The fire is on show from both sides.
How big is the gas grate?
The coal gas grate is 705 mm wide and 460 mm deep. It sits inside the firebox and comes with it.
How much space do I need?
The façade is 940 mm wide and 835 mm high. Behind it, the body is 765 mm wide, 760 mm high and 480 mm deep, and the side housings take the width to 870 mm. The façade reaches 50 mm above and 25 mm below the body. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances.
Where are the side housings?
Seen from above, each side housing starts 135 mm back from the front of the body and is 205 mm deep. The right housing stands 50 mm out from the body. Plan the recess around them with your installer.
How big a room will it warm?
Send us the size of the rooms you want to warm. We confirm the right room size for this firebox with HomeFires before you order.
What safety features does it have?
Ask us before you order. We confirm the safety devices of this exact gas grate with HomeFires, and your gas installer checks the setup for your rooms.
What does the guarantee cover?
Ask us for the guarantee terms of this firebox and gas grate before you order.
Can you help with my setup?
Yes. Send a photo and measurements for a product and configuration quote. We do not install, so arrange the building work and the gas connection with an independent gas installer.
