The all new Chad-O-Chef Flame FireBlade Fire Pit features includes:
- Gas Type: LPG
- Operating Pressure: 2,8 kPa
- Min Regulator size: 4kg/hr
- Max. mJ input: 41mJ/hr
- Max. kW input: 11.4 kW/hr
- Gas inlet connection: 8mm Comp.
- Ignition: Piezo Spark
- ODS (Pilot Jet): min 18.5% O2
- Gas logs: 5
Options include:
- Finish – Diamond Black glass or Log set plus Ceramic Ash.
- Add-on; Fire Blade or Curved Blade in either – Mild steel, Corten (Rustic) steel or Stainless steel.

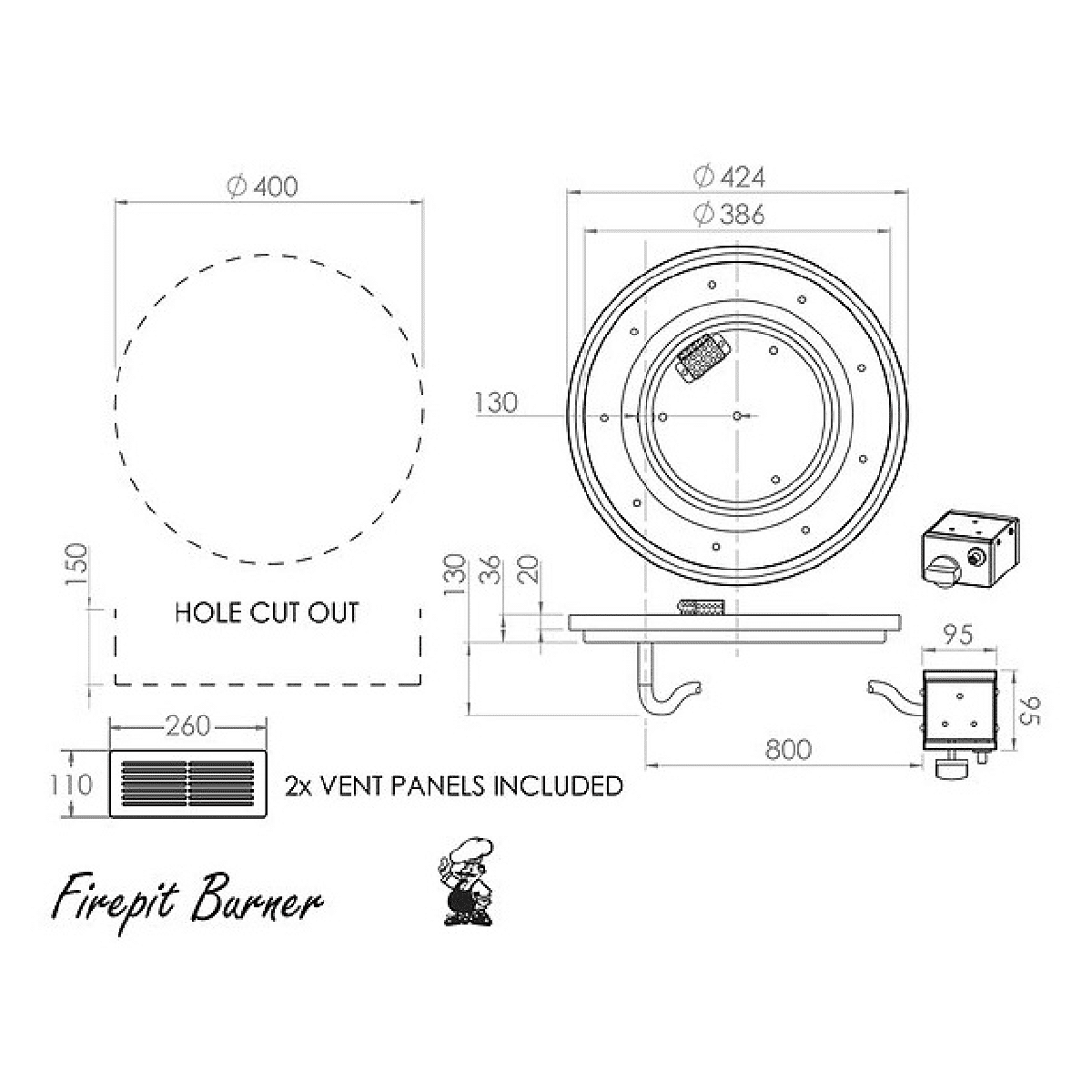

Building instructions
The Outdoor Fire pit Kit may be installed in any outdoor area, and is designed to function correctly with ample ventilation. Avoid areas where there are strong draught’s, which may be generated by narrow walk ways, as excessive wind could affect the correct working of the burner.
Please adhere to the minimum clearances:
Above the fire pit: 1500 mm
To the sides of the fire pit: 800 mm
Underneath the fire pit: 300 mm
