THE WALL
Single-sided and built in.
The 740 builds into one wall. Its façade reaches 70 mm past the body at each side and 30 mm below it, so plan the opening around the body with your builder and installer.
Sale!

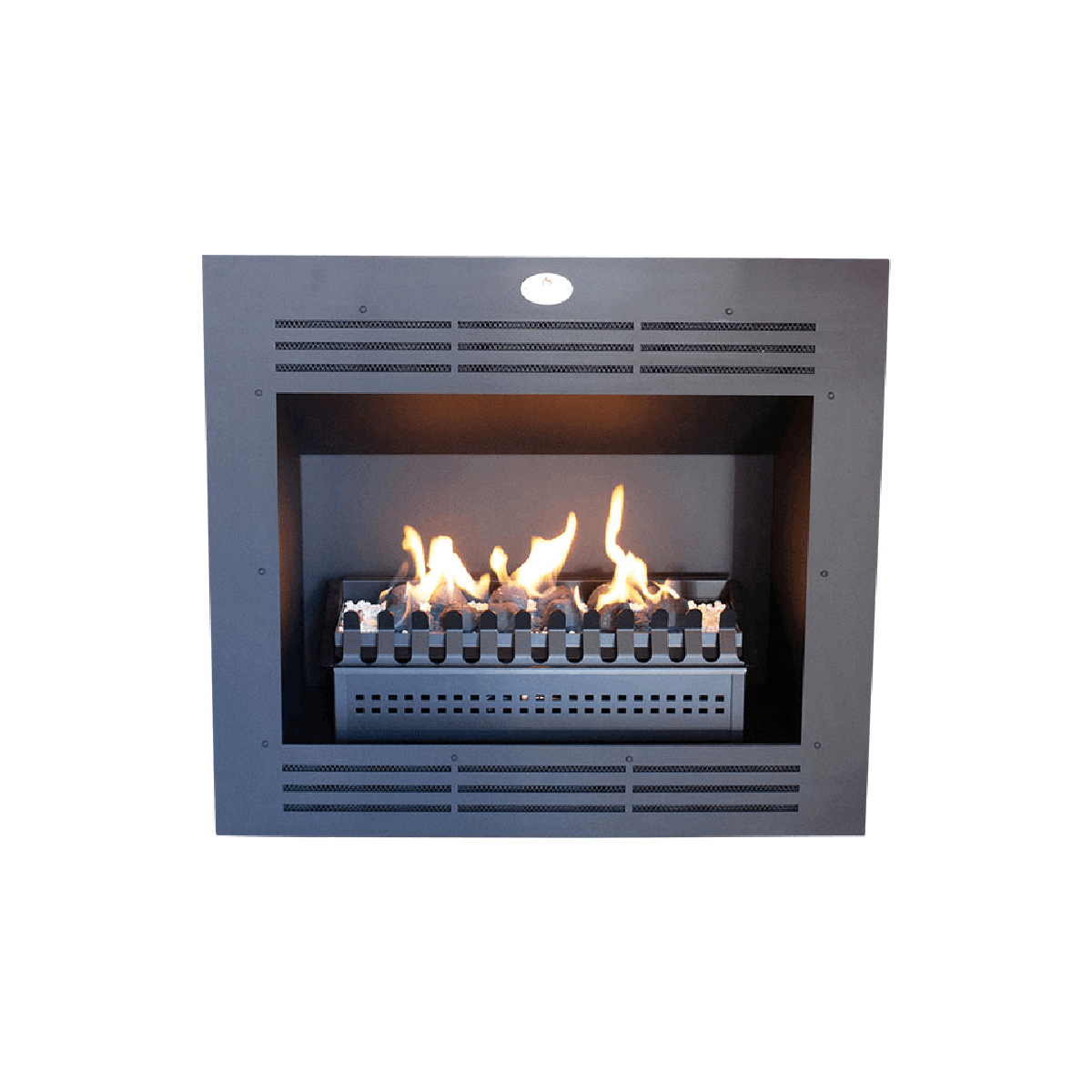

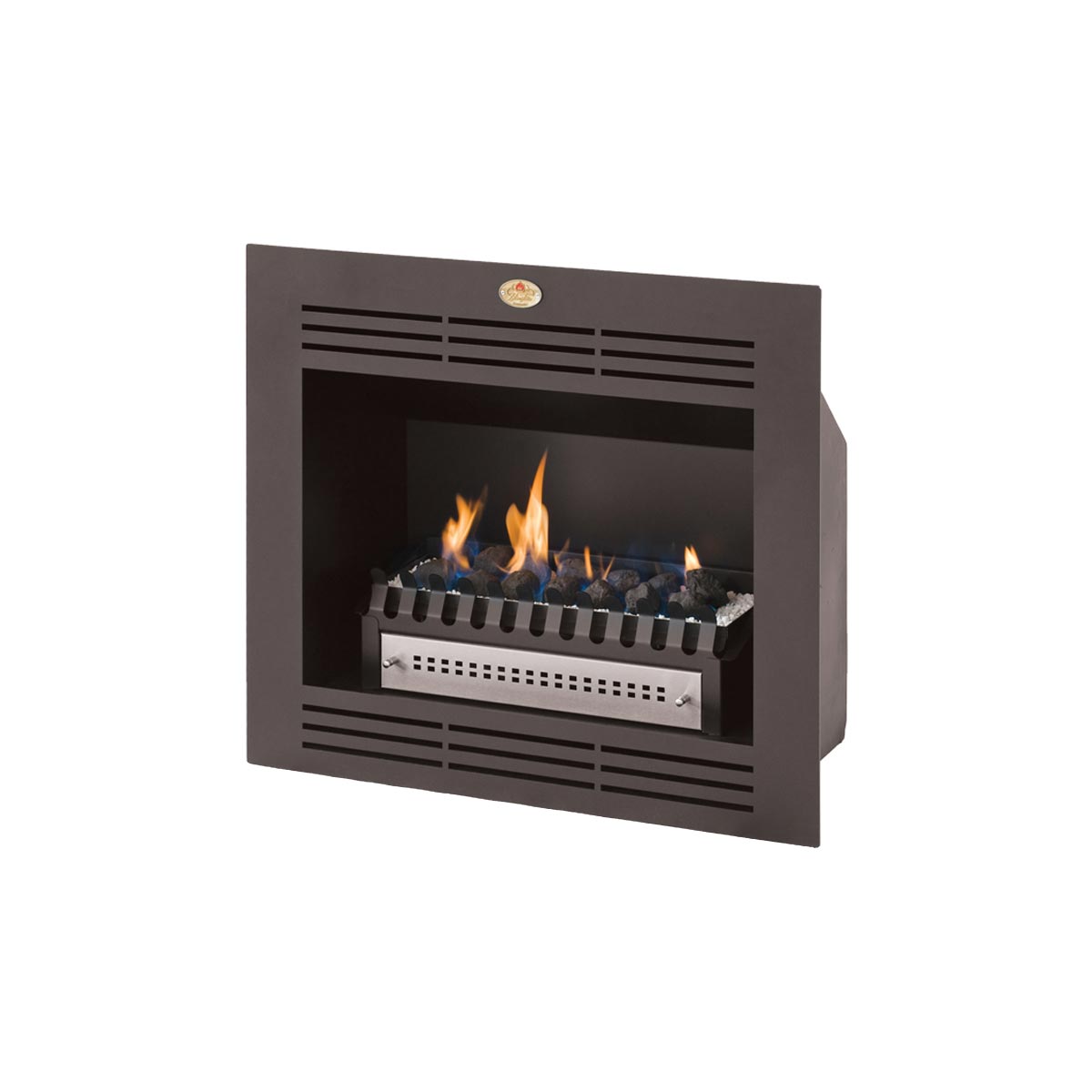

HomeFires Built-in 740 Firebox Vent Free Fireplace
A built-in gas fire for one wall, with flames over a coal-finish grate.
Original price was: R18,750.00.R17,699.00Current price is: R17,699.00.
Save R1,051In stock Delivery ETA: 5–7 working days
About your fireplace
- Gas
- LPG · at most 0.56 kg of gas an hour
- Included
- Built-in firebox in black mild steel with its façade and the coal-finish gas grate for LPG
- Not included
- Gas supply, gas connection, building work and installation
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE 740
Built into the wall.
No chimney to build.
The 740 builds into one wall, with a black mild-steel façade framing the fire. Flames play over a coal-finish gas grate, set up for LPG, and as an open, vent-free firebox it needs no flue or chimney. At full flame it uses at most 0.56 kg of gas an hour, so you and your installer can plan the gas supply.
- Coal-finish gas grate, set up for LPG550 mm wide, 270 mm deep
- Open, vent-free fireboxNo flue or chimney
- Black mild-steel façade740 mm wide, 775 mm high
- Built into one wallSingle-sided: the fire shows to one room
- Gas useAt most 0.56 kg an hour
A QUIET NIGHT IN
The kettle's on and the fire is lit.
The city lights are on outside, the tea is brewing and the gas fire glows in the green wall. No logs to carry in and no fire to build: just a warm glow, a pot of tea and the couch. A small flat feels a lot cosier with a fire to sit by.
The feature wall, couch, coffee table, rug, lamp, tea set and décor are not included. Plan the wall, gas supply and ventilation with an independent gas installer.
BEFORE YOU BUILD
Plan the wall, the gas and the room.
THE GAS
Set up for LPG.
The coal-finish gas grate in this bundle runs on LPG and uses at most 0.56 kg of gas an hour. Home Fires also makes natural-gas versions. On natural gas? Ask us before you order.
THE ROOM
Vent-free still needs the right room.
A vent-free gas fire needs no flue, but the room size and ventilation rules still apply. Ask us for the requirements of this exact unit before you order, and have your gas installer check your room.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Façade width × height
- 740 × 775 mm
- Body width × height
- 600 × 665 mm
- Body depth
- 410 mm
- Rear upright height
- 425 mm
- Flat top depth, before the slope
- 100 mm
- Façade past the body, each side
- 70 mm
- Façade below the body
- 30 mm
- Gas grate width × depth
- 550 × 270 mm
- Gas grate height
- 200 mm
- Gas
- LPG
Plan the opening around the body, not the façade.
The body is 600 mm wide, 665 mm high and 410 mm deep, behind a 740 × 775 mm façade. These are product dimensions, not a building opening: your installer checks the actual unit and safe clearances.
The drawing as text
- Home Fires 740. All dimensions in mm.
- Front: façade width B 740
- Front: façade height A 775
- Side: body depth C 410
- Side: body height D 665
- Side: rear upright height E 425
- Side: flat top depth H 100
- Side: façade below the body K 30
- Body plan: body width F 600
- Body plan: façade past the body G 70
- Gas grate: width 550, height 200, depth 270
- Opening, vent slots and curved contours are illustrative.
GOOD TO KNOW
Plan your setup.
Ask us for the room size and ventilation rules before you plan the wall and the gas.
What is included?
The HomeFires 740 built-in firebox, with its black mild-steel housing and façade, and the coal-finish gas grate, set up for LPG. The gas supply, the gas connection, the building work and the installation are not included.
Which gas does it use?
LPG. The coal-finish gas grate in this bundle (Home Fires grate model 600) is set up for LPG, and the gas type must match the data plate on the appliance. Home Fires also makes natural-gas versions: if your home runs on natural gas, ask us before you order.
How much gas does it use?
At full flame, at most 0.56 kg of gas an hour. Use the figure with your gas installer to plan your gas supply.
Does it need a flue or chimney?
No. It is an open, vent-free gas firebox, so there is no flue or chimney to build. Vent-free does not remove the room size and ventilation rules, so check those with us and your gas installer before you choose the room.
Where does it go?
Built into one wall. The 740 is a single-sided firebox, so the fire shows to one room. Have your builder and gas installer plan the opening, the gas supply and the clearances.
How much space do I need?
The façade is 740 mm wide and 775 mm high. Behind it, the body is 600 mm wide, 665 mm high and 410 mm deep. The top is flat for the first 100 mm from the front, then slopes down to a 425 mm rear upright. The façade reaches 70 mm past the body at each side and 30 mm below it. These are product dimensions, not a building opening.

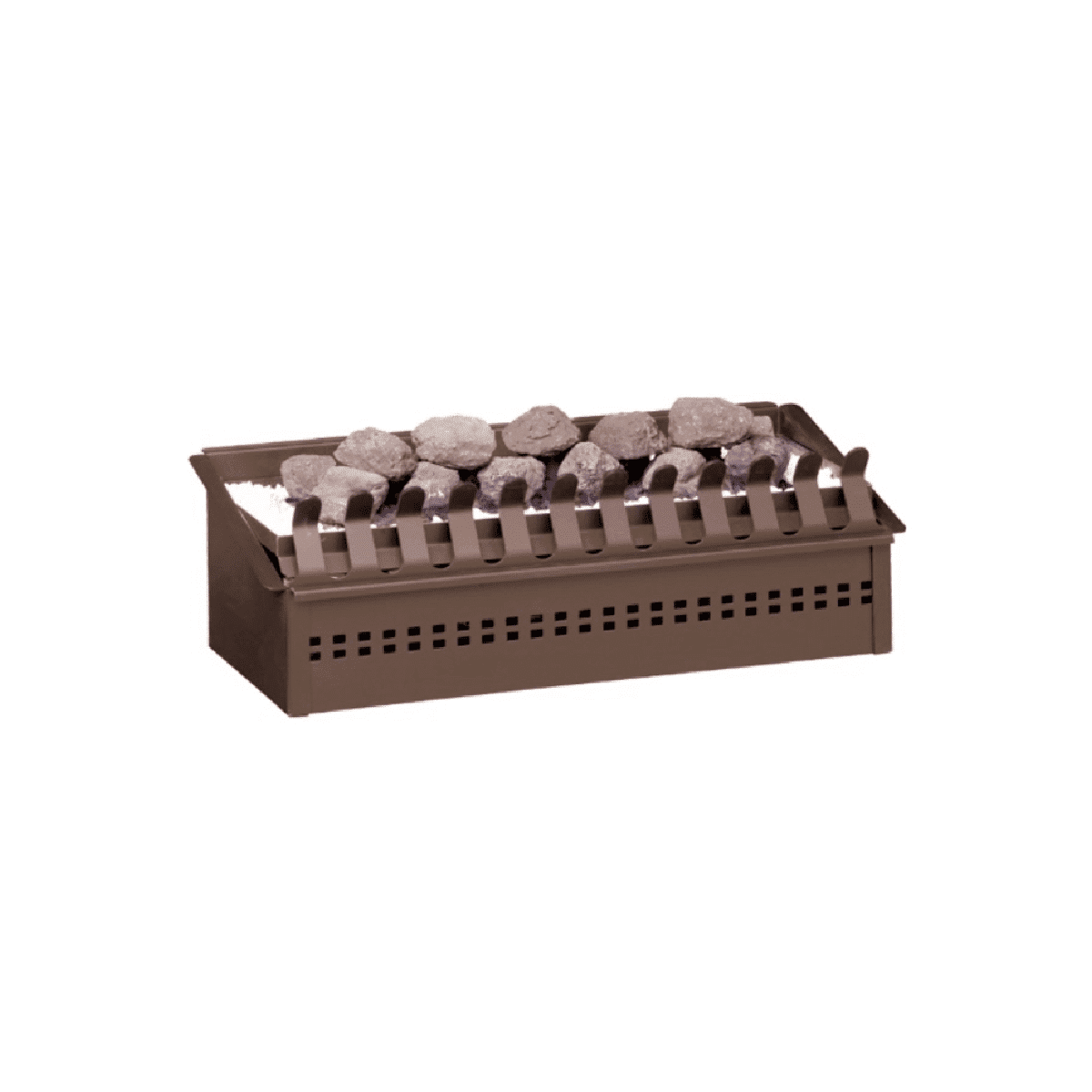

How big is the gas grate?
The coal-finish gas grate is 550 mm wide, 270 mm deep and 200 mm high. It sits inside the firebox and comes with it.
How much heat does it give?
We do not list a heat output for this exact unit, so the Output Calculator has no figure for it. Send us the size of your room, and we check the room size and ventilation needs with Home Fires before you order.
What safety features does it have?
Ask us before you order. We confirm the safety devices of this exact gas grate with Home Fires, and your gas installer checks the setup for your room.
What does the guarantee cover?
Ask us for the guarantee terms of this firebox and gas grate before you order.
Can you help with my setup?
Yes. Send a photo and measurements for a product and configuration quote. We do not install, so arrange the building work and the gas connection with an independent gas installer.
