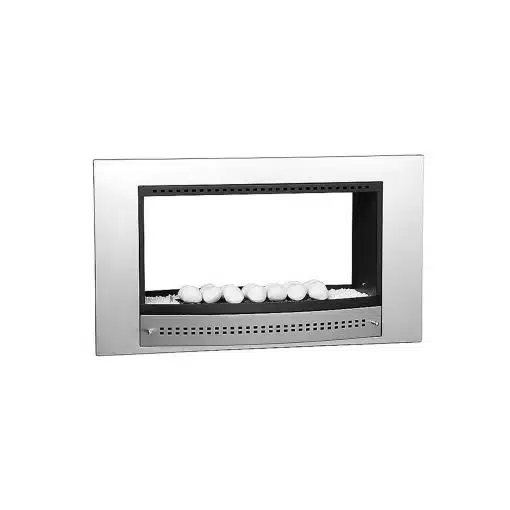

Chad-O-Chef 800 Double Sided gas fireplace with a brushed stainless frame: a see-through firebox, white and black stones on the burner and a vented front cover
Your fireplace, up close
Will it fit my space?

Chad-O-Chef 800 Double Sided Fireplace

Chad-O-Chef 800 Double Sided Fireplace in 3D

Drag or use the arrow keys to turn the fireplace. Use + and − to zoom, Home to reset the view and Esc to return to the gallery.

The model does not show?

If the 360 view does not work for you, the photos, the dimension drawing and the size table on this page show the same fireplace and its measurements.

Open the 3D view on its own page

What output does your room need?

Find the right amount of warmth

Enter the dimensions of the space you want to heat. Include any connected open-plan areas.

Room dimensions (m)

For a sloped or open-truss ceiling, use the average height between the lowest and highest points.

Consider roof and wall insulation, glazing and draughts. If unsure, compare the standard and poor settings.

A room-sizing estimate, not a full heat-loss survey. Climate, large windows, draughts and open stairways can change the output needed. We can help confirm a suitable fireplace.

How is this estimated?

Room volume × insulation allowance: 35 W/m³ for very good insulation, 40 W/m³ for standard insulation or 50 W/m³ for poor insulation. Divide by 1,000 for kW. The comparison uses the listed heat output of this fireplace. Ask us to confirm its operating range for your room.

About your fireplace

Room size
Suggested for rooms up to 108 m²
Included
Fireplace in your frame finish, burner, decorative stones and instruction manual
Not included
The wall and lintels, gas pipework and fitting by a registered gas installer
Guarantee
Two years, terms and conditions apply

Chad-O-ChefFireplaces

Chad-O-Chef 800 Double Sided Fireplace

One gas fire in a dividing wall, with a view of the flame from both rooms.

From: R22,999.00

Save R1,501

SKU VFDS800

In stock Delivery ETA: 5–7 working days

Choose your fireplace

Your total R22,999.00

Awesome, you get free delivery!

How delivery works

DeliveryHow it works

Because most of our products are huge, it’s difficult for us to keep stock of all of them. For this reason, we deliver a lot of our products directly from our suppliers and manufacturers, to offer you a great price and a fresh braai and a warm fireplace.

PRIORITY DELIVERYWe will make sure you are kept in the loop at every single step of the way and we will have your order processed as a priority. Tracking number included.

FREE DELIVERYLook, it’s free but we are unable to provide an exact time or take specific delivery requests as we are at the mercy of our suppliers. We still do our best to deliver as quickly as possible and in most cases we are much quicker than the stated turn around time.

Mail us for any queries.
[email protected]

Get a Quote
14-day returns on the unit* Secure payments

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

SHARED BY TWO ROOMS

Built into the wall.
Seen from both sides.

The Double Sided 800 is a flueless gas fireplace that sits in an opening through a double-brick wall, so the lounge and the dining room share one fire. It lights with a piezo spark and has an oxygen depletion system for safety. The flames rise from black ash with white stones around it, in a brushed stainless-steel or matte black frame.

  1. Black ash with a white-stone surroundThe standard burner finish
  2. Piezo spark ignition
  3. Oxygen depletion systemPart of its safety system

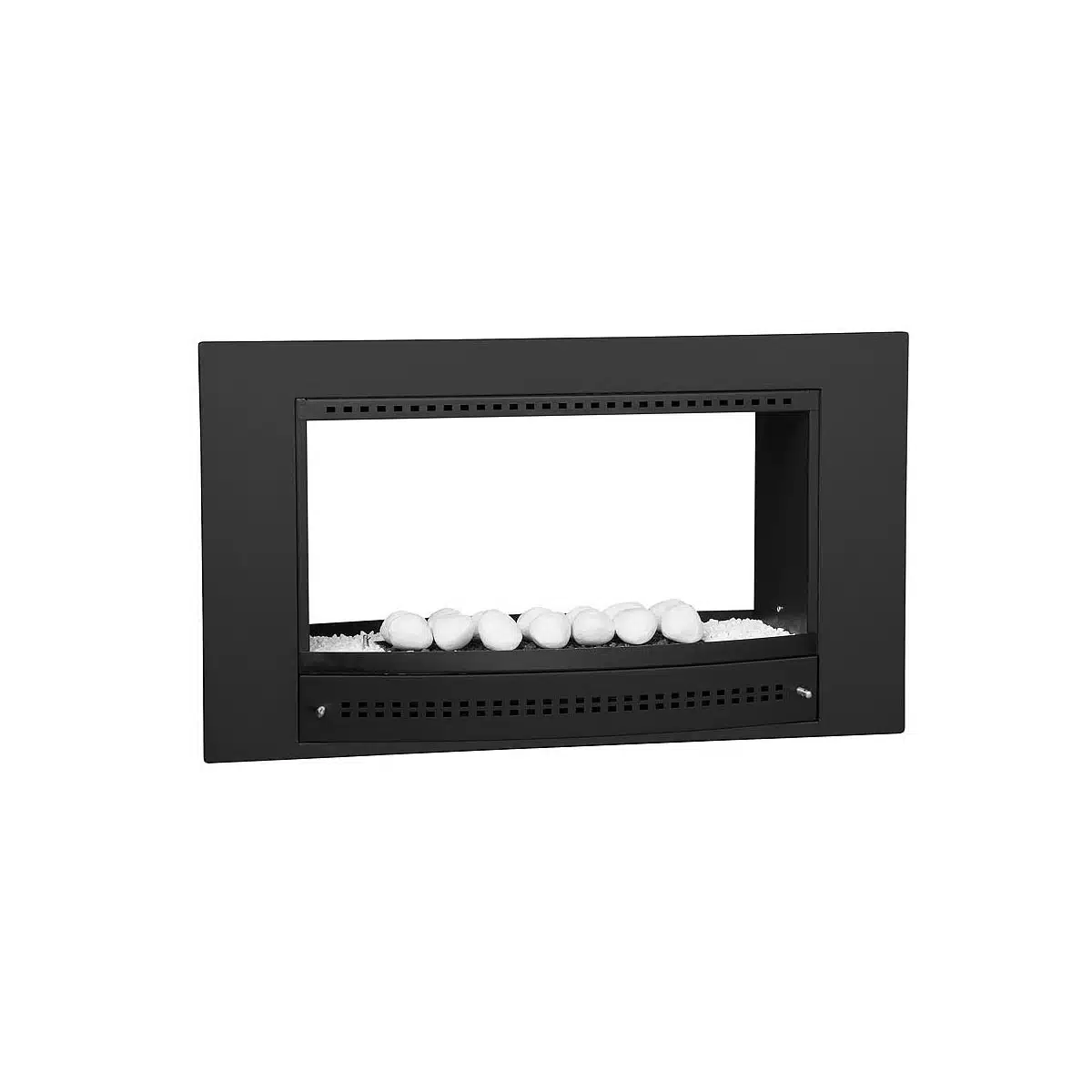

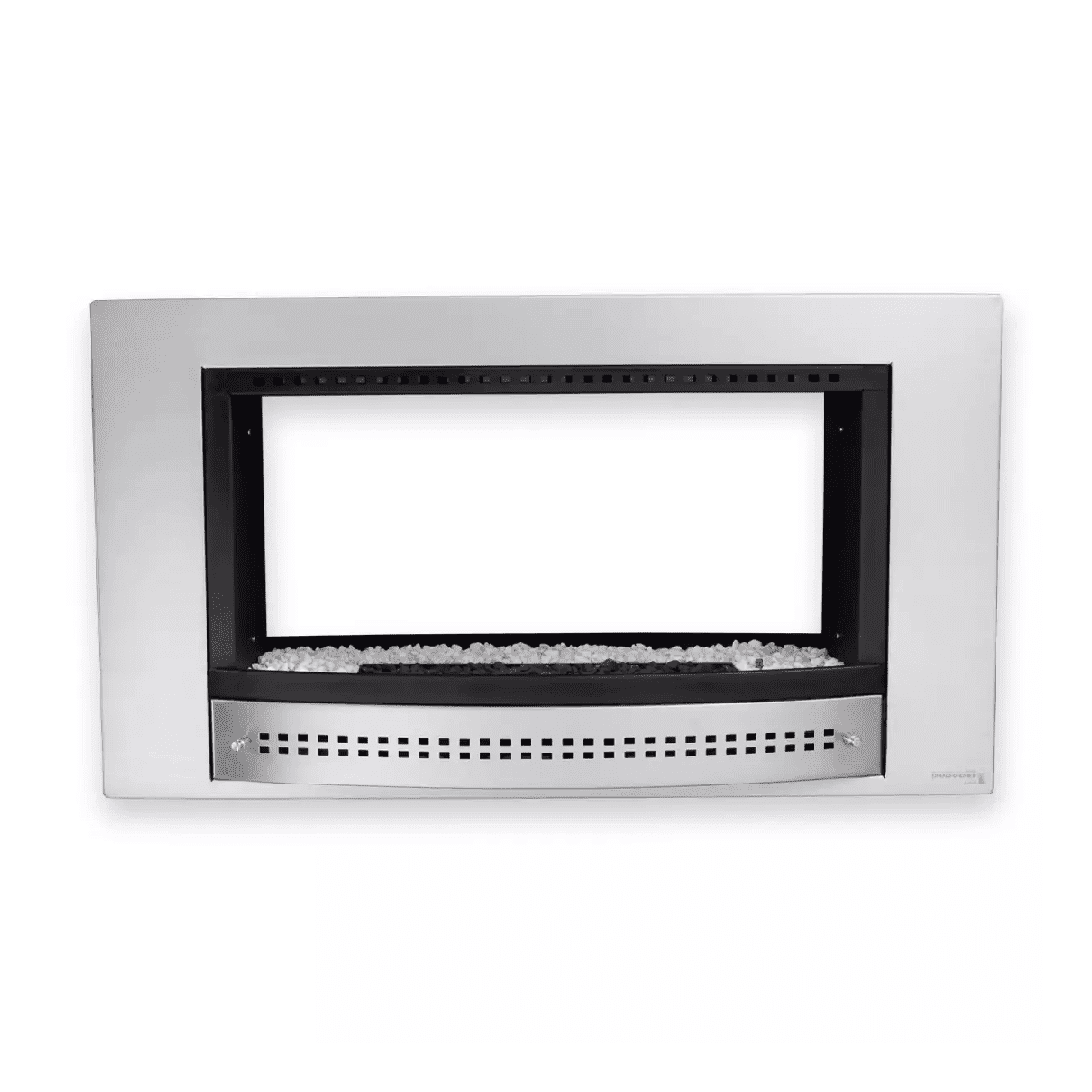

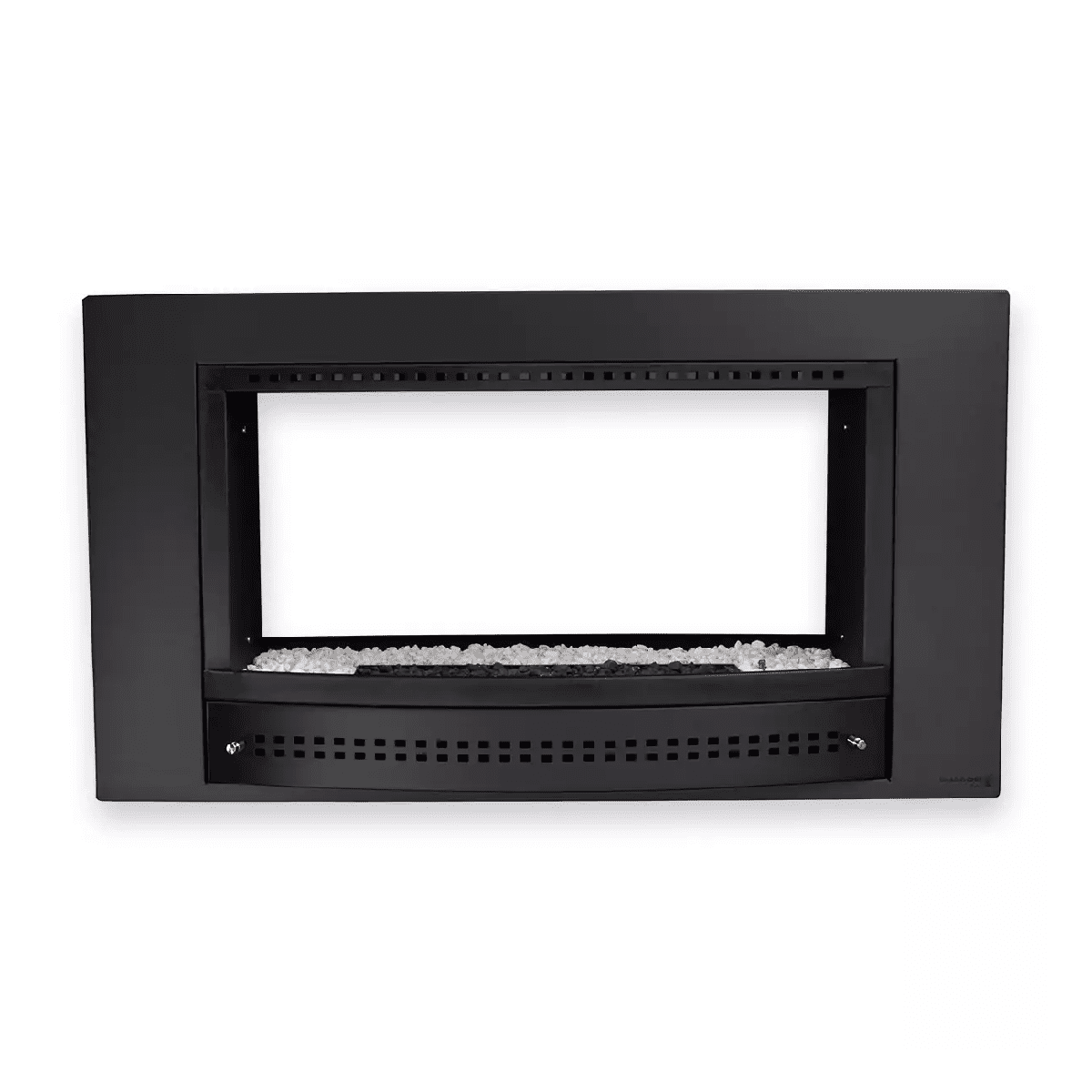

  4. Frame in your chosen finishBrushed stainless steel or matte black
  5. Installation manualUnder Plan your setup
Chad-O-Chef 800 Double Sided gas fireplace alight over white stones in a dividing wall, a couple at a candlelit dining table seen through the fire

DINNER ON THE OTHER SIDE

Supper on one side.
Feet up on the other.

Candles on the table, a glass of red and good company on the far side of the wall, while the lounge waits on this one. The Double Sided 800 links the two rooms with one fire, with no wood to carry in and no ash to sweep. Stay at the table a little longer.

The wall, furniture, table setting, candles and décor are not included. A registered gas installer builds in and connects the fireplace.

BEFORE YOU BUILD

Wall, room and gas, planned.

THE WALL

Made for a double-brick wall.

It fits a double-brick wall with about 10 mm of screed on each side, with two supporting lintels above. The wall opening is 550 mm high, and its width is in the manual.

THE ROOM

Pick the right room.

Without permanent ventilation, the room must be at least 160 m³. We recommend it for rooms up to 399 m³ (108 m²), depending on room conditions.

THE GAS

LPG or natural gas.

Choose LPG or natural gas. On LPG it uses at most 0.64 kg an hour, and its maximum gas input is 8.7 kW. A gas installer registered with SAQCC Gas for your gas type installs it.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

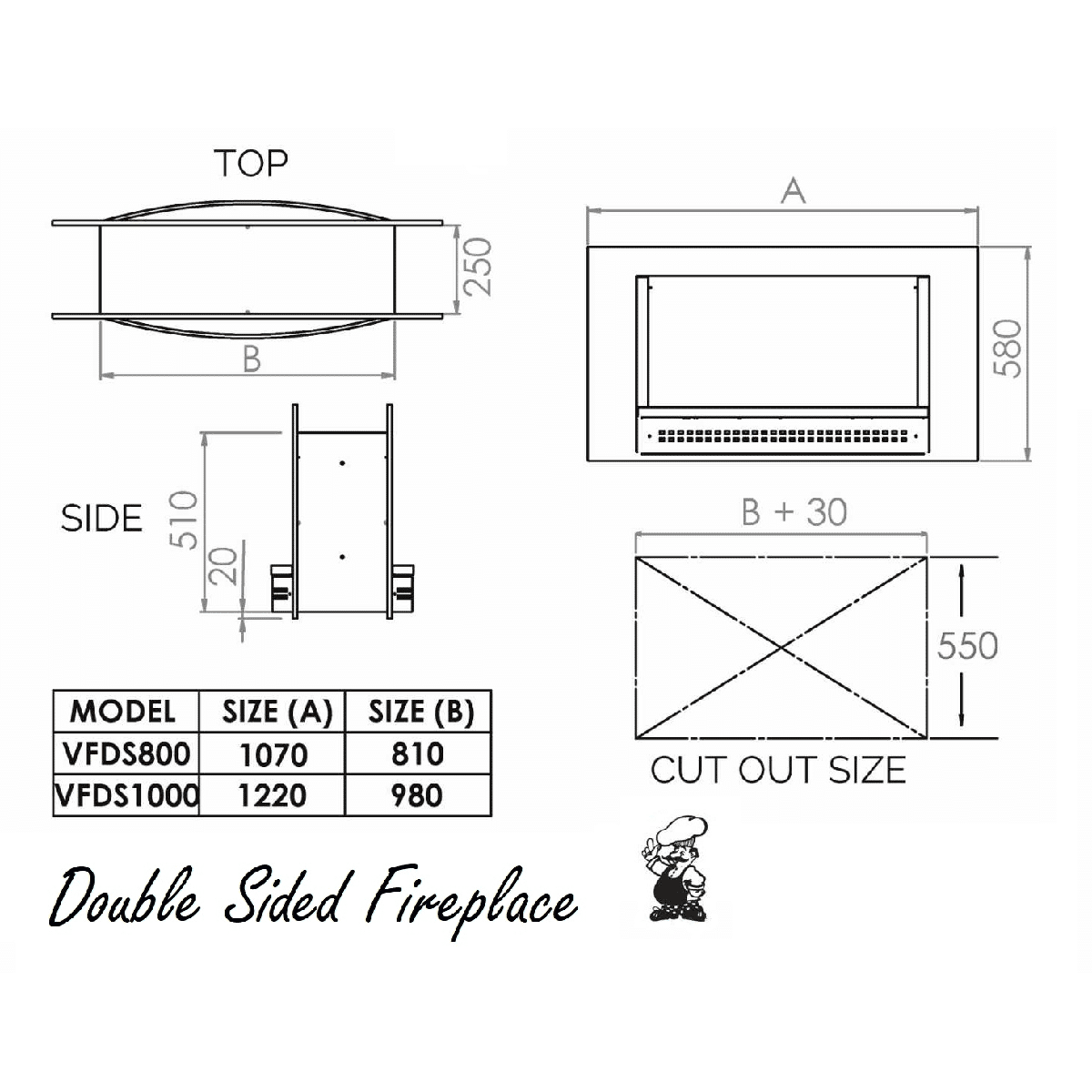

Dimension drawing of the Chad-O-Chef 800 Double Sided: front, side and top views and the wall aperture, in millimetres
Download the dimension drawing
Frame width
1,070 mm
Body width × height
810 × 510 mm
Depth between the frame planes
250 mm
Body base above the frame's bottom edge
20 mm
Wall opening height
550 mm
Gas
LPG or natural gas
Maximum gas input
8.7 kW
Maximum LPG use
0.64 kg an hour
Frame
Brushed stainless steel or matte black mild steel

Plan the wall opening before you build.

The frame is 1,070 mm wide and the body 810 mm wide and 510 mm high, with 250 mm between the two frame planes. The curved covers stand out beyond the frames, so your gas installer confirms the full depth, the frame height and the opening.

The drawing as text
  • Chad-O-Chef 800 Double Sided. Dimensions in mm.
  • Front: frame width 1,070 mm
  • Front: frame height awaiting maker confirmation
  • Side: body height 510 mm
  • Side: body base 20 mm above the bottom edge of the frame
  • Side: 250 mm between the frame planes
  • Top: body width 810 mm
  • The curved covers stand out beyond the frame; confirm the full depth before installation.
  • Wall aperture: height 550 mm
  • Wall aperture: width, see manual
  • Contours illustrate the exact model. Use the installation manual for siting and clearances.

GOOD TO KNOW

Plan your setup.

Read your instruction manual with your gas installer before you plan the wall opening.

Read the instruction manual

What is included?

The Double Sided 800 fireplace in the frame finish you choose, with the burner, the decorative stones and the instruction manual. The wall opening, the lintels, the gas supply pipework and the installation are not included.

Which gas does it use?

LPG or natural gas. Confirm your gas type with us before you order. On LPG it uses at most 0.64 kg of gas an hour.

What size room is it for?

We recommend it for rooms up to 399 m³ (108 m²); the right size depends on room conditions. Its maximum gas input is 8.7 kW. Ask us to check it against your room.

Does it need a flue or chimney?

No. It is a flueless gas fireplace, so there is no flue or chimney to build. An oxygen depletion system, with an 18.5% oxygen minimum, is part of its safety system.

Does the room need ventilation?

Without permanent ventilation, the room must be at least 160 m³. A smaller room needs permanent ventilation, planned by your gas installer with the manual.

How is it built in?

It fits a double-brick wall with about 10 mm of screed on each side, with two supporting lintels above the opening. The opening is 550 mm high, and its width follows from the body size in the manual. A gas installer registered with SAQCC Gas for your gas type installs and connects it.

How much clear space does it need?

To combustible materials, keep at least 100 mm at the sides (500 mm to curtains and fabric), 800 mm to the ceiling, 100 mm to the floor, carpet included, and 1,000 mm to furniture in front. Your installer follows the full manual.

Which frame and stones can I choose?

Choose a brushed stainless-steel or a matte black mild-steel frame on this page; both have heat-resistant coatings. Black ash with a white-stone surround is the standard burner finish. Black coals or fire glass are options, so ask us before you order.

What does the guarantee cover?

The fireplace has a two-year Chad-O-Chef guarantee, subject to its terms and conditions. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements of your wall for a product and configuration quote. We do not install, so arrange installation with an independent, registered gas installer.
