THE CHIMNEY
Is the chimney closed off?
This is a flueless gas-grate installation, so close off an existing chimney. A qualified gas installer handles the installation, and that part of the plan belongs with them.

A flueless gas fire for a traditional single-sided wood-burning fireplace.
Original price was: R11,250.00.R10,599.00Current price is: R10,599.00.
Save R651Pay in interest-free instalments with Float
In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE LOGS CAN RETIRE

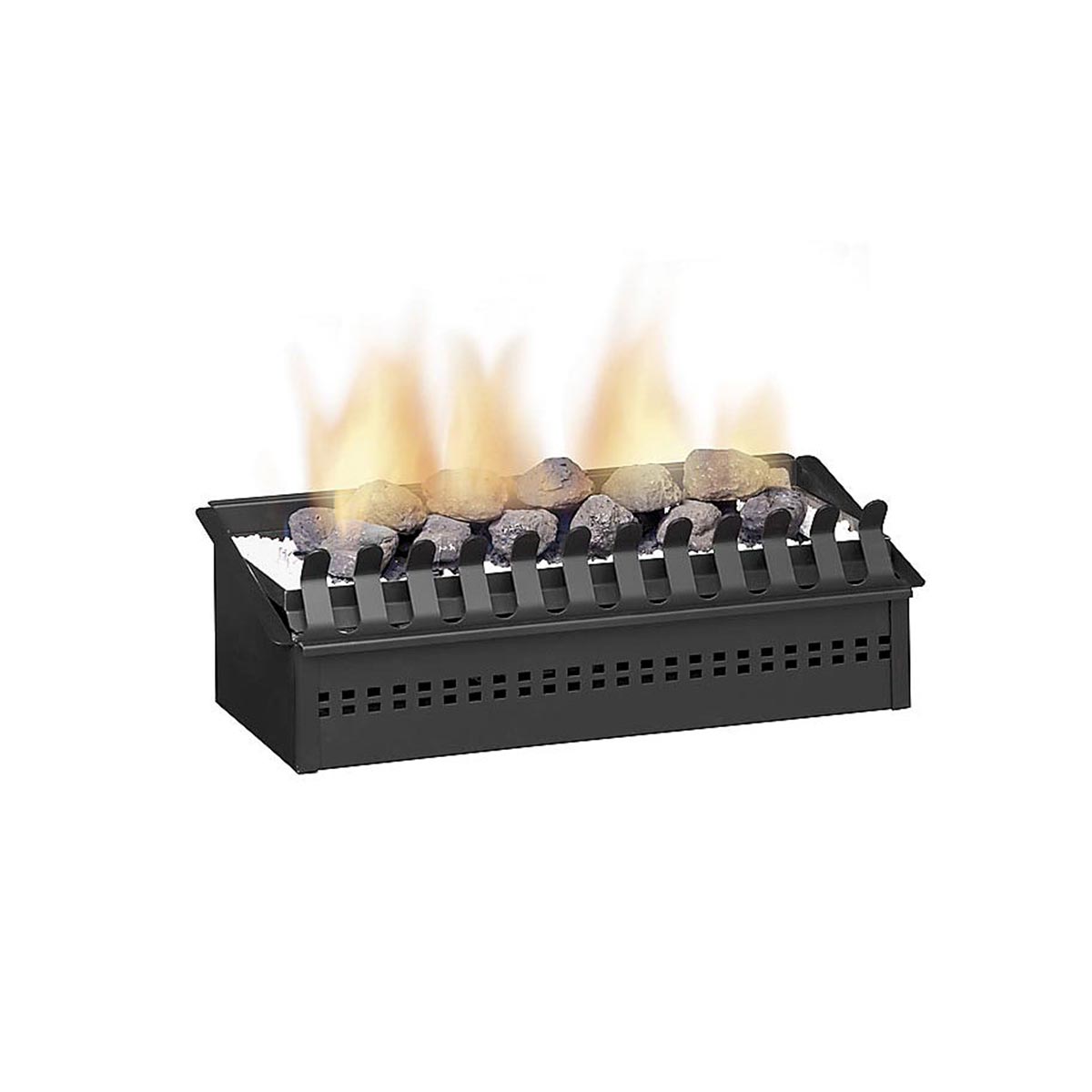

Got a traditional single-sided wood-burning fireplace and no more appetite for carrying logs? The Chad-O-Chef 700 Universal Grate Fireplace converts it to flueless gas. A piezo spark does the lighting, black ceramic ash and coals sit in a white stone surround, and the appliance is designed to provide radiant heat.
Close off an existing chimney. A SAQCC Gas registered installer must install it. Not for bedrooms, bathrooms, toilets or saunas.
LOUNGE HOURS
The firewood run had a good innings. These days the flames move through the coals, the lounge settles down around them and the only thing you carry is your own cup of coffee. Pull up the good chair. Nobody needs to go out in the cold tonight.
The brick fireplace and shelf, picture, furniture and plants are not included. Do not use or place combustible material above the fireplace.
BEFORE YOU CONVERT
THE CHIMNEY
This is a flueless gas-grate installation, so close off an existing chimney. A qualified gas installer handles the installation, and that part of the plan belongs with them.
THE GAS
The range has LPG and natural gas versions, and this listing doesn't select one. The version supplied must match the gas at your home, so tell us which you use before you order, and we'll confirm it.
THE ROOM
Rooms under 160 m³ need suitable permanent ventilation, and your installer calculates it, counting any other combustion appliances. We recommend a maximum room volume of 398 m³, or 108 m² of floor area.
MEASURE THE WHOLE SETUP
Measure the fireplace you already have.

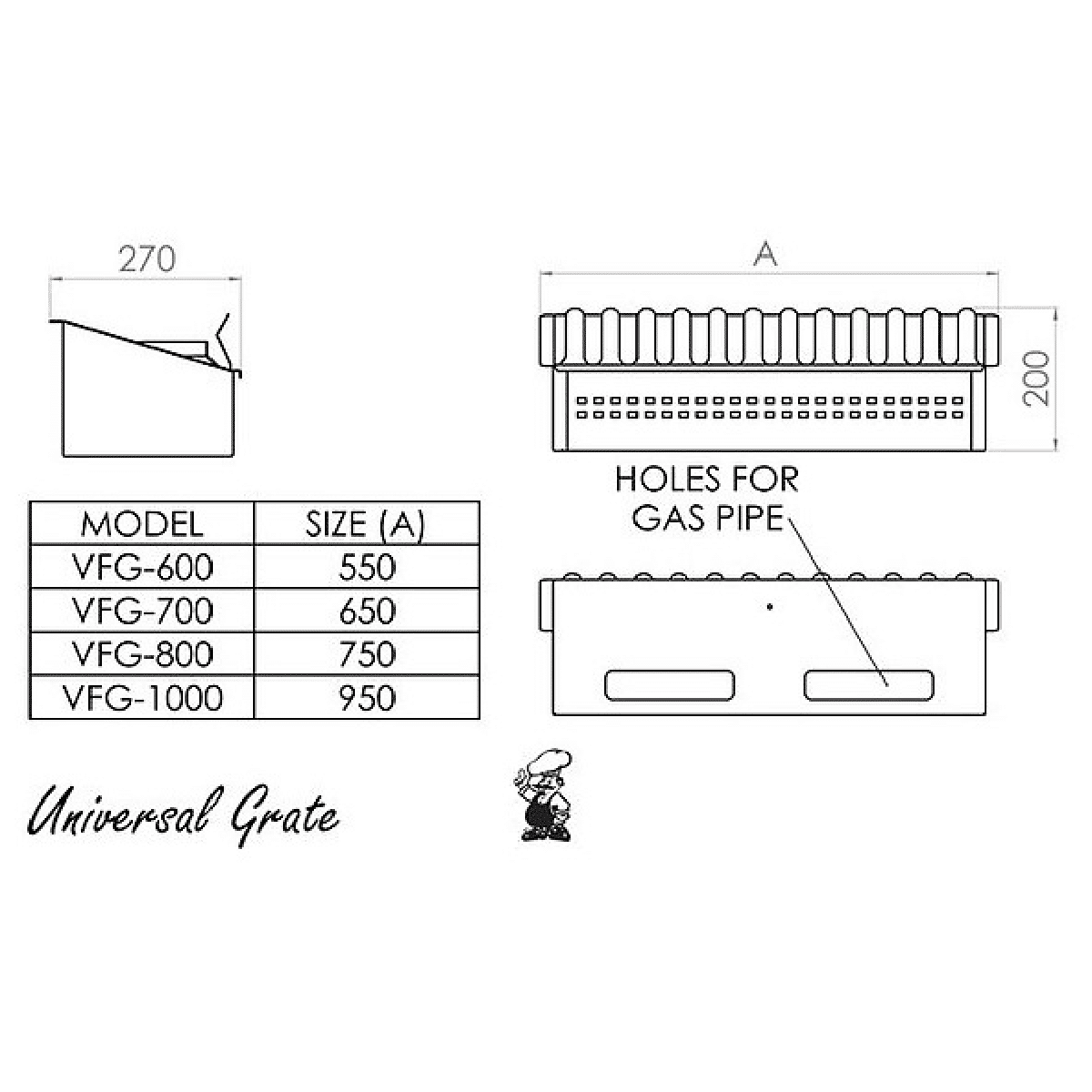

The grate is 650 mm wide across its outer rim, and the 700 is the model name. These sizes are for the assembled grate. They aren't a cut-out size, so measure your fireplace and have your installer check the fit and clearances.
Download printable drawing (A4 PDF)
GOOD TO KNOW
Read your instruction manual before you plan the installation.
See also: All fireplaces · More from Chad-O-Chef · Chad-O-Chef Firepit Burner
An existing traditional single-sided wood-burning fireplace. Across its outer rim the grate is 650 mm wide, and it is 270 mm deep and 200 mm high. Those aren't cut-out sizes, so measure the inside of your fireplace and have your installer check the actual fit.
The fireplace grate, the burner, decorative stones and the instruction manual. The mantelpiece, the surrounding fireplace and the installation are not included. Ask us about the regulator for your setup before you order.
No. Close off an existing chimney for this flueless gas-grate installation. A qualified gas installer does the installation, so have yours plan this part too.
The range offers both, and the version supplied must match your gas, so tell us which you use before you order and we'll confirm it. On LPG, the operating pressure is 2.8 kPa and maximum gas consumption is 0.64 kg/hr. Ask us to confirm the natural gas pressure. The gas inlet compression fitting is 8 mm.
There's no rated heat output for this grate that we can give you, so we don't quote one. The 8.7 kW is the maximum gas input, which means the gas going in rather than the heat coming out. The appliance is designed to provide radiant heat.
A room of less than 160 m³ requires suitable permanent ventilation, and your installer calculates it, counting other combustion appliances. We recommend a maximum room volume of 398 m³, or 108 m² of floor area. Insulation, climate and room conditions affect how it performs.
Do not install it in a bedroom, bathroom, toilet or sauna. Do not position electrical equipment such as a TV above the fireplace, and do not use or place combustible material above it. We recommend you don't install it within 500 mm of an air vent, to avoid affecting the Oxygen Depletion System.
To the sides, keep at least 100 mm to combustible material and 500 mm to curtains or fabric. In front, keep at least 1,000 mm to combustible furniture. Leave at least 800 mm above to the ceiling and 100 mm below to the floor, carpet included. A heat-resistant masonry shelf sits 500 mm above the upper edge. Your installer must follow the installation manual that comes with the unit.
Installation requires a SAQCC Gas registered installer for your gas type, who provides a Certificate of Compliance afterwards. We do not install, so arrange an independent installer with that registration. For a product and configuration quote, send us a photo and your measurements.
The standard finish has black ceramic ash and coals in the burner with a white stone surround. It is listed with 14 coals or 12 pebbles, one or the other and not both. They sit in a single layer, double row, about 10 mm apart. Use only the number of coals or pebbles supplied. Fire glass is an alternative finish. Ask us to confirm the finish before you order.
At least once every two years, and at the first sign of malfunction. A qualified gas installer must do it.
The fireplace has a two-year Chad-O-Chef guarantee, subject to terms and conditions. Those terms set what it covers and what it leaves out, so ask us for the current ones.
