THE WALL
Recessed, or hung on the wall.
It is best installed in a single-sided wall aperture 160–200 mm deep, which your installer provides. Chad-O-Chef also allows it to hang on the wall; your installer confirms the fixings.
Sale!
About your fireplace
- Room size
- Suggested for rooms up to 72 m²
- Included
- Fireplace, burner, decorative stones and instruction manual, in the frame and back you choose
- Not included
- Wall aperture, gas supply pipework and installation by a SAQCC Gas registered installer
- Guarantee
- Two years on the fireplace, terms apply
Chad-O-Chef Picture Fireplace (700)
A flueless gas fire that sits in your wall like a framed picture.
From: R18,399.00
Save R1,201In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsA FIRE IN A FRAME
Set into the wall.
Framed like a picture.

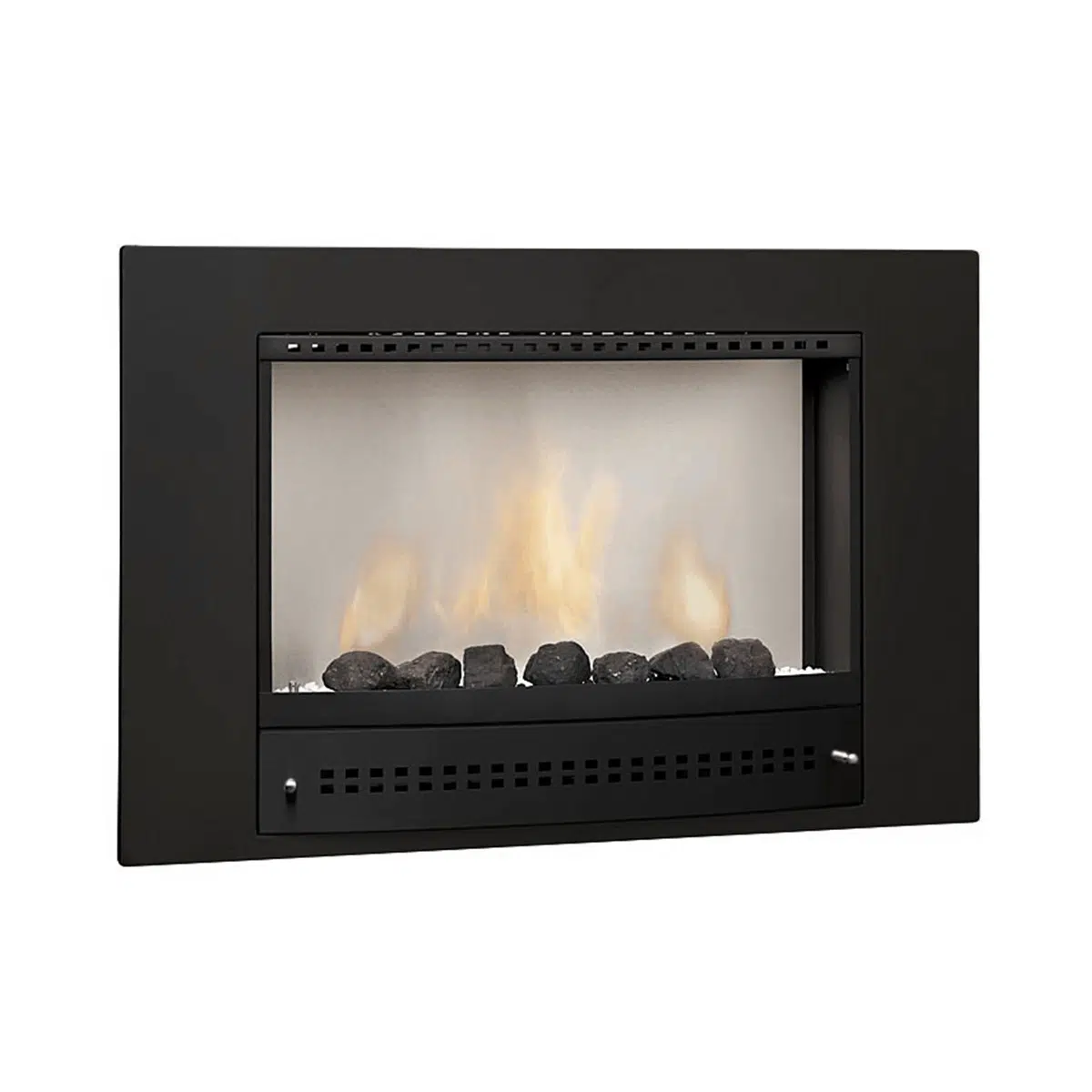

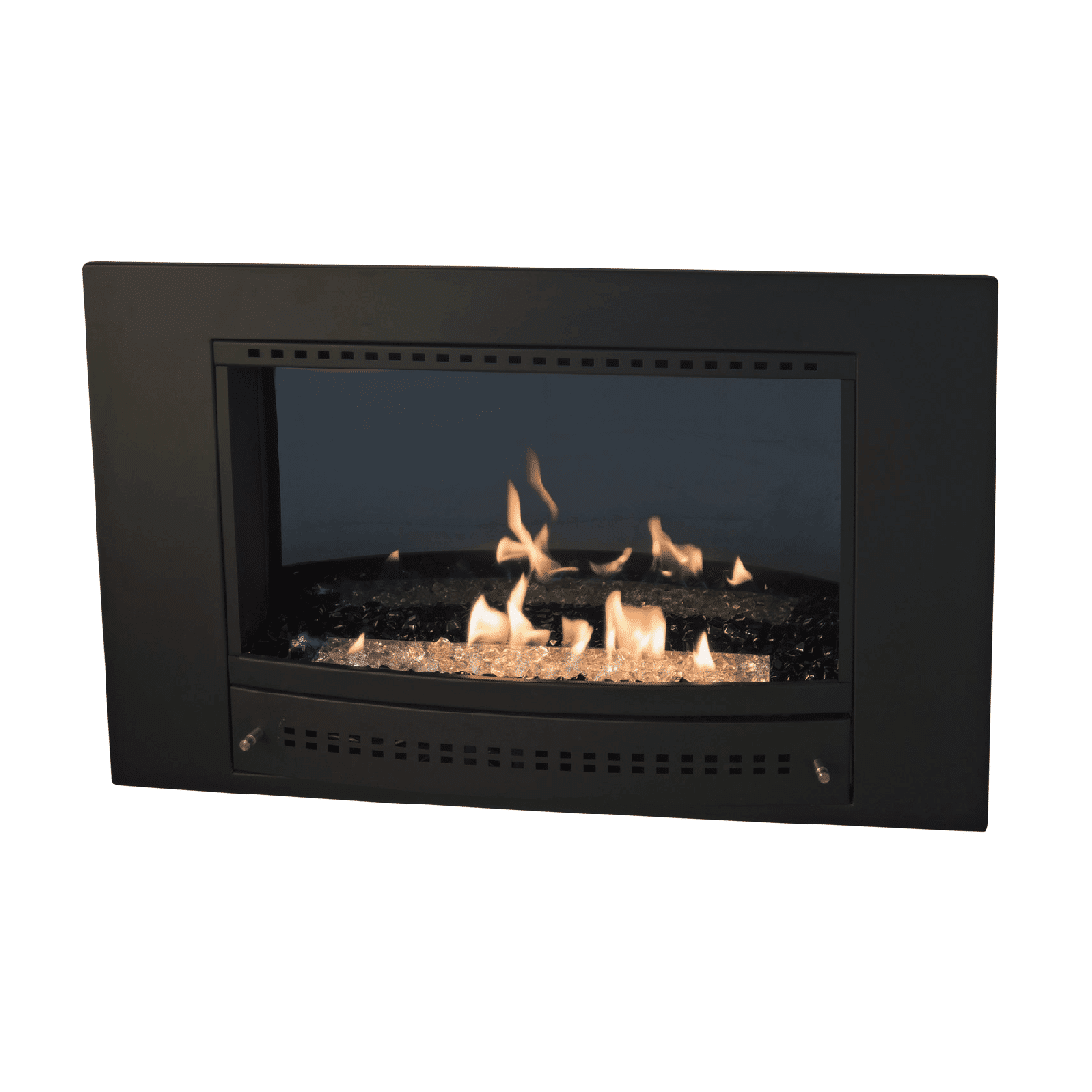

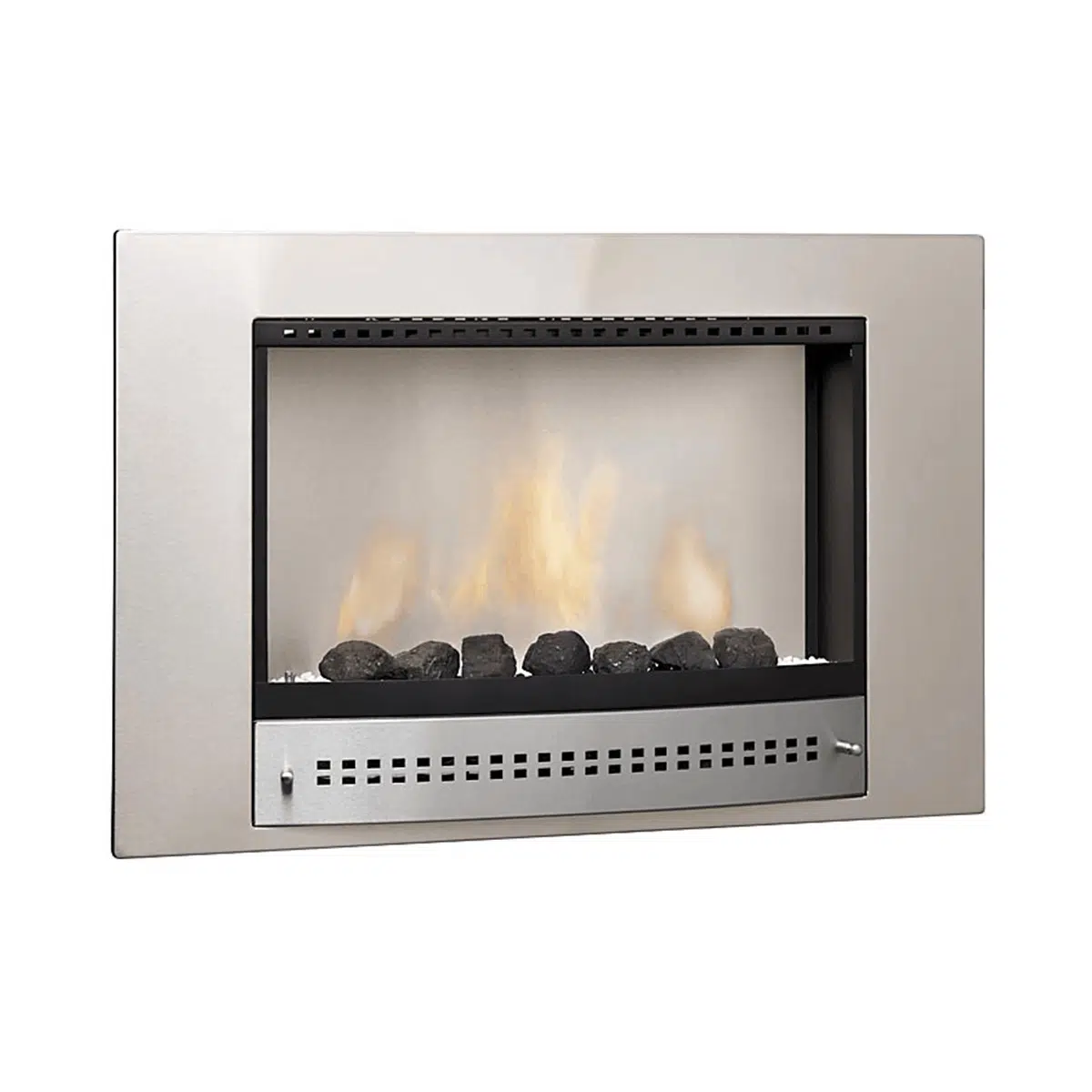

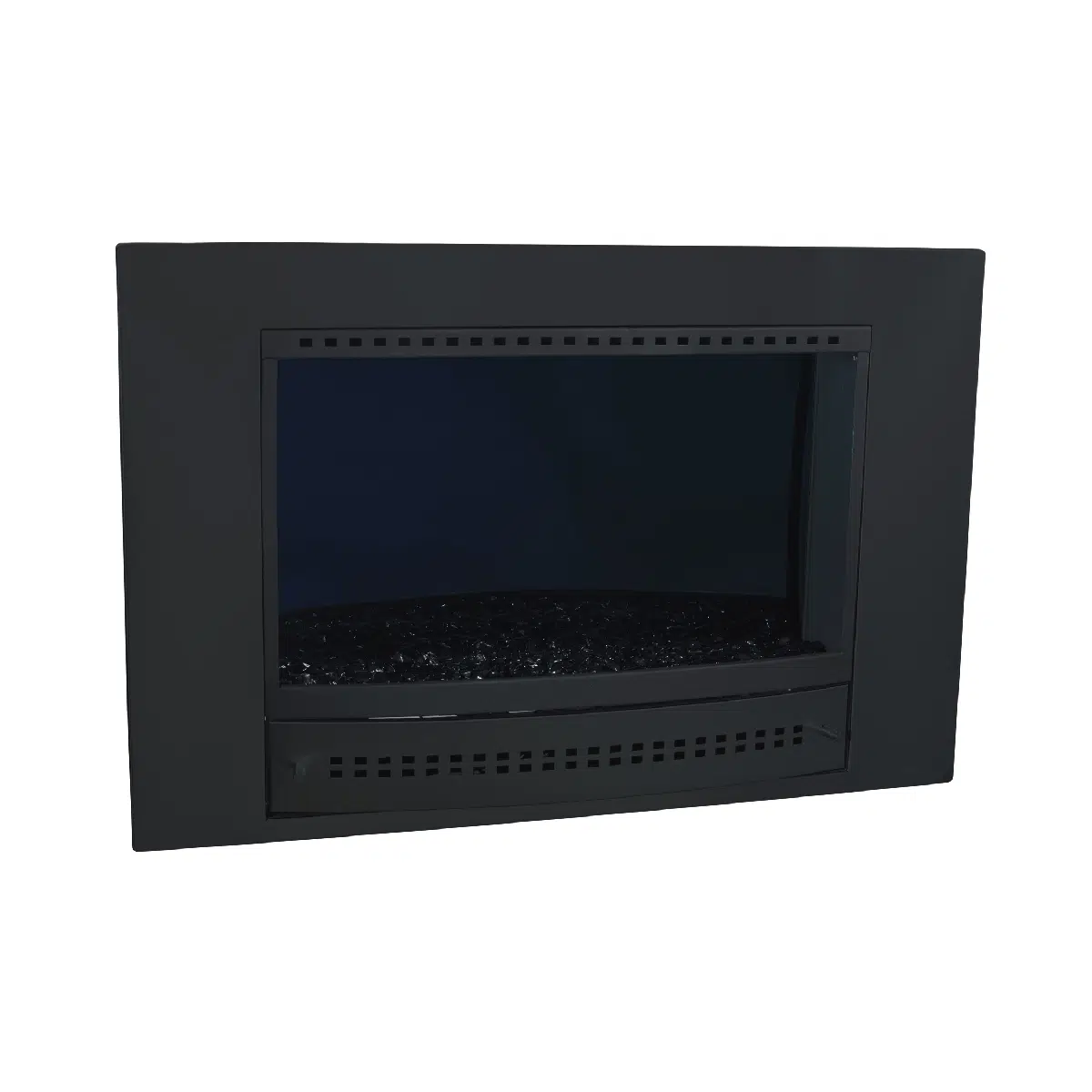

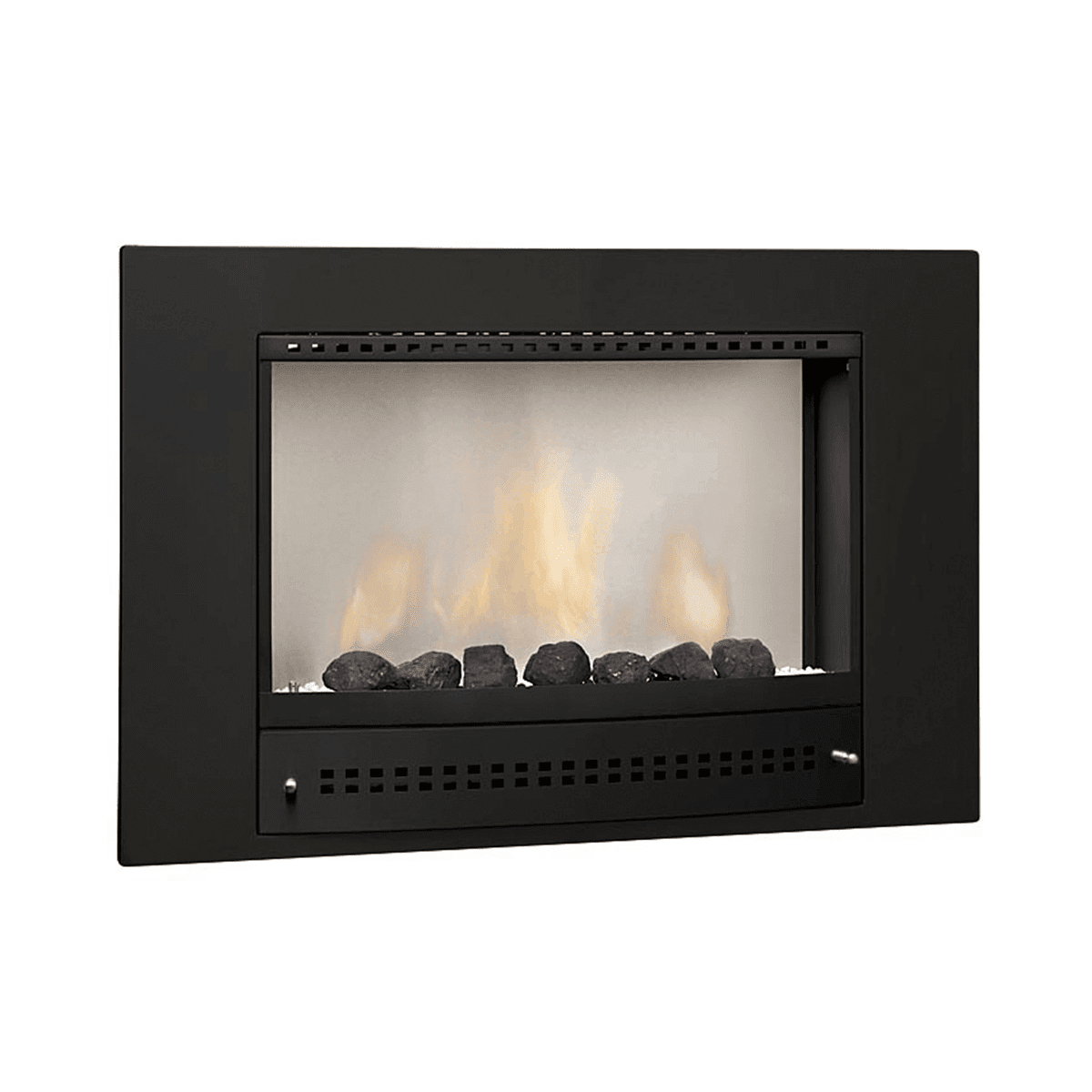

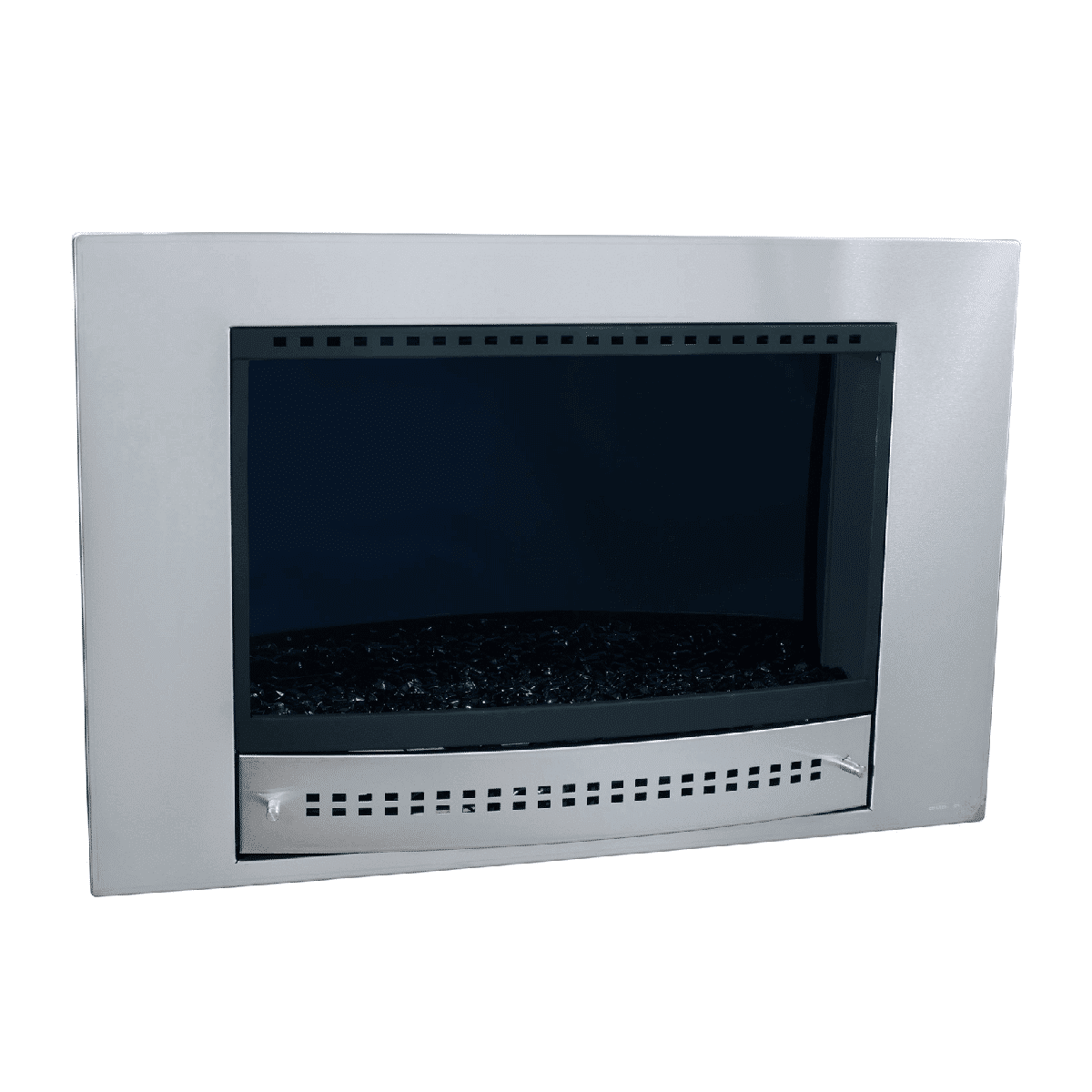

The Picture 700 is a flueless gas fireplace made for the wall: a wide, flat frame with the flames in the middle, like a painting that moves. Choose a stainless steel or black frame, with a plain stainless back or a Midnight Mirror back. A piezo spark lights it on LPG or natural gas, and an oxygen depletion pilot is part of its safety setup.
- Frame: stainless steel or blackBack: plain stainless or Midnight Mirror
- Piezo spark ignition
- Oxygen depletion pilotODS, minimum 18.5% oxygen
- Black ash with a white stone surroundAsk us about large coals or fire glass
- Recessed or wall-hungBest in a 160–200 mm deep wall aperture
- Installation manualUnder Plan your setup
A GLASS OF RED, A LITTLE FLAME
The best picture in the room.
The lights come on outside, the wine is poured and the couch faces the fire. The Picture 700 sits flush in the wall like a framed painting that happens to glow, with no logs to carry in and no chimney to build. Some evenings, this is all the entertainment you need.
The wall, couch, coffee table, rug, lamp and décor are not included. A SAQCC Gas registered installer builds in and connects the fireplace.
BEFORE YOU OPEN THE WALL
Wall, room and gas, planned.
THE ROOM
Pick the right room.
Without permanent ventilation the room must be at least 105 m³, and Chad-O-Chef suggests it for rooms up to 233 m³ (72 m²). It must not go in a bedroom, bathroom, toilet or sauna.
THE GAS
LPG or natural gas.
Choose LPG or natural gas, and have it installed for that gas type by a SAQCC Gas registered installer. A piezo spark lights it, so there are no matches to find.
MEASURE THE WALL FIRST
Will it fit your space?
- Frame width × height
- 905 × 600 mm
- Rear body width × height
- 650 × 500 mm
- Rear body depth, behind the frame
- 155 mm
- Total depth, to the bowed front
- 205 mm
- Rear body above the frame's bottom edge
- 25 mm
- Wall aperture width × height
- 670 × 520 mm
- Best aperture depth
- 160–200 mm
- Gas
- LPG or natural gas
- Maximum gas input
- 5.7 kW
- Material
- Stainless steel
Plan the aperture, not just the frame.
The frame is 905 × 600 mm and the wall aperture 670 × 520 mm. Behind the frame the body is 155 mm deep, 205 mm overall to the bowed front. These are product sizes: your gas installer checks the actual unit, the recess and the clearances.

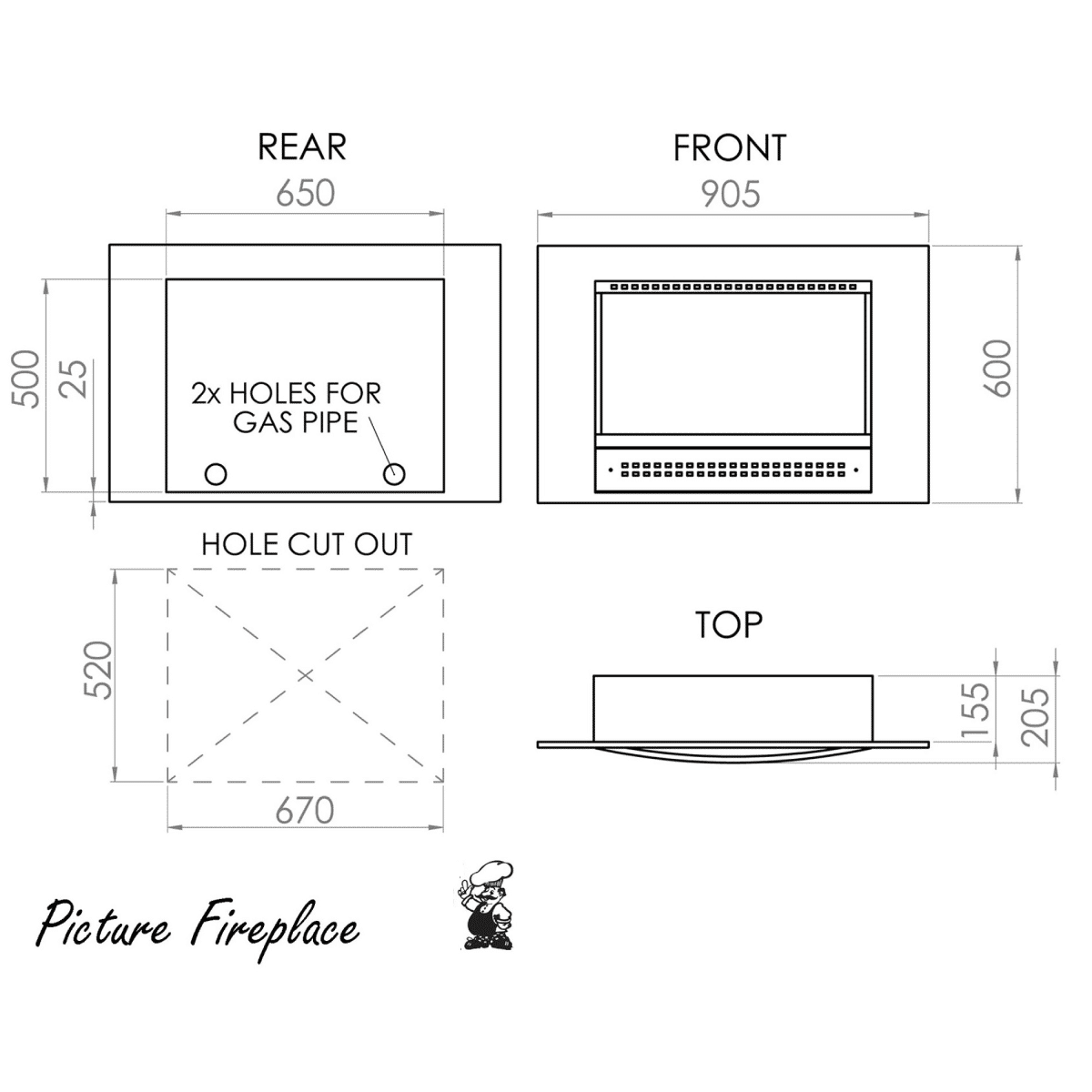

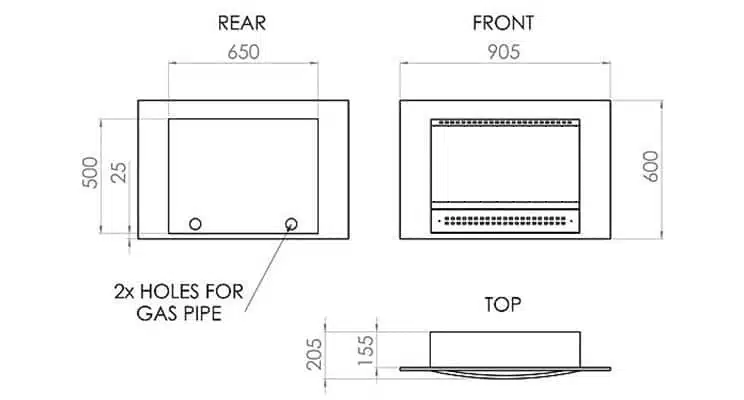

The drawing as text
- Chad-O-Chef Picture 700. Dimensions in mm.
- Front: frame width 905 mm
- Front: frame height 600 mm
- Rear: body width 650 mm
- Rear: body height 500 mm
- Rear: body bottom 25 mm above the frame's bottom edge
- Rear: gas-pipe openings
- Top: body depth 155 mm, behind the frame
- Top: total depth 205 mm, to the bowed front
- Wall aperture: width 670 mm
- Wall aperture: height 520 mm
- Contours illustrate the exact model. Use the installation manual for siting and clearances.
GOOD TO KNOW
Plan your setup.
Read your instruction manual with your gas installer before you plan the wall aperture.
What is included?
The Picture 700 fireplace in the frame and back you choose, with the burner, the decorative stones and the instruction manual. The wall aperture, the gas supply pipework and the installation are not included.
Which frame and back can I choose?
A stainless steel or black frame, with a plain stainless back or a Midnight Mirror back. Choose your pair on this page. The standard fire bed is black ash with a white stone surround; ask us about large coals or fire glass before you order.
Which gas does it use?
LPG or natural gas. The installation must suit your gas type, so confirm yours with us before you order. It lights with a piezo spark.
What size room is it for?
Chad-O-Chef suggests it for rooms up to 233 m³ (72 m²); the right size depends on insulation, materials and climate. Without permanent ventilation the room must be at least 105 m³, and your installer calculates the ventilation for a smaller room.
How much heat does it give?
Chad-O-Chef gives a maximum gas input for the Picture 700, not a certified heat output, so we do not list a heat output and the Output Calculator has no figure for it. Ask us, and we will help you compare it with your room.
Does it need a chimney?
No. It is a flueless gas fireplace, so there is no flue or chimney to build. An oxygen depletion system on the pilot (ODS, minimum 18.5% oxygen) is part of its safety setup. It must not go in a bedroom, bathroom, toilet or sauna.
How is it installed?
It is best installed in a single-sided wall aperture 670 mm wide, 520 mm high and 160–200 mm deep, and your installer provides a suitable recess. Chad-O-Chef also allows it to hang on the wall; your installer confirms the fixings for your wall.
How much clear space does it need?
Keep combustible material 100 mm from its sides, a combustible floor (carpet included) 100 mm away, curtains and fabric 500 mm from its sides, combustible furniture 1,000 mm in front and the ceiling 800 mm away. A heat-resistant masonry shelf may sit 500 mm above it.
How much space do I need?
The frame is 905 mm wide and 600 mm high. Behind it, the body is 650 mm wide, 500 mm high and 155 mm deep, and the total depth to the bowed front is 205 mm. The wall aperture is 670 × 520 mm. Have your installer check the actual unit before you open the wall.
What is it made of?
Stainless steel. The frame comes in stainless steel or black, and the back in plain stainless steel or Midnight Mirror.
What does the guarantee cover?
Chad-O-Chef gives a two-year guarantee on the fireplace. Its terms and conditions apply; ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and the measurements of your wall and room for a product and configuration quote. We do not install: arrange installation with an independent, SAQCC Gas registered installer for your gas type.
