THE CONTROLS
Controls beside the food.
The three burner controls sit in their own covered well to the right of the grid. A flame-failure valve is fitted for safety, and the piezo igniter lights the grill.
Sale!
About your braai
- Controls
- Piezo ignition · Flame-failure valve
- Included
- Grill, cooking grid, hot rocks, drip tray, hinged cover, control cover, cabinet vent cover
- Not included
- Cooking dome, worktop, cabinet, gas installation; extractor hood if indoors
- Guarantee
- 3 years
Chad-O-Chef 3 burner Hob Drop in Braai
A compact drop-in gas braai, built neatly into your counter.
From: R17,299.00
Save R1,901In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsBUILT INTO THE COUNTER
A compact hob.
Ready for the meal.
The stainless-steel rim sits on the worktop and the grill body fits neatly below it. Three controls wait in their own covered well to the right of the grid, with piezo ignition and a flame-failure valve. Fold the flat cover right back while you cook, then close it over the cool grill for a clean, tidy counter.
A registered gas installer must fit it, in a heat-resistant worktop and a fire-retardant lined cabinet.
- Hinged flat cover folds back through 180°Keep it open while the grill is on or hot
- Three controls in a covered wellTo the right of the cooking grid
- Removable stainless-steel drip trayKeep access to it below the counter
- Stainless-steel cabinet vent coverAllow at least 300 cm² free vent area
- Installation manualUnder Plan your setup

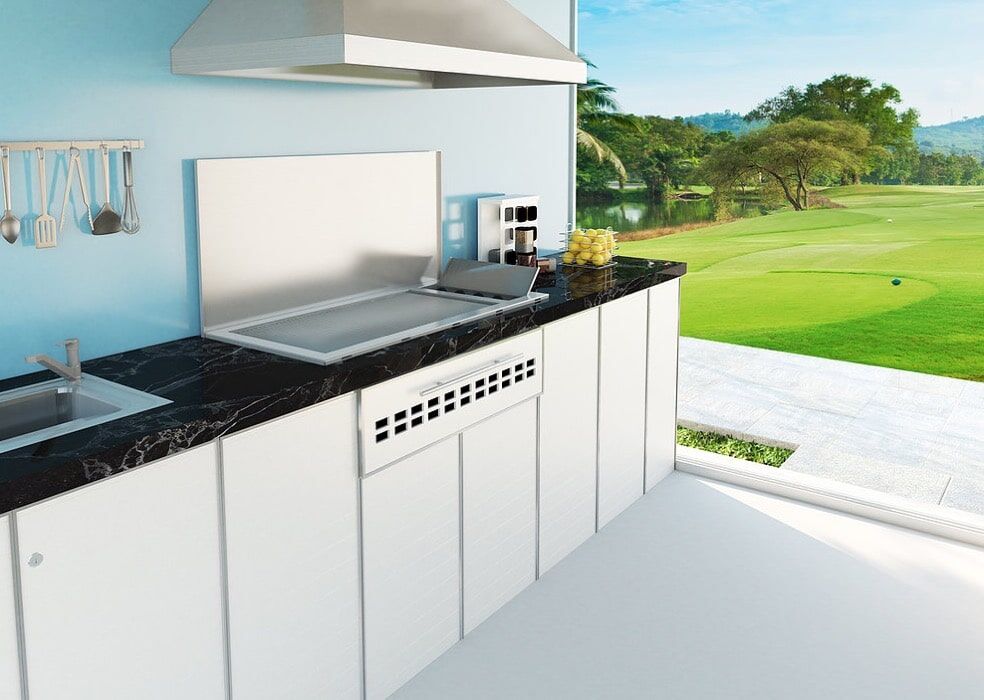

COOK, SERVE, SHARE
Keep the counter part of the meal.
Chops on the grid, salads on the side and the plates within reach. The compact hob leaves more of the worktop free for preparing and sharing the meal, so the braaier stays part of the conversation.
Worktop, cabinet, furniture and food are not included. A registered gas installer must confirm the cabinet ventilation and gas connection.
MADE FOR EASY BRAAI DAYS
Neat on the counter.
Easy after the meal.
THE COVER
Close it away when you are done.

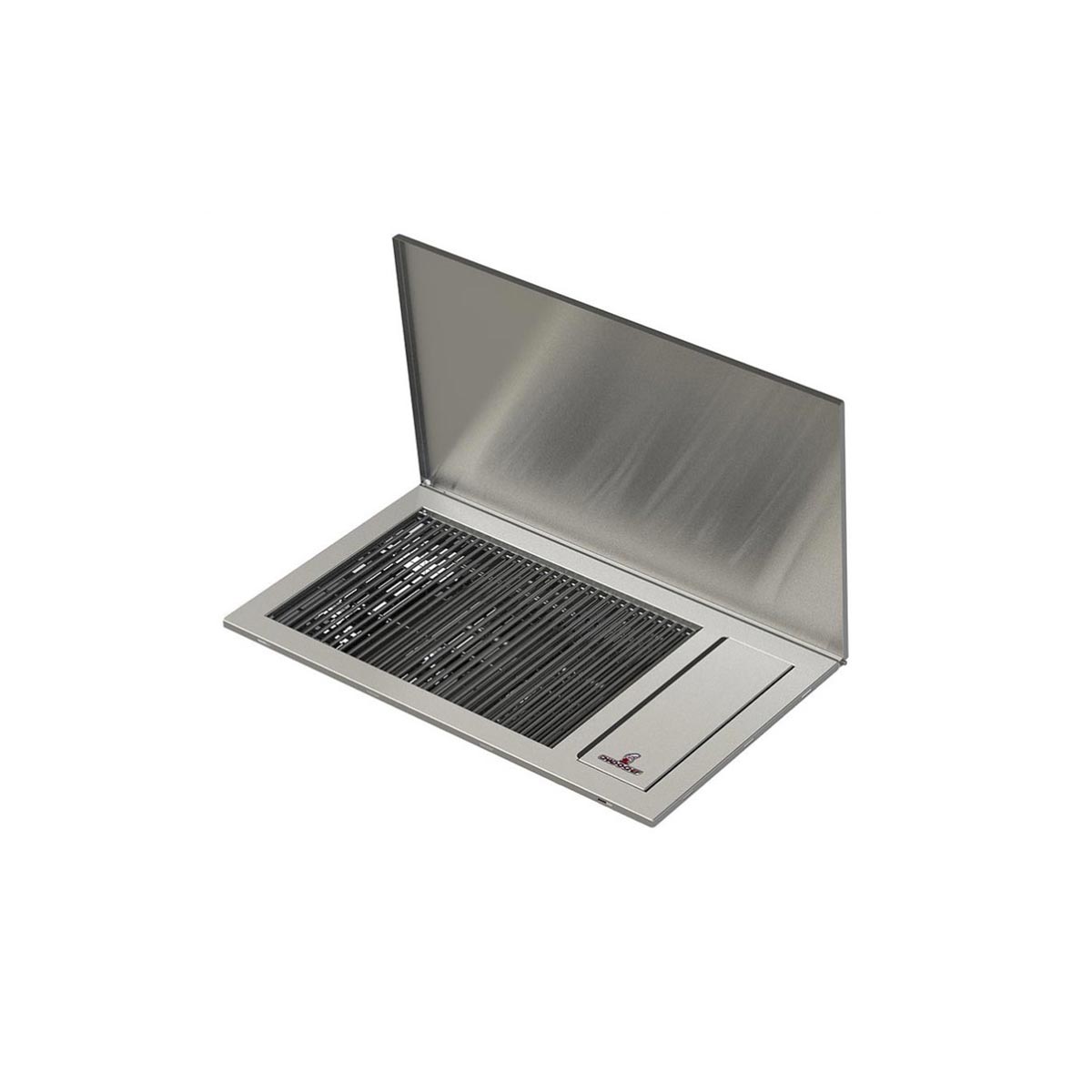

The hinged stainless-steel cover hides the grill when it is cool and folds back through 180° while you cook. Keep it open while the grill is on or hot.
THE CLEAN-UP
Grids that go in the dishwasher.
The grids lift out to soak or go in the dishwasher once the grill is cool. The drip tray is removable, so plan easy access to it below the counter.
MEASURE BEFORE YOU BUILD
Will it fit your space?
- Overall width × depth
- 775 × 450 mm
- Total drop below the worktop
- 220 mm
- Counter cut-out width × depth
- 725 × 430 mm
- Cooking grid
- 519 × 350 mm
- Cooking surface opening
- 525 × 350 mm
- Open cover height above worktop
- 450 mm
- Vent cover width × height
- 775 × 175 mm
- Vent fixing holes, apart / from top
- 96 / 35 mm
- Minimum free ventilation
- 300 cm²
- Material
- Standard stainless steel or coastal grade 316
Plan the cut-out, ventilation and drip-tray access.
Cut a 725 × 430 mm opening in a heat-resistant, non-combustible worktop and allow for the 220 mm drop below it. These are product dimensions, not a full cabinet design; have a registered gas installer confirm the ventilation, clearances and drip-tray access.

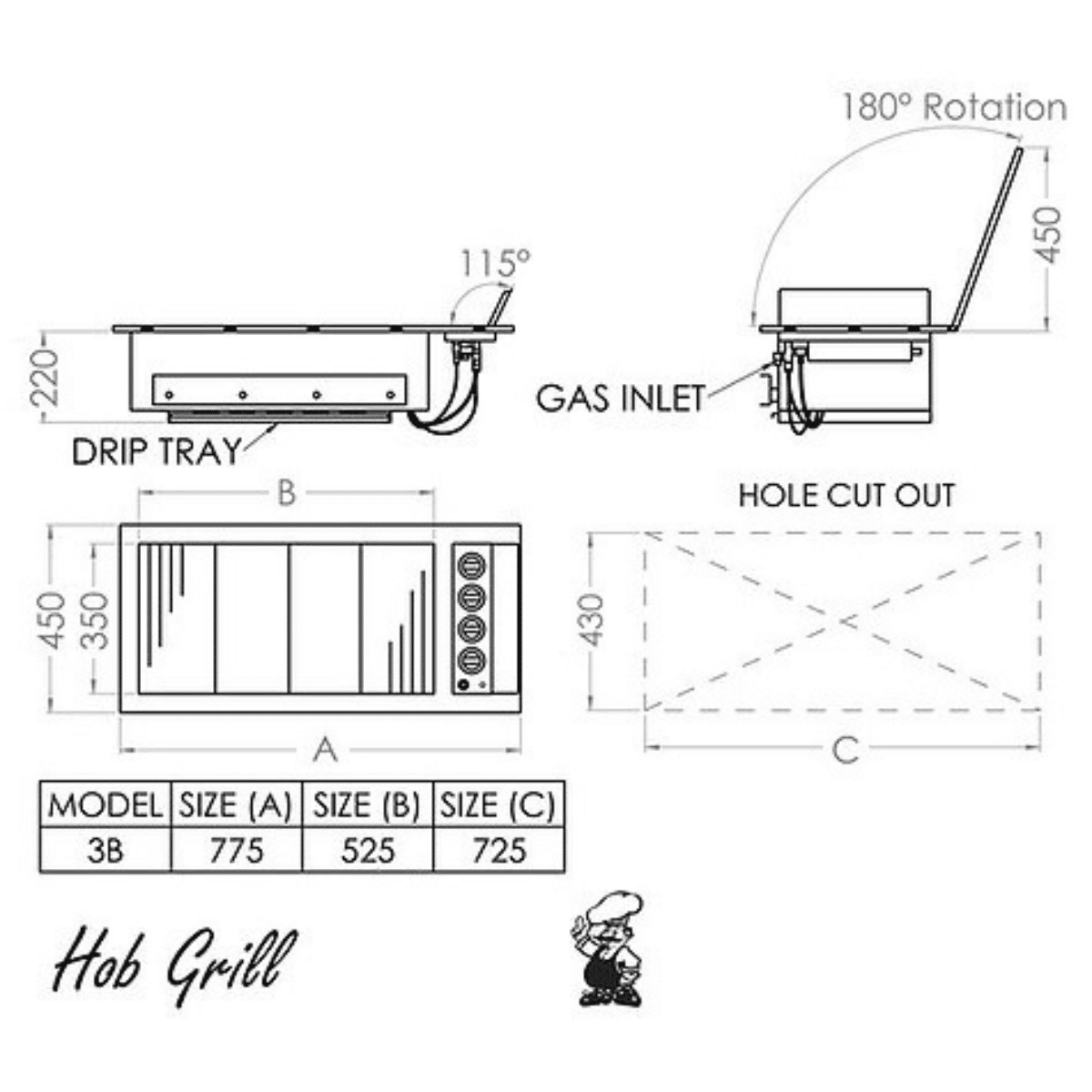

The drawing as text
- BRAAI CULTURE / DIMENSIONS
- Chad-O-Chef 3 Burner Hob
- ALL SIZES IN MILLIMETRES
- 01 TOP VIEW
- 02 SIDE / OPEN COVER
- 775 overall width
- 450 overall depth
- Grid 519 × 350 · opening 525 × 350
- Drip tray
- Gas inlet
- 450 cover rise
- 220 total drop
- Main cover travel: 180°
- Control cover travel: 115°
- 03 COUNTER OPENING
- 04 INCLUDED VENT PANEL
- 725 opening width
- 430 opening depth
- 775 cover width
- 175 height
- Provide at least 300 cm² free vent area.
- Vent cover face area is not free area.
- Retain access to the removable drip tray.
- Heat-resistant worktop and fire-retardant lined cabinet. A registered gas installer is required.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
See also: Chad-O-Chef Hob 4 Burner
What is included?
The three-burner Hob grill in your chosen steel grade, the cooking grid and hot rocks, a removable drip tray, the hinged flat cover with its separate control cover, and a stainless-steel cabinet vent cover. A cooking dome, the worktop, the cabinet and the gas installation are separate.
How big is the counter cut-out?
Cut a 725 × 430 mm opening in the worktop. The rim covers 775 × 450 mm on top, and the unit drops 220 mm below the worktop: 190 mm for the body and 30 mm for the drip tray. Leave access below to remove the tray.
How much room do the covers need?
The open main cover rises 450 mm above the worktop and folds back through 180°. The control cover opens through 115°. Keep the flat cover open while the grill is on or hot; it is not a cooking lid. A cooking dome is available separately.
How do I ventilate the cabinet?
Provide at least 300 cm² of free ventilation in the cabinet: 100 cm² per burner. The included 775 × 175 mm vent cover has fixing holes 96 mm apart, with centres 35 mm from the top. The face of the vent cover is not the same as its free area, so keep the openings clear.
What should the worktop and cabinet be made of?
Use a heat-resistant, non-combustible worktop and line the cabinet with fire-retardant material. Keep wooden cabinet parts at least 100 mm from the grill body. The steel below the worktop can reach about 300 °C, so the worktop and its fitting must suit high temperatures.
Can I use this braai indoors?
Yes. With its flame-failure valve, the Hob suits kitchens and closed patios as well as outdoor counters. Indoor installations need an extractor hood and suitable ventilation. Use a registered gas installer.
How much cooking space is there?
The removable grid is 519 × 350 mm, inside a 525 × 350 mm cooking surface opening. The grid lifts out to soak or go in the dishwasher once the grill is cool.
Which gas type does it use?
The HGG330 uses LP gas. Natural Gas models are available on request; ask us before ordering a Natural Gas unit. Do not convert the appliance yourself. On high, each burner uses up to 0.28 kg of LPG an hour: up to 0.84 kg an hour with all three lit.
What does coastal grade 316 mean?
Grade 316 stainless steel gives greater resistance to corrosion in coastal areas. Clean and dry the steel regularly.
Can I use wood or charcoal?
No. The Hob uses gas only. Do not burn wood or charcoal in it.
What is the guarantee?
The guarantee is three years on the working parts. Terms and conditions apply. Ask us for the full guarantee terms.
Can you help with my setup?
Send a photo and measurements of your counter for a product quote and a visual preview. The Hob is supplied ready for installation; a registered gas installer must fit and connect it. Gas installer information is available from SAQCC Gas (saqccgas.co.za). We do not provide installation services.
