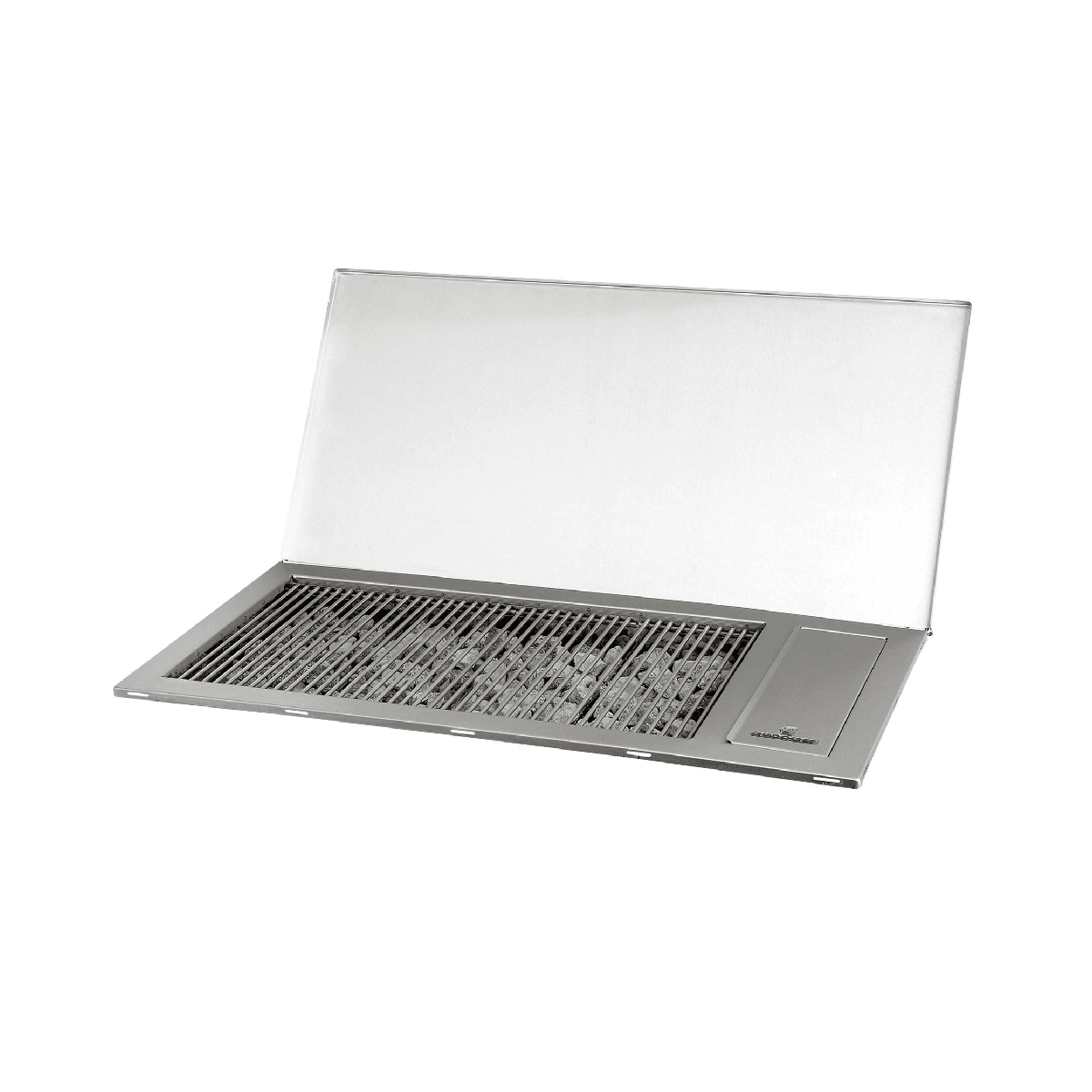

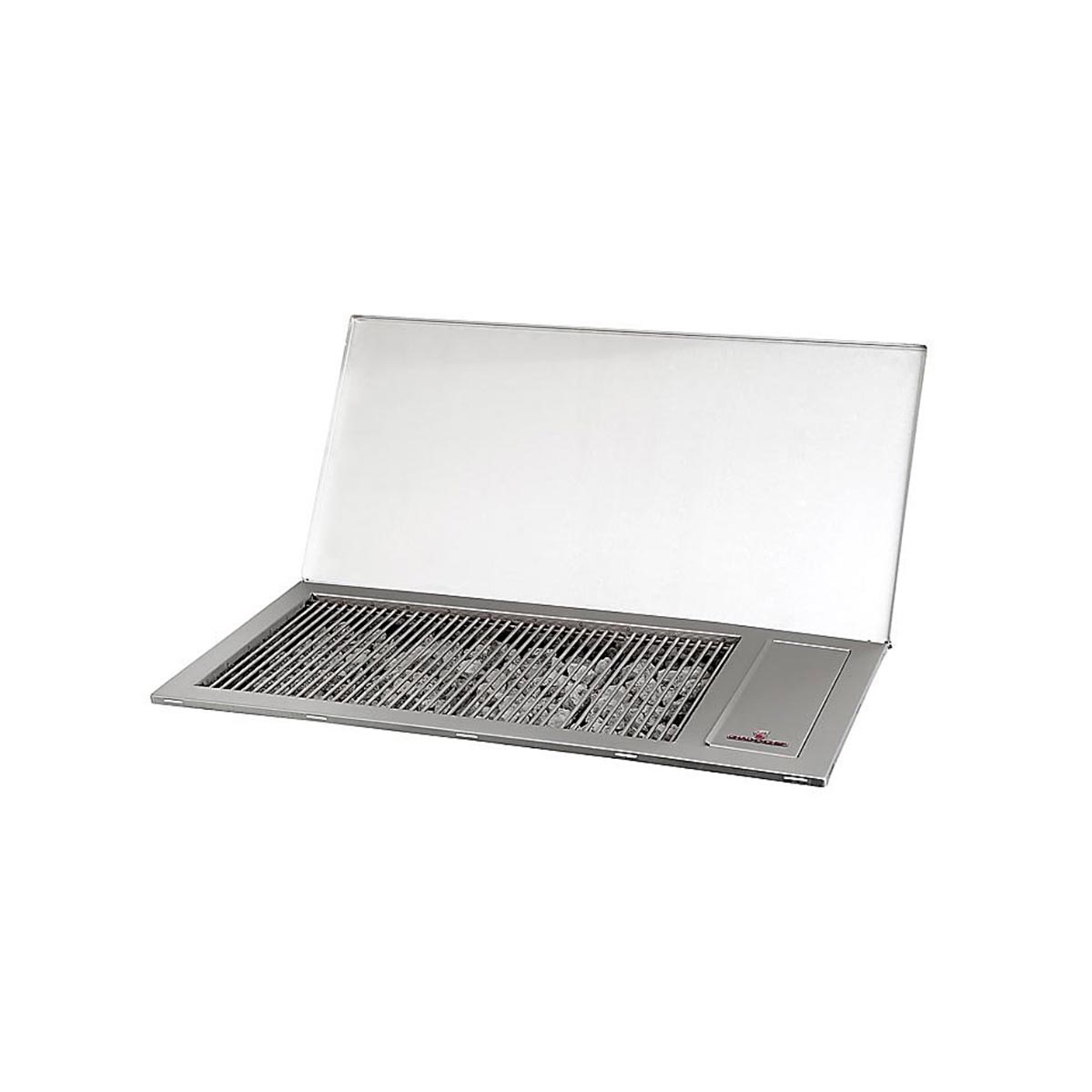

Chad-O-Chef Hob 4 Burner, four-burner drop-in grill with its main cover raised
Your braai, up close
Will it fit my space?

Chad-O-Chef 4 burner Hob Drop in Braai

Chad-O-Chef 4 burner Hob Drop in Braai in 3D

Choose a view or measurement group with the labelled controls. Rotate and zoom with the supported controls, then use Reset to return to the starting view. Product photos and the readable dimensions remain available outside the viewer.

The model does not show?

Chad-O-Chef Hob 4 Burner. If the interactive model is unavailable, use the product photograph and the labelled Dimensions and fit table on this page. The model illustrates appearance and published measurements; it does not certify installation or hidden parts.

Open the 3D view on its own page

About your braai

Gas
LP gas · Natural gas model on request
Included
Grill, stainless steel grids, hot rocks, drip tray, hinged cover, cabinet vent cover
Not included
Worktop, cabinet and gas installation; extractor hood if installed indoors
Guarantee
Three years, terms and conditions apply

Chad-O-ChefBraais

Chad-O-Chef 4 burner Hob Drop in Braai

Fit your gas braai neatly into the counter.

From: R21,599.00

Save R1,501

SKU

In stock Delivery ETA: 5–7 working days

Your total R21,599.00

Awesome, you get free delivery!

How delivery works

DeliveryHow it works

Because most of our products are huge, it’s difficult for us to keep stock of all of them. For this reason, we deliver a lot of our products directly from our suppliers and manufacturers, to offer you a great price and a fresh braai and a warm fireplace.

PRIORITY DELIVERYWe will make sure you are kept in the loop at every single step of the way and we will have your order processed as a priority. Tracking number included.

FREE DELIVERYLook, it’s free but we are unable to provide an exact time or take specific delivery requests as we are at the mercy of our suppliers. We still do our best to deliver as quickly as possible and in most cases we are much quicker than the stated turn around time.

Mail us for any queries.
[email protected]

Get a Quote
14-day returns on the unit* Secure payments

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

COOK IN YOUR OWN SPACE

Built into the counter.
Ready for the meal.

The stainless-steel rim sits on the worktop and the grill body fits below it, with four controls beside the cooking area under their own cover. A flame-failure safety valve adds peace of mind. Fold the hinged cover right back while you cook, then close it over the cool grill, and the counter looks neat and tidy again.

Gas only: never burn wood or charcoal in it. Ask us before you order a natural gas model.

  1. Flame-failure safety valve
  2. Four controls under their own coverThe control cover opens through 115°
  3. Hinged flat cover folds back through 180°Keep it open while the grill is on or hot
  4. Removable stainless-steel drip trayLeave access to it below the counter
  5. Stainless-steel cabinet vent coverAllow at least 400 cm² free ventilation
  6. Installation manualUnder Plan your setup
Chad-O-Chef Hob 4 Burner set into a light stone outdoor worktop with its cover raised

COOK AND SHARE OUTSIDE

Make room for good food.

Prepare food beside the grill. Keep the dining table close, and serve the meal outside.

Counter, cabinetry and furniture are not included.

OPTIONAL DOMES

Add a dome when you want to roast.

DOME ONLY

Keep it simple.

Cooking dome with thermometer. Rotisserie-ready, with no spit or motor included.

DOME + ROTISSERIE

Let Sunday turn slowly.

Dome, thermometer, rotisserie and high-torque motor for slow roasting.

MEASURE BEFORE YOU BUILD

Will it fit your space?

Open dimension drawing

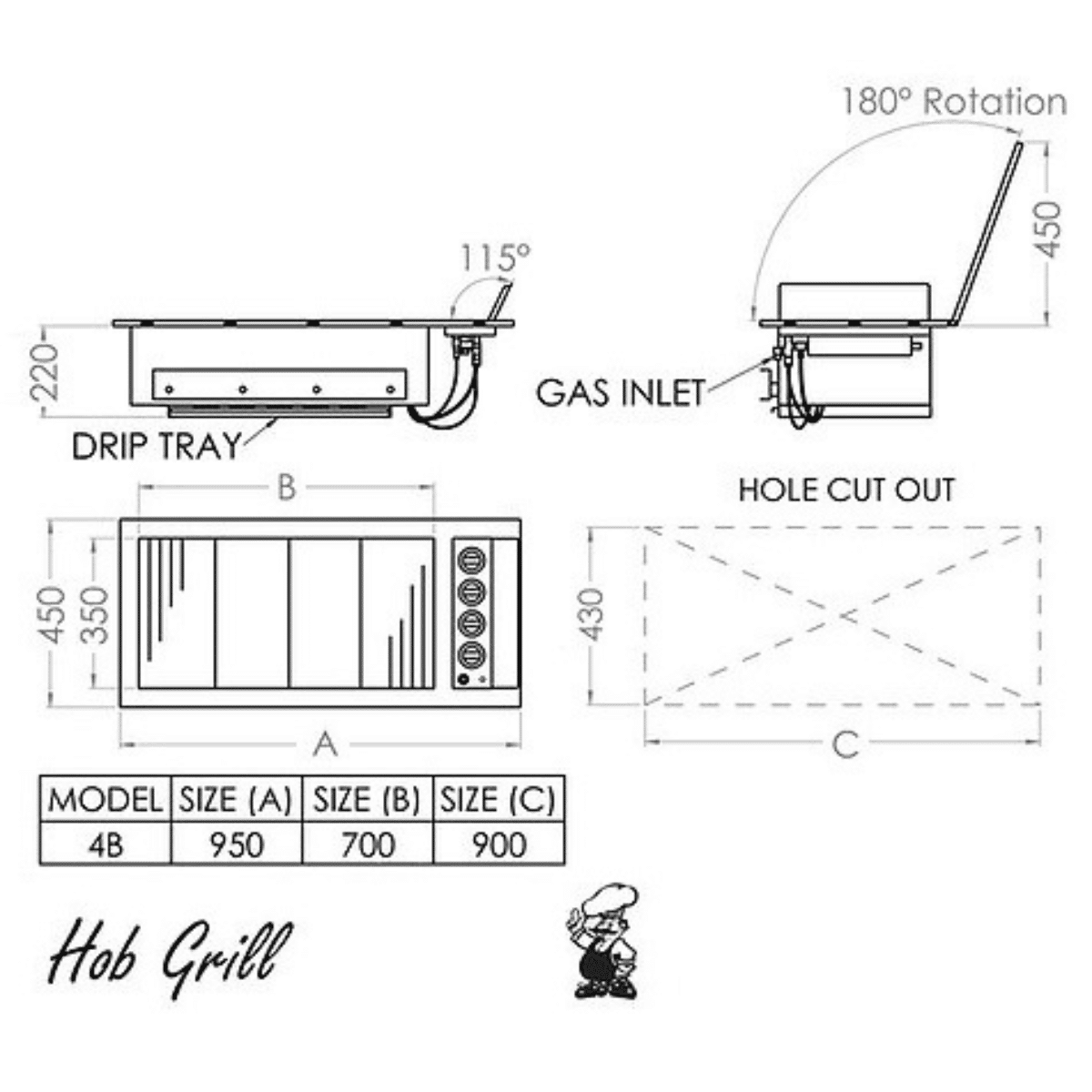

Chad-O-Chef Hob 4 Burner dimension drawing with labelled component and product measurements
Download the dimension drawing
Overall width × depth
950 × 450 mm
Total drop below the worktop
220 mm
Counter cut-out width × depth
900 × 430 mm
Cooking grid
692 × 350 mm
Cooking surface opening
700 × 350 mm
Open cover height above worktop
450 mm
Vent cover width × height
950 × 175 mm
Minimum free ventilation
400 cm²
Wooden parts from the body, minimum
100 mm
Material
Standard stainless steel or coastal grade 316

Plan ventilation and drip-tray access.

Use a heat-resistant, non-combustible worktop, keep wooden cabinet parts at least 100 mm from the grill body and provide at least 400 cm² of free ventilation. These are product dimensions; have a registered gas installer check the actual unit, and fit an extractor hood indoors.

The drawing as text
  • BRAAI CULTURE / DIMENSIONS
  • Chad-O-Chef 4 Burner Hob
  • ALL SIZES IN MILLIMETRES
  • 01 TOP VIEW
  • 02 FRONT VIEW
  • FRONT
  • 950 overall
  • 450 overall
  • Grid 692 × 350
  • Surface opening 700 × 350
  • Four controls sit beside the cooking grid.
  • Gas inlet
  • Towards front
  • 450 cover rise
  • 220 total drop
  • Body 190 + drip tray 30
  • Main cover travel: 180°
  • Control cover travel: 115°
  • 03 COUNTER OPENING
  • 04 INCLUDED VENT COVER
  • 900 opening
  • 430 opening
  • CUT OUT THE WORKTOP
  • Allow access below for the drip tray.
  • 950 cover width
  • 175
  • Fixing holes: 96 apart
  • Hole centres: 35 from the top
  • Minimum free ventilation: 400 cm²
  • Keep all ventilation openings clear.
  • Use a non-combustible, heat-resistant worktop. Keep wooden cabinet parts ≥100 mm from the grill body.
  • Use a registered gas installer. Indoor installations need an extractor hood.
  • Keep the flat cover open while the grill is on or hot.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

See also: Chad-O-Chef Hob 3 Burner

How much room is needed below the worktop?

Allow for a 220 mm drop below the top: 190 mm for the body and 30 mm for the drip tray. Leave access to remove the tray. Keep wooden cabinet parts at least 100 mm from the body at the front, sides and rear.

How much room do the covers need?

The open main cover rises 450 mm above the worktop. It folds back through 180°. The control cover opens through 115°. Keep the flat cover open while the grill is on or hot.

How do I position the vent cover?

The included cover is 950 × 175 mm. Its fixing holes are 96 mm apart, with their centres 35 mm from the top. Provide at least 400 cm² of free ventilation area. Keep the ventilation openings clear.

Can I remove the grids for cleaning?

Yes. Remove the cooking grids for cleaning when the grill is cool. The grid is 692 × 350 mm. The cooking surface opening is 700 × 350 mm.

Can I use this braai indoors?

Yes. It suits kitchens and closed patios as well as outdoor counters. Use a registered gas installer. Indoor installations need an extractor hood and suitable ventilation. The cabinet needs ventilation and access to the drip tray.

Can I cook with the flat cover closed?

No. Keep the flat cover open while the grill is on or hot. Close it only when the grill is cool.

Is a cooking dome included?

No. The hinged flat cover is included. Select a cooking dome above if you want one. Choose a dome with rotisserie to add the spit and motor.

Which gas type does it use?

The HGG430 uses LP gas. Natural Gas models are available on request. Ask us before ordering a Natural Gas unit. Do not convert the appliance yourself.

What does coastal grade 316 mean?

Grade 316 stainless steel gives greater resistance to corrosion in coastal areas. Clean and dry the steel regularly.

What is the guarantee?

The guarantee is three years. Terms and conditions apply. Ask us for the full guarantee terms.

Can I use wood or charcoal?

No. This Hob Grill uses gas only. Do not burn wood or charcoal in it.

Can you help with my setup?

Send a photo and measurements of your counter for a product quote and a visual preview. The Hob is supplied ready for installation; a registered gas installer must fit and connect it. Gas installer information is available from SAQCC Gas (saqccgas.co.za). We do not provide installation services.
