THE COUNTER
A counter that can take the heat.
The hob needs a non-combustible countertop and a fire-retardant lining inside the cabinet. Leave access to the drip tray, and keep wooden sides and backs clear of the body as the manual shows.
Sale!
About your braai
- Design
- Two independent 3-burner grills · Flame failure device
- Included
- Hob grill, grids, hinged stainless-steel lid, vent cover, drip tray and dust cover
- Not included
- Counter, cabinet and its ventilation, gas connection, installation
- Guarantee
- 3 years on working parts and manufacturing defects

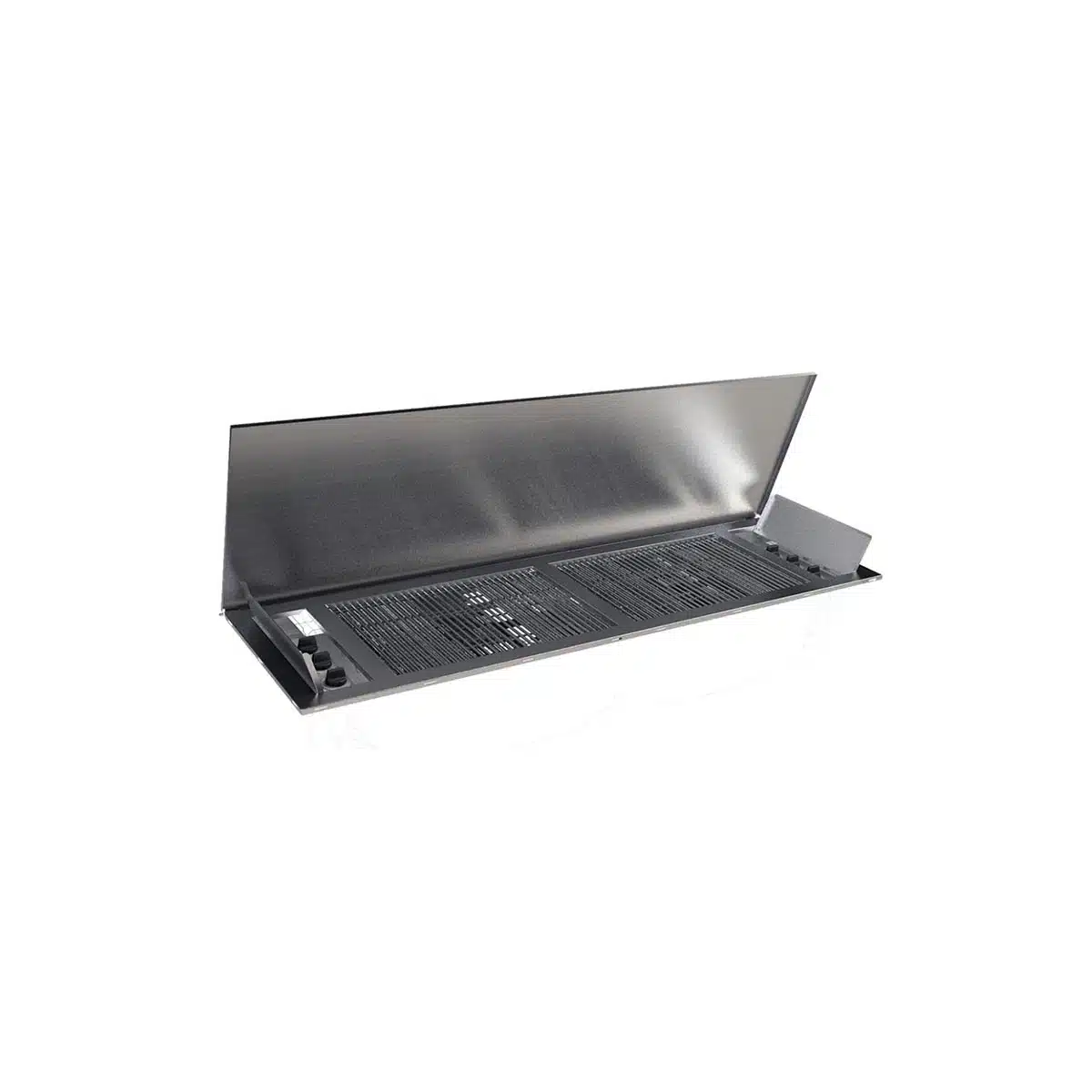

Chad-O-Chef Hob Drop in Braai - 6 burner
Six gas burners that drop into your counter and close under a hinged lid.
From: R34,499.00
Save R3,901Made to order Delivery ETA: 10–15 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTWO GRILLS, ONE NEAT COUNTER
Two grills side by side.
One lid over both.
Light one three-burner grill for a quiet supper, or both when the whole family comes round. Each grill works on its own, lights with a piezo ignition and has a flame failure device. When the plates are cleared, the 6 mm grids go in the dishwasher, and the hinged stainless-steel lid closes over the hob.
- Two independent three-burner grillsUse one side or both
- Piezo ignition and a flame failure device
- Grids of 6 mm stainless-steel barDishwasher safe
- Hinged stainless-steel lid, opens through 180°The control cover opens through 115°
- Spares available for lifeFor Chad-O-Chef's own products
- Installation manualUnder Plan your setup
GOLDEN HOUR ON THE DECK
Steak on one side.
Chicken on the other.
The sun sinks behind the trees, steaks sear on one grill and chicken takes its time on the other. The guests have found their seats and the wine is poured. With two grills that work on their own, everything lands on the plates together.
The granite counter, stone cabinet, deck, furniture, food and tableware are not included. Have a registered gas installer connect the gas and plan the cabinet ventilation.
A LITTLE PRACTICAL THINKING
Plan the counter, the cabinet and the air.
THE AIR
Fresh air under the counter.
The cabinet below needs crossflow ventilation, with 100 cm² of free area for each burner. With the specified installation and ventilation, the hob can go indoors or outdoors.
THE GAS
LPG as standard.
The burners run on LPG as standard. Natural gas is available on request, but it must be specified before supply, so tell us which gas you have before you order. A registered gas installer must connect the hob.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Rim width × depth
- 1,550 × 450 mm
- Counter cut-out width × depth
- 1,500 × 430 mm
- Depth below the rim, with drip tray
- 220 mm
- Casing depth below the rim
- 190 mm
- Open lid height above the rim
- 450 mm
- Opening per grill, width × depth
- 525 × 350 mm
- Cooking area per grill, width × depth
- 519 × 350 mm
- Clearance to wooden sides and back
- 100 mm
- Cabinet ventilation per burner
- 100 cm²
- Material
- Stainless steel, 304 or 316
Plan the cut-out, the lid and the cabinet together.
The counter cut-out is 1,500 × 430 mm. Below the rim the hob needs 220 mm with its drip tray, and the open lid rises 450 mm above it. Have your installer check the actual unit and the clearances.

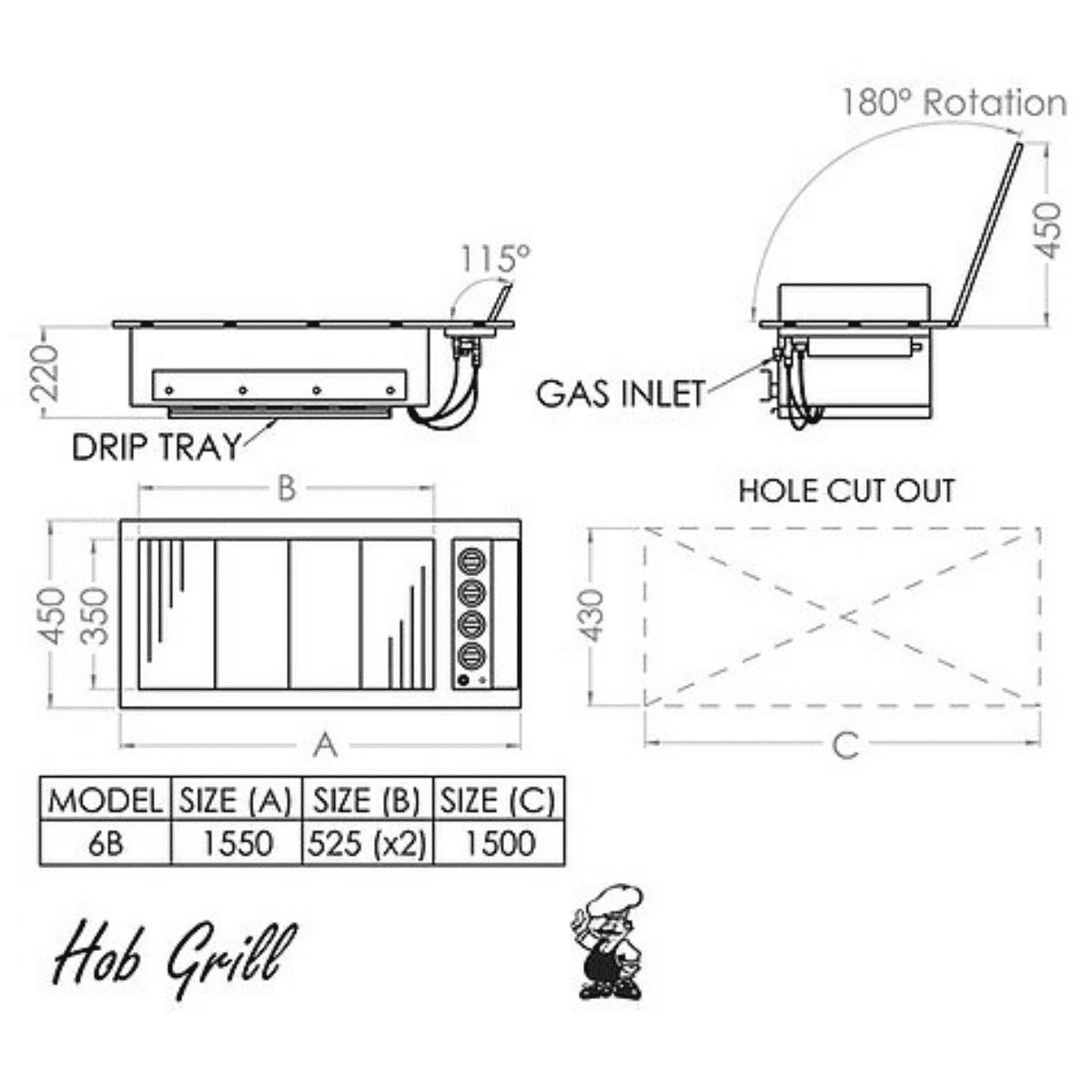

The drawing as text
- ALL SIZES IN MILLIMETRES
- Chad-O-Chef Hob Drop-In Braai 6 Burner
- Drop-in gas braai: two independent 3 burner grills, with a hinged lid and control covers
- 01 TOP VIEW, LID NOT SHOWN
- 525 opening
- 1,550 rim width
- 450 rim depth
- 519 cooking
- Front at the bottom. Two grills that work on their own. Dashed: the 3 burners of each grill.
- 525 opening
- 350 opening depth
- 350 cooking depth
- 519 cooking
- 02 COUNTER CUT-OUT
- 430 cut-out depth
- 1,500 cut-out width
- 03 SIDE VIEW, LID OPEN
- 450 open lid
- 220 below the rim
- 190 casing
- 30 drip tray
- 180° lid rotation
- Front at the right.
- 04 FRONT VIEW, CONTROL COVERS OPEN
- 115° control cover
- 05 CABINET, FROM THE FRONT
- 100 to wood
- Non-combustible worktop
- 06 CABINET, FROM THE SIDE
- 100 to wood
- 100 to wood
- Louvred doors:
- 100 cm² free area
- per burner
- Front at the right.
- PLANNING NOTES
- For domestic use only. A registered gas installer must do the installation.
- For indoor or outdoor use, with the specified installation and ventilation.
- The countertop must be non-combustible. The cabinet needs a fire-retardant lining, crossflow ventilation and
- access to the drip tray.
- Louvred cabinet ventilation: 100 cm² free area per burner.
- Included: hinged stainless-steel lid, vent cover, drip tray and dust cover.
- Ask us for the vent cover size before you build the cabinet.
- The 6 burner hob is a special order.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the counter and the cabinet.
What is included?
The 6-burner hob grill, built as two three-burner grills that work on their own, with its grids, a hinged stainless-steel lid, the stainless-steel vent cover, a stainless-steel drip tray and a dust cover. The counter, the cabinet and its ventilation, the gas connection and the installation are not included.
Can I use one side only?
Yes. The hob is two three-burner grills that work independently, so light one side for a small meal or both for a crowd. Each side has a usable cooking area of 519 × 350 mm.
Which gas does it use?
LPG as standard, lit with a piezo ignition. Natural gas is available on request, but it must be specified before supply, so tell us which gas you have before you order. A registered gas installer must connect the hob.
Can it go indoors?
Yes, with the specified installation and ventilation. The hob has a flame failure device, and the cabinet below needs crossflow ventilation with 100 cm² of free area per burner. It is for domestic use only. Your registered gas installer checks the space and the ventilation.
How much cooking space is there?
Each grill has a usable cooking area of 519 × 350 mm, inside an opening of 525 × 350 mm. The grids are 6 mm stainless-steel bar and dishwasher safe.
What cut-out do I need?
The counter cut-out is 1,500 mm wide and 430 mm deep, and the rim measures 1,550 × 450 mm. Below the rim, the hob needs 220 mm with the drip tray: 190 mm of casing and 30 mm of tray. Keep wooden sides and backs at least 100 mm from the body. Have your installer check the actual unit before cutting.
What do the counter and cabinet need?
A non-combustible countertop, a fire-retardant lining inside the cabinet, crossflow ventilation and access to the drip tray. The manual shows the full installation.
How does the lid work?
The hinged stainless-steel lid swings open through 180° and stands 450 mm above the rim when open. The cover over the controls opens through 115°. Allow for both when you plan the space above and around the hob.
Which steel grade should I choose?
Choose it on the page. Chad-O-Chef makes the inland grade in 304 stainless steel and the coastal grade in 316 stainless steel. If you are not sure which suits your spot, ask us before you order.
What does the guarantee cover?
The braai has a 3-year Chad-O-Chef guarantee from the date of purchase, subject to its terms. It covers working components and manufacturing defects. Rust or cosmetic wear, misuse and incorrect installation are not covered. To claim, you need your proof of purchase and the applicable compliance certificate. Chad-O-Chef also keeps spares available for its own products for life.
Can you help with my setup?
Yes. Send a photo and measurements for a product and configuration quote. Arrange installation with an independent installer, and the gas connection with a registered gas installer.
