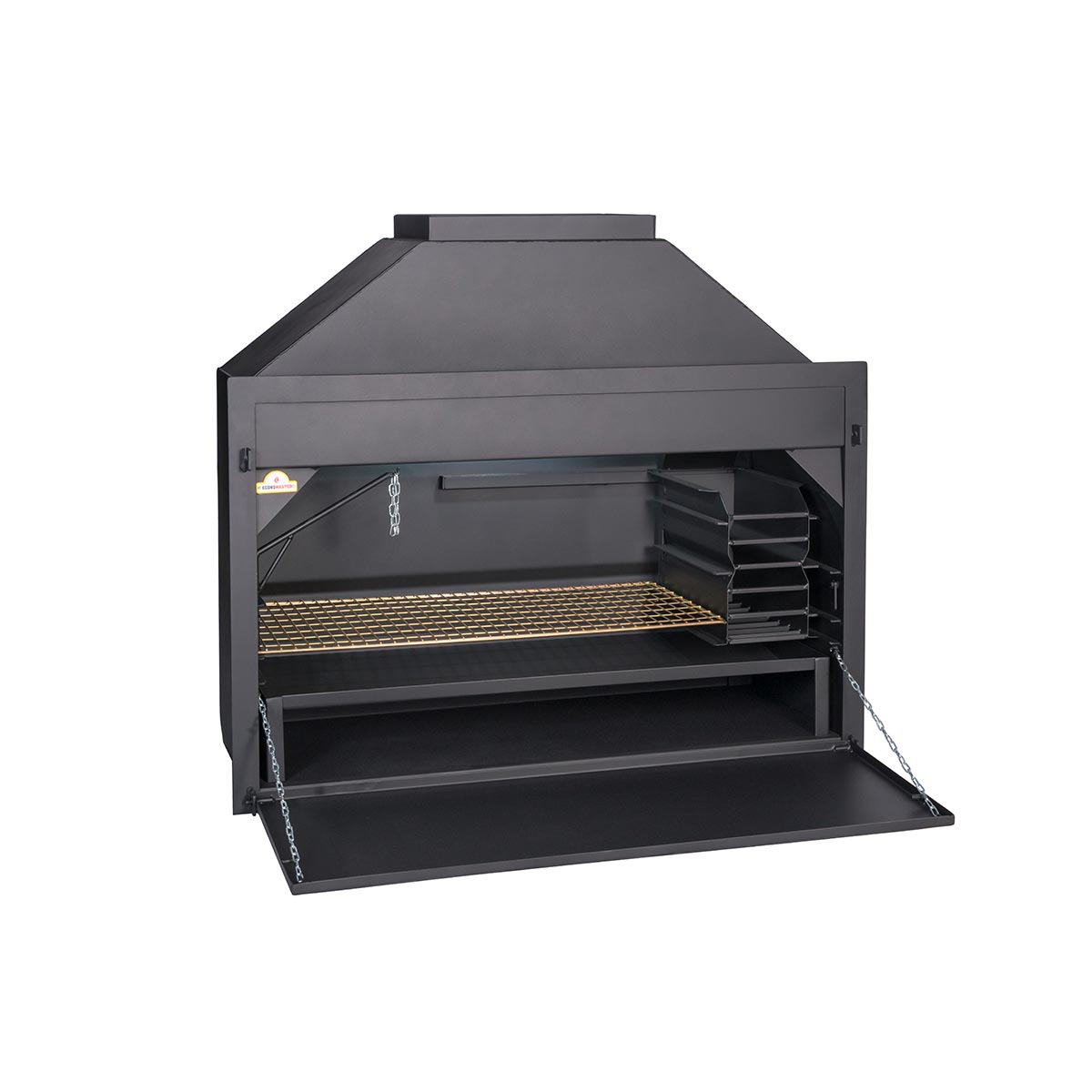

Homefires 1200 EconoMaster Built-in Braai

A straightforward built-in braai in 2.5 mm mild steel.

From: Original price was: R12,990.00.Current price is: R11,999.00.

Save R991
Rated 4.5 out of 54 reviews

Pay in interest-free instalments with Float

SKU BRAAIB1200EMAST

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE ECONOMASTER ESSENTIALS

Build in the Homefires 1200 EconoMaster Built-in Braai.
Simple and solid.

The Homefires 1200 EconoMaster Built-in Braai does the essentials well. Build the fire in the ember maker, then move fresh coals under the electroplated grid as you cook. Hang a potjie on the holder for something slow. The ash pan catches what falls, and the top and bottom doors close up the black body when the fire is out.

  1. Ember makerFresh coals as you cook
  2. Electroplated mild-steel cooking grid
  3. Suits a built-in installation indoors
  4. Leave a 20 mm expansion gapAt the sides and back of the body
  5. Chimney at least 2.5 m highFlue offset at most 45 degrees
  6. Installation manualUnder Plan your setup
Homefires 1200 EconoMaster Built-in Braai set into a stone chimney breast on a covered patio, bottom door open, with plates and a wooden board on the ledges

THE WEEKEND STARTS HERE

Light the fire.
Call everyone in.

Get the ember maker going, put the chops and wors on the grid and hang a potjie for later. Built into your patio, the EconoMaster keeps the fire where the company is, from a quick weeknight braai to a long Saturday afternoon.

The stone chimney breast, ledges, plates, plants and boards are not included. Plan the surround, flue and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Keep the next round ready.

THE FIRE

Fresh coals, close at hand.

Burn wood in the ember maker and rake fresh coals under the grid whenever the fire needs them. Hang a potjie from the potjie holder for something slow.

THE GRID

Room for the whole braai.

The electroplated mild-steel grid measures 950 × 450 mm, with room for chops, wors and sosaties at the same time.

THE BODY

Made from 2.5 mm mild steel.

The body is 2.5 mm mild steel with high-heat black paint. Close the top and bottom doors when the braai is not in use, and empty the ash pan once the ash is cold.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

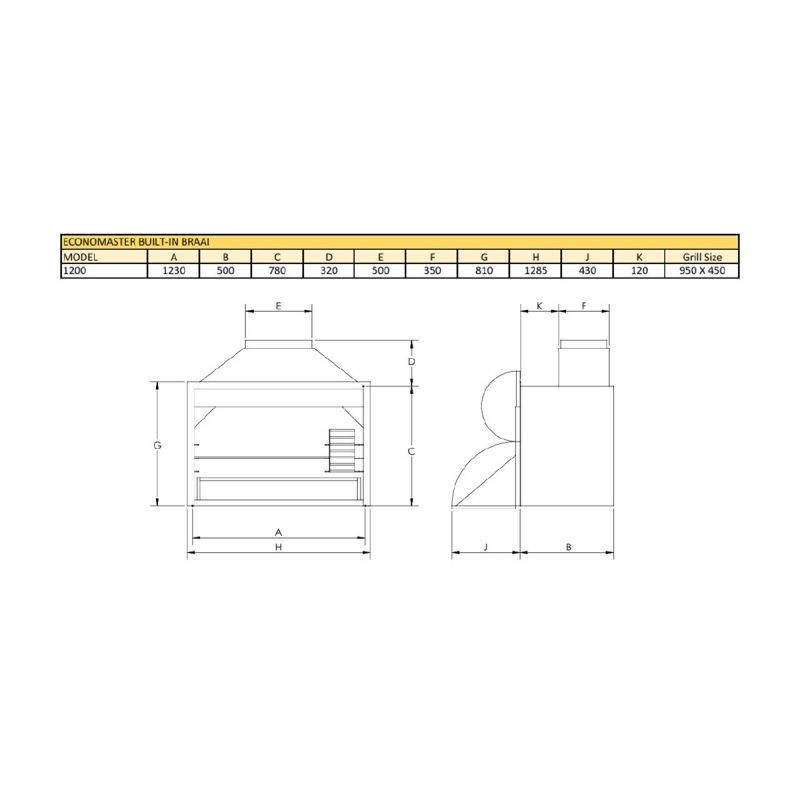

Homefires 1200 EconoMaster Built-in Braai dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Body width × depth
1,230 × 500 mm
Body height, without the gather
780 mm
Front frame width × height
1,285 × 810 mm
Gather above the body
320 mm
Flue outlet width × depth
500 × 350 mm
Flue outlet, back from the body front
120 mm
Open bottom door, in front of the body
430 mm
Cooking grid
950 × 450 mm
Material
2.5 mm black mild steel
Fuel
Wood or charcoal
Weight
120 kg

Plan the body, gather and flue together.

The 780 mm body height does not include the 320 mm gather above it, and the open bottom door reaches 430 mm forward. These are product dimensions, not a building opening: have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The body is 500 deep and 780 high, without the gather.
  • Leave a 20 mm expansion gap at the sides and back.
  • The chimney must be at least as large as the 500 × 350 flue outlet and at least 2,500 high.
  • The flue can be offset by up to 45 degrees to clear an obstruction.
  • The bottom door opens 430 in front of the body: keep this space clear.
  • Flue pipes, collars and cowls are sold separately.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1200 EconoMaster Built-in Braai
  • Built-in braai: wood and charcoal, with an ember maker, a top door and a bottom door
  • 01 FRONT VIEW
  • 500 flue outlet
  • 810 frame height
  • 950 cooking grid
  • 1,230 body width
  • 1,285 including frame
  • 02 SIDE VIEW
  • 350 flue
  • 120 to the front
  • 430 door open
  • 320 gather
  • Front at the right. Bottom door open.
  • 03 COOKING GRID
  • 950 width
  • 450 depth
  • 04 TOP VIEW
  • 1,230 body width
  • Front at the bottom. White: the flue outlet.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The body is 500 deep and 780 high, without the gather.
  • Leave a 20 mm expansion gap at the sides and back.
  • The chimney must be at least as large as the 500 × 350 flue outlet and at least 2,500 high.
  • The flue can be offset by up to 45 degrees to clear an obstruction.
  • The bottom door opens 430 in front of the body: keep this space clear.
  • Flue pipes, collars and cowls are sold separately.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 1200 EconoMaster braai with top and bottom doors, an ash pan, a 950 × 450 mm electroplated grid, an ember maker, a potjie holder and a light fitting. The body is 2.5 mm mild steel with high-heat black paint. Flue pipes, collars and the cowl are optional extras, sold separately.

Which fuel can I use?

Wood or charcoal. Burn wood in the ember maker and rake the fresh coals under the grid as you cook.

How much cooking space is there?

The electroplated mild-steel grid is 950 mm wide and 450 mm deep. The potjie holder takes a potjie for slow cooking alongside.

Is the flue included?

No. Flue pipes, collars and cowls in 350 × 500 mm are offered with this model, sold separately. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.

Where does the flue connect?

At the outlet on top of the gather, which rises 320 mm above the body. The outlet is 500 mm wide and 350 mm deep, and its front edge sits 120 mm back from the front of the body. The inside of the chimney must not be smaller than this outlet.

How tall should the chimney be?

At least 2.5 m. The flue can be offset by up to 45 degrees to clear an obstruction. Roof types differ, so ask us about the right height and supports for your roof, and have your installer plan the route.

How much space do I need?

The body is 1,230 mm wide, 500 mm deep and 780 mm high. The front frame is 1,285 mm wide and 810 mm high, and the gather rises 320 mm above the body. Opened, the bottom door reaches 430 mm in front of the body. These are product dimensions, not a building opening; have your installer check the actual unit and safe clearances.

What gap should I leave around the body?

Leave a 20 mm expansion gap between the brickwork and the sides and back of the body. Your installer plans the full opening and safe clearances.

Can it be built in indoors?

Yes. Homefires supports an indoor installation. Follow the instruction manual, and have a competent installer plan the chimney, clearances and ventilation.

What does the warranty cover?

The EconoMaster firebox has a five-year Homefires warranty against faulty workmanship or materials under normal use. Loose, replaceable parts are not covered, and neither are rust, misuse, water damage or damage from the installation. Keep the braai maintained. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
