Homefires 1000 EconoMaster Built-in Braai

A straightforward built-in braai with an ember maker beside the grid.

From: Original price was: R11,730.00.Current price is: R10,999.00.

Save R731
Rated 5.0 out of 51 review

Pay in interest-free instalments with Float

SKU BRAAIB1000EMAST

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE ESSENTIALS, SORTED

Room to cook on the Homefires 1000 Economaster Braai, coals on the side.

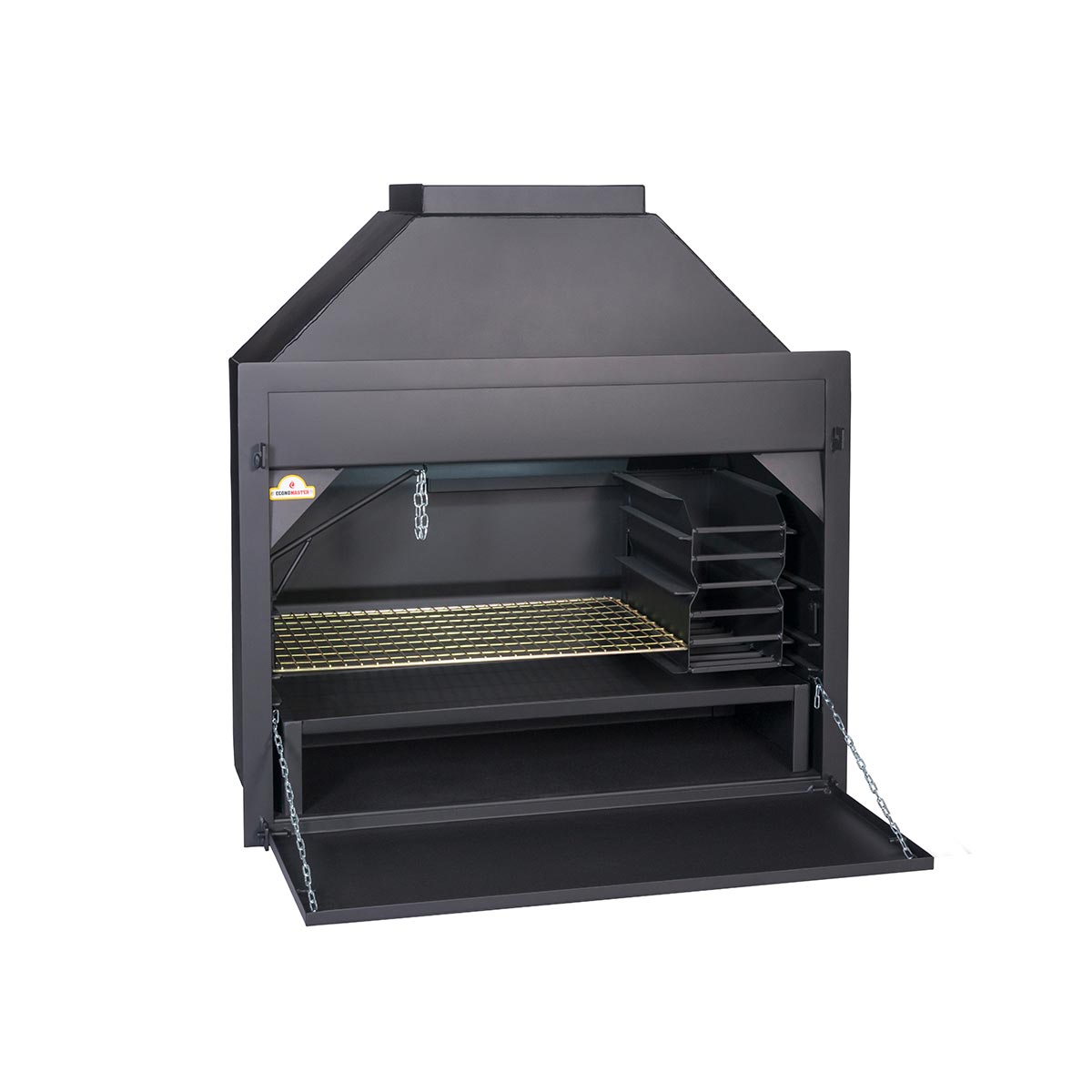

The Homefires 1000 Economaster Braai keeps it simple and solid. Build the fire in the ember maker on the right, then move fresh coals under the electroplated grid as you cook. Hang a potjie on the hook for something slow. The ash pan sits below the fire, and the top and bottom doors close up the 2.5 mm mild-steel body.

  1. Ember maker on the rightFresh coals as you cook
  2. Electroplated cooking grid
  3. Chain-supported bottom door
  4. Ash pan below the fireThis model has no ash drawer
  5. Installation manualUnder Plan your setup
Homefires 1000 Economaster Braai in a white plastered wall on a sunny patio, meat and peppers on the grid, flames in the ember maker and a table set nearby

MAKE ROOM FOR GOOD TIMES

Fresh coals.
Good company.

Keep the ember maker going and the coals keep coming, so the next round is never far off. Chops on the grid, a potjie on the hook and everyone close to the fire.

Surround, chimney, counters, furniture and food are not included. Have an independent installer confirm the support and installation.

A LITTLE PRACTICAL THINKING

Keep the next round ready.

THE FIRE

Coals on the right.

Burn wood in the ember maker on the right and rake fresh coals under the grid whenever the fire needs them.

THE GRID

Cooking on the left.

The 750 × 450 mm electroplated grid has room for chops, wors and sosaties, with the potjie hook for something slow on the side.

THE ASH

An ash pan underneath.

Ash collects in the pan below the fire; empty it once it is cold. This model has an ash pan, not an ash drawer or warming drawer.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

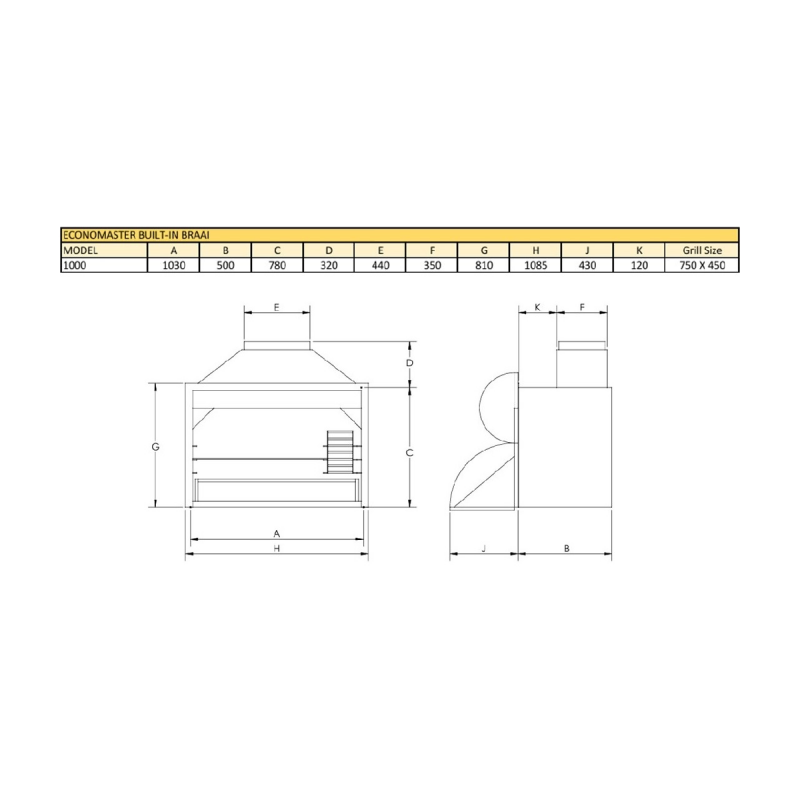

Homefires 1000 Economaster Braai dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Body width × depth
1,030 × 500 mm
Body height, without the gather
780 mm
Cooking grid
750 × 450 mm
Flue pipes (sold separately)
340 × 440 mm
Material
2.5 mm black mild steel
Fuel
Wood or charcoal

Plan the body, gather and flue together.

The gather sits above the 780 mm body, and the doors need room to open. These are product dimensions, not a building opening, so have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Confirm the opening, the insulation and the flue arrangement before you build.
  • Allow for the lower door: it opens 430 in front of the body.
  • Included: top and bottom doors, an ash pan, an electroplated grid, an ember maker, a potjie hook and a light fitting.
  • It has an ash pan. It has no ash drawer and no warming drawer.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1000 EconoMaster Built-in Braai
  • Built-in braai: 2.5 mm mild steel, for wood or charcoal, with an ember maker and a potjie hook
  • 01 FRONT VIEW
  • 440 flue outlet
  • 810 frame height
  • 750 cooking grid
  • 1,030 body width
  • 1,085 including frame
  • 02 SIDE VIEW
  • 120 front face to outlet
  • 350 outlet
  • 430 door open
  • 500 body depth
  • 320 gather
  • 780 body
  • Front at the right. Lower door open.
  • 03 COOKING GRID
  • 750 width
  • 450 depth
  • Front at the bottom.
  • 04 TOP VIEW
  • 1,030 body width
  • 500 body depth
  • Front at the bottom. White: the flue outlet.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Confirm the opening, the insulation and the flue arrangement before you build.
  • Allow for the lower door: it opens 430 in front of the body.
  • Included: top and bottom doors, an ash pan, an electroplated grid, an ember maker, a potjie hook and a light fitting.
  • It has an ash pan. It has no ash drawer and no warming drawer.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The black 2.5 mm mild-steel braai with top and bottom doors, an ash pan, a 750 × 450 mm electroplated grid, an ember maker, a potjie hook and a light fitting. Flue pipes and the cowl are sold separately.

Which fuel can I use?

Wood or charcoal. Burn wood in the ember maker on the right and rake the coals under the grid as you cook.

How much cooking space is there?

The electroplated grid is 750 × 450 mm, on the left. The ember maker sits to its right, and the potjie hook takes a potjie.

Is the flue included?

No. Flue pipes and the cowl are sold separately. The flue pipes are 340 × 440 mm. Send a photo and measurements for a flue and configuration quote.

How much space do I need?

The body is 1,030 mm wide, 500 mm deep and 780 mm high. The gather sits above the body, and the top and bottom doors need room to open. These are product dimensions, not a building opening. Have your installer check the actual unit, the opening and safe clearances before building.

Does it have an ash drawer or warming drawer?

No. The 1000 EconoMaster has an ash pan below the fire. The ash drawer and warming drawer come with other Homefires models.

Can it be installed indoors?

Yes. Homefires built-in braais are listed for indoor or outdoor installation. Your installer must follow the installation manual that comes with the unit. The braai needs suitable masonry support and a correctly designed chimney. Ask a competent installer to confirm the location, clearances and ventilation.

What does the guarantee cover?

The EconoMaster firebox has a 5-year Homefires guarantee from the date of purchase against faulty workmanship or materials, when the fire is made in the ember maker or the ash pan. Loose, replaceable parts such as the grid, the ember maker and the ash pan are not covered, and neither is rust for any reason, misuse or water leaks, or damage from incorrect installation. Keep the braai painted and maintained. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote; we can include a visual preview. Arrange installation with an independent installer.
