HomeFires 800 Freestanding Corner Unit

A freestanding corner fireplace that comes with its own flue pipes and rotating cowl.

Original price was: R14,670.00.Current price is: R13,999.00.

Save R671
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU F/PLACEF800COR

In stock Delivery ETA: 5–7 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

A GOOD USE OF A CORNER

HomeFires 800 Freestanding Corner Unit.
Corner sorted.

The HomeFires 800 Freestanding Corner Unit turns a quiet corner into the spot everyone heads for. It is mild steel in a black finish, with convection and radiant heat and a built-in damper. Feed it wood or anthracite, empty the ash drawer when the fire is out and keep the touch-up paint handy for small marks.

  1. Convection and radiant heat
  2. Built-in damper
  3. Burns wood or anthracite
  4. Mild steel in a black finishThe standard unit
  5. Insulation material and touch-up paintBoth come with it
  6. Installation manualUnder Plan your setup
HomeFires 800 Freestanding Corner Unit on a tiled hearth in the corner of a face-brick dining room at dusk, logs burning, with a table in front

FIRE LIT, TABLE SET

Set the table.
Light the fire.

The brick glows, the table is set and the first logs have caught. This is the corner where supper runs late and the second glass gets poured without anyone asking. Everybody ends up facing the fire, which is exactly the idea.

The flue pipe comes with the fireplace. The tiled hearth, table, chairs, wall lights and décor are not included. Plan the flue route, hearth and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Your corner, your flue route.

THE CORNER

Made to tuck in.

The two sloping back sides are made for a room corner, and the fire looks out across the room. Compare the floor plan on our drawing with your corner, and you will know how it sits.

THE FLUE

Flue and cowl come with it.

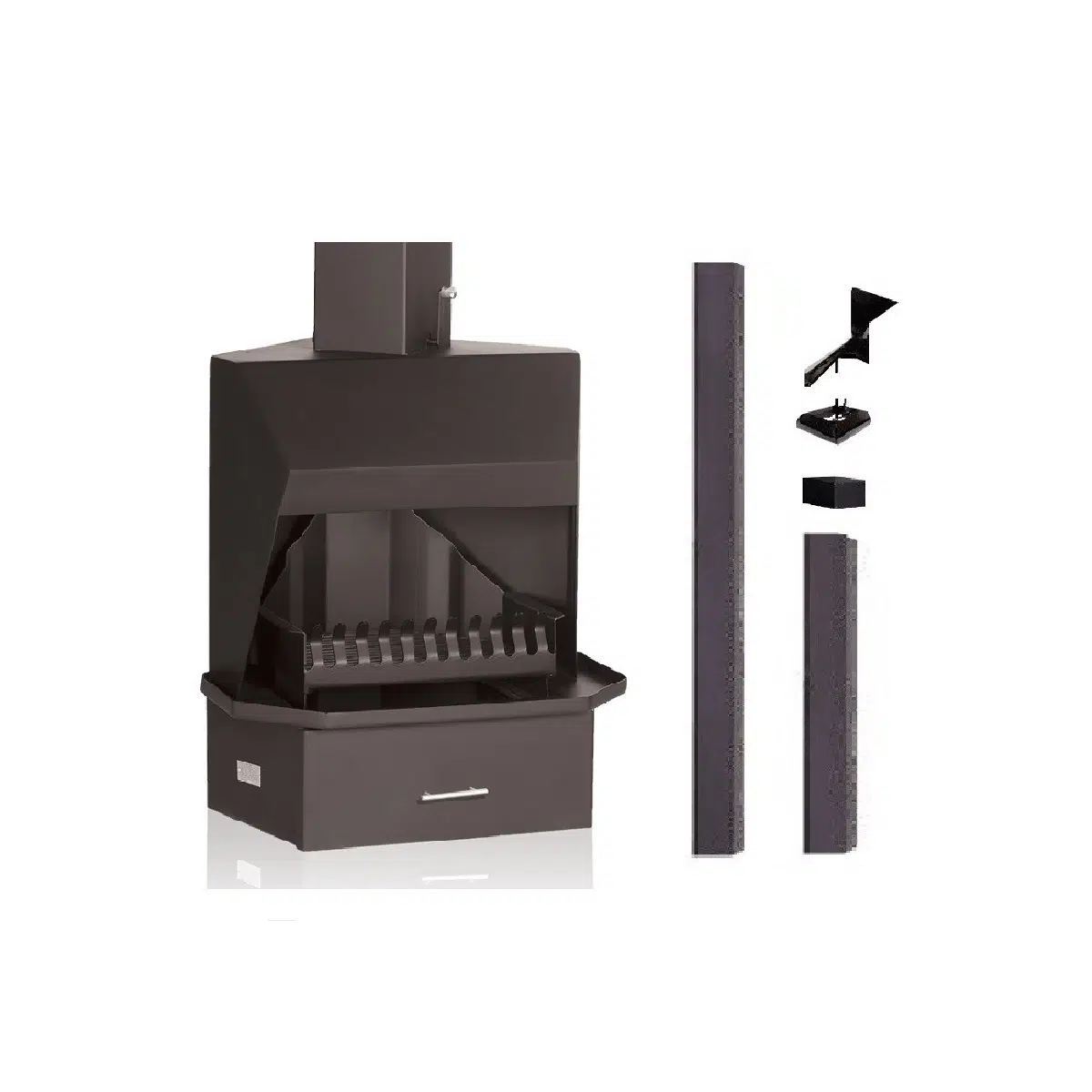

Two square pipes, a joining collar, a cowl base, a rotating cowl top and an escutcheon plate all come with the fireplace. Going higher? Extra 180 × 180 pipes and collars are options on this page.

THE HEAT

Two kinds of warmth.

This fireplace produces both convection and radiant heat. The listed heating volume is 120 m³: multiply your room's length, width and height to see how it compares.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
HomeFires 800 Freestanding Corner Unit dimension drawing, page 1 of 2: front, side and top views, in millimetres.
Page 1 of 2
Body width × depth
710 × 730 mm
Height, floor to top of the unit
760 mm
Floor plan, back × front side
470 × 310 mm
Floor plan, front edge
510 mm
Top view diagonals
680 × 520 mm
Front edge to flue centre
350 mm
Square flue, outside
180 × 180 mm
Supplied chimney pipe
3.6 m
Pipe lengths
1.2 m + 2.4 m
Material
Mild steel

Start at the floor plan, then look up.

The 760 mm height runs from the floor to the top of the unit, where the flue starts. The 3.6 m is the length of the supplied pipes, not the height your roof needs, so plan the flue route with an independent installer.

Planning notes

  • The 760 height runs from the floor to the top of the unit, where the flue starts. The flue and the cowl go above it.
  • The 3.6 m is the length of the supplied pipes, not the height your roof needs. Plan the flue route with an installer.
  • The flue pipe is square, 180 by 180 on the outside.
  • Included: the basket grate, the grid, the ash drawer, the damper, the insulation material and the touch-up paint.
  • The listed heating volume is 120 m³.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • HomeFires 800 Corner Unit
  • Open freestanding fireplace for a corner: wood and anthracite, with flue and cowl
  • 01 FRONT VIEW
  • 760 height
  • 710 width
  • 02 SIDE VIEW
  • 730 depth
  • 760 height
  • Front at the right.
  • A corner of the flue faces the front.
  • 03 TOP VIEW
  • 730 depth
  • 350 to flue centre
  • 520 diagonal
  • 680 diagonal
  • 180 flue
  • Back at the top. Front at the bottom.
  • 04 FLOOR PLAN
  • 470 back side
  • 310 front side
  • 510 front
  • The foot of the fireplace on the floor.
  • 05 WITH THE FLUE (SMALLER SCALE)
  • 3.6 m chimney pipe
  • 760 body
  • Two pipes: 1.2 m + 2.4 m.
  • Joining collars between them.
  • Rotating cowl
  • 06 FLUE PARTS (SMALLER SCALE)
  • 2.4 m pipe
  • 1.2 m pipe
  • Joining collar
  • Escutcheon plate
  • Cowl base and rotating top
  • PLANNING NOTES
  • The 760 height runs from the floor to the top of the unit, where the flue starts. The flue and the cowl go above it.
  • The 3.6 m is the length of the supplied pipes, not the height your roof needs. Plan the flue route with an installer.
  • The flue pipe is square, 180 by 180 on the outside.
  • Included: the basket grate, the grid, the ash drawer, the damper, the insulation material and the touch-up paint.
  • The listed heating volume is 120 m³.

GOOD TO KNOW

Plan your setup.

This model shares the Home Fires fireplace manual for the open-fireplace range. Use its freestanding section when you plan.

Read the instruction manual

What is included?

The fireplace with a basket grate, a grid, an ash drawer and a built-in damper. You also get 3.6 m of chimney pipe (1.2 m + 2.4 m), a joining collar, a cowl base with a rotating cowl top, an escutcheon plate, insulation material and touch-up paint.

Is the flue included?

Yes. The 3.6 m of chimney pipe and the cowl come with the fireplace. That is the length of the supplied pipes, not the height your roof needs. Extra pipes and collars are options on this page, and your installer can tell you if you need them.

Which fuel can I use?

Wood or anthracite: those are the fuels listed as suitable for this open fireplace.

How much space will it heat?

The listed heating volume is 120 m³. Compare it with your room's length × width × height. We have no confirmed kW figure for this model yet, so send us your room size and we will chat it through with you.

Will it fit my corner?

The floor plan has back sides of 470 mm, front sides of 310 mm and a front edge of 510 mm. The body is 710 mm wide and 730 mm deep. These are product sizes. Have your installer check them against your corner and the safe clearances.

How high does it stand?

The unit is 760 mm high, from the floor to the top of the unit, where the flue starts. The flue and the cowl go above that.

What size is the flue?

A square pipe, 180 × 180 mm on the outside. The centre of the flue sits 350 mm from the front edge, and a corner of the flue faces the front. Send us a photo and measurements and we will confirm the parts for your setup.

What is it made of?

The standard unit is made in mild steel with a black finish. Touch-up paint comes with it for small marks, and insulation material is included too.

What does the guarantee cover?

Ask us for the current guarantee terms on this fireplace before you order, and we will send them to you.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
