Chad-O-Chef 800 Double-Sided Universal Grate Fireplace

Turn your double-sided wood fireplace into a gas fire for both rooms.

Original price was: R20,100.00.Current price is: R18,799.00.

Save R1,301
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU VFGD800

In stock Delivery ETA: 5–7 working days

About your fireplace

Room size
Suggested for rooms up to 132 m²
Included
Fireplace grate, burner, decorative stones and instruction manual
Not included
The double-sided fireplace (firebox), closing off the chimney, gas pipework, installation
Guarantee
Two years on the fireplace, terms apply
Your total R18,799.00

Awesome, you get free delivery!

How delivery works

DeliveryHow it works

Because most of our products are huge, it’s difficult for us to keep stock of all of them. For this reason, we deliver a lot of our products directly from our suppliers and manufacturers, to offer you a great price and a fresh braai and a warm fireplace.

PRIORITY DELIVERYWe will make sure you are kept in the loop at every single step of the way and we will have your order processed as a priority. Tracking number included.

FREE DELIVERYLook, it’s free but we are unable to provide an exact time or take specific delivery requests as we are at the mercy of our suppliers. We still do our best to deliver as quickly as possible and in most cases we are much quicker than the stated turn around time.

Mail us for any queries.
[email protected]

Get a Quote

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

FROM WOOD TO GAS

Go over to gas with the Chad-O-Chef 800 Double-Sided Universal Grate.

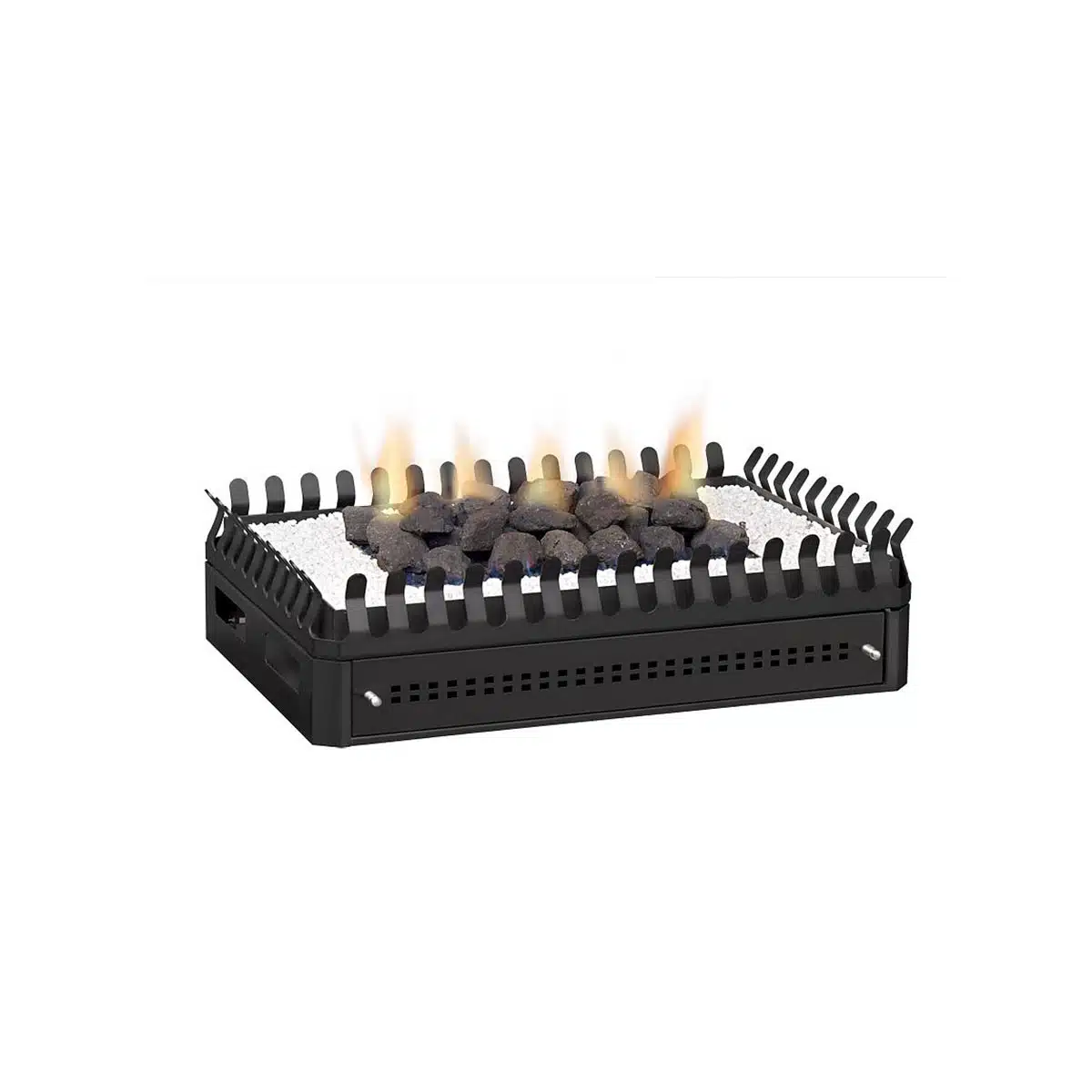

The Chad-O-Chef 800 Double-Sided Universal Grate is a flueless gas grate for a traditional wood-burning fireplace. It goes into the opening you already have, so both rooms keep their view of the flames, and the old chimney is closed off. Black ceramic coals sit on black ash with white stones around them. A piezo spark lights it, on LPG or natural gas.

The firebox is not included: the grate goes into your existing double-sided fireplace.

  1. Gas grate with burnerBlack mild steel, stainless-steel parts
  2. Black ceramic coals on black ashWith a white stone surround
  3. Piezo spark ignition
  4. Oxygen depletion pilotODS, minimum 18.5% oxygen
  5. LPG or natural gasInstalled for your gas type
  6. Installation manualUnder Plan your setup
Chad-O-Chef 800 Double-Sided Universal Grate alight in a face-brick double-sided fireplace, with a family at dinner seen through the flames in the evening

ONE FIRE, BOTH SIDES

Dinner through the flames.

The table is set on the far side, the lounge is cosy on this one, and the same fire glows for everyone. With the grate in your double-sided fireplace there are no logs to haul in and no fire to build. Just light it, sit down and let supper run late.

The face-brick fireplace opening, timber mantel, furniture and décor are not included. The grate goes into your existing double-sided fireplace; a SAQCC Gas registered installer connects it.

BEFORE YOU CONVERT

Fireplace, room and gas, planned.

THE FIREPLACE

Made for the fireplace you have.

It retrofits into a traditional double-sided wood-burning fireplace, and the existing chimney is closed off for this flueless grate. The firebox is not included, so measure your opening before you order.

THE ROOM

Pick the right room.

Without permanent ventilation the room must be at least 198 m³. We recommend it for rooms up to 438 m³ (132 m²), depending on insulation, materials and climate. Do not install it in a bedroom, bathroom, toilet or sauna.

THE GAS

LPG or natural gas.

Choose LPG or natural gas, and have it installed for that gas type by a SAQCC Gas registered installer. A piezo spark lights it, and an oxygen depletion pilot is part of its safety setup.

MEASURE YOUR OPENING

Will it fit your space?

Open the full drawing

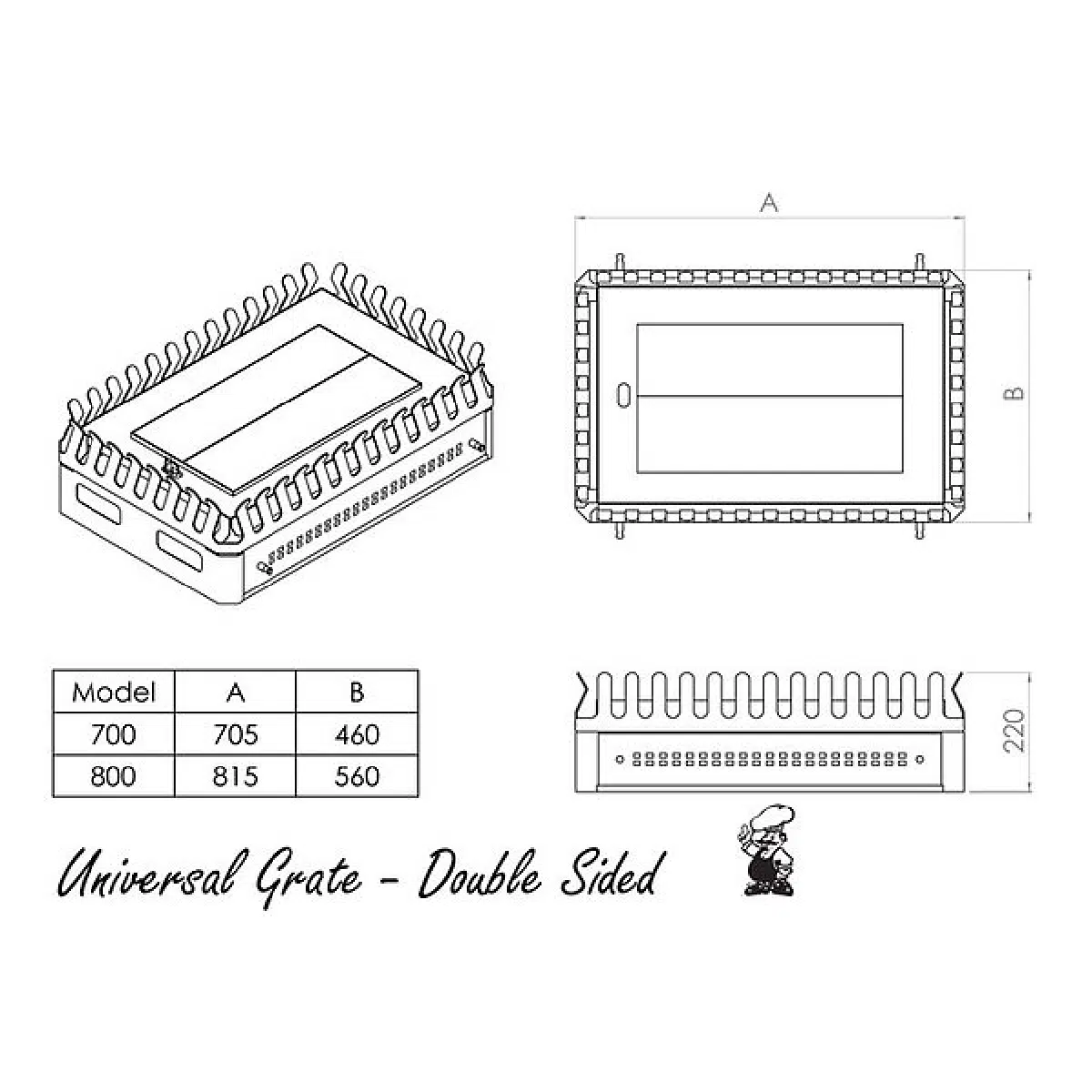

Chad-O-Chef 800 Double-Sided Universal Grate dimension drawing, page 1 of 2: front, side and top views, in millimetres.
Page 1 of 2
Grate width × depth
815 × 560 mm
Height, to the top of the tabs
220 mm
Combustible material at the sides
100 mm
Combustible floor, carpet included
100 mm
Curtains and fabric to the sides
500 mm
Combustible furniture in front
1,000 mm
Clearance to the ceiling
800 mm
Gas
LPG or natural gas
Gas inlet connection
8 mm compression
Maximum gas input
10.7 kW
Material
Black mild steel, stainless-steel parts

Check the grate against your fireplace opening.

The grate is 815 mm wide and 560 mm deep, and 220 mm high to the top of its tabs; the control knobs are not in these sizes. Measure your double-sided opening, and have your gas installer check the fit and the clearances.

Planning notes

  • These are the grate's own sizes. The firebox is not included.
  • It fits a traditional double-sided wood-burning fireplace. The existing chimney must be closed off.
  • Have your gas installer check your fireplace before fitting.
  • The clearances are to combustible materials. The floor clearance includes carpet.
  • A heat-resistant masonry shelf may sit 500 above the fireplace.
  • In the box: the grate, the burner, the decorative stones and the instruction manual.
  • It runs on LPG or natural gas, set up for your gas type.
  • It lights with a piezo spark.
  • The maximum gas input is 10.7 kW. This is not the heat output.
  • A pilot oxygen depletion safety system works at a minimum of 18.5% oxygen.
  • Without permanent ventilation the room must be at least 198 m³.
  • A room under 198 m³ needs permanent ventilation, calculated by your gas installer.
  • We suggest a room of 438 m³ (132 m²) at most, subject to insulation, materials and climate.
  • Do not install it in a bedroom, bathroom, toilet or sauna.
  • A gas installer registered with SAQCC Gas for your gas type must install it.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Chad-O-Chef 800 Double-Sided Universal Grate
  • Flueless gas grate for an existing double-sided wood-burning fireplace
  • 01 FRONT VIEW, BOTH LONG FACES ALIKE
  • 815 grate width
  • 02 SIDE VIEW
  • 220 height
  • 560 grate depth
  • 220 height
  • A fire face at the left and at the right.
  • 03 TOP VIEW
  • 815 grate width
  • A fire face at the top and at the bottom. Coals on the burner.
  • 04 CLEARANCES, SIDE VIEW (SMALLER SCALE)
  • 560 grate depth
  • Ceiling
  • 1,000 to furniture
  • 1,000 to furniture
  • Floor
  • A fire face at the left and at the right.
  • 05 CLEARANCES, FRONT VIEW (SMALLER SCALE)
  • 100 to the floor
  • 500 to curtains and fabric, each side
  • Ceiling
  • Floor
  • 800 to the ceiling
  • 100 each side
  • PLANNING NOTES
  • These are the grate's own sizes. The firebox is not included.
  • It fits a traditional double-sided wood-burning fireplace. The existing chimney must be closed off.
  • Have your gas installer check your fireplace before fitting.
  • The clearances are to combustible materials. The floor clearance includes carpet.
  • A heat-resistant masonry shelf may sit 500 above the fireplace.
  • In the box: the grate, the burner, the decorative stones and the instruction manual.
  • It runs on LPG or natural gas, set up for your gas type.
  • It lights with a piezo spark.
  • The maximum gas input is 10.7 kW. This is not the heat output.
  • A pilot oxygen depletion safety system works at a minimum of 18.5% oxygen.
  • Without permanent ventilation the room must be at least 198 m³.
  • A room under 198 m³ needs permanent ventilation, calculated by your gas installer.
  • We suggest a room of 438 m³ (132 m²) at most, subject to insulation, materials and climate.
  • Do not install it in a bedroom, bathroom, toilet or sauna.
  • A gas installer registered with SAQCC Gas for your gas type must install it.

GOOD TO KNOW

Plan your setup.

Read your instruction manual with your gas installer before you plan the conversion.

Read the instruction manual

What is included?

The Universal Grate 800 with its burner, the decorative stones and the instruction manual. The double-sided fireplace (firebox) is not included, and neither are closing off the chimney, the gas supply pipework or the installation.

Will it fit my fireplace?

It is made to retrofit into a traditional double-sided wood-burning fireplace. The grate is 815 mm wide, 560 mm deep and 220 mm high to the top of its tabs, without the control knobs. Send us a photo and the measurements of your opening, and we will check the fit with you before you order.

What happens to my chimney?

The existing chimney is closed off, because this is a flueless gas grate. Plan it with your installer as part of the conversion.

Which gas does it use?

LPG or natural gas. The installation must suit your gas type, so confirm yours with us before you order. It lights with a piezo spark.

What size room is it for?

We recommend it for rooms up to 438 m³ (132 m²); the right size depends on insulation, materials and climate. Without permanent ventilation the room must be at least 198 m³, and your installer calculates the ventilation for a smaller room.

How much heat does it give?

This grate has a published maximum gas input, not a certified heat output, so we do not list a heat output and the Output Calculator has no figure for it. Ask us, and we will help you compare it with your rooms.

What keeps it safe?

An oxygen depletion system on the pilot (ODS, minimum 18.5% oxygen) is part of its safety setup. It must not go in a bedroom, bathroom, toilet or sauna, and a SAQCC Gas registered installer for your gas type installs it.

How much clear space does it need?

Keep combustible material 100 mm from its sides, a combustible floor (carpet included) 100 mm away, curtains and fabric 500 mm from its sides, combustible furniture 1,000 mm in front and the ceiling 800 mm away. A heat-resistant masonry shelf may sit 500 mm above it.

Which fire bed does it come with?

Black ceramic ash with black ceramic coals and a white stone surround. Chad-O-Chef also makes a fire glass finish: ask us about it before you order.

What does the guarantee cover?

The fireplace has a two-year Chad-O-Chef guarantee. Its terms and conditions apply; ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and the measurements of your fireplace opening for a product and configuration quote. We do not install: arrange the conversion with an independent, SAQCC Gas registered installer for your gas type.
