Homefires 800 Super Deluxe Built-in GAS Braai

A built-in gas braai that lights with a click and closes away neatly when you're done.

From: Original price was: R28,180.00.Current price is: R24,299.00.

Save R3,881
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU BRAAIB800GAS+GASBRSH9904FLAT

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE GAS GRILLER, UP CLOSE

Four burners.
A neat fit for a smaller space.

The 9904 flat-top griller of the Homefires 800 Super Deluxe Gas Braai puts four cast-iron burners under stainless round-bar grids, with stainless vaporiser plates between. Press the piezo ignition, cook a few chops and some veg, then empty the drip tray and replace the dust cover lid. The black 3 mm mild-steel body has top and bottom doors to close it away.

  1. Homefires 9904 flat-top gas grillerFour cast-iron burners, piezo ignition
  2. Stainless round-bar grid panelsTwo of 340 × 397 mm
  3. Stainless vaporiser plates and drip tray
  4. Dust cover lidKeeps the griller clean between braais
  5. 3 mm mild-steel body with top and bottom doorsBlack finish, light fitting
  6. Installation manualUnder Plan your setup
Homefires 800 Super Deluxe Built-in Gas Braai in a slate-blue patio wall on a sunny day, chops and tomatoes on the griller, iced tea in a jug on the counter

A SLOW MORNING IN THE COURTYARD

Two chops, a jug of iced tea, no rush.

Morning sun in a small courtyard, herbs and a little olive tree in the pots, and a jug of iced tea on the counter. Two chops and two tomato halves on the gas griller are all it takes for a late breakfast for two. A small space, and still room for a proper braai.

The painted wall, counters, plants, food, drinks and tableware are not included. Plan the flue, gas connection and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

The Homefires 800 Super Deluxe Gas Braai makes gas easy.

THE GRILL

Room for supper for the family.

The cooking surface is 680 × 400 mm, across two stainless round-bar grid panels, with room for chops, wors and veg together.

THE CLEAN-UP

Easy to keep tidy.

Drips fall onto the stainless vaporiser plates and into the drip tray. Lift out the grid panels to clean them, empty the tray, and put the dust cover lid on when you're done.

THE BUILD

Closes away after the braai.

The body is 3 mm mild steel with a black finish. Top and bottom doors close the front when you're done, and the light fitting helps once the sun goes down.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

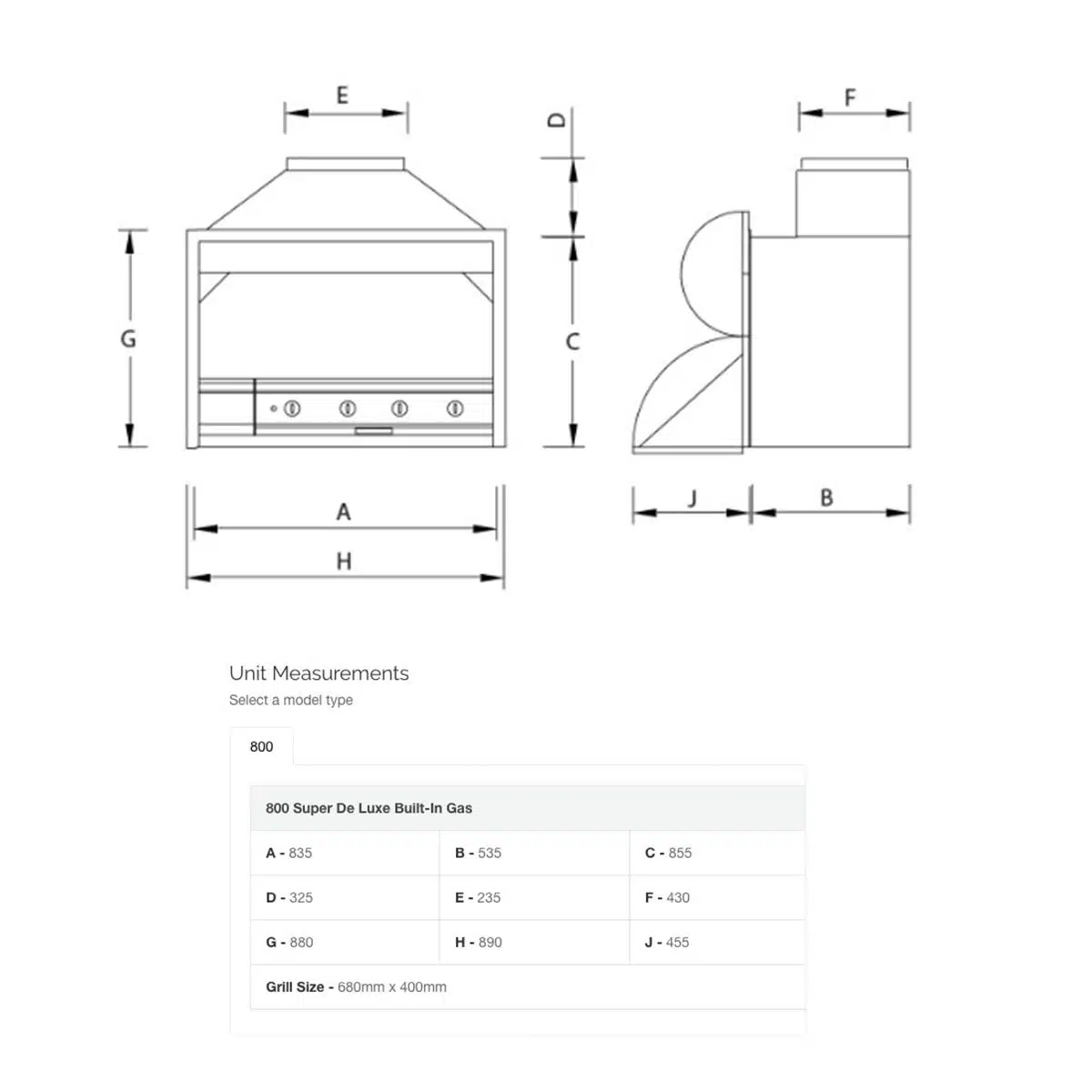

Homefires 800 Super Deluxe Gas Braai dimension drawing, page 1 of 2: front and side views and gas griller, in millimetres.
Page 1 of 2
Body width × depth
835 × 535 mm
Body height, without the gather
855 mm
Gather above the body
325 mm
Front frame width × height
890 × 880 mm
Open lower door, in front of the body
455 mm
Gas griller width × depth
700 × 500 mm
Gas griller height
222 mm
Gas cooking surface
680 × 400 mm
Material
3 mm mild steel, black

Confirm the flue outlet first.

Ask us to confirm the flue outlet size before you plan the recess. The 855 mm body height does not include the 325 mm gather or the flue, and these are product dimensions, not a building opening.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 455 in front of the body: keep this space clear.
  • The body is 3 mm mild steel.
  • Included: top and bottom doors, a light fitting, insulation material and touch-up paint.
  • The gas griller needs a registered gas installer and a completion certificate.
  • The flue pipe (420 x 220), the collar and the cowl are options and are sold separately.
  • Ask us to confirm the outlet size before you order flue parts.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 800 Super Deluxe Built-in GAS Braai
  • Built-in gas braai: a 4-burner gas griller in a steel body with top and bottom doors
  • 01 FRONT VIEW
  • 880 frame height
  • 680 gas cooking surface
  • 700 gas griller
  • 835 body width
  • 890 including frame
  • 02 SIDE VIEW
  • 455 door open
  • 325 gather
  • 855 body
  • Front at the right. Lower door open.
  • The body is 535 deep.
  • 03 GAS GRILLER FROM THE FRONT
  • 700 width
  • 222 high
  • A 4-burner griller, model 9904.
  • 04 GAS GRILLER FROM THE SIDE
  • 500 depth
  • 222 high
  • Front at the right.
  • 05 GAS COOKING SURFACE
  • 680 cooking surface
  • 400 depth
  • 397 grid panels
  • 340 grid
  • 340 grid
  • Front at the bottom. Two grid panels.
  • 06 CLEARANCES (SMALLER SCALE)
  • 250 side
  • 250 side
  • 1,500 above the cooking surface
  • No combustible material inside the dashed line.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 455 in front of the body: keep this space clear.
  • The body is 3 mm mild steel.
  • Included: top and bottom doors, a light fitting, insulation material and touch-up paint.
  • The gas griller needs a registered gas installer and a completion certificate.
  • The flue pipe (420 x 220), the collar and the cowl are options and are sold separately.
  • Ask us to confirm the outlet size before you order flue parts.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 800 Super Deluxe Gas braai: a black 3 mm mild-steel body with top and bottom doors and a Homefires 9904 stainless-steel flat-top gas griller with four burners, grid panels, vaporiser plates, a drip tray and a dust cover lid. A light fitting, insulation material and touch-up paint come with it. The flue pipe, collar and cowl are optional add-ons.

Which gas does it use?

It is listed for LPG at 2.8 kPa. There's also a natural-gas setting of 2.0 kPa, but only Homefires can convert the griller, so tell us which gas you have before you order. The 9904 griller has a listed heat output of 14 kW. That figure is for cooking, not for heating a room.

How much cooking space is there?

The gas cooking surface is 680 × 400 mm. It is made up of two removable stainless round-bar grid panels of 340 × 397 mm each.

What size is the gas griller?

The griller is 700 mm wide, 500 mm deep and 222 mm high, without the gas connection.

Is the flue included?

No. The flue pipe, collar and cowl are optional add-ons that you can choose on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.

Where does the flue connect?

At the outlet on top of the gather, which rises 325 mm above the body. The Homefires flue parts on this page have a nominal size of 420 × 220 mm. Ask us to confirm the outlet size before you order flue parts. Homefires' installation guidance gives a minimum chimney height of 2,500 mm.

How much space do I need?

The body is 835 mm wide, 535 mm deep and 855 mm high, and the gather rises 325 mm above it. The front frame is 890 mm wide and 880 mm high, and the open lower door reaches 455 mm in front of the body. Homefires' guidance leaves a 20 mm expansion gap at the sides and the back. These are product dimensions, not a building opening.

How far must the gas griller be from combustible materials?

Keep 250 mm at the sides of the griller and 1,500 mm above the cooking surface. Your installer applies these together with the braai's own installation instructions.

Can I get it in stainless steel?

The version on this page has the standard body: mild steel with a black finish. Homefires also makes the body in 3CR12 or 304 stainless steel as a special order, so ask us for a quote if you would like one.

How do I look after it?

Touch-up paint comes with the braai, so you can refresh small marks on the black finish. Lift out the grid panels to clean them, empty the drip tray, put the dust cover lid on after use, and read the instruction manual for use and care.

What does the guarantee cover?

The firebox has a 15-year Homefires guarantee against faulty workmanship or material under normal use. Replaceable parts are not covered, and maintenance, corrosion and installation exclusions apply. The gas griller has its own 12-month Homefires warranty from the date of purchase, subject to its conditions. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product, gas and flue configuration quote. We do not install. It needs a registered gas installer and a completion certificate, so arrange the installation and the gas connection with an independent, registered installer.
