THE WALL
Built into one wall.
It is made for a single-sided built-in installation into a wall. The 1,090 mm façade frames the fire on the wall face, and the 910 mm body goes into the wall behind it.
Sale!

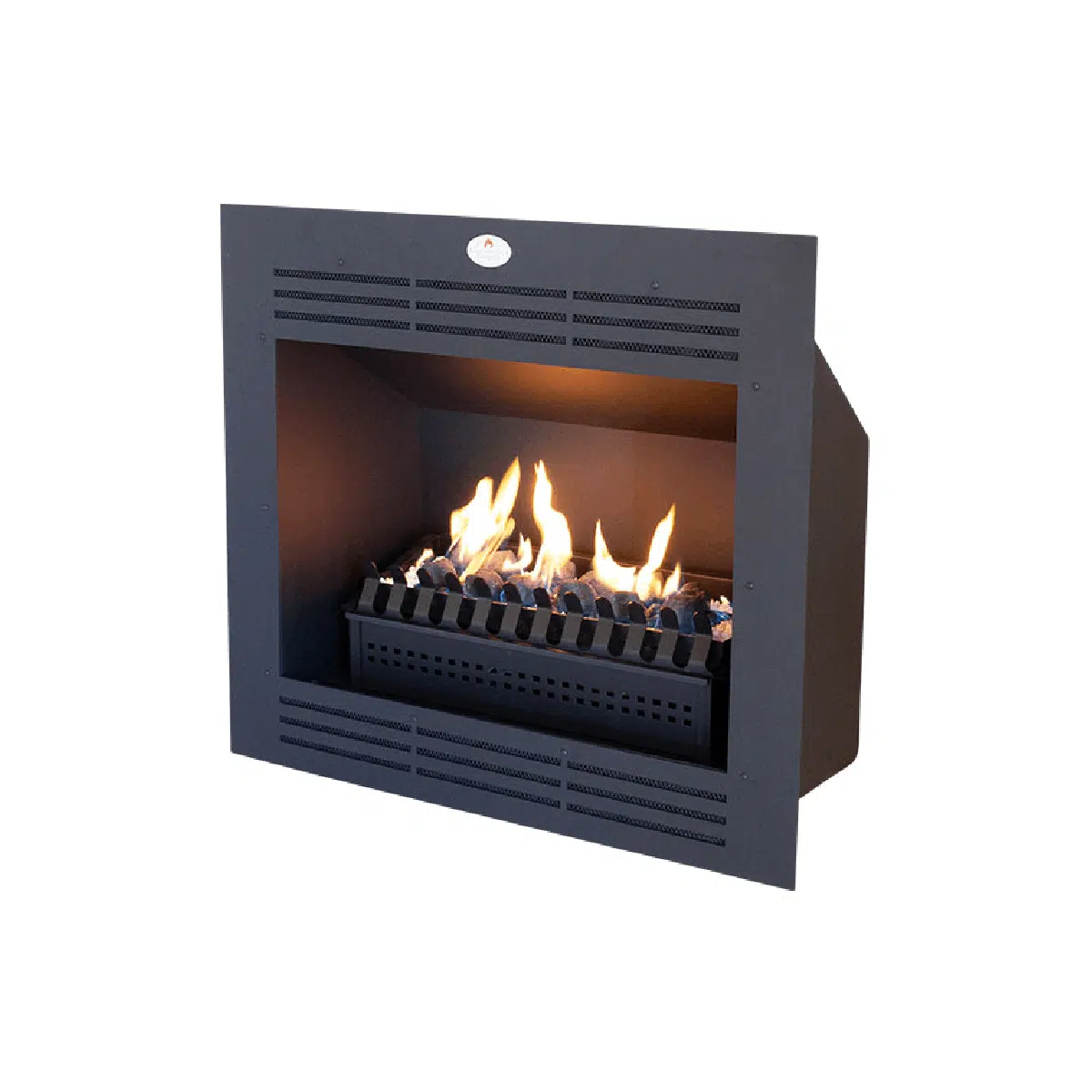

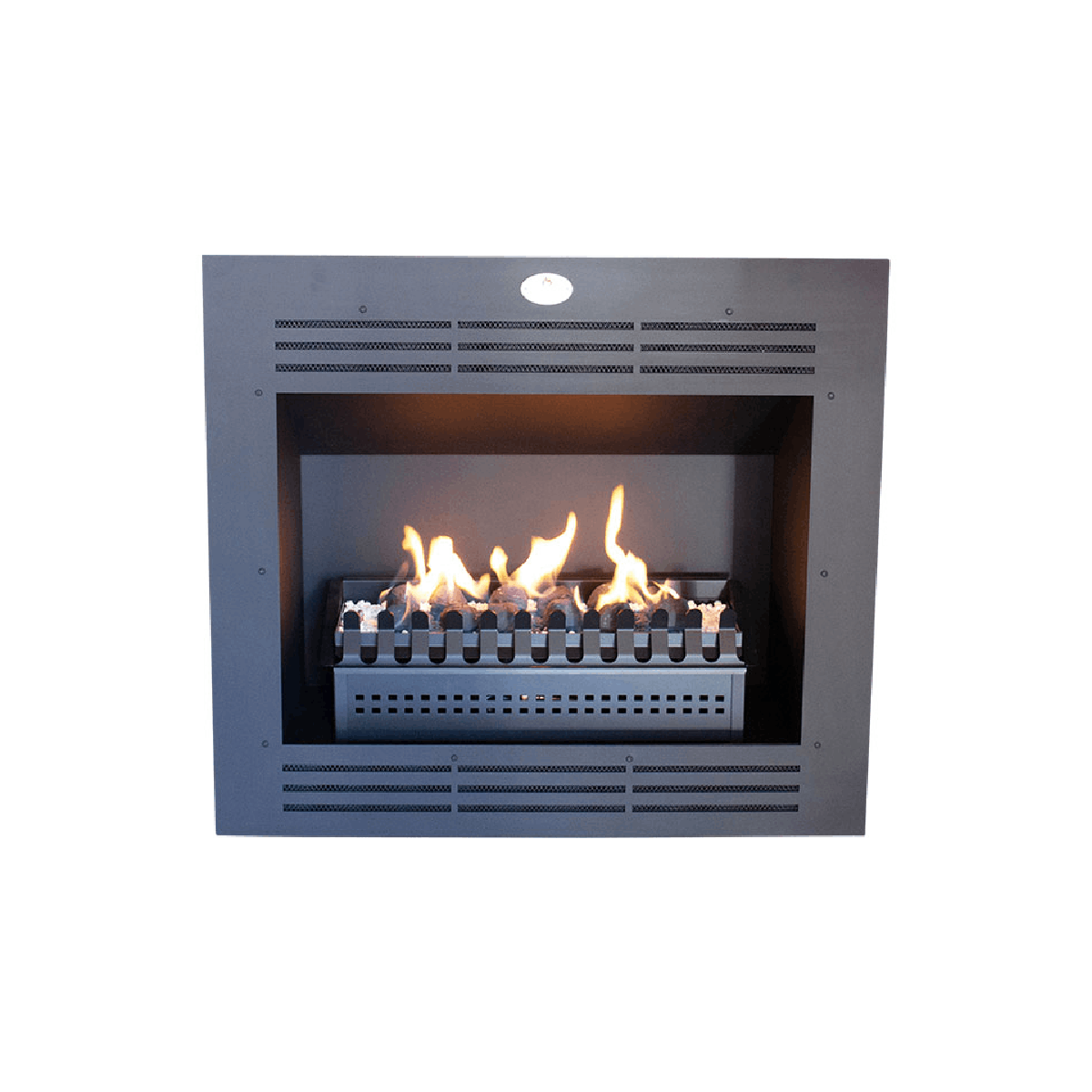

HomeFires Built-in 1090 Firebox Vent Free Fireplace
A wide built-in gas firebox with a coal grate, and no flue to connect.
Original price was: R22,020.00.R20,399.00Current price is: R20,399.00.
Save R1,621In stock Delivery ETA: 5–7 working days
About your fireplace
- Gas grate
- LPG coal grate, model 800 · up to 0.64 kg an hour
- Included
- Built-in 1090 firebox in black mild steel and a coal-finish gas grate (model 800)
- Not included
- Wall opening, gas supply pipework and installation by a registered gas installer
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsGAS FIRE, BUILT IN
Flames over coals.
No chimney to build.
The 1090 is a wide firebox built into a single wall, with a black mild-steel façade and an open front. Gas flames rise over a coal-finish grate, and as a vent-free fire it has no flue connection, so there is no chimney to build and no logs to carry in. Just a warm glow at the end of a long day.
- Coal-finish gas grateModel 800, the LPG version
- Open, vent-free fireboxNo flue connection
- Black mild-steel housing and façade
- Gas useUp to 0.64 kg an hour
- Single-sided built-inInto one wall
THE CITY OUTSIDE, THE FIRE IN
Lights low, flames up.
The city lights come on outside, the lamp goes low and the fire does the rest. Set flush in a plastered wall, the 1090 turns the lounge into the warmest spot in the flat, with flames over the coals and no logs to fetch. Pour something nice and stay a while.
The wall, coffee table, rug, shelves, plants and décor are not included. Plan the wall opening, gas supply and ventilation with a registered gas installer.
BEFORE YOU OPEN THE WALL
Plan the wall, the room and the gas.
THE ROOM
Vent-free still needs the right room.
A vent-free gas fire needs no flue, but room size and ventilation rules still apply. Ask us for the requirements for this firebox and grate before you order, and have a registered gas installer check your room.
THE GAS
The LPG coal grate.
The grate supplied is the LPG version of the model 800 coal grate, and it uses up to 0.64 kg of gas an hour. Home Fires also makes natural-gas versions: tell us before you order if you need one.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Façade width × height
- 1,090 × 935 mm
- Body width × height
- 910 × 835 mm
- Body depth
- 450 mm
- Rear upright height
- 575 mm
- Façade past the body, each side
- 90 mm
- Façade below the body
- 40 mm
- Gas grate width × depth
- 750 × 270 mm
- Gas grate height
- 200 mm
- Gas
- LPG (this grate)
- Material
- Black mild steel
Measure the body, not just the façade.
The façade is 1,090 × 935 mm, but the body that goes into the wall is 910 mm wide, 835 mm high and 450 mm deep. These are product sizes, not a building opening: your installer measures the actual unit before building.
The drawing as text
- Home Fires 1090. All dimensions in mm.
- Front: façade width B 1,090 mm
- Front: façade height A 935 mm
- Side: body depth C 450 mm
- Side: body height D 835 mm
- Side: rear upright height E 575 mm
- Side: flat top depth H 100 mm, before the slope
- Side: façade below the body K 40 mm
- Body plan: body width F 910 mm
- Body plan: façade past the body G 90 mm, each side
- Gas grate: width 750 mm
- Gas grate: height 200 mm
- Gas grate: depth 270 mm
- Opening, vent slots and curved contours are illustrative.
GOOD TO KNOW
Plan your setup.
Plan the wall opening, gas supply and ventilation with a registered gas installer before you build.
What is included?
The HomeFires Built-in 1090 firebox, with its black mild-steel housing and façade, and a coal-finish gas grate (model 800). The wall opening, the gas supply pipework and the installation are not included.
Which gas does it use?
The coal grate supplied with this firebox is the LPG version. Home Fires also makes natural-gas versions, and the gas type installed must match the burner you order, so tell us before you order if you need natural gas.
Does it need a flue or chimney?
No. It is an open, vent-free firebox with no flue connection, so there is no chimney to build. Vent-free does not remove the room size and ventilation rules: check those with us and your gas installer before you choose the room.
What size room is it for?
Ask us before you order. We confirm the room size and ventilation needs for this firebox and grate with Home Fires, and your registered gas installer then checks your room.
How much heat does it give?
We do not list a heat output for this firebox and grate, so the Output Calculator has no figure for it. Ask us, and we will check it with Home Fires.
How much gas does it use?
Up to 0.64 kg of gas an hour with the model 800 coal grate.
Where does it go?
It is made for a single-sided built-in installation into a wall. The black façade stands 90 mm past the body at each side and 40 mm below it, so it frames the opening on the wall face. Have your registered gas installer plan the opening, the gas supply and the clearances.
How much space do I need?
The façade is 1,090 mm wide and 935 mm high. The body behind it is 910 mm wide, 835 mm high and 450 mm deep. Its top is flat for the first 100 mm and then slopes down to a rear upright 575 mm high. These are product sizes, not a building opening, so have your installer measure the actual unit.
How big is the gas grate?
The coal-finish grate is 750 mm wide, 270 mm deep and 200 mm high.
What does the guarantee cover?
Ask us for the guarantee terms for this firebox and grate before you order.
Can you help with my setup?
Yes. Send a photo and your room and wall measurements, and we will help with the product and configuration. We do not install, so arrange installation with an independent, registered gas installer.
