THE LOG BOX
Logs close at hand.
The log box is built into the base, with a closed, curved front. The next logs stay within reach and out of sight, so the room stays neat.
Sale!
About your fireplace
- Heat
- Convection and radiated heat
- Included
- Grate, ash pan and handle, vermiculite plates, baffles, flue connector with gasket, fixings kit, glove
- Not included
- Flue pipe, cowl, escutcheon plate and installation
- Guarantee
- 3 years on the fireplace box

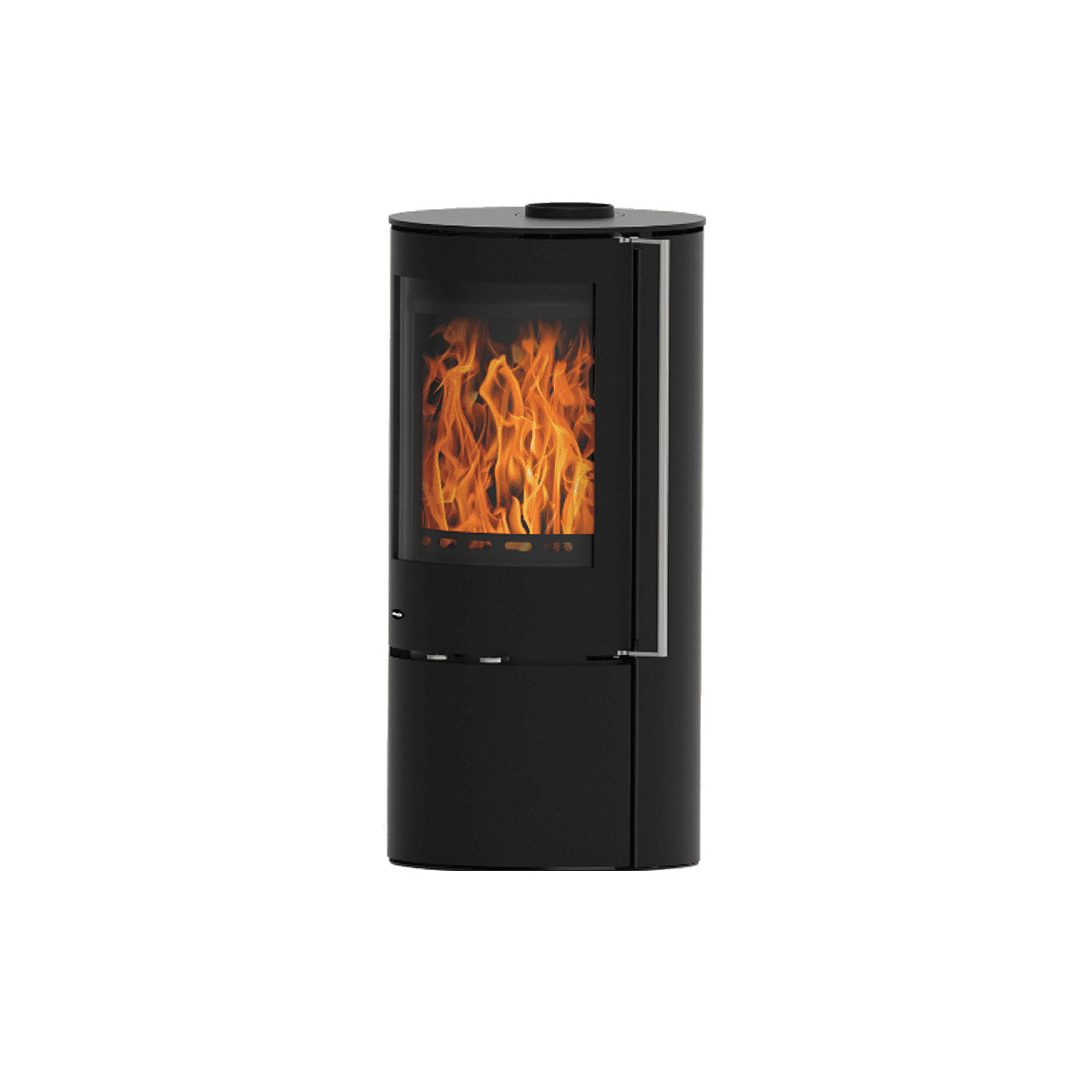

Jetmaster BLAZE Slow Combustion freestanding with Log Box Fireplace
A round wood stove with a log box below and a flue on top or at the back.
From: Original price was: R26,278.65.R24,899.00Current price is: R24,899.00.
Save R1,380In stock Delivery ETA: 5–15 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE BLAZE
Round, modern and made for wood.
The Blaze is a round, freestanding wood stove in mild steel, with a wide glass window on the fire. Vermiculite plates line the firebox, the grate holds the fire and the ash pan has its own handle for an easy clean-out. It warms the room with convection and radiated heat, and a heat-resistant glove comes with it for the next log.
Flue pipes, a cowl and an escutcheon plate are chosen separately on this page. Confirm the flue size with us first.
- Integrated log boxA closed, curved front
- Vermiculite plate setLines the firebox
- Grate, ash pan and handle
- Flue connector with fireproof gasketWith a flue blanking plate
- Two baffle plates, heat-resistant glove, fixings kit
- Installation manualUnder Plan your setup
STORY TIME BY THE FIRE
The best seat is the one closest to the fire.
A winter afternoon, a favourite book and a granddaughter tucked in close. The flames dance behind the wide glass window, the next logs wait in the log box below, and nobody needs to leave the couch for long. Some afternoons are made for staying in.
The flue pipe is an option. The hearth plate, couch, tables, baskets, plants, books, rug and artwork are not included.
A LITTLE PRACTICAL THINKING
Logs below, flue where you need it.
THE FLUE
On top or at the back.
Connect the flue on top or at the back. A flue connector with a fireproof gasket and a flue blanking plate come with the stove. Confirm the flue size with us before you order pipes.
THE HEAT
Warmth two ways.
The Blaze heats with convection and radiated heat. Ask us for its heat output before you size the room; we confirm the current figure with Jetmaster.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Round body, width × depth
- 456 × 456 mm
- Depth including projections
- 481 mm
- Height, without the flue collar
- 928 mm
- Overall height, to the top of the collar
- 941.5 mm
- Log box front height
- 303.5 mm
- Rear flue outlet centre, above the floor
- 796.5 mm
- Top flue outlet centre, from the back
- 163 mm
- Window opening width × height
- 335 × 409 mm
- Firebox chamber width × depth
- 300 × 287 mm
- Material
- Mild steel
Plan the stove, hearth and flue together.
The Blaze is 928 mm high, or 941.5 mm to the top of the flue collar, and 481 mm deep with its projections. Ask us to confirm the safe clearances, and have your installer check the actual unit and the hearth.

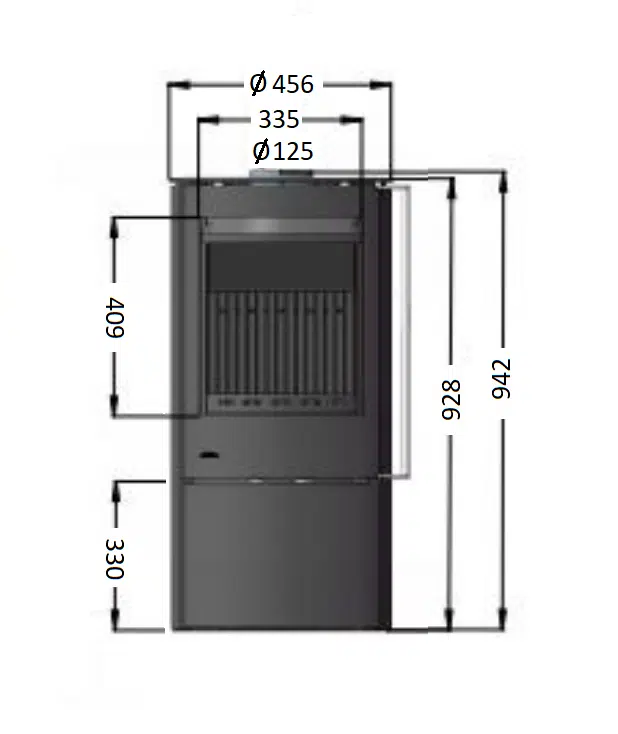

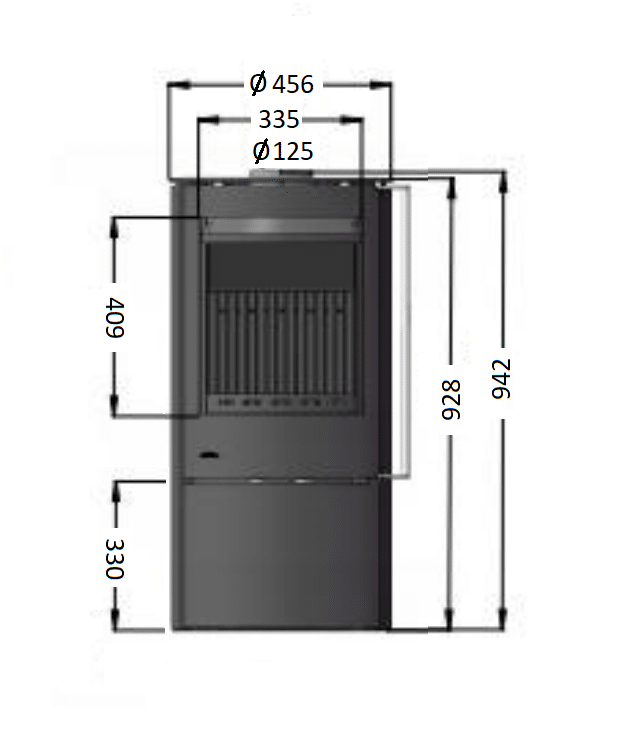

The drawing as text
- ALL SIZES IN MILLIMETRES
- Jetmaster BLAZE with Log Box
- Freestanding wood stove: closed slow combustion, a round body on a log box, with a wide glass window
- 01 FRONT VIEW
- 456 cylinder width
- 335 window width
- 409 window height
- 928 without the flue collar
- 941.5 with the flue collar
- 02 SIDE VIEW
- 456 depth without the handle
- 303.5 log box front
- Front at the right.
- The 303.5 is the height of the log box front.
- 03 REAR VIEW
- 796.5 rear outlet centre
- Seen from the back. The flue connects on top or at the rear.
- 04 TOP VIEW
- 481 with projections
- 163 to the outlet centre
- 456 cylinder width
- Front at the bottom. The 163 is from the back of the body.
- 05 FIREBOX, CUT FRONT TO BACK (LARGER SCALE)
- 368 inner chamber
- 417 outer chamber
- 107 lower section
- Front at the right, at the glass door. The log box is below.
- 06 FIREBOX, CUT FROM ABOVE (LARGER SCALE)
- 300 chamber width
- 287 chamber depth
- Front at the bottom.
- PLANNING NOTES
- These are product sizes. Ask us to confirm the safe clearances. Have your installer check the unit and the hearth.
- Plan the stove, the hearth and the flue together.
- Read the instruction manual on this page before you plan the installation.
- Ask us to confirm the flue pipe size before you order. A standard flue section is 1,200 long.
- Included: the log box, a grate, an ash pan and handle, a vermiculite plate set, two baffle plates, a flue
- blanking plate, a flue connector with a fireproof gasket, a fixings kit and a heat-resistant glove.
- Flue pipes, a cowl and an escutcheon plate are chosen separately. Installation is not included.
GOOD TO KNOW
Plan your setup.
Read your installation manual before you plan the installation.
What is included?
The Jetmaster Blaze with its integrated log box, a grate, an ash pan and handle, a vermiculite plate set, two top baffle plates, a flue blanking plate, a flue connector with a fireproof gasket, a fixings kit and a heat-resistant glove. Flue pipes, a cowl and an escutcheon plate are chosen separately on this page.
Which fuel can I burn?
Wood. Ask us before you plan to burn anything else.
How much heat does it give?
The Blaze warms the room with convection and radiated heat. Ask us for its heat output before you size the room; we confirm the current figure with Jetmaster.
Where does the flue connect?
On top or at the back. The rear outlet centre is 796.5 mm above the floor, and the top outlet centre is 163 mm from the back of the body. A flue connector with a fireproof gasket and a flue blanking plate come with the stove.
Is the flue included?
No. Flue pipes and a cowl are options, sold separately, and an escutcheon plate is chosen on this page too. Ask us to confirm the flue size for the current Blaze before you order; we check it with Jetmaster. A standard flue section is 1,200 mm long.
How much space do I need?
The round body is 456 mm wide and 456 mm deep, or 481 mm deep with its projections. It is 928 mm high, and 941.5 mm to the top of the flue collar. These are product dimensions. Ask us to confirm the safe clearances, and have your installer check the actual unit and the hearth.
What is the log box like?
It is built into the base, with a closed, curved front 303.5 mm high. Keep the next logs there, close to the fire and out of sight.
How big is the firebox?
The firebox chamber is 300 mm wide and 287 mm deep. The front window opening is 335 mm wide and 409 mm high.
How do I clean it?
Let the fire burn out and the ash cool, then lift out the ash pan with its handle and empty it. Vermiculite plates line the firebox, and the grate holds the fire.
What does the guarantee cover?
The fireplace box has a three-year Jetmaster warranty, subject to its conditions. Glass and corrosion are excluded. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
