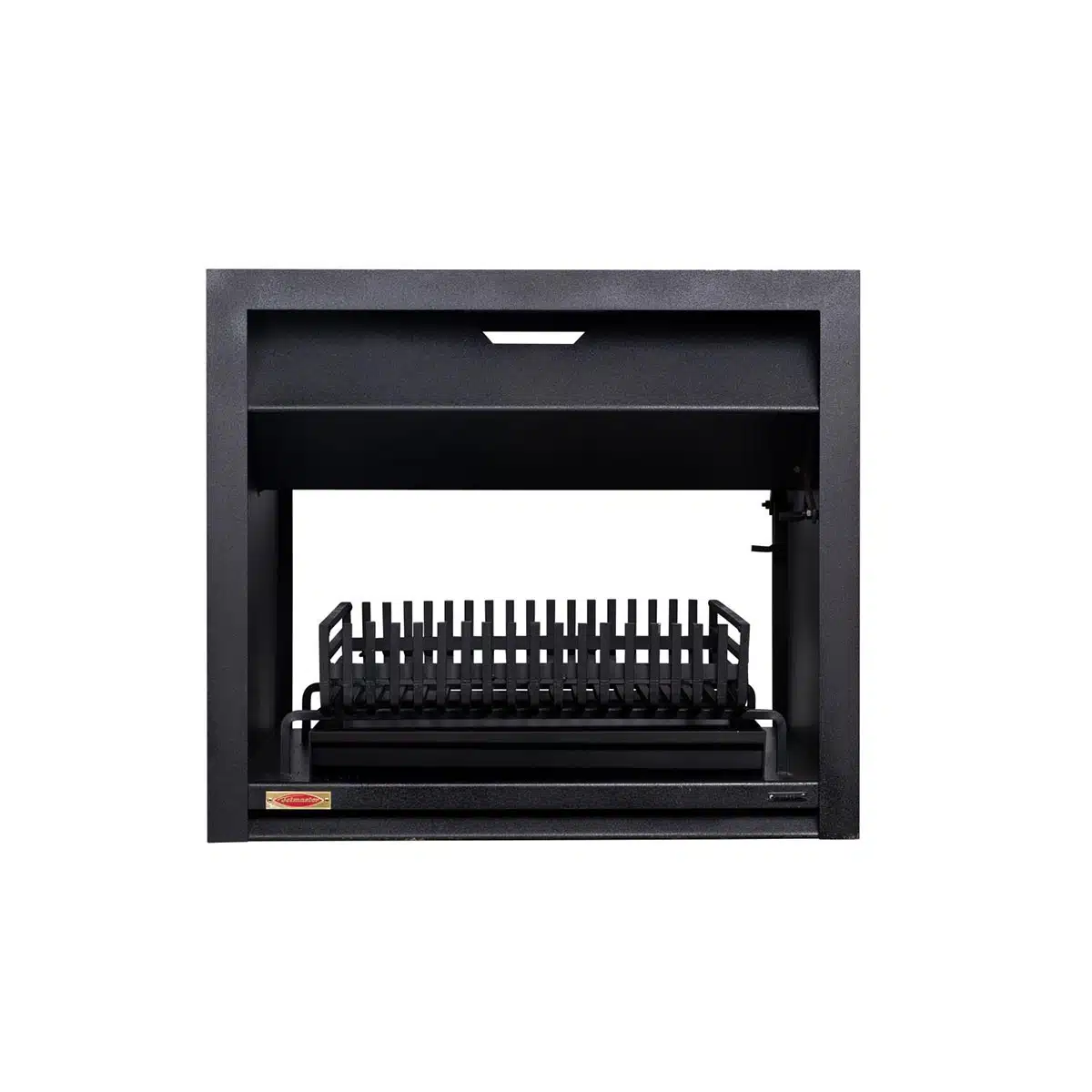

Jetmaster Pro Universal 1050 Double-sided with Basket Grate and Pan

One open wood fire, with a room on each side to enjoy it from.

Original price was: R24,427.00.Current price is: R23,099.00.

Save R1,328
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU 40211455

In stock Delivery ETA: 5–15 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE UNIVERSAL 1050

The Jetmaster 1050 Double-sided Fireplace is open on both sides.

Build the Jetmaster 1050 Double-sided Fireplace into a dividing wall and the fire belongs to both rooms. Logs burn in the basket grate with its pan, and the damper control lets you manage the fire. The mild-steel body gives convection and radiated heat, with a listed heating area of 120 m² on wood. A poker comes with it, so you are ready for the first fire.

  1. Open on both facesBuilt in, double-sided
  2. Wood basket grate and panGrate 1,030 × 490 mm
  3. Damper control
  4. Convection and radiated heatMild-steel body
  5. Poker
  6. Installation manualUnder Plan your setup
Jetmaster Universal 1050 alight in a stone dividing wall at night, a family at a dining table seen through the fire, a couch in the lounge in front

DINNER BY THE FIRE

Supper on one side.
The lounge on the other.

Set the table on one side and sink into the couch on the other, with the same fire between you. The flames show in both rooms, so whoever is still at the table and whoever has moved on to coffee share the glow. On a cold winter evening, the fire sits right in the middle of the house.

The stone wall, furniture, rug, tableware and décor are not included. Plan the flue, the wall and the clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Plan the wall around the fire.

THE FIRE

Wood in the basket grate.

Burn wood in the basket grate, with its pan, and use the damper control to manage the fire. A log pan or a gas grate is an alternative to the basket grate, not an extra in this bundle.

THE HEAT

Convection and radiated heat.

The mild-steel body gives convection and radiated heat. The fireplace is listed at 9 kW on wood, with a heating area of 120 m², so send us your room sizes and we will check them with you.

THE FLUE

A rectangular outlet, round options.

The gather ends in a 500 × 350 mm rectangular outlet. An adapter to a 475 mm round flue, round flue pipe in 1,200 mm sections and a rotating cowl are options on this page.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Jetmaster 1050 Double-sided Fireplace dimension drawing, page 1 of 2: front, side and top views and grate, in millimetres.
Page 1 of 2
Body width × depth
1,100 × 600 mm
Body height, without the gather
730 mm
Gather above the body
252 mm
Frame width
1,200 mm
Rectangular flue outlet
500 × 350 mm
Round flue diameter, with an adapter
475 mm
Basket grate width × depth
1,030 × 490 mm
Fuel
Wood
Material
Mild steel

Plan the body, gather and flue together.

The 730 mm body height does not include the 252 mm gather or the flue, and the frame is 1,200 mm wide. These are product dimensions, not a building opening. Ask us for the installation details, and have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The body height does not include the gather above it or the flue.
  • The fire shows on both faces. Plan the wall, the flue and the clearances for both faces with an independent installer.
  • Included: the fireplace with damper control, the basket grate and pan, a poker and the installation manual.
  • A log pan or a gas grate is an alternative to the basket grate, not an extra in this bundle. Ask us.
  • Options on this page: the flue adapter, the round flue pipe, the rotating cowl and the insulation blanket.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Jetmaster Pro Universal 1050 Double-sided
  • Built-in open wood fireplace, double sided, in mild steel: basket grate and pan, damper control
  • 01 FRONT VIEW
  • 1,030 wood grate
  • 730 body height
  • 252 gather
  • 1,100 body width
  • 1,200 width including frame
  • 02 SIDE VIEW
  • 252 gather
  • 730 body height
  • 600 body depth
  • Open on both faces: a frame at each face.
  • 03 TOP VIEW
  • 1,200 width including frame
  • 600 body depth
  • 500 flue
  • 350 flue
  • Rectangular flue outlet on top of the gather.
  • 04 WOOD GRATE, FROM ABOVE
  • 1,030 wide
  • 490 deep
  • The pan comes with the grate.
  • 05 ROUND FLUE SECTION (SMALLER SCALE)
  • Ø475 round flue
  • 1,200 flue section
  • Round flue pipe comes in sections. It is an option on this page, sold separately.
  • Send us a photo and measurements for a flue quote.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The body height does not include the gather above it or the flue.
  • The fire shows on both faces. Plan the wall, the flue and the clearances for both faces
  • with an independent installer.
  • Included: the fireplace with damper control, the basket grate and pan, a poker and the installation manual.
  • A log pan or a gas grate is an alternative to the basket grate, not an extra in this bundle. Ask us.
  • Options on this page: the flue adapter, the round flue pipe, the rotating cowl and the insulation blanket.

GOOD TO KNOW

Plan your setup.

Read the installation manual before you plan the wall and the flue.

Read the instruction manual

What is included?

This bundle is the Jetmaster Universal 1050 double-sided fireplace in mild steel, with a basket grate and pan, damper control, a poker and the installation manual. The flue adapter, round flue pipe, rotating cowl and insulation blanket are options on this page, sold separately.

How much heat does it give?

The fireplace has a listed heat output of 9 kW on wood and a listed heating area of 120 m². Our heat calculator uses that 9 kW figure when it compares the fireplace with your room. The body gives convection and radiated heat.

Which fuel can I burn?

Wood, in the basket grate. A log pan or a gas grate is an alternative to the basket grate, not an extra in this bundle: ask us if you want one of those versions instead.

How big is the basket grate?

The wood basket grate is 1,030 mm wide and 490 mm deep, and its pan comes with it.

Is it open on both sides?

Yes. The Universal 1050 is a built-in, double-sided fireplace, so the fire shows in both rooms. Plan the wall, the flue and the clearances for both faces with an independent installer.

Is the flue included?

No. The gather ends in a 500 × 350 mm rectangular outlet. An adapter to a 475 mm round flue, round flue pipe in 1,200 mm sections, a rotating cowl and an insulation blanket are options on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the parts for your setup.

Where does the flue connect?

At the rectangular outlet on top of the gather, 500 × 350 mm. The gather rises 252 mm above the body. Have an independent installer plan the flue route, height and support for your building.

How much space do I need?

The body is 1,100 mm wide, 600 mm deep and 730 mm high, and the gather rises 252 mm above it. The frame is 1,200 mm wide. These are product dimensions, not a building opening. Ask us for the installation details, and have your installer check the actual unit and safe clearances before building.

What does the guarantee cover?

Ask us for the current Jetmaster guarantee terms for this fireplace before you order. We confirm them with Jetmaster.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
