THE HEAT
Warmth, two ways.
The Hex 800 gives convection and radiated heat. The wood heating area is listed at 68 m²: use it as a guide for your room, not a promise.
Sale!
About your fireplace
- Heat
- Convection and radiated · 68 m² wood heating area
- Included
- Hex 800 body, basket grate and pan, 4.2 m hex flue, rotating cowl, escutcheon, poker, manual
- Not included
- Extra flue pipe and firescreen (add-ons on this page), building work and installation

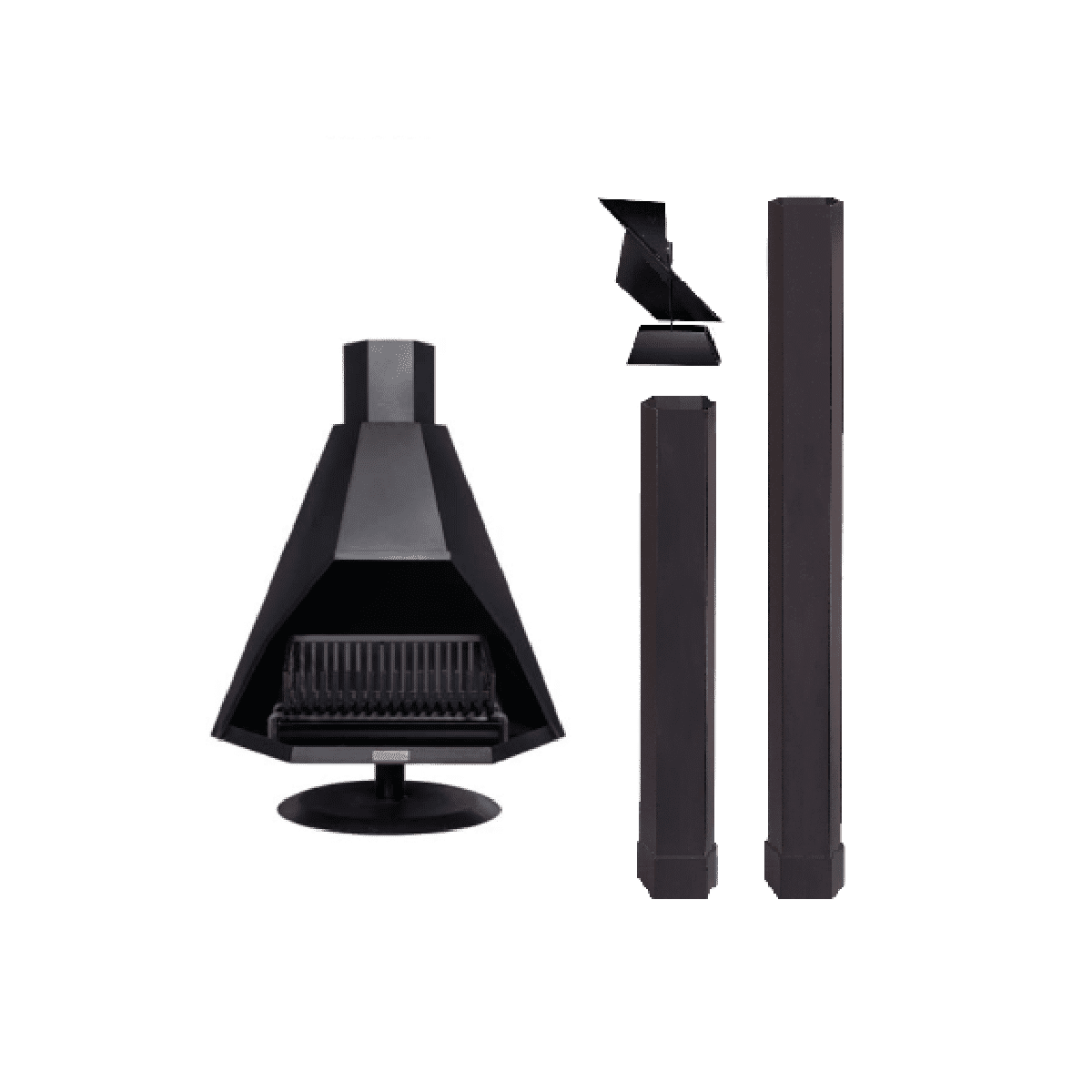

Jetmaster Hex 800 with Basket Grate and Pan Bundle - Save!
A freestanding open fire on a pedestal base, with the flue and cowl in the bundle.
From: Original price was: R17,455.00.R15,999.00Current price is: R15,999.00.
Save R1,456In stock Delivery ETA: 5–15 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE HEX 800
Logs in the basket.
Warmth for the room.

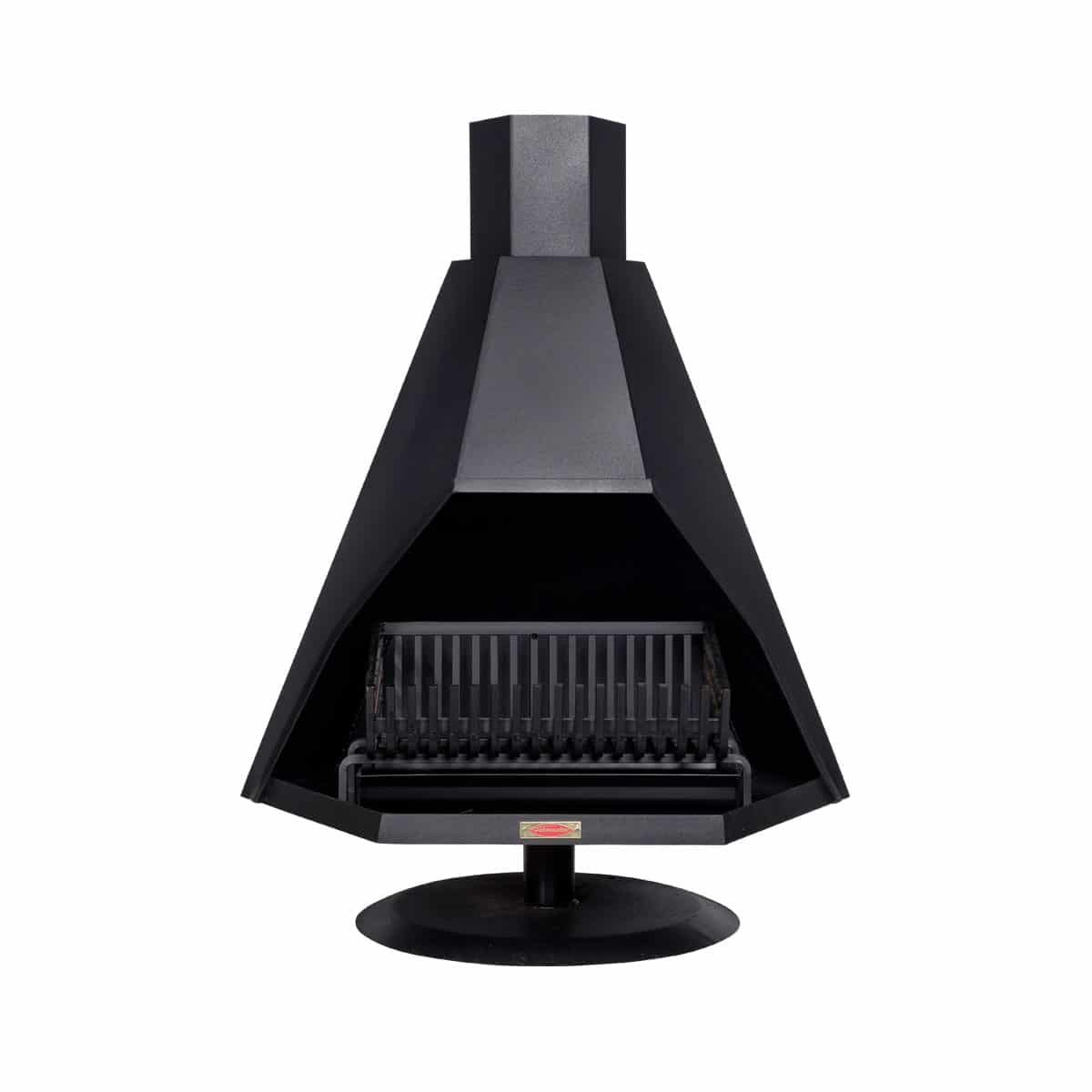

The Hex 800 is a freestanding fireplace with a mild-steel body and an open front. Stack logs in the 500 basket grate and pan, or use charcoal, and it warms the room with convection and radiated heat. The wood heating area is listed at 68 m² as a guide. The 4.2 m hex flue and a rotating cowl come in the bundle.
- 500 basket grate and panFor wood or charcoal
- Hex flue, 4.2 m supplied203 mm corner to corner
- Rotating cowl and escutcheon plate
- Poker
- Installation manualUnder Plan your setup
EVENINGS IN
Two chairs, one fire, nowhere to be.
The city lights come on, the logs catch in the basket grate and the armchairs are turned to face the fire. Pour something red, pull the throw over your knees and let the evening go slowly. With the Hex 800 alight, the fire is the heart of the room.
The floor plate, concrete floor, armchairs, rug, side table, log rack, firewood and décor are not included. Plan the flue, floor protection and clearances with an independent installer.
A LITTLE PRACTICAL THINKING
Plan the fire, the flue and the room.
THE FIRE
Logs in the basket.
This bundle comes with Jetmaster's 500 basket grate and pan, for wood or charcoal. A log pan and a deluxe gas grate are other grate options: ask us if you would rather have one.
THE FLUE
4.2 m of hex flue in the bundle.
The supplied hex flue is 4,200 mm long, with a rotating cowl. That is the length in the bundle, not your installed height: your installer plans the route, and an extra flue pipe with collar is an add-on on this page.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 806 × 706 mm
- Height, base to top of the flue collar
- 1,123 mm
- Hex flue, corner to corner
- 203 mm
- Hex flue, flat to flat
- 177 mm
- Hex flue, each flat side
- 100 mm
- Supplied flue length
- 4,200 mm
- Grate
- 500 basket grate and pan
- Fuel
- Wood or charcoal
- Material
- Mild steel
Plan the fireplace and the flue together.
The 1,123 mm height runs from the base to the top of the short flue collar, before the flue. These are product dimensions: have an independent installer check the actual unit and the safe clearances around it.
The drawing as text
- ALL SIZES IN MILLIMETRES
- Jetmaster Hex 800 with Basket Grate and Pan
- Freestanding wood or charcoal fireplace: hexagonal, on a pedestal, with a basket grate and a hex flue
- 01 FRONT VIEW
- 1,123 height to the collar top
- 806 width
- Inside: the 500 basket grate and pan.
- 02 SIDE VIEW
- 706 depth
- Front at the left.
- 03 TOP VIEW
- 806 width
- 706 depth
- Front at the bottom.
- 04 HEX FLUE, CROSS-SECTION (LARGER SCALE)
- 100 flat side
- 203 corner to corner
- 177 flat to flat
- 05 SUPPLIED FLUE (SMALLER SCALE)
- 4.2 m supplied flue
- The 4.2 m is a supplied length, not an installed height.
- The hex flue comes with a rotating cowl and an escutcheon plate.
- An extra Hex 800 flue pipe with collar is an add-on on this page.
- PLANNING NOTES
- These are product sizes. Have an independent installer check the actual unit and the safe clearances around it.
- The 1,123 runs from the base to the top of the short flue collar, before the flue.
- Included: the body, the 500 basket grate and pan, the 4.2 m hex flue, the escutcheon plate, the rotating cowl,
- a poker and the installation manual.
- The Hex 800 firescreen is an add-on on this page. Building work and installation are not included.
GOOD TO KNOW
Plan your setup.
Read the installation manual before you plan the spot, the flue and the roof.
What is included?
The Jetmaster Hex 800 complete fireplace (maker code 40080524): the mild-steel body, the 500 basket grate and pan, a 4.2 m hex flue, an escutcheon plate and a rotating cowl. A poker and the installation manual with operating instructions come with it. An extra flue pipe with collar and the Hex 800 firescreen are add-ons on this page, sold separately.
Which fuel can I use?
Wood or charcoal, in the basket grate and pan. This is the wood package: the gas grate is a separate option.
How much heat does it give?
The Hex 800 gives convection and radiated heat. The wood heating area is listed at 68 m². Treat that as a guide, not a promise for every room, and tell us the size of your room before you order.
Is the flue included?
Yes. The bundle includes a 4.2 m hex flue and a rotating cowl. That is the supplied length, not the installed height: a higher roof can need more pipe, and an extra flue pipe with collar is an add-on on this page. Ask us whether a weathering collar comes with it. Send a photo and measurements for a flue and configuration quote.
Where does the flue connect?
At the short flue collar on top of the body, 1,123 mm above the base. The hex flue measures 203 mm corner to corner and 177 mm flat to flat, with 100 mm flat sides.
How much space do I need?
The body is 806 mm wide, 706 mm deep and 1,123 mm high to the top of the flue collar. These are product dimensions. Have your installer check the actual unit, the floor and safe clearances before you choose the spot.
Can I choose another grate?
A log pan and a deluxe gas grate are also available for the Hex 800. This bundle comes with the basket grate and pan. Ask us if you would rather have another grate.
Is there a firescreen?
Yes, as an add-on: the Jetmaster Hex 800 firescreen is an option on this page, sold separately.
What does the guarantee cover?
Ask us to confirm the current Jetmaster guarantee terms for the Hex 800 before you order.
Can you help with my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
