Chad-O-Chef Firepit Burner, round gas burner tray with decorative logs and ceramic ash

Your fireplace, up close

Will it fit my space?

About your fireplace

Gas: LPG · 11.4 kW maximum input
Included: Burner pan, piezo igniter, ODS safety pilot, your chosen fuel-bed finish, two vent panels
Not included: Fire pit enclosure or table, gas cylinder and regulator, gas installation
Guarantee: 2 years

Chad-O-Chef Fireplaces

Chad-O-Chef Firepit Burner (Gas Burning)

A gas burner kit for the fire pit you build outdoors.

From: R10,699.00

Save R601

SKU

In stock Delivery ETA: 5–7 working days

Choose your burner finishes

Gas Logs + Ceramic AshR12,499.00Diamond Black GlassR10,699.00

Clear

Your total R10,699.00

Awesome, you get free delivery!

How delivery works

Get a Quote

14-day returns on the unit* Secure payments

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

YOUR FIRE PIT, YOUR WAY

Your fire pit.
An easy gas flame.

Build the fire pit to suit your garden, then set this burner into a round cut-out in the top. Press the piezo igniter and a real flame rises over gas logs with ceramic ash or diamond black glass, with no wood to chop or carry. The logs are a decorative fuel bed, so this is a gas fire through and through.

Piezo ignition
ODS safety pilotOxygen depletion safety system
Decorative gas logs, not for burning wood
Clear 1,500 mm above and 800 mm to the sides300 mm underneath
The enclosure needs its own ventilation and gas design

Chad-O-Chef Firepit Burner alight in a low masonry fire pit between two people seated outside

WHEN THE SUN GOES DOWN

Let the evening carry on outside.

After the braai, pull the chairs closer and keep talking around the flame. The fire lights at the press of a button and goes off just as easily when the evening ends.

The fire pit enclosure, seating and garden are not included. A registered gas installer must confirm the gas supply, ventilation and clearances.

A LITTLE PRACTICAL THINKING

Plan the pit around the burner.

THE FLAME

A real flame without the wood.

Light it with the piezo spark, and an ODS safety pilot keeps watch on the oxygen around the fire. Choose gas logs with ceramic ash, or diamond black glass, for the look you like.

THE BUILD

Built into your own fire pit.

The burner pan sits in a 400 mm round cut-out in the top of your fire pit. Two vent panels come with it, so plan where they go in the enclosure when you build.

THE SPOT

Open air, out of the wind.

Use it outdoors where there is plenty of fresh air, away from strong draughts such as narrow walkways. Wind can affect how the burner works.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

Download the dimension drawing

Burner pan diameter: 424 mm
Inner diameter: 386 mm
Cut-out diameter: 400 mm
Vent panel width × height: 260 × 110 mm
Clearance above: 1,500 mm
Clearance to the sides: 800 mm
Clearance underneath: 300 mm
Gas inlet: 8 mm compression
Maximum gas input: 11.4 kW
Fuel: LPG at 2.8 kPa operating pressure

Plan the cut-out, vents and clearances together.

Keep 1,500 mm clear above the fire pit, 800 mm to the sides and 300 mm underneath. These are product and clearance dimensions, not a full fire-pit design; have a registered gas installer check the enclosure, gas supply and ventilation.

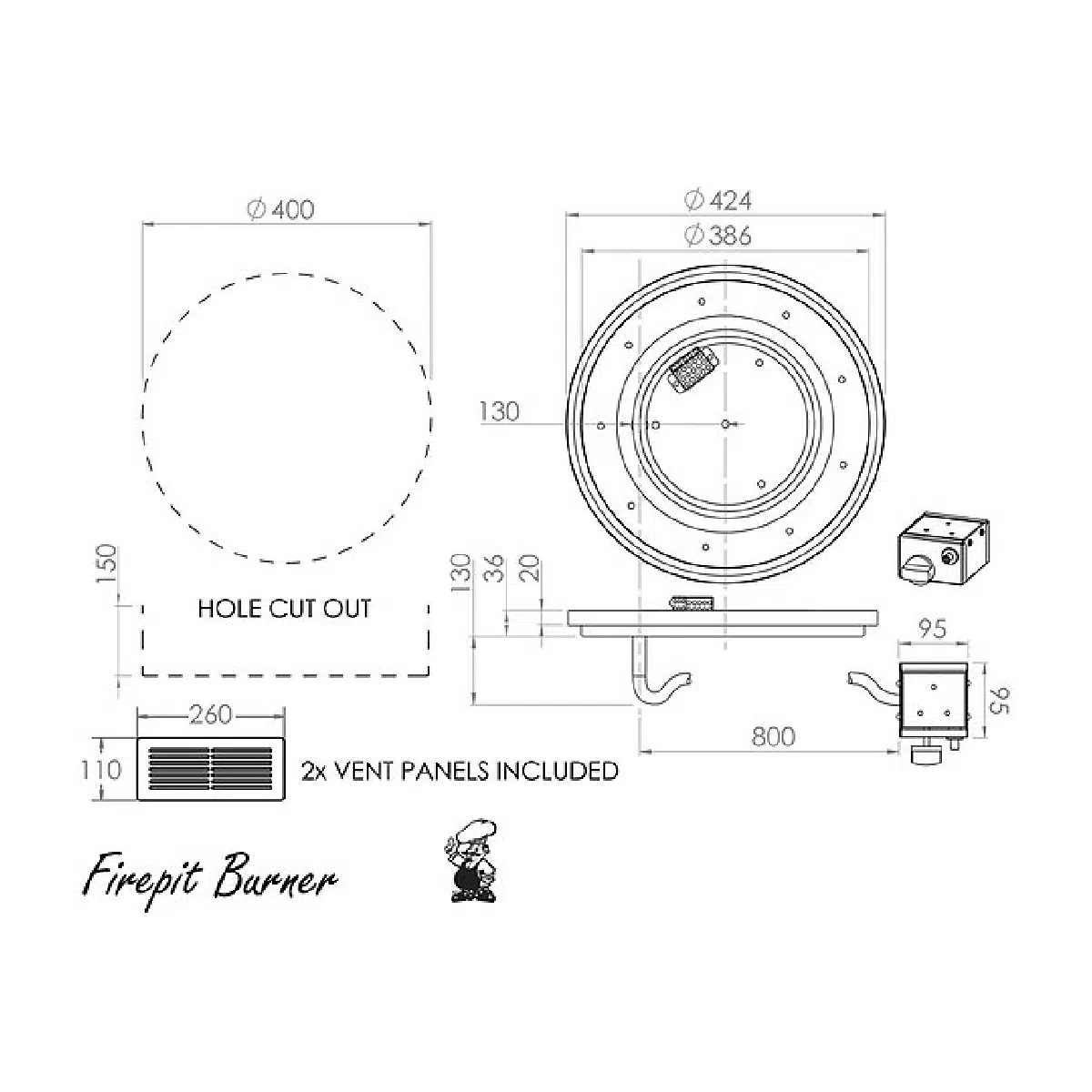

The drawing as text

ALL SIZES IN MILLIMETRES
Chad-O-Chef Firepit Burner
Gas burner kit for a fire pit you build: LPG, with logs or black glass
01 TOP VIEW
Ø424 pan
Ø386 inside
The logs or the black glass lie in the pan.
02 HOLE IN THE TABLE TOP
Ø400 cut-out
Dashed: the pan rim covers the edge of the hole.
03 SIDE VIEW
Ø424 pan
Gas line from the burner to the control box.
04 VENT PANEL
260 wide
110 high
Two vent panels come with the kit.
05 CLEARANCES (SMALLER SCALE)
1,500 above
800 at the side
800 at the side
300 below
The smallest clear spaces around
the burner: above it, at each side
and under it.
PLANNING NOTES
You build the fire pit. The burner pan sits in a round cut-out in its top.
The kit uses LPG, with piezo ignition and an ODS pilot.
The fire pit still needs a full ventilation and gas design. Use the burner instructions for it.
A registered gas installer must check the clearances, the gas supply and the ventilation of your fire pit.
These are product sizes, not the size of the fire pit. Ask us for the build sizes before you build.

GOOD TO KNOW

Plan your setup.

Plan the enclosure, gas supply and clearances before you build.

What is included?

The LPG fire-pit burner with its pan, piezo igniter and ODS safety pilot, your chosen fuel-bed finish and two 260 × 110 mm vent panels. The fire pit enclosure, gas cylinder, regulator and gas installation are separate.

Can I burn wood on the ceramic logs?

No. The logs are a decorative gas fuel bed. This is an LPG burner kit, not a wood-burning fire bowl.

Which finish should I choose?

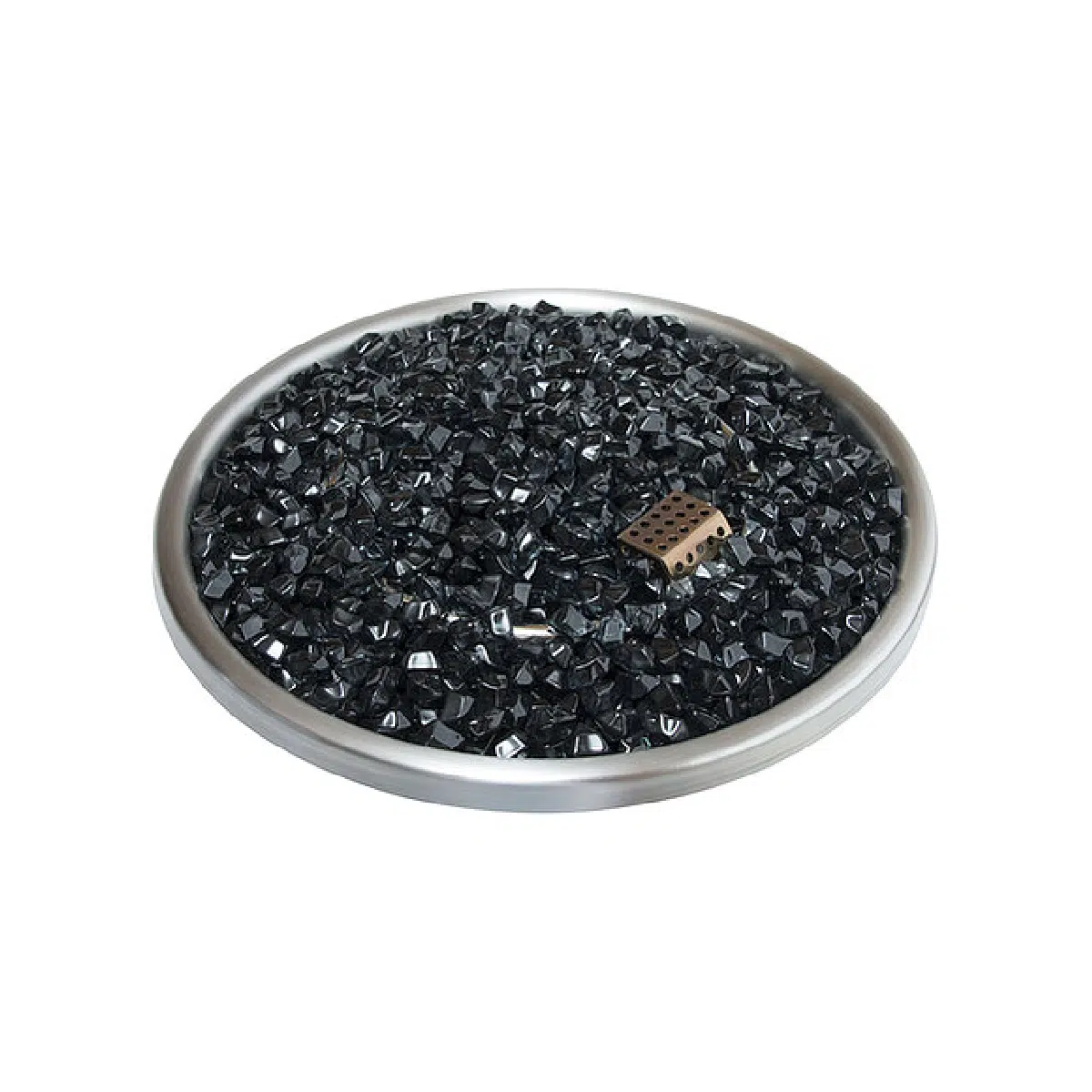

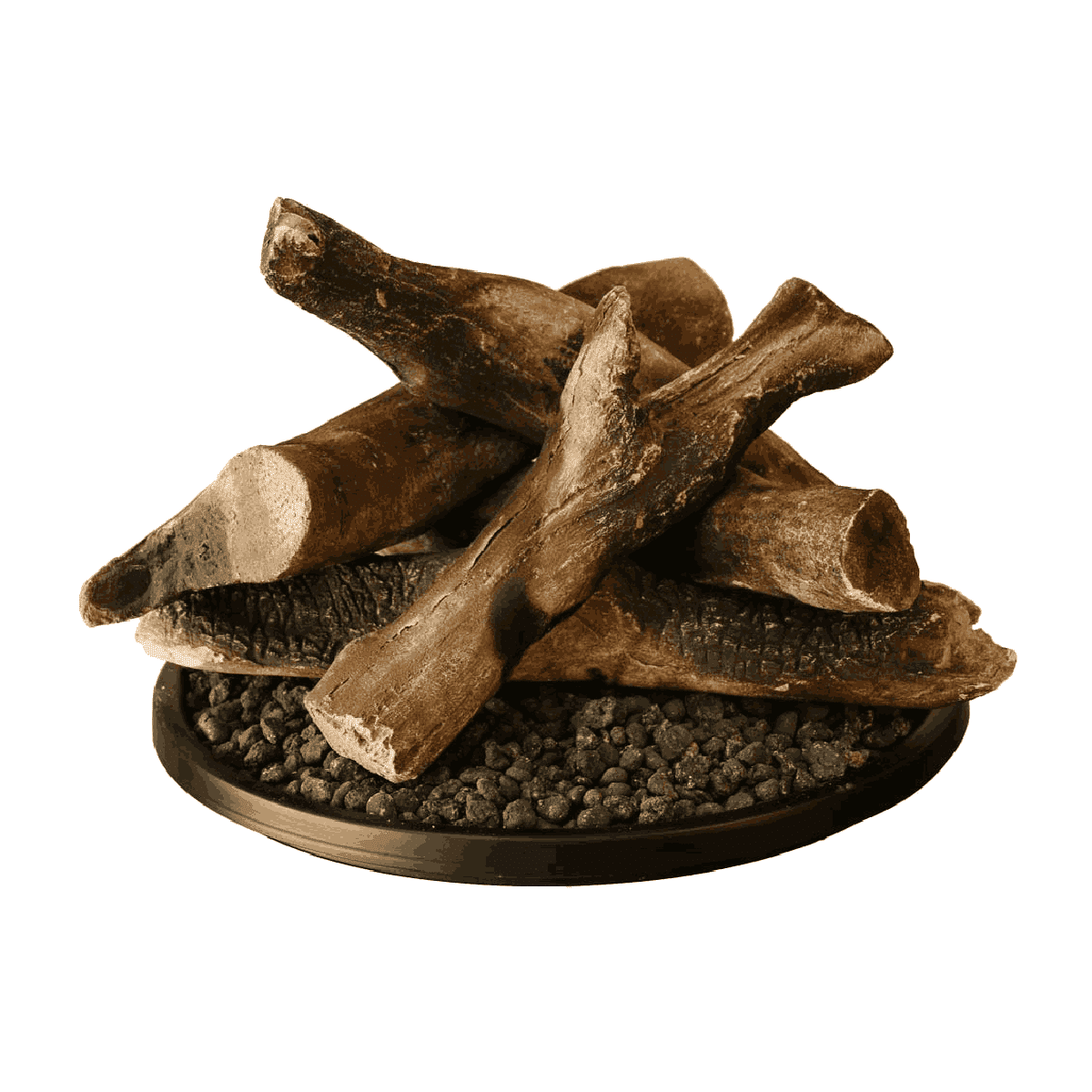

Choose gas logs with ceramic ash for a log-fire look (the set has five logs), or diamond black glass for a modern look. Both sit on the same burner.

How big a hole do I cut?

Cut a 400 mm round hole in the top of the fire pit. The burner pan is 424 mm across, a little wider than the hole, and its inner diameter is 386 mm.

What clearances does it need?

Keep at least 1,500 mm clear above the fire pit, 800 mm to the sides and 300 mm underneath. Use it outdoors with plenty of fresh air, and avoid strong draughts such as narrow walkways, because wind can affect the burner.

What gas setup does it need?

It runs on LPG at 2.8 kPa operating pressure, with a regulator of at least 4 kg/h. The maximum input is 11.4 kW (41 MJ/h), and the gas inlet is an 8 mm compression fitting. A registered gas installer must connect it.

How does it light?

Press the piezo spark igniter to light it. The ODS safety pilot watches the oxygen level and needs at least 18.5% oxygen in the air to stay lit.

Can I use it indoors?

No. It is an outdoor burner kit. Install it in an open outdoor area with ample ventilation.

Can you help with my setup?

Send a photo and measurements of your space for a product quote and a visual preview. Build the enclosure to suit, and arrange the gas installation with a registered gas installer. We do not provide installation services.
