THE HEAT
Warmth you can feel.
The grate gives radiant heat. We recommend it for rooms of up to 344 m³ (103 m²), and the right size for your home depends on the room itself.
Sale!

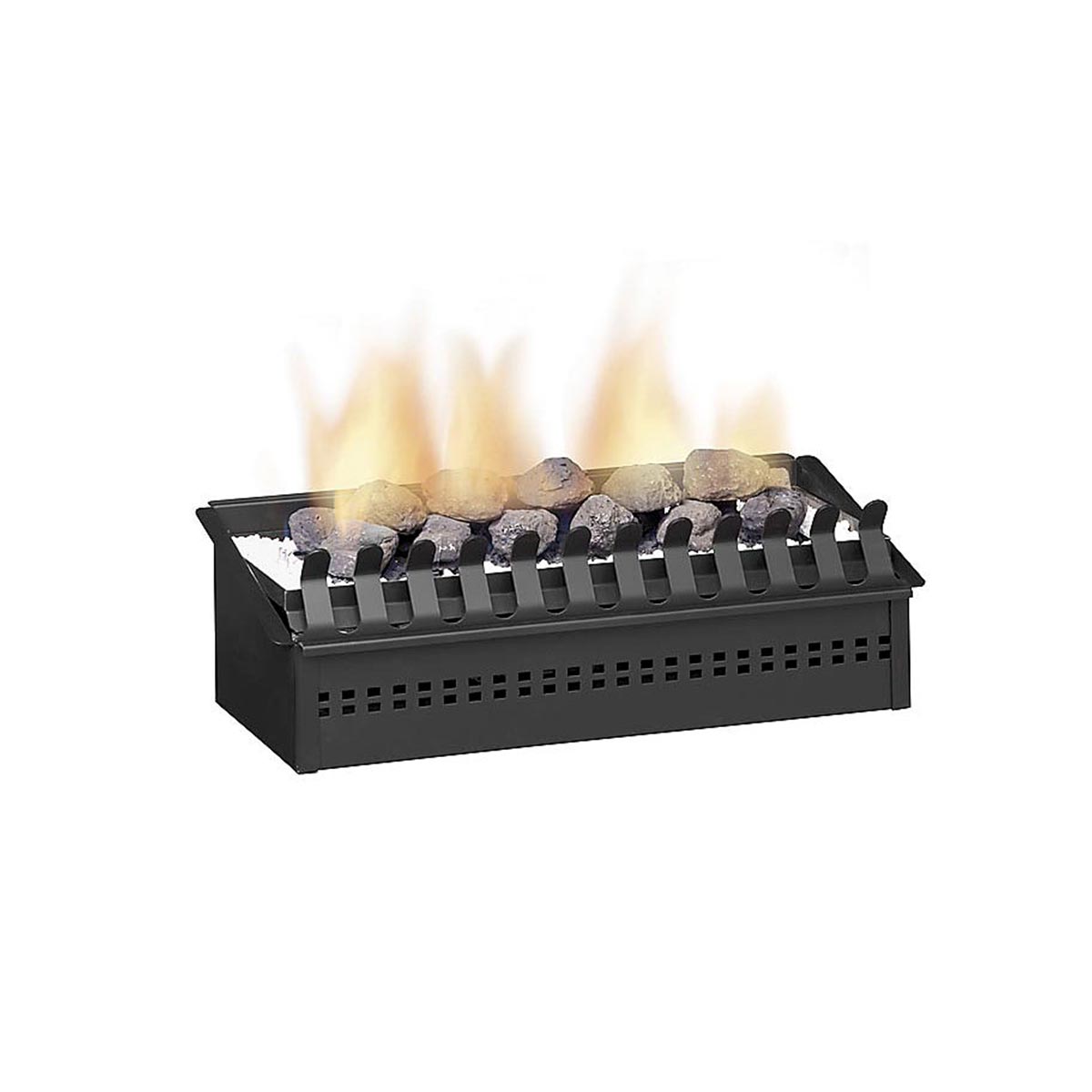

Chad-O-Chef 600 Universal Grate Fireplace
Turns your wood-burning fireplace into a flueless gas fire, on LPG or natural gas.
Original price was: R10,850.00.R10,199.00Current price is: R10,199.00.
Save R651In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat
- Radiant · suggested for rooms up to 103 m²
- Included
- Grate, burner, decorative stones and instruction manual
- Not included
- Mantelpiece or surround, and fitting by a registered gas installer
- Guarantee
- 2 years, terms apply
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsA GAS FIRE IN YOUR OLD FIREPLACE
Keep the fireplace.
Light it with a click.
Press the piezo ignition and the flames come up through the coal bed, while an oxygen depletion safety system keeps watch. The grate is black-painted mild steel and stainless steel, and it sits in the fireplace you already have. It is flueless, so your registered gas installer closes off the old chimney as part of the job.
Not for bedrooms, bathrooms, toilets or saunas.
- Piezo ignition
- Oxygen depletion safety system
- Black-painted mild steel and stainless steel
- LPG or natural gasConfirm your gas type with us
- Black ceramic coals or fire glassConfirm your finish with us
- Installation manualUnder Plan your setup
COME IN FROM THE COLD
Flames on, feet up.
The lamps are low, the throw is on the couch and gas flames dance over the coals. Your old fireplace is back in use, with no wood to carry in. Pour something warm, put your feet up and let the evening slow right down.
The fireplace and its surround, the couch, rug, side tables, lamp, plants and candles are not included. A registered gas installer fits the grate and closes off the chimney.
A LITTLE PRACTICAL THINKING
Plan the room, then light the fire.
THE CHIMNEY
No flue to build.
The 600 Universal Grate is flueless, so the existing chimney is closed off when your registered gas installer fits it. Keep it out of bedrooms, bathrooms, toilets and saunas.
THE GAS
LPG or natural gas.
It comes in a version for each. On LPG it uses up to 0.56 kg of gas an hour at 2.8 kPa, and the natural-gas version runs at 2.0 kPa. Tell us your gas type before you order.
MEASURE YOUR FIREPLACE FIRST
Will it fit your space?
- Grate width × depth
- 550 × 270 mm
- Grate height
- 200 mm
- Side clearance to combustibles
- 100 mm
- Side clearance to curtains and fabric
- 500 mm
- Clearance to the ceiling
- 800 mm
- Furniture clearance in front
- 1,000 mm
- Gas inlet, compression
- 8 mm
- Gas
- LPG or natural gas
- Ignition
- Piezo
- Material
- Black mild steel and stainless steel
Measure the fireplace you already have.
The grate is 550 mm wide, 270 mm deep and 200 mm high. These are the grate's own sizes, not a masonry opening, so have your registered gas installer check your fireplace and the safe clearances before fitting.

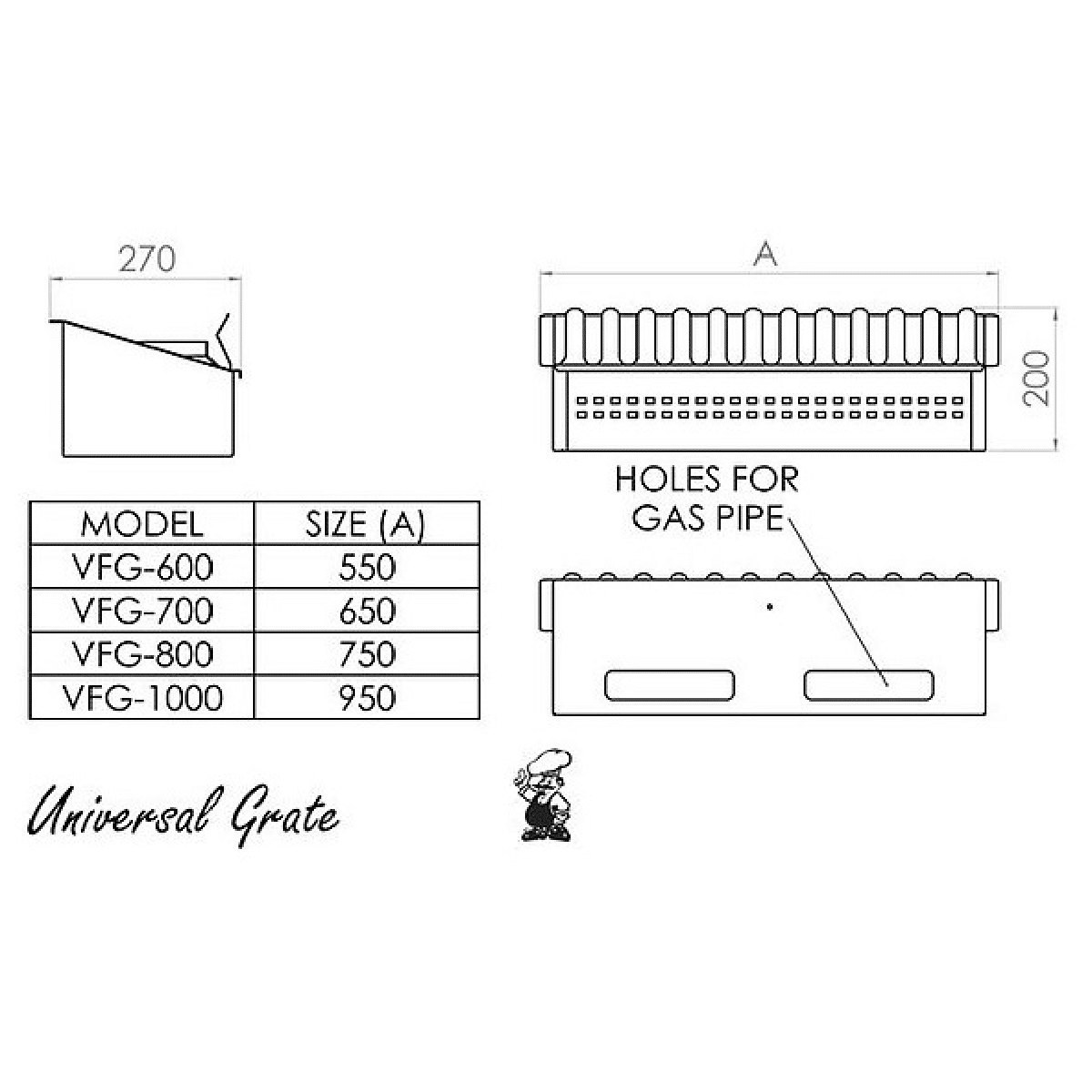

The drawing as text
- ALL SIZES IN MILLIMETRES
- Chad-O-Chef 600 Universal Grate
- Flueless gas grate for an existing single-sided wood-burning fireplace
- 01 FRONT VIEW
- 550 width
- 200 height
- 02 SIDE VIEW
- 270 depth
- 200 height
- Front at the right.
- 03 BACK VIEW
- Two holes at the back for the gas pipe.
- 04 TOP VIEW
- 550 width
- 270 depth
- Front at the bottom. Coals or fire glass on the burner.
- 05 CLEARANCES, FRONT VIEW (SMALLER SCALE)
- 100 sides
- 500 curtains
- 800 ceiling
- 100 floor
- 06 CLEARANCES, SIDE VIEW (SMALLER SCALE)
- 1,000 furniture
- 800 ceiling
- 100 floor
- Front at the right.
- PLANNING NOTES
- These are the grate's own sizes, not a masonry opening. Have your gas installer check your fireplace before fitting.
- The clearances are to combustible materials. The floor clearance includes carpet.
- The grate, the burner, the decorative stones and the instruction manual are included. The surround is not.
- The existing chimney needs closing off for this flueless conversion.
- The gas connects at an 8 mm compression inlet. A registered gas installer for your gas type fits the grate.
- Do not install it in bathrooms, bedrooms, toilets or saunas.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The 600 Universal Grate with its burner, the decorative stones and the instruction manual. The mantelpiece or fireplace surround is not included, and a registered gas installer for your gas type fits the grate.
Will it work in my fireplace?
It is made to convert an existing single-sided wood-burning fireplace to flueless gas. The grate is 550 mm wide, 270 mm deep and 200 mm high. Send us a photo and the measurements of your fireplace, and have your installer check the fit and the clearances on site.
Does it run on LPG or natural gas?
It comes in a version for each. Tell us your gas type before you order, so that we can confirm the right version. On LPG it uses up to 0.56 kg of gas an hour at an operating pressure of 2.8 kPa; the natural-gas version runs at 2.0 kPa. The gas connects at an 8 mm compression inlet.
What happens to my chimney?
The grate is flueless, so the existing chimney needs to be closed off. Your registered gas installer does this as part of the conversion.
How big a room can it heat?
It gives radiant heat. We recommend it for rooms of up to 344 m³ (103 m²), depending on the conditions in the room.
Where in the house can it go?
Not in bedrooms, bathrooms, toilets or saunas. Your installer checks the room against the instruction manual before fitting.
What clearances does it need?
Keep combustible materials 100 mm from its sides, and curtains or fabric 500 mm away. Leave 800 mm to the ceiling, 100 mm to the floor (carpet included) and 1,000 mm to combustible furniture in front.
Which finish can I choose?
You can choose black ceramic coals or fire glass on the burner. Tell us which one you want before you order.
How do I light it?
With the piezo ignition. An oxygen depletion safety system is part of the grate's safety setup.
Is there a guarantee?
Yes. The fireplace has a two-year Chad-O-Chef guarantee, subject to its terms. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and measurements of your fireplace for a product and configuration quote. We do not install, so book an independent gas installer, registered for your gas type.
