THE FLAME
Logs or fire glass.
Go for ceramic logs with ceramic ash, or fire glass for a cleaner look. The log finish uses five gas logs and 2 kg of ash, and logs that lie side by side need a gap of at least 50 mm between them.
Sale!
About your fireplace
- Gas and ignition
- 11.4 kWh maximum gas input · Piezo spark ignition
- Included
- Blade housing, LPG burner, igniter, control valve, and logs with ash or fire glass, as you choose
- Not included
- Installation. Ask us about the regulator, hose and base for your setup
- Guarantee
- Two years on the fireplace parts, terms apply

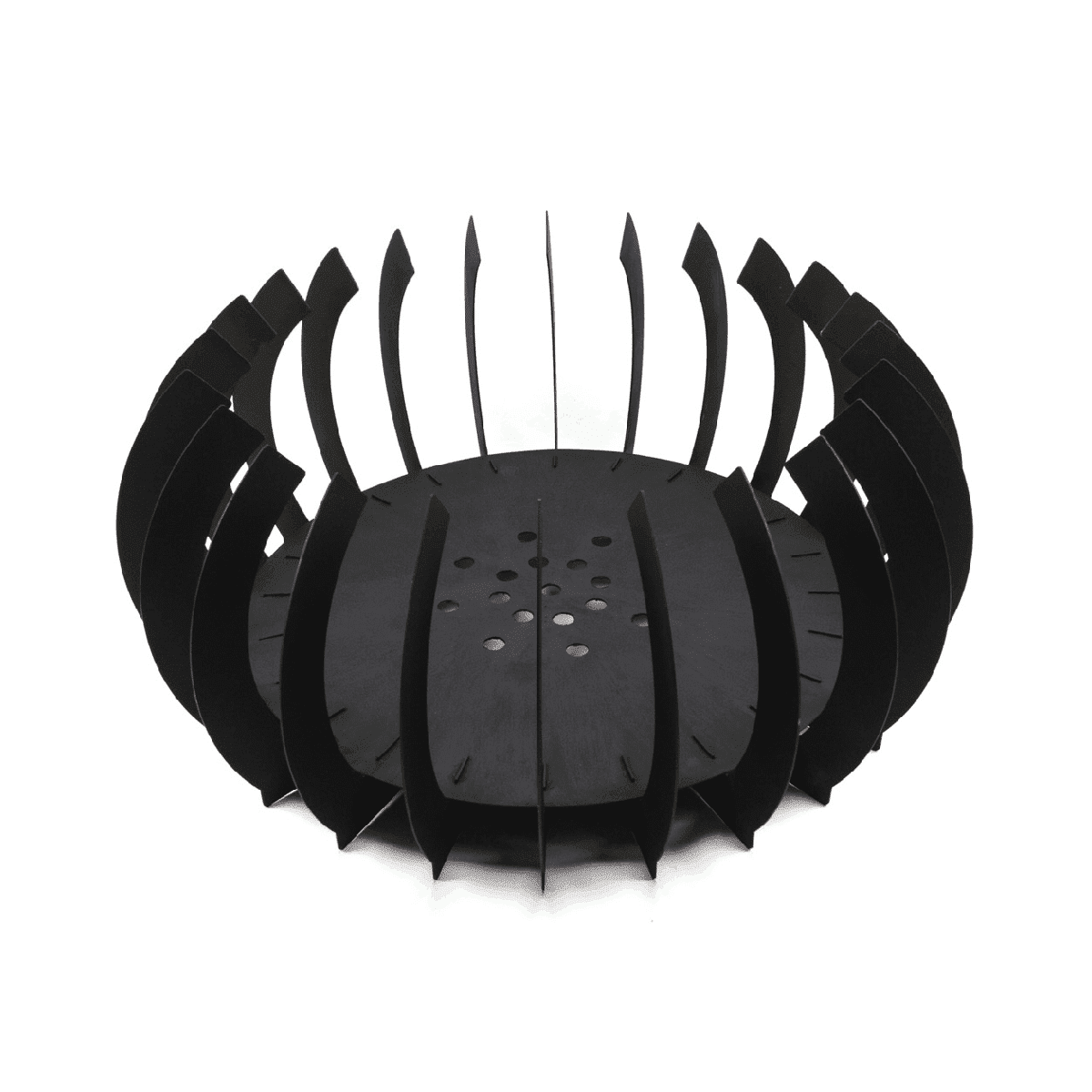

Chad-O-Chef Fire Blade Curved Firepit Burner (Gas Burning)
Curved steel blades around an LPG flame, made for outdoor evenings.
From: R16,599.00
Save R951In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsHOW THE FIRE WORKS
Chad-O-Chef Fire Blade Firepit Burner.
Lit with a spark.
The Chad-O-Chef Fire Blade Firepit Burner sets curved steel blades around an LPG burner. A piezo spark lights it, and a control valve looks after the flame. Pick ceramic logs or fire glass, then choose black mild steel, Corten or stainless steel. It is made for the outdoors, so pull up a chair and stay a while.
For outdoor use only: it must not be installed indoors. A registered SAQCC Gas installer must fit it.
- Piezo spark ignitionWith an igniter and control valve
- ODS on the burnerMinimum oxygen level 18.5% O2
- Five gas logs and 2 kg of ceramic ashWith the log finish
- Housing steel2.5 to 3 mm thick
- Installation manualUnder Plan your setup
STAY OUT A LITTLE LONGER
The sun goes down.
The evening does not.
The light turns gold, the first chair gets pulled up and the conversation finds its stride. No wood to fetch and no smoke in your eyes. Just good company, a flame in the middle and nowhere else to be.
The gravel, chairs, tables and flowers are not included. Keep fabric and furniture 1,500 mm from the fire.
BEFORE THE FIRST FIRE
Easy to enjoy.
Worth planning.
THE STEEL
Three steels to choose from.

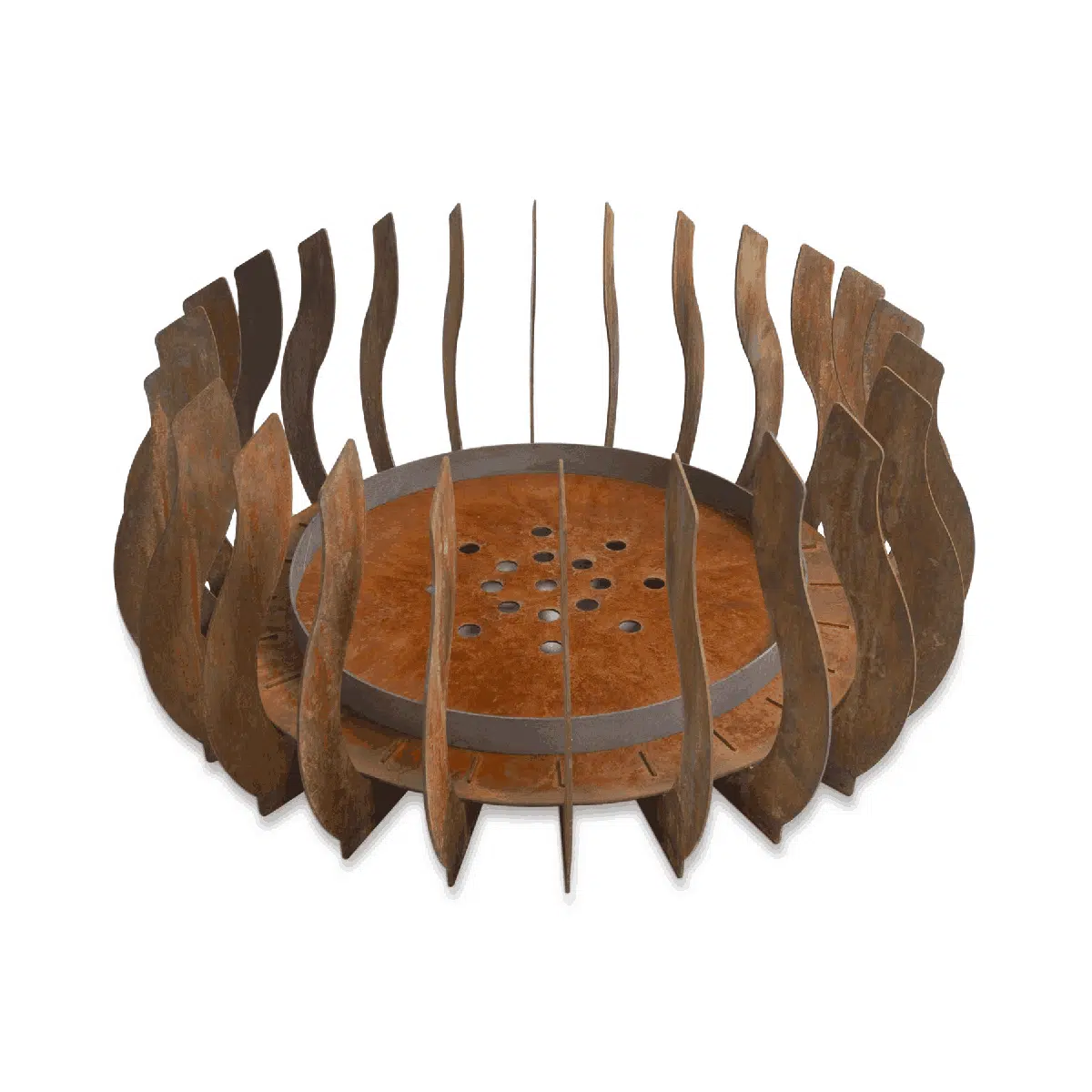

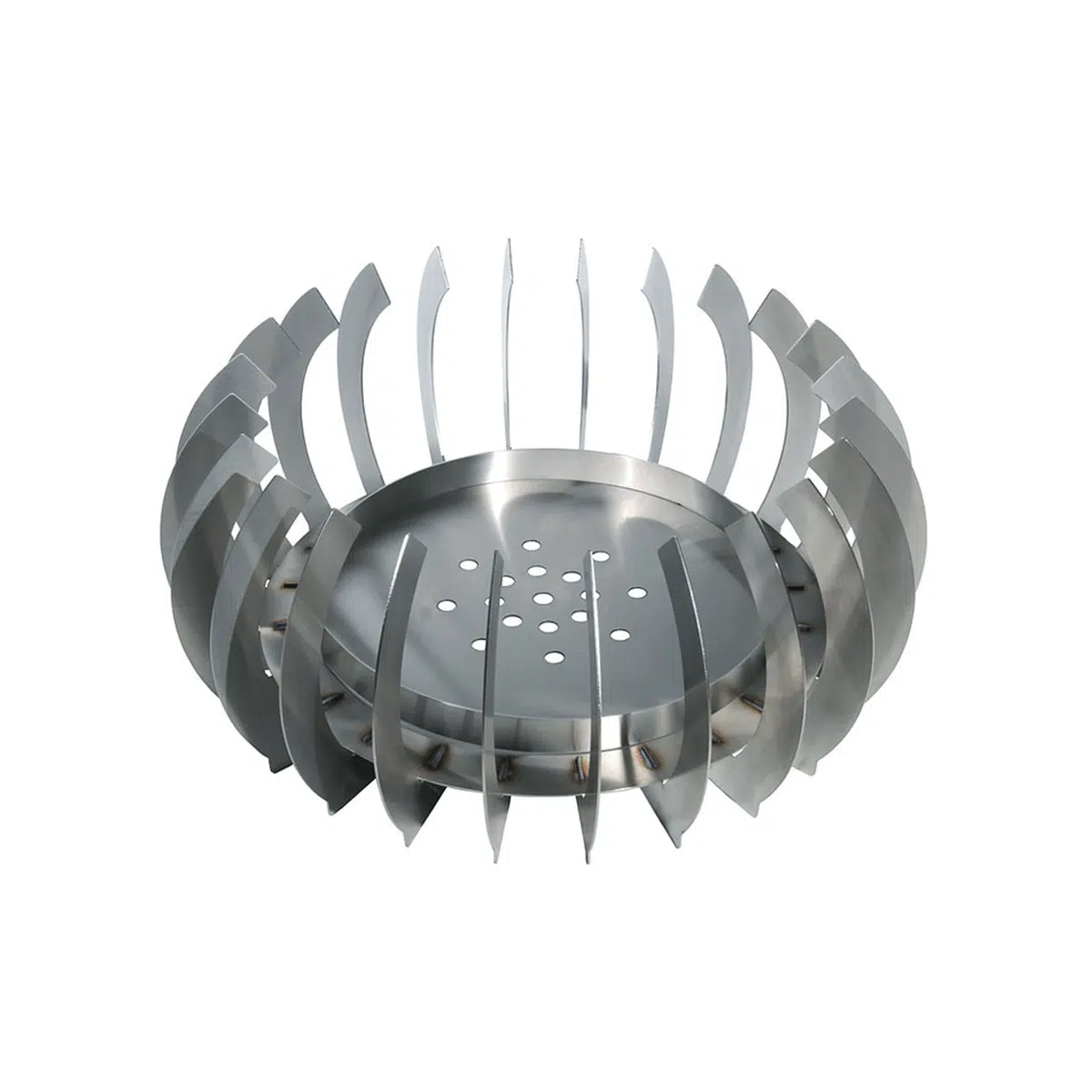

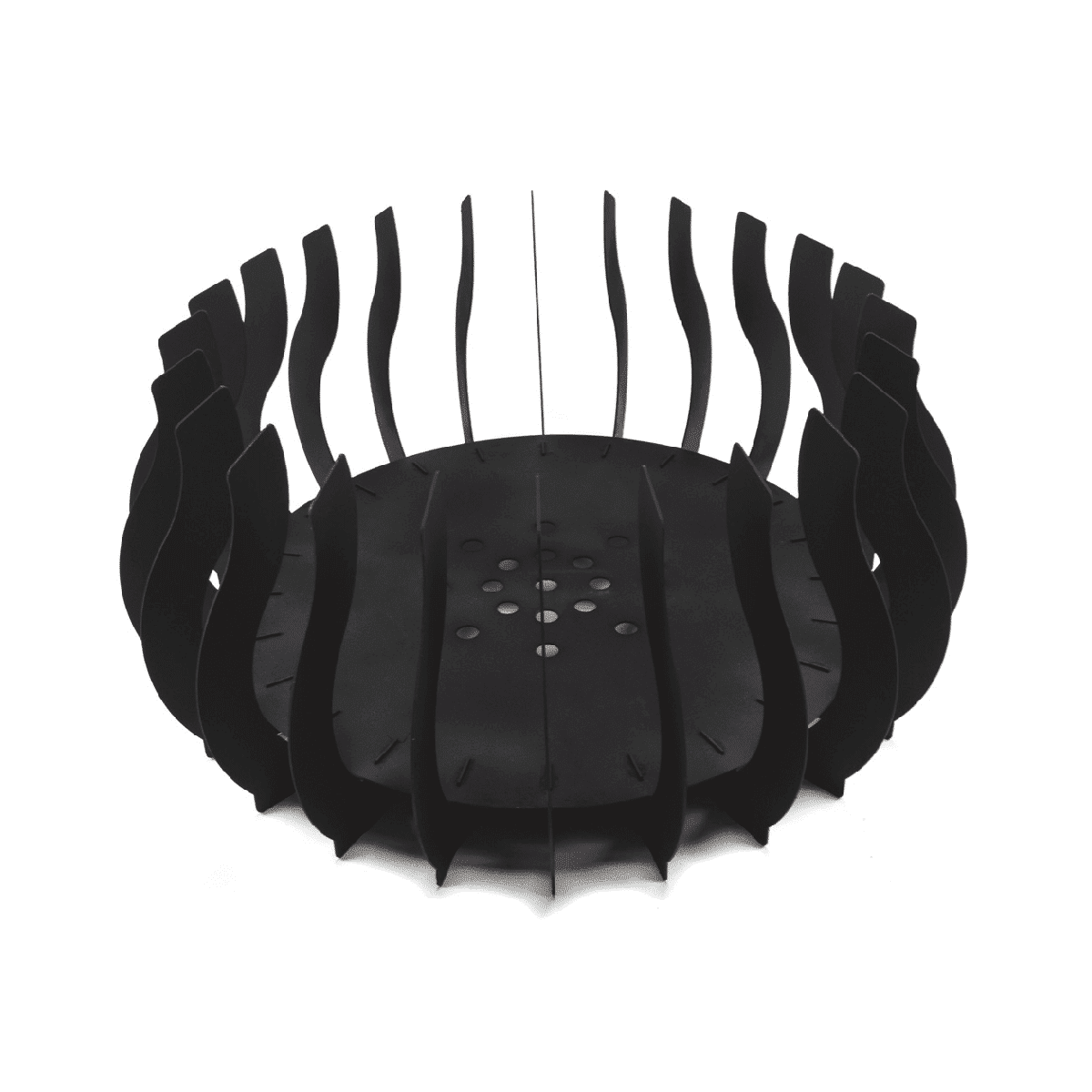

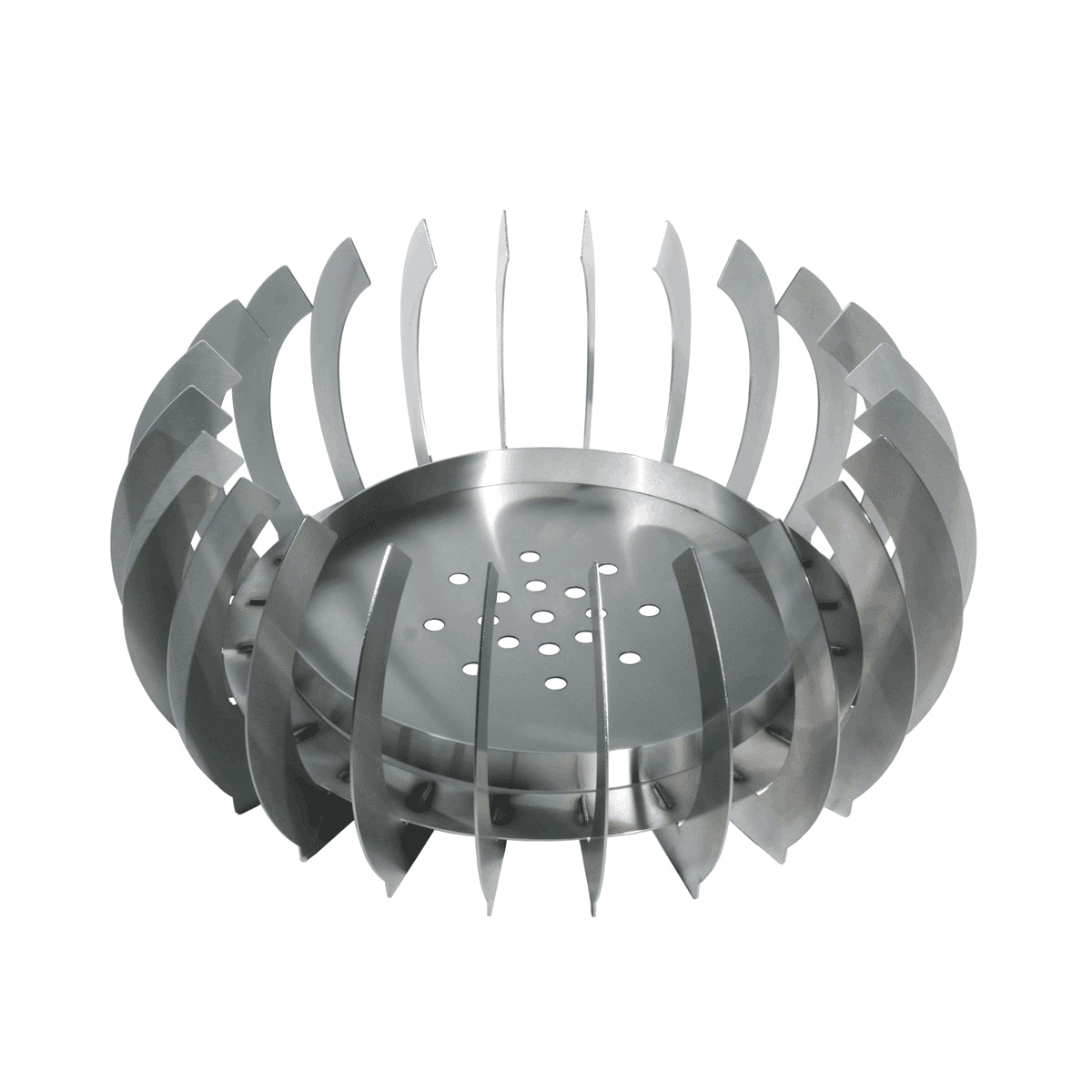

Choose the blade housing in black mild steel, Corten or stainless steel to suit your outdoor space. Across the three, the housing steel is 2.5 to 3 mm thick.
THE GAS
Plan for LPG.
It runs on LPG at 2.8 kPa, through a regulator of at least 4 kg/hr, and burns at most 0.82 kg/hr. The gas inlet takes an 8 mm compression fitting, so your installer knows what to bring.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Housing span
- 750 mm
- Housing height
- 330 mm
- Housing steel thickness
- 2.5–3 mm
- Clearance to wood
- 800 mm
- Clearance to fabric or furniture
- 1,500 mm
- Clearance to a ceiling or timbers above
- 1,500 mm
- Underside off the floor, at least
- 300 mm
- Permanent free-air opening under it, at least
- 100 mm²
- Gas inlet, compression fitting
- 8 mm
- Material
- Black mild steel, Corten or stainless steel
Give the fire room on every side.
The 750 mm span and 330 mm height are for the blade housing. Ask us for the full depth and weight with the burner fitted, and have your installer check the site and the safe clearances.

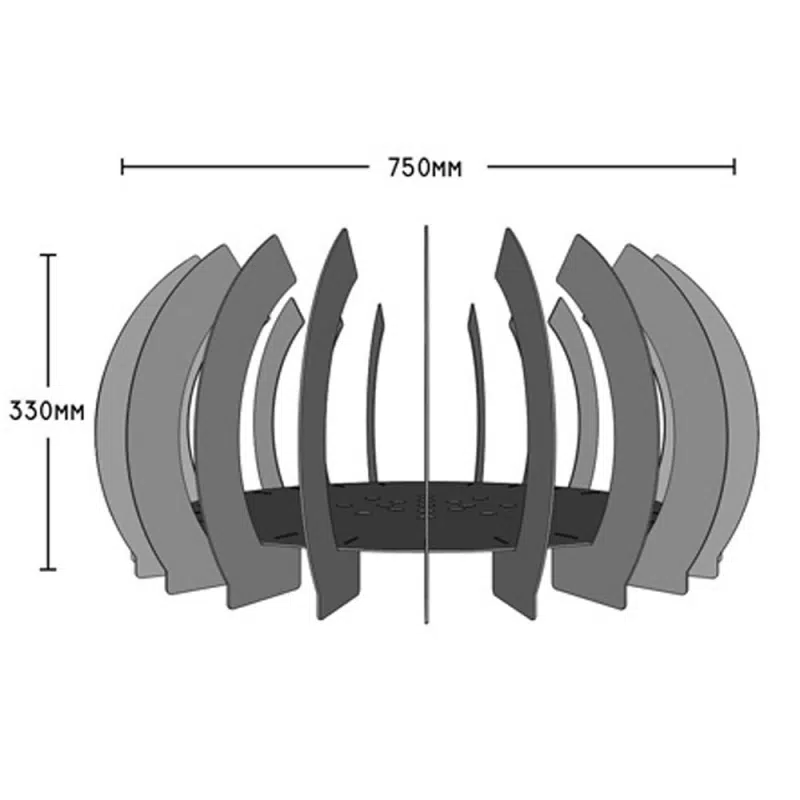

The drawing as text
- ALL SIZES IN MILLIMETRES
- Chad-O-Chef Fire Blade Curved Firepit Burner (Gas Burning)
- Outdoor gas fire pit: curved steel blades around an LPG burner, logs or fire glass
- 01 FRONT VIEW
- 750 housing span
- 330 housing height
- 02 TOP VIEW
- 750 housing span
- 03 CLEARANCES FROM THE SIDE (SMALLER SCALE)
- 1,500 to the ceiling
- 800 to wood
- 1,500 to fabric, furniture
- 300 off floor
- 04 CLEARANCES FROM ABOVE (SMALLER SCALE)
- 800 to wood
- 1,500 to fabric, furniture
- PLANNING NOTES
- The two product sizes are for the blade housing. Ask us for the full depth and weight with the burner fitted.
- For outdoor use only. A registered SAQCC Gas installer must fit it.
- Set it on a masonry or steel platform, with a permanent free-air opening of at least 100 mm² under it.
- Keep wood 800 away and fabric or furniture 1,500 away on every side, and ceilings or timbers 1,500 above.
- Gas: LPG at 2.8 kPa, regulator of at least 4 kg/hr, 8 mm compression inlet. A natural-gas model is separate.
- With logs, leave at least 50 between parallel logs. The housing steel is 2.5 to 3 thick.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
See also: All fireplaces · More from Chad-O-Chef · Chad-O-Chef Flame FireBlade Firepit Burner (Gas)
What is included?

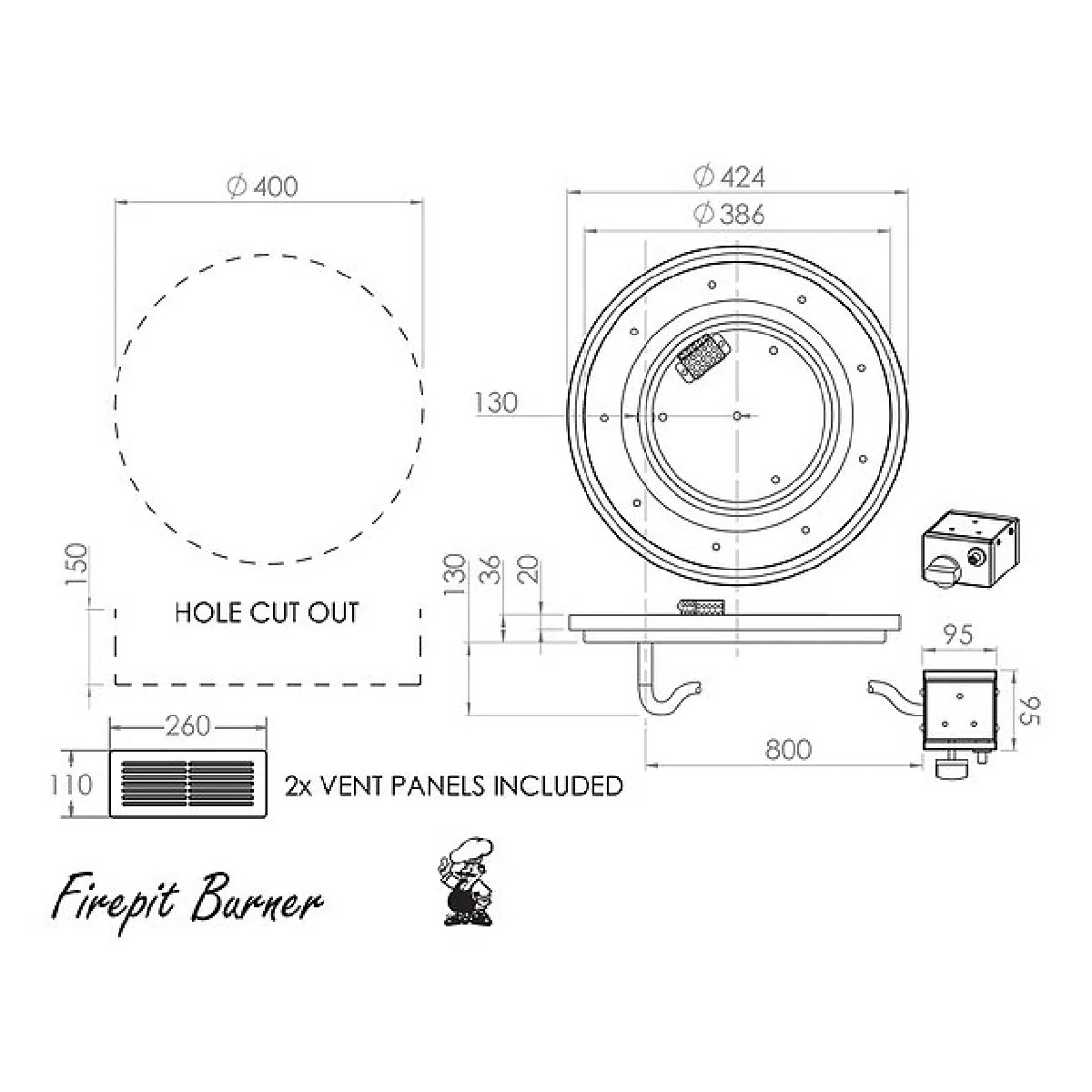

The curved blade housing with the OFP400 LPG burner, which has an igniter and a control valve. The log finish comes with ceramic logs and ceramic ash. The fire glass finish comes with fire glass and no logs. Ask us to confirm the regulator, hose and base for your setup. Installation is not included.
Can I use it indoors?
No. It is for outdoor use only and must not be installed indoors.
Which gas does it use?
LPG, at an operating pressure of 2.8 kPa, through a regulator of at least 4 kg/hr. It burns at most 0.82 kg/hr of LPG. Chad-O-Chef makes a separate natural-gas model, the OFP400-N, which this page does not sell.
How much heat does it give?
We have no rated heat output for this burner. The published figure is the maximum gas input, printed as 11.4 kWh in the manual and 11.4 kW/hr on the Chad-O-Chef product page, with a maximum gas energy input of 41 MJ/hr. These figures are the gas going in, not the heat coming out.
Which finishes can I choose?
For the burner: ceramic logs with ceramic ash, or fire glass (Diamond Black Glass on this page). For the housing: black mild steel, Corten or stainless steel.
How big is it?
The blade housing spans 750 mm and stands 330 mm high. Ask us for the full depth and the weight with the burner fitted.
How much space does it need?
Keep wood 800 mm away and fabric or furniture 1,500 mm away, with ceilings or timbers 1,500 mm above. The underside sits at least 300 mm off the floor, with a permanent free-air opening of at least 100 mm² under it. Have your installer check your site.
Who can install it?
A registered SAQCC Gas installer must fit it. We do not install, so arrange this with an independent installer who holds that registration.
How do I light it?
It has piezo spark ignition, with an igniter and a control valve. The ODS works to a minimum oxygen level of 18.5% O2. The instruction manual takes you through it.
What does the guarantee cover?
The fireplace has a two-year Chad-O-Chef guarantee, subject to terms. Ask us for the full terms, and to confirm how it applies to the blade housing.
Can you help with my setup?
Yes. Send a photo and measurements for a product and configuration quote. Arrange installation with an independent installer.
