THE HEAT
Rated at 11 kW nominal.
The Vintage 50 V2 is rated at 11 kW nominal output, with 77% nominal efficiency. Burning at part load, it gives 5.6 kW. The Output Calculator uses the 11 kW nominal output to compare with your room.
Sale!

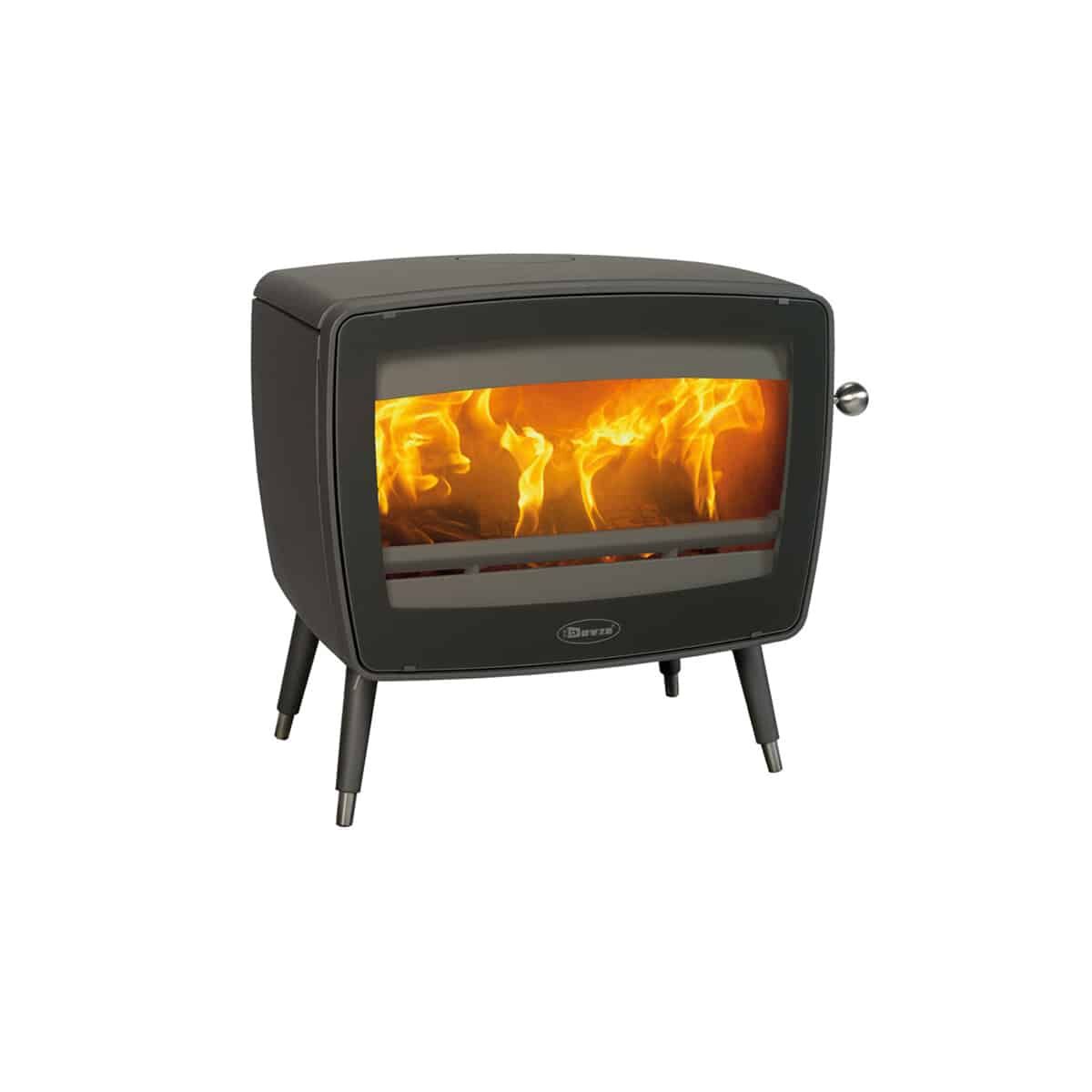

Dovre Vintage 50
Retro lines in cast iron, and a wood fire to gather round.
Original price was: R57,090.00.R53,699.00Current price is: R53,699.00.
Save R3,391In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat
- 11 kW nominal · 77% efficiency
- Included
- Cast-iron stove on four legs, vermiculite inner plates, door and handle, ash pan and glove
- Not included
- Flue pipes and cowl, hearth or floor plate, outside-air duct, installation
- Guarantee
- 5 years body (registered); 1 year electrics
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE DOVRE VINTAGE 50
Room for big logs.
Built in cast iron.
The Vintage 50 is a cast-iron wood stove on four legs, with vermiculite plates lining the firebox. It takes logs up to 50 cm long, so you split less and enjoy the fire more. Secondary air washes over the glass to keep it cleaner for longer, and the ash pan lifts out with the glove provided.
- Logs up to 50 cm longWood-burning
- Cast iron on four legs, about 155 kgVermiculite plates line the firebox
- Secondary air keeps the glass cleaner for longer
- 150 mm flue at the top or the rearRear centre 545 mm above the floor
- 100 mm outside-air connectionAt the rear or underneath
- Installation manualUnder Plan your setup
SETTLE IN FOR THE EVENING
Light the fire.
Pick up your book.
When the evening turns cold, the best seat in the house is the armchair near the stove. Load a few logs, close the door and let the room fill with warmth while the flames settle. A blanket, a good book and nowhere else you need to be.
The flue pipe, slate hearth plate, log basket, furniture and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
READY FOR WINTER
How it heats, burns and connects.
THE FIRE
Room for 50 cm logs.
The firebox takes logs up to 50 cm long, and vermiculite plates line it. Burn dry firewood, and follow the manual supplied with the stove when you light it.
THE CONNECTIONS
Top or rear: plan the route.
The 150 mm flue connects at the top or the rear, which helps when you plan around a wall or a chimney. A 100 mm outside-air connection at the rear or underneath can bring the fire its air from outside.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × overall height
- 690 × 690 mm
- Handle, beyond the right side
- 50 mm
- Body depth, front to back
- 445 mm
- Overall depth, with the rear connector
- 500 mm
- Flue connection diameter
- 150 mm
- Rear flue centre above the floor
- 545 mm
- Top flue centre from the body's rear
- 145 mm
- Outside-air connection diameter
- 100 mm
- Weight, approximate
- 155 kg
- Body material
- Cast iron
Plan the stove, hearth and flue together.
These are the stove's own sizes, on its four standard legs, not a hearth or room size. The handle adds 50 mm on the right. Have an independent installer confirm the hearth, the flue route and the clearances in the manual.

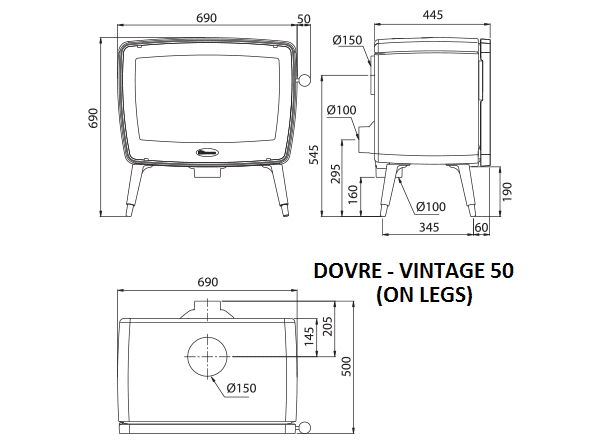

The drawing as text
- ALL SIZES IN MILLIMETRES
- Dovre Vintage 50
- Cast-iron wood stove on four legs: flue at the top or the rear
- 01 FRONT VIEW
- 690 body width
- 50 handle
- 690 height
- Ø100 outside air underneath
- 02 SIDE VIEW
- 445 body depth
- 545 rear flue centre
- 295 rear air
- 160 air fitting
- 190 underside
- 345 feet apart
- 60 to the foot
- Back at the left. Front at the right.
- 03 TOP VIEW
- 690 body width
- Ø150 top flue
- 145 from the rear
- 205 to the rear end
- 500 with rear connector
- Back at the top. Front at the bottom.
- 04 REAR CONNECTIONS
- Ø150 rear flue
- Ø100 air
- 05 CLEARANCES TO COMBUSTIBLE MATERIALS, TOP VIEW (SMALLER SCALE)
- 200 behind
- 350 at the side
- 1,200 in front
- Front at the bottom.
- PLANNING NOTES
- These are the stove's own sizes, on its four standard legs, not a hearth or room size.
- Have an independent installer confirm the hearth, the flue route and the clearances in the manual.
- Keep 100 to non-combustible materials. The radiation area is 300 at the floor and 500 at the side.
- The Ø150 flue connects at the top or the rear.
- The Ø100 outside-air connection is at the rear or underneath. Ask your installer whether your room needs outside air.
- The firebox takes logs up to 50 cm long.
- The stove weighs about 155 kg, so check that your floor can carry it.
- Flue pipes and cowl, the hearth or floor plate, the outside-air duct and installation are not included.
- Send us a photo, your room measurements and roof details for a product and flue quote.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The Dovre Vintage 50 V2 wood stove: a cast-iron body on four legs, vermiculite plates lining the firebox, the front door with its handle, a 150 mm flue connection at the top or rear and a 100 mm outside-air connection at the rear or underneath. The flue pipes, cowl and hearth plate are not included.
Which fuel does it burn?
Wood. The firebox takes logs up to 50 cm long. Burn dry firewood, and ask us before you plan to burn anything else.
How much heat does it give?
The current Vintage 50 (V2) is rated at 11 kW nominal output, with 77% nominal efficiency. At part load it gives 5.6 kW. The Output Calculator uses the 11 kW nominal output to compare with your room. Insulation, ceiling height and climate change how warm a room feels.
Where does the flue connect?
At the top or the rear, through a 150 mm flue connection. For a rear connection, the centre is 545 mm above the floor. For a top connection, the centre is 145 mm from the rear of the body. Plan the route with an independent installer before you build.
Is the flue included?
No. The flue pipes, cowl and hearth plate depend on your room and roof. Send a photo, your room measurements and roof details for a product and flue configuration quote.
Can it draw air from outside?
Yes. It has a 100 mm outside-air connection at the rear or underneath. The rear connection's centre is 295 mm above the floor. Ask your installer whether your room needs outside air, and plan the duct with the manual supplied with the stove.
How much space does it need?
The stove is 690 mm wide, 690 mm high and 445 mm deep (500 mm with the rear connector), and the handle adds 50 mm on the right. The minimum distances to combustible materials are 1,200 mm in front, 350 mm at the sides and 200 mm behind, and 100 mm to non-combustible materials. Your installer confirms the clearances and the floor protection.
What is it made of?
The body is cast iron, and vermiculite plates line the firebox. The stove weighs about 155 kg, so check that your floor can carry it.
Is it freestanding?
Yes. The Vintage 50 stands on four legs, so it needs no built-in opening. Place it on a suitable hearth, with the clearances in the manual.
How do I clear the ash?
Lift out the ash pan with the glove provided and empty it. Clear away extra ash often, so the fire keeps drawing well.
Will the glass stay clean?
Dovre sends secondary air over the glass as well as the fire, so the glass doesn't get dirty as quickly and you keep your view of the flames.
Can you help with my setup?
Yes. Send a photo, your room measurements and roof details for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
