THE HEAT
14 kW nominal, up to 17 kW.
The I1000 gives 14 kW nominal and up to 17 kW maximum heat output, with a published heating volume of 400 m³. The Output Calculator uses 15.5 kW, the middle of the two, to compare with your room.
Sale!

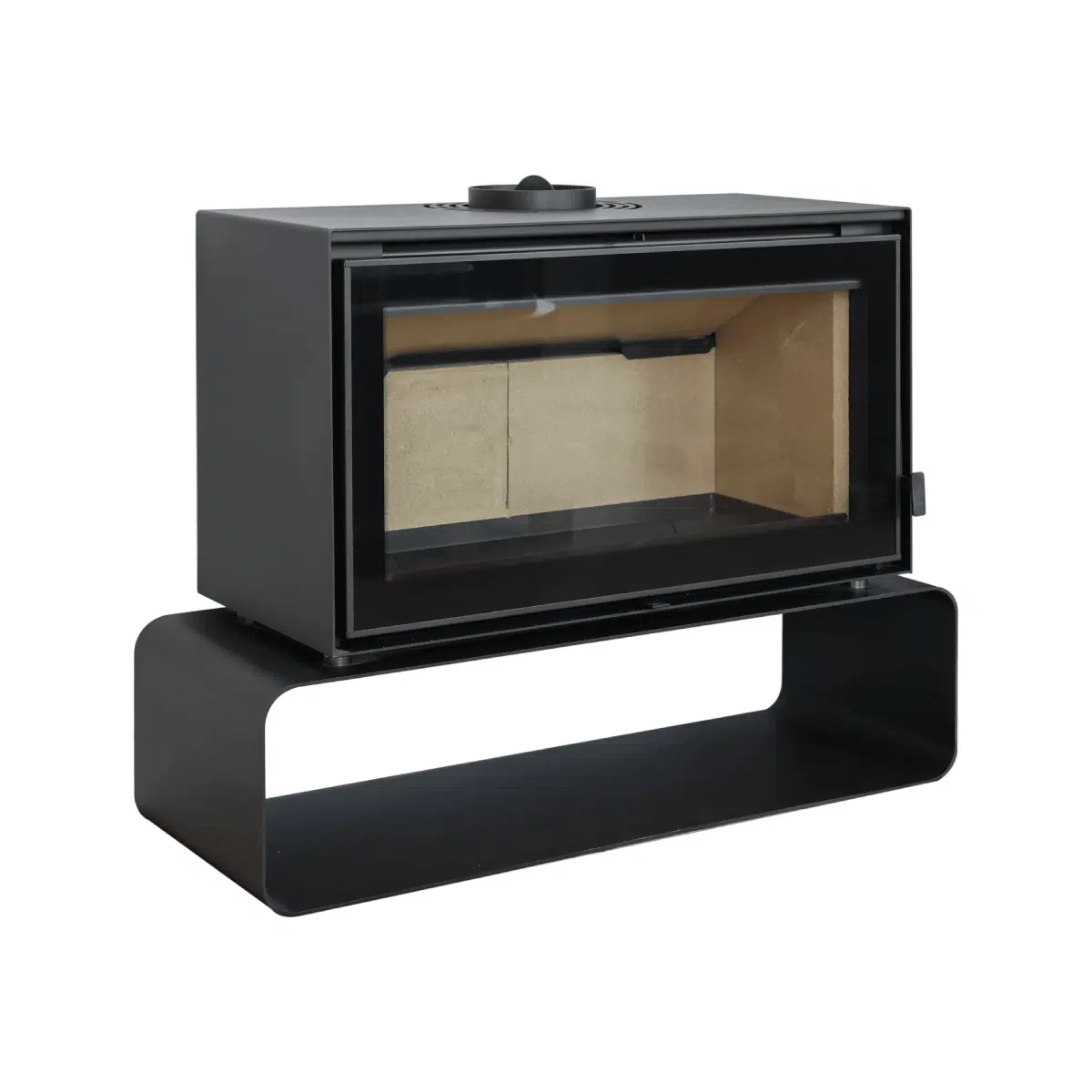

FLAMM I1000 – Closed Combustion Freestanding Fireplace on Log Base (14 - 17kW)
A wide view of the flames, on a long log base with room for your firewood.
Original price was: R40,810.00.R38,499.00Current price is: R38,499.00.
Save R2,311In stock Delivery ETA: 5–7 working days
About your fireplace
- Heating volume
- 400 m³
- Included
- The fireplace, its log base and the ash pan
- Not included
- Flue pipes, accessories and installation
- Guarantee
- Five years on the stove body (limited)
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE I1000, UP CLOSE
Wide glass.
A heavy steel firebox.
The I1000 puts the fire on show behind glass 827 mm wide. Behind it sits a fully welded 5 mm steel firebox with a firebrick lining, finished in metallic black high-heat paint. Feed it hardwood, keep the next logs in the long base below, and empty the ash pan once the fire is out and the ash is cold.
- Wide glass front827 × 374 mm
- Fully welded 5 mm steel fireboxFirebrick lining
- Metallic black high-heat paint
- Ash panIncluded
- Top flue outletFor a 200 mm nominal flue
- Installation manualUnder Plan your setup
MORE TIME TOGETHER
Game night, with the fire on.
Snacks on the table, the board game out and the whole family on the couch. The I1000 burns behind its wide glass while the afternoon turns to evening, and nobody is in a hurry to leave the room. A generous fire for a big family room.
The flue pipe, hearth plate, stone wall, furniture and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
A LITTLE PRACTICAL THINKING
Heat, glass and flue, sorted.
THE VIEW
A wide window on the fire.
The glass measures 827 × 374 mm, so the flames are easy to enjoy from across a large room. Keep household furnishings 1,000 mm from the fireplace.
THE FLUE
Straight up through the top.
The flue connects at the top, with a 202 mm internal outlet for a 200 mm nominal flue. Send us a photo and measurements, and we will quote the flue pipes and accessories for your room and roof.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 1,000 × 450 mm
- Body height
- 600 mm
- Log base width × height
- 1,200 × 325 mm
- Overall height, to the body top
- 955 mm
- Glass width × height
- 827 × 374 mm
- Flue size (nominal)
- 200 mm
- Outlet internal diameter
- 202 mm
- Clearance to combustible walls
- 800 mm
- Weight
- 206 kg
- Fuel · finish
- Hardwood · metallic black
Plan the stove, floor protector and flue together.
The I1000 stands 955 mm to the top of the body; the outlet and the flue go above that. The log base is 1,200 mm wide, wider than the 1,000 mm body. Keep 800 mm to combustible walls and have an independent installer check the site.
The drawing as text
- ALL SIZES IN MILLIMETRES
- FLAMM I1000 on Log Base
- Freestanding wood fireplace: closed combustion, wide glass front, long log base below
- 01 FRONT VIEW
- 1,000 body width
- 955 floor to body top
- 600 body height
- 325 log base
- 1,200 log base width
- 827 glass width
- 374 high
- 02 SIDE VIEW
- 450 body depth
- Back at the left. Front at the right.
- 03 TOP VIEW
- Ø202 outlet, inside
- 1,000 body width
- 450 body depth
- Back at the top. Front at the bottom. Thin line: the log base.
- For a nominal Ø200 flue pipe.
- 04 COMBUSTIBLE WALLS, TOP VIEW (SMALLER SCALE)
- 800 to wall
- 800 to wall
- 05 FLOOR PROTECTOR, TOP VIEW (SMALLER SCALE)
- 200 at the rear
- 400 in front
- 200 at the side
- Front at the bottom.
- 06 CEILING AND FURNISHINGS (SMALLER SCALE)
- 1,200 to the ceiling
- 1,000 to furnishings
- PLANNING NOTES
- These are product sizes. Have an independent installer confirm the hearth, the flue route and the clearances.
- The 955 ends at the top of the body. The outlet and the flue go above it.
- In a suitable recess, leave a free air gap of 200 at the sides and top and 50 at the rear.
- That gap is for airflow only and does not replace the 800 to combustible walls.
- The fireplace weighs 206 kg, so have your installer check that the floor can carry it.
- Chimney flue pipes, accessories and installation are not included. Send us a photo and measurements for a flue quote.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The FLAMM I1000 closed combustion fireplace in metallic black, with its log base and the ash pan. Chimney flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Which fuel does it burn?
Wood. It's designed for hardwood, so plan your woodpile around it. The long log base under the firebox keeps the next logs close at hand.
How much heat does it give?
14 kW nominal and up to 17 kW maximum heat output, with a published heating volume of 400 m³. The Output Calculator uses 15.5 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.
How big is the glass?
The glass is 827 mm wide and 374 mm high, so the fire is the centre of the room. Keep household furnishings 1,000 mm from the fireplace.
Where does the flue connect?
At the top. The outlet has an internal diameter of 202 mm and takes a 200 mm nominal flue. Have an independent installer plan the flue route, height and support for your building.
Is the flue included?
No. Chimney flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The body is 1,000 mm wide, 450 mm deep and 600 mm high. On its log base, which is 1,200 mm wide and 325 mm high, it stands 955 mm to the top of the body, before the outlet and the flue. Keep at least 800 mm to combustible walls, 1,200 mm to a combustible ceiling and 1,000 mm to household furnishings. Your installer applies the full manual and local requirements.
What does it need underneath?
Use a floor protector under the fireplace that reaches 400 mm in front of it and 200 mm beyond the sides and the rear. The fireplace weighs 206 kg, so have your installer check that the floor can carry it.
Can it stand in a recess?
In a suitable recess, leave a free air gap of 200 mm at the sides and top and 50 mm at the rear. That gap is for airflow only and does not replace the 800 mm clearance to combustible walls. Plan it with your independent installer.
How is it made?
The firebox is fully welded from 5 mm steel and has a firebrick lining. The finish is a metallic black high-heat paint.
What does the guarantee cover?
The main stove body has an extended five-year limited Home Fires warranty, for new units bought from Home Fires or an authorised retailer. Register it within 30 days, or the term drops to 12 months. It covers the first owner at the first installation, with proof of purchase and professional installation records. Wear parts, glass, linings, seals and finishes are excluded. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
