THE HEAT
12 kW nominal, up to 14 kW.
The PEN 780 gives 12 kW nominal and up to 14 kW maximum heat output, with a published heating volume of 336 m³. The Output Calculator uses 13 kW, the middle of the two, to compare with your room.
Sale!

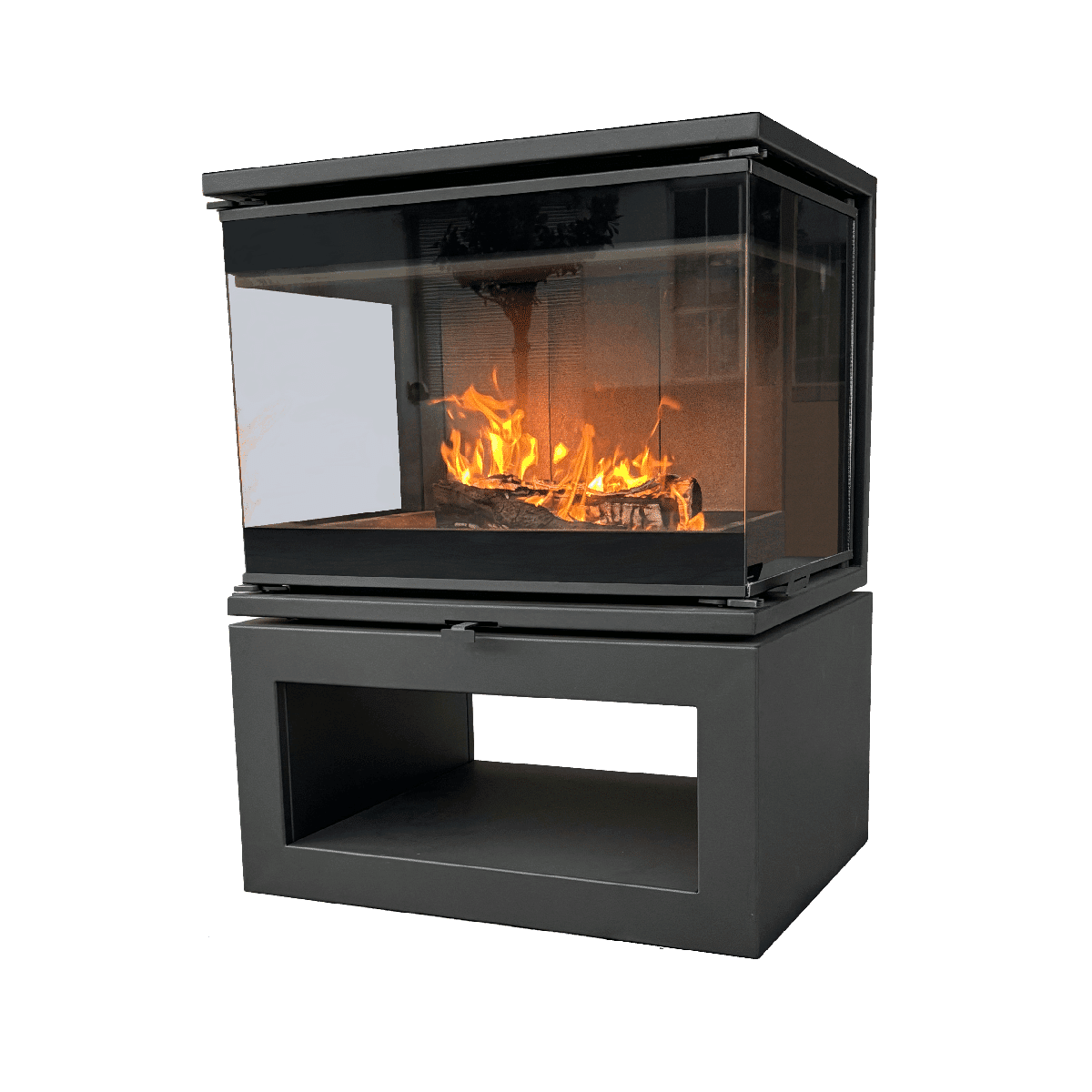

FLAMM PEN 780 on Stand – Closed Combustion Freestanding Fireplace
Glass on three sides and a log stand below. The fire takes centre stage.
Original price was: R43,580.00.R40,999.00Current price is: R40,999.00.
Save R2,581In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat
- 12 kW nominal · 14 kW maximum
- Included
- The fireplace, its log stand and the integrated ash box
- Not included
- Flue pipes, accessories and installation
- Guarantee
- Five years on the stove body (limited)
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE PEN 780, UP CLOSE
Heavy steel.
A fire on three sides.
The PEN 780 is built around a fully welded 5 mm steel firebox, lined with vermiculite and finished in metallic black high-heat paint. Two side glass doors sit next to the front glass, so the flames show from three sides. Load it with hardwood, keep the next logs in the stand below, and let the integrated ash box take care of the ash.
- Fully welded 5 mm steel fireboxVermiculite lining
- Front glass and two side glass doorsThe side doors open to the side
- Metallic black high-heat paint
- Integrated ash boxIncluded
- Top flue outletFor a 150 mm nominal flue
- Installation manualUnder Plan your setup
SLOW AFTERNOONS, WARM ROOMS
A slow afternoon by the fire.
Late sun over the vines, a basket of logs by the door and flames dancing behind glass on three sides. Settle into the armchair, pour something warm and let the afternoon run long. Freestanding on its log stand, the PEN 780 gives an open-plan room a fire to gather around.
The flue pipe, hearth plate, log basket, firewood, furniture and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
BEFORE THE FIRST FIRE
Heat, view and flue, sorted.
THE VIEW
Glass on three sides.
Front glass plus two side glass doors that open to the side, so the fire shows from the front and both sides. Place it where the room can enjoy all three views, and keep furnishings 1,000 mm away.
THE FLUE
One outlet, on top.
The flue connects at the top, with a 150 mm nominal flue. Flue pipes and accessories depend on your room and roof, so send us a photo and measurements for a flue configuration quote.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 790 × 590 mm
- Body height, above the log stand
- 612 mm
- Log stand height
- 408.5 mm
- Outlet collar above the body
- 35 mm
- Flue size (nominal)
- 150 mm
- Outlet diameter, as drawn
- Ø152 mm
- Clearance to combustible walls
- 800 mm
- Weight
- 170 kg
- Firebox
- 5 mm welded steel
- Fuel · finish
- Hardwood · metallic black
Plan the stove, floor protector and flue together.
The body is 612 mm high on a 408.5 mm log stand; ask us to confirm the overall height before a tight fit. Keep 800 mm to combustible walls and 1,200 mm to a combustible ceiling, and have an independent installer check the site.

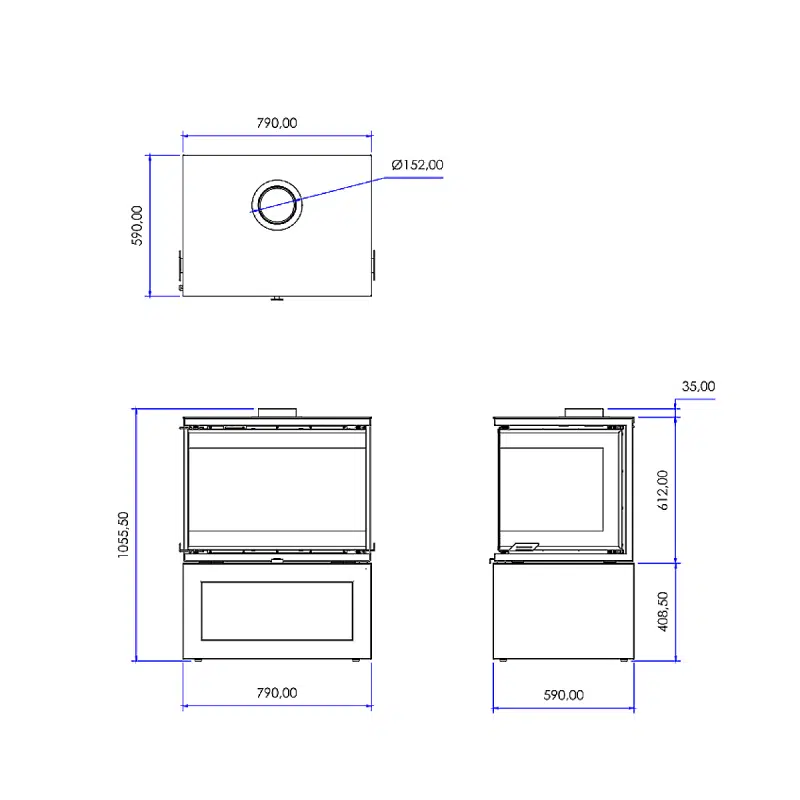

The drawing as text
- ALL SIZES IN MILLIMETRES
- FLAMM PEN 780 on Log Stand
- Freestanding wood fireplace: closed combustion, glass on three sides, log stand below
- 01 FRONT VIEW
- 790 body width
- 612 body height
- 408.5 log stand
- 02 SIDE VIEW
- 35 outlet collar
- 590 body depth
- Back at the left. Front at the right.
- 03 TOP VIEW
- Ø152 outlet
- 590 body depth
- 790 body width
- Back at the top. Front at the bottom.
- 04 COMBUSTIBLE WALLS, TOP VIEW (SMALLER SCALE)
- 800 to wall
- 800 to wall
- 05 FLOOR PROTECTOR, TOP VIEW (SMALLER SCALE)
- 200 at the rear
- 400 in front
- 200 at the side
- Front at the bottom.
- 06 CEILING AND FURNISHINGS (SMALLER SCALE)
- 1,200 to the ceiling
- 1,000 to furnishings
- PLANNING NOTES
- These are product sizes. Have an independent installer confirm the hearth, the flue route and the clearances.
- Ask us to confirm the overall height before a tight fit.
- The outlet takes a nominal Ø150 flue pipe. Your installer confirms the exact fit on site.
- In a suitable recess, leave a free air gap of 200 at the sides and top and 50 at the rear.
- That gap is for airflow only and does not replace the 800 to combustible walls.
- The fireplace weighs 170 kg, so have your installer check that the floor can carry it.
- Chimney flue pipes, accessories and installation are not included. Send us a photo and measurements for a flue quote.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The FLAMM PEN 780 closed combustion fireplace in metallic black, with its log stand and the integrated ash box. Chimney flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Which fuel does it burn?
Wood. It's designed for hardwood, so plan your woodpile around it. The log stand under the firebox keeps the next logs close at hand.
How much heat does it give?
12 kW nominal and up to 14 kW maximum heat output, with a published heating volume of 336 m³. The Output Calculator uses 13 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.
Do the side doors open?
Yes. Next to the front glass, the PEN 780 has two side glass doors, and they open to the side. That is what gives you a view of the fire from three sides.
Where does the flue connect?
At the top. The outlet collar stands 35 mm above the body and takes a 150 mm nominal flue. Our drawing shows the outlet at Ø152 mm, and your installer confirms the exact fit of the flue pipe on site.
Is the flue included?
No. Chimney flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The body is 790 mm wide, 590 mm deep and 612 mm high, on a 408.5 mm log stand. Ask us to confirm the overall height before you plan a tight fit. Keep at least 800 mm to combustible walls, 1,200 mm to a combustible ceiling and 1,000 mm to household furnishings. Your independent installer applies the full manual and local requirements.
What does it need underneath?
Use a floor protector under the fireplace that reaches 400 mm in front of it and 200 mm beyond the sides and the rear. The fireplace weighs 170 kg, so have your installer check that the floor can carry it.
Can it stand in a recess?
In a suitable recess, leave a free air gap of 200 mm at the sides and top and 50 mm at the rear. That gap is for airflow only and does not replace the 800 mm clearance to combustible walls. Plan it with your independent installer.
How is it made?
The firebox is fully welded from 5 mm steel and lined with vermiculite. The finish is a metallic black high-heat paint.
What does the guarantee cover?
The main stove body has an extended five-year limited Home Fires warranty, for new units bought from Home Fires or an authorised retailer. Register it within 30 days, or the term drops to 12 months. It covers the first owner at the first installation, with proof of purchase and professional installation records. Wear parts, glass, linings, seals and finishes are excluded. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
