Homefires - C0700 Insert Closed Combustion Fireplace 10 kW with Frame

A closed-combustion insert with a large glass door and a black trim plate.

Original price was: R25,580.00.Current price is: R23,999.00.

Save R1,581
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU HFINSERTC0700

In stock Delivery ETA: 5–7 working days

About your fireplace

Heat output
8 kW nominal on wood · 10 kW maximum
Included
Insert with riddling grate, ash drawer and large-handle door, and the trim plate
Not included
Flue pipes and accessories, building work and installation
Guarantee
3 years on the main body, if registered within 30 days

Free delivery in Central Gauteng on orders from R5,500. Other areas: delivery cost on request.

How delivery works

DeliveryHow it works

Because most of our products are huge, it’s difficult for us to keep stock of all of them. For this reason, we deliver a lot of our products directly from our suppliers and manufacturers, to offer you a great price and a fresh braai and a warm fireplace.

PRIORITY DELIVERYWe will make sure you are kept in the loop at every single step of the way and we will have your order processed as a priority. Tracking number included.

FREE DELIVERYLook, it’s free but we are unable to provide an exact time or take specific delivery requests as we are at the mercy of our suppliers. We still do our best to deliver as quickly as possible and in most cases we are much quicker than the stated turn around time.

Mail us for any queries.
[email protected]

Your total R23,999.00

Delivery cost to be confirmed.

Get a Quote

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

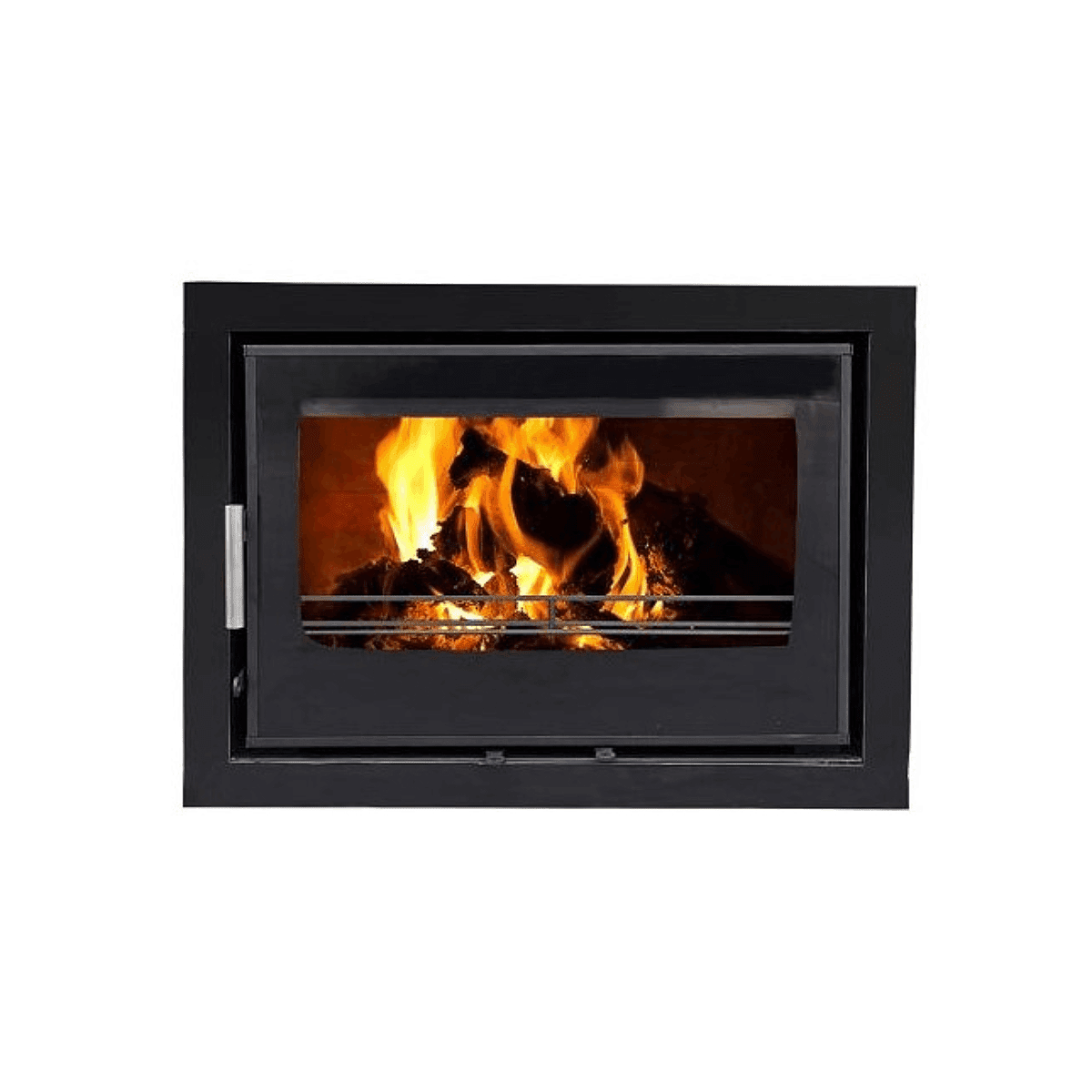

MORE ABOUT THE C0700

Glass up front on the Homefires C0700 Closed Combustion Fireplace.

The Homefires C0700 Closed Combustion Fireplace is an insert that you build in, with a black trim plate. A precision-welded, thick steel body holds the fire, thermo-refractory fire bricks line the firebox, and the large glass door shows the flames. Burn wood logs or a suitable smokeless anthracite, riddle the grate and let the ash drawer catch the rest.

  1. Large glass doorWith a large handle
  2. Thermo-refractory fire-brick linings
  3. Riddling grate and ash drawer
  4. Black trim plateComes with the insert
  5. No outside-air connection
  6. Installation manualUnder Plan your setup
Homefires C0700 insert alight in a cream chimney breast under a timber mantel with proteas, candles and a landscape painting, in morning light

SLOW MORNINGS

Morning light, and the fire still going.

Coffee in hand, proteas on the mantel and the sun just reaching the room. Behind the glass, the C0700 keeps a steady fire, so the lounge is warm before anyone has finished breakfast. A good start to a winter weekend at home.

The chimney breast, timber mantel, hearth, furniture, flowers and décor are not included. Plan the flue and the installation with an independent installer.

A LITTLE PRACTICAL THINKING

Choose the fuel, plan the flue.

THE FUEL

Wood logs or smokeless anthracite.

Burn wood logs or a suitable smokeless anthracite. Never burn household or bituminous coal in it. It is rated at 8 kW nominal on beech wood and 10 kW nominal on anthracite.

THE FLUE

Its own 125 mm flue.

The C0700 is vented and needs its own suitable flue, with a 125 mm flue pipe. It is not made for a shared flue system. It needs a flue at least 4.5 m high.

THE ASH

Riddle, then empty.

Riddle the grate so the ash falls into the ash drawer, then empty the drawer once the ash is cold.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires C0700 Closed Combustion Fireplace dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Insert width × height
700 × 482 mm
Insert depth
341.5 mm
Depth including the handle
411.5 mm
Trim plate width × height
790 × 571 mm
Door width × height
656 × 442 mm
Flue pipe diameter
125 mm
Fuel
Wood logs or smokeless anthracite
Material
Welded steel, fire-brick lining
Colour
Black

Plan the insert, trim and flue together.

The insert is 700 × 482 mm and 341.5 mm deep, or 411.5 mm with the handle; the trim plate is 790 × 571 mm. These are product sizes, not the opening. Ask us for the installation details, and have your installer check the actual unit and clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the installation details before you build.
  • The C0700 needs its own suitable flue with a Ø125 flue pipe. It is not suitable for a shared flue system.
  • It has no outside-air connection. Your installer plans the flue and the installation with the manual.
  • Flue pipes and accessories are sold separately. We do not install: have your installer check the unit and clearances.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires C0700 Insert with Trim Plate
  • Built-in wood and anthracite fireplace: closed combustion, with a glass door
  • 01 FRONT VIEW
  • 571 trim plate
  • 442 door
  • 656 door
  • 790 trim plate
  • 02 SIDE VIEW
  • Ø127 collar
  • 30° angle
  • 482 insert height
  • Front at the right.
  • 03 TOP VIEW
  • 700 insert width
  • Ø100 round feature
  • 341.5 insert
  • 411.5 with handle
  • Front at the bottom.
  • 04 FLUE PIPE (SHORTENED)
  • Ø125 flue pipe
  • 4.5 m at least
  • The height runs from the top
  • of the outlet to the top of
  • the chimney. Your installer
  • confirms it for your roof
  • and building.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the installation details before you build.
  • The C0700 needs its own suitable flue with a Ø125 flue pipe. It is not suitable for a shared flue system.
  • It has no outside-air connection. Your installer plans the flue and the installation with the manual.
  • Flue pipes and accessories are sold separately. We do not install: have your installer check the unit and clearances.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The C0700 closed-combustion insert with its trim plate: a precision-welded thick steel body, a large glass door with a large handle, thermo-refractory fire-brick linings, a riddling grate and an ash drawer. Flue pipes and accessories are sold separately, and we do not install.

How much heat does it give?

The C0700 is rated at 8 kW nominal on beech wood and 10 kW nominal on anthracite, with a maximum of 10 kW. Our heat calculator uses 9 kW, the middle of the 8 kW nominal and the 10 kW maximum.

Which fuel can I burn?

Wood logs or a suitable smokeless anthracite. Never burn household or bituminous coal in it.

Is the flue included?

No. The C0700 needs its own suitable flue with a 125 mm flue pipe, and it is not suitable for a shared flue system. Send a photo and measurements for a flue and configuration quote, and we will confirm the parts for your setup.

How high must the flue be?

It needs a flue at least 4.5 m high, from the top of the outlet to the top of the chimney. Your installer confirms the height for your roof and building.

How much space do I need?

The insert is 700 mm wide, 482 mm high and 341.5 mm deep, or 411.5 mm deep with the handle. The trim plate is 790 mm wide and 571 mm high, and the door is 656 × 442 mm. These are product sizes, not the opening. Ask us for the installation details, and have your installer check the actual unit and clearances.

Does it need an outside-air connection?

No. The C0700 has no outside-air connection. Your installer plans the flue and the installation with the manual.

How does the ash come out?

Riddle the grate so the ash falls into the ash drawer, then empty the drawer once the ash is cold.

What does the guarantee cover?

The main body has an extended 3-year limited Homefires guarantee when you register it within 30 days; otherwise it is 12 months. It covers the first owner at the first installed location, and exclusions apply. The manual's conditions, such as installation by a competent installer, apply too. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
