THE HEAT
12 kW nominal, up to 15 kW.
The ME04 is rated at 12 kW nominal and 15 kW maximum heat output: the 12–15 kW in its name. The Output Calculator uses 13.5 kW, the middle of the two, to compare with your room.
Sale!

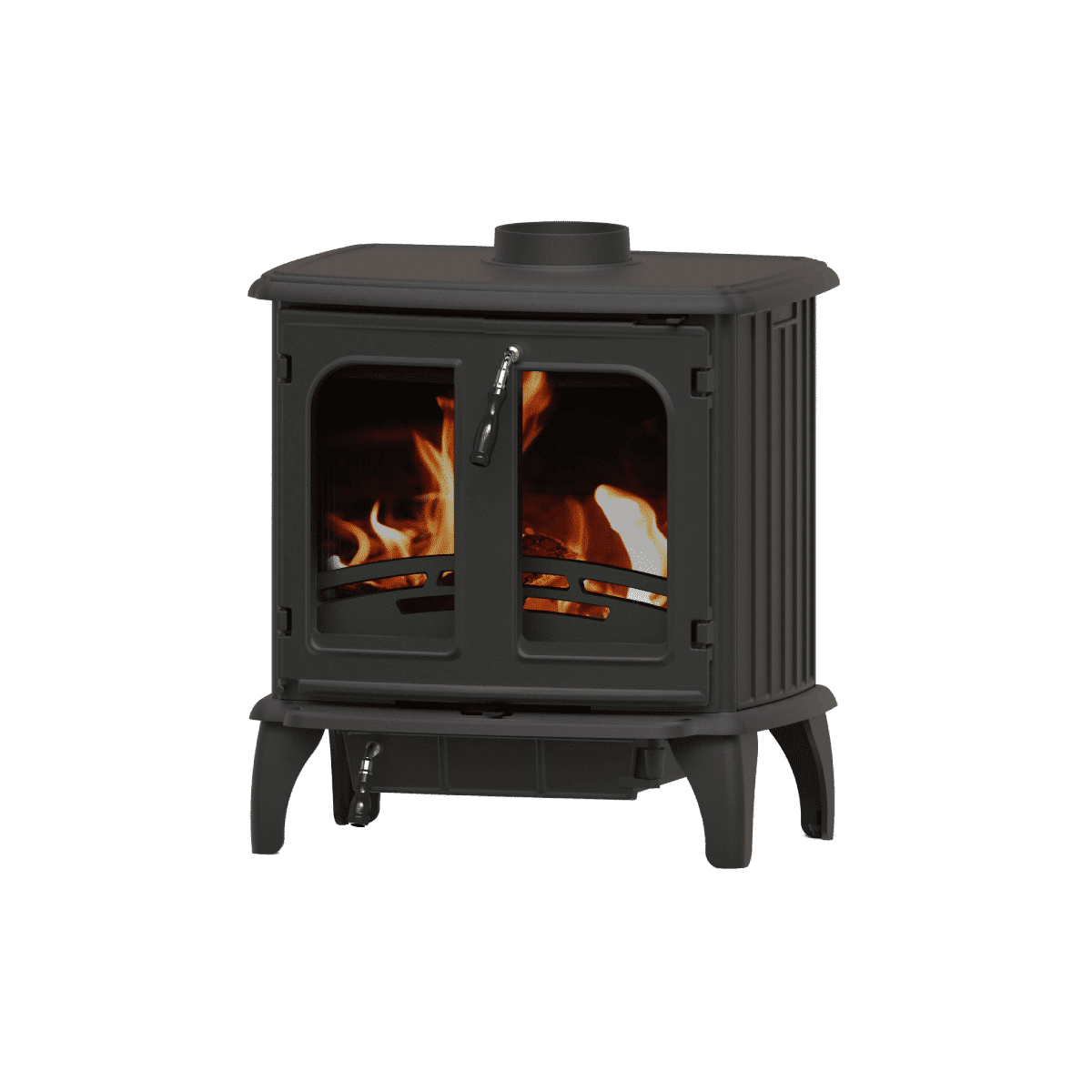

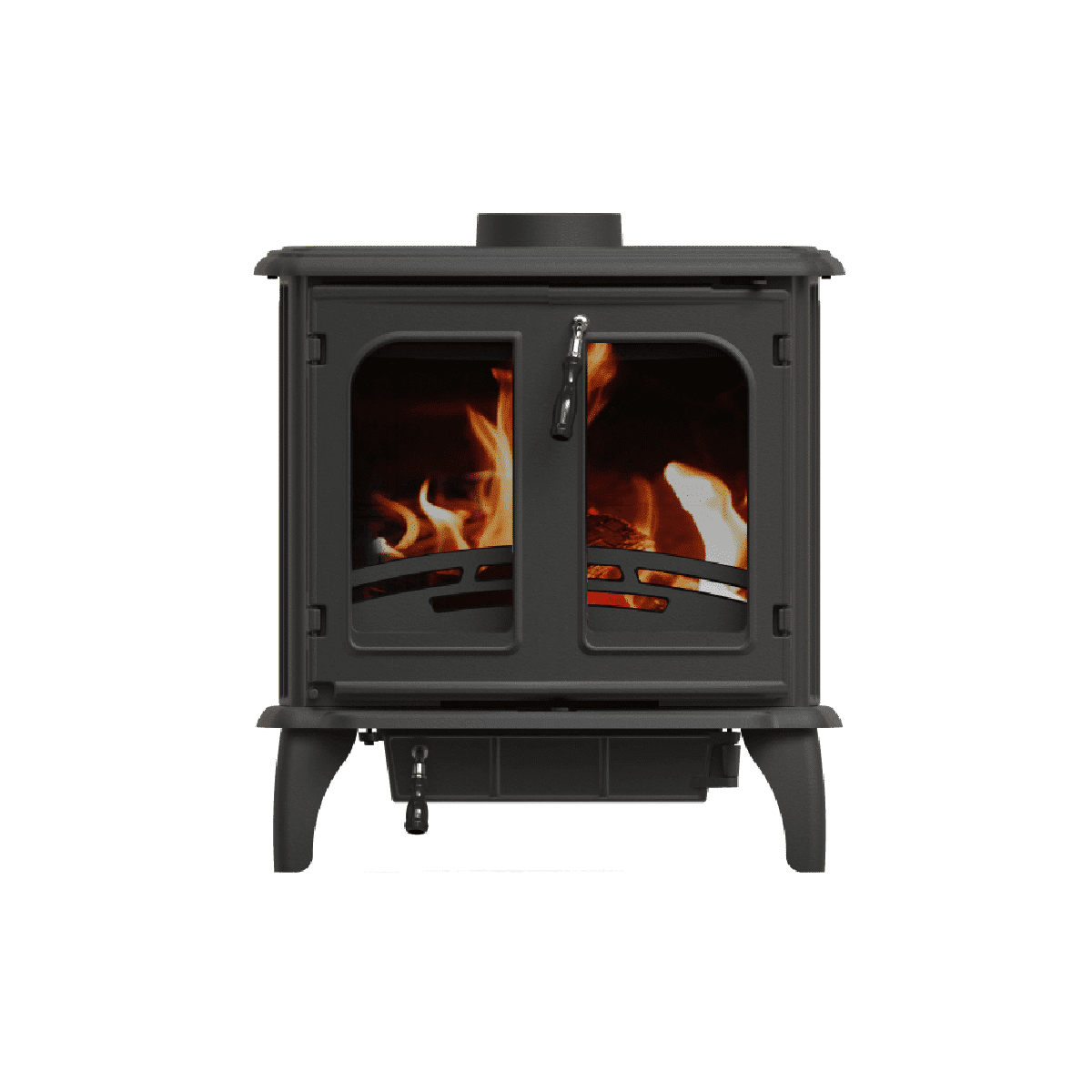

WIKING ME04 12-15kW– Slow Combustion Fireplace
Twin glass doors with rounded corners and ribbed sides, for a classic look.
Original price was: R26,520.00.R24,999.00Current price is: R24,999.00.
Save R1,521In stock Delivery ETA: 5–7 working days
About your fireplace
- Build and fuel
- Full cast iron · dry wood and anthracite only
- Included
- The stove, with its riddling grate and ash pan
- Not included
- Flue pipes, accessories and installation
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE ME04
Cast iron all round.
Flue on top or behind.
The ME04 is a full cast-iron, closed-combustion stove for dry wood or anthracite. Two glass doors open onto the fire, and the ash falls through the riddling grate into the pan below, ready to empty once it is cold. Your installer can take the flue off the top or the back. At 177 kg it is a solid piece, so plan the move and the hearth early.
- Twin glass doorsTwo front panes, 355 × 204 mm each
- Riddling grate and ash panThe ash drops into the pan below
- Dry wood or anthraciteOnly these two fuels
- Flue on top or at the rearFor a 150 mm nominal flue pipe
- Installation manualUnder Plan your setup
SLOW MORNINGS
A cold morning, sorted.
Polished concrete, pale morning light and a sheepskin rug with a stack of books waiting. Light the ME04 early, let the chill leave the room, and the rest of the morning is yours to waste slowly.
The flue pipe, hearth, rug, books and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
A LITTLE PRACTICAL THINKING
Plan the heat, the flue and the room.
THE FLUE
On top or at the back.
Connect a 150 mm nominal flue pipe on top or at the rear, whichever suits the room. Send us a photo and measurements for a flue quote, and we will help you choose the parts.
THE ROOM
Give it space to breathe.
Keep household furnishings 1,000 mm from the stove. We recommend 800 mm from combustible materials. Leave 1,200 mm above it to a combustible ceiling.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Top plate width × overall depth
- 690.5 × 540.8 mm
- Height to the top plate
- 728.2 mm
- Height including the flue collar
- 766.8 mm
- Body casting height
- 559.9 mm
- Foot span, outside edges
- 642.5 mm
- Front glass, two panes, each
- 355 × 204 mm
- Nominal flue pipe
- 150 mm
- Net weight
- 177 kg
- Material
- Full cast iron
- Fuel
- Dry wood and anthracite only
Plan the stove, the hearth and the flue together.
The ME04 stands 728.2 mm to its top plate and 766.8 mm to the top of the flue collar. These are product dimensions: have an independent installer check the hearth, the clearances and the floor for its 177 kg.
The drawing as text
- WIKING ME04. Dimensions in millimetres.
- Front: width at the top plate 690.5 mm
- Front: height to the top plate 728.2 mm
- Front: height including the flue collar 766.8 mm
- Front: body casting height 559.9 mm
- Front: outer foot span 642.5 mm
- Top: overall depth 540.8 mm
- Top: outlet bore Ø152.6 mm
- Nominal flue pipe Ø150 mm
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The WIKING ME04 cast-iron stove, with its riddling grate and ash pan. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Which fuel can I burn?
Dry wood and anthracite only. Keep your firewood dry, and burn nothing else in it.
How much heat does it give?
12 kW nominal and up to 15 kW maximum heat output. The Output Calculator uses 13.5 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.
Where does the flue connect?
On top or at the rear, for a 150 mm nominal flue pipe. The outlet socket's inside diameter is 152 to 157 mm, and our drawing shows it at Ø152.6 mm. Have an independent installer choose the outlet and plan the flue route, height and support.
Is the flue included?
No. Flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The stove is 690.5 mm wide at the top plate, 540.8 mm deep, and 728.2 mm high to the top plate or 766.8 mm to the top of the flue collar. Keep household furnishings 1,000 mm away, and leave 1,200 mm above it to a combustible ceiling. We recommend 800 mm from combustible materials. Your installer must follow the installation manual that comes with the unit.
What hearth does it need?
Build a solid, non-combustible constructional hearth at least 125 mm thick, finishes included, with an extra 400 mm at the front for any hot material that falls out. Your installer confirms the hearth for your floor and room.
Can it stand in a recess?
Yes, with permanent free air around it: 200 mm at the sides, 200 mm above and 150 mm behind. These gaps apply only in a recess. Have your installer check the opening and the flue before you build.
What size is the glass?
The front glass is two panes of 355 × 204 mm each. Give us this size if you ever need a replacement pane.
How heavy is it?
The net weight is 177 kg. Plan how it will be moved into place, and have your installer check that the floor and the hearth can carry it.
What does the guarantee cover?
Ask us for the current guarantee terms for the ME04 before you order. We check them with Home Fires and pass them on to you.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
