HomeFires 1000 Alpine Octagonal Unit

An eight-sided freestanding fire, with the flue and cowl in the box.

Original price was: R40,490.00.Current price is: R37,999.00.

Save R2,491
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU ALP1000FULLNEW

In stock Delivery ETA: 5–7 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE ALPINE 1000

A fire to gather round.
The flue kit too.

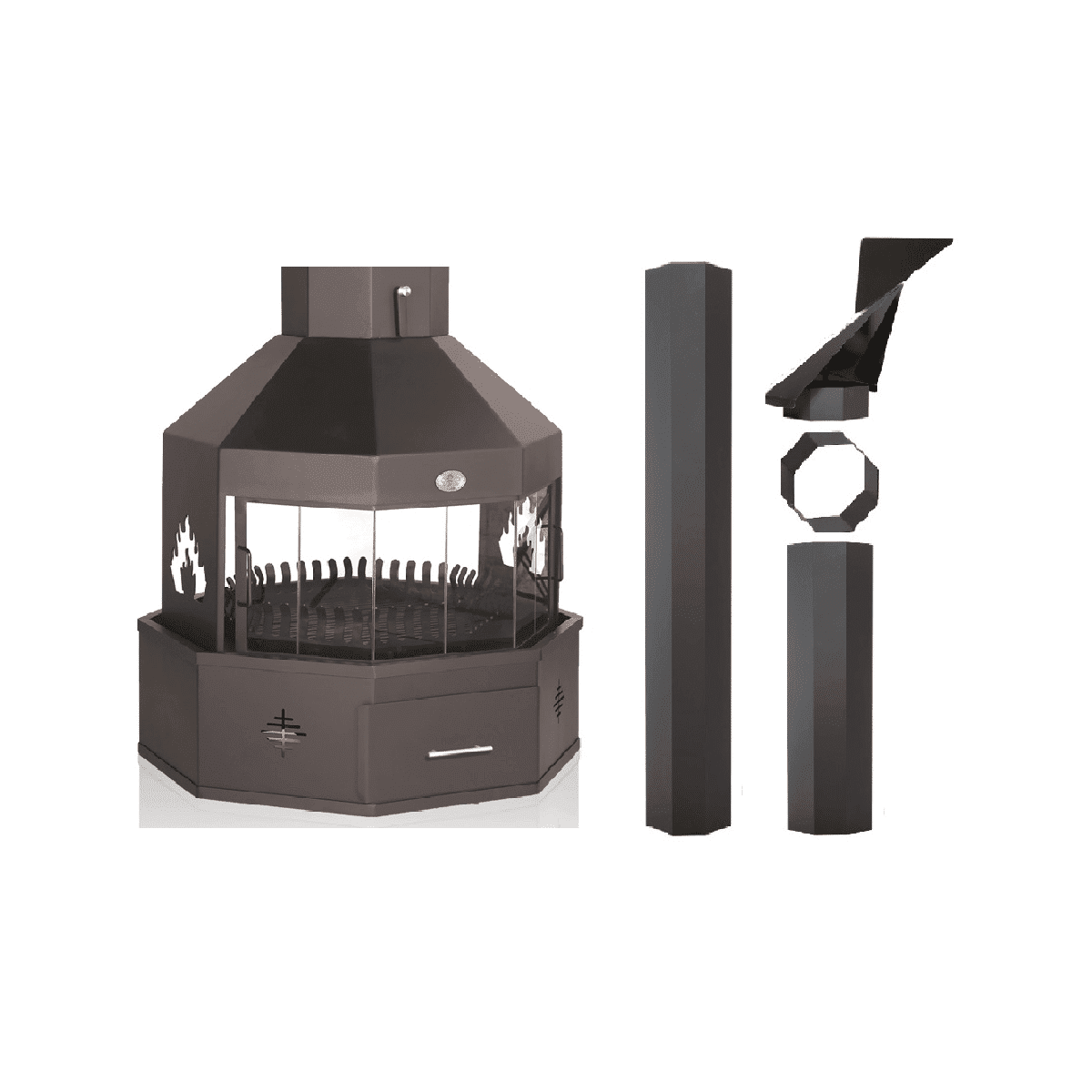

Build the fire on the grate of the Homefires 1000 Alpine Octagonal Fireplace, set the damper and slide the three-sided glass shield into place. The ash drops into its own drawer. The flue kit comes with it: a 3.6 m flue pipe with joining collars, an escutcheon plate, a slip-on cowl base and a rotating cowl top. Insulation and touch-up paint are in the box.

  1. Three-sided glass shieldA separate panel
  2. Fire grate, grid and ash drawer
  3. Built-in damper
  4. 3.6 m flue pipe with joining collarsEscutcheon plate included
  5. Slip-on cowl base and rotating cowl top
  6. Installation manualUnder Plan your setup
Homefires 1000 Alpine Octagonal Fireplace alight on a stone floor in a thatched lodge lounge, three hikers in warm clothes warming their hands around it

AFTER THE HIKE

Cold hands, good company and the Homefires 1000 Alpine Octagonal Fireplace.

Boots still on, cheeks pink from the mountain air, and everyone heads straight for the fire. Standing free in the room, the eight-sided Alpine 1000 gives the whole group a spot to warm up, swap stories and plan tomorrow's walk, with a mug of something hot in hand.

The thatched room, stone floor, furniture, rugs, candles and décor are not included. Plan the hearth, flue height and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Everything for the fire, in one box.

THE FIRE

Wood or anthracite.

Burn wood or anthracite on the fire grate, and use the built-in damper to manage the fire. The ash collects in the ash drawer in the base, ready to empty once it is cold.

THE GLASS

A three-sided glass shield.

A separate three-sided glass shield comes with the fireplace, so you can watch the flames through the glass while the fire burns.

THE FLUE

The flue kit is in the box.

A 3.6 m flue pipe, joining collars, an escutcheon plate, a slip-on cowl base and a rotating cowl top come with it. Need a taller flue? Extra pipe and collars are options on this page.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires 1000 Alpine Octagonal Fireplace dimension drawing, page 1 of 3: front and top views, in millimetres.
Page 1 of 3
Base width × depth
1,225 × 1,225 mm
Base height
415 mm
Fire opening height
460 mm
Hood width
1,025 mm
Hood and gather rise
390 mm
Height without the flue
1,265 mm
Fire grid span
500 mm
Octagonal outlet, across the flats
425 mm
Supplied flue pipe length
3,600 mm
Material
Black mild steel

Plan the hearth, flue and clearances together.

The fireplace is 1,265 mm high without its flue, and the 3.6 m flue pipe is a supplied length, not an installed height. Keep combustibles 1,000 mm away, and extend the hearth 350 mm in front and 200 mm at the sides.

Planning notes

  • These are product sizes. Your installer confirms the clearances and the hearth for your room and your floor.
  • Keep furniture, curtains and other combustibles at least 1,000 away.
  • Extend the hearth at least 350 in front of the fireplace and at least 200 at the sides.
  • Keep the metal flue at least 200 from wood trusses. Your installer plans the route through the ceiling and the roof.
  • Included: a three-sided glass shield, a fire grate, a grid, an ash drawer and a built-in damper.
  • Also included: insulation material, touch-up paint and a guarantee certificate. We supply this model on order.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • HomeFires 1000 Alpine Octagonal
  • Freestanding open fireplace: full octagonal, wood or anthracite, with a glass shield and a flue kit
  • 01 FRONT VIEW
  • 425 outlet across the flats
  • 1,265 height without the flue
  • 390 hood
  • 460 opening
  • 415 base
  • 1,025 hood width
  • 1,225 base width
  • 02 TOP VIEW, THROUGH THE FIRE GRID
  • 1,225 base width
  • 1,225 base depth
  • 500 fire grid
  • Front at the bottom, at the ash drawer.
  • 03 FLUE OUTLET, FROM ABOVE
  • 425 across the flats
  • 425 across
  • The flue connects here, on top of the hood.
  • 04 SUPPLIED FLUE (SMALLER SCALE)
  • 3.6 m supplied flue
  • It comes with the fireplace, with
  • pipe joining collars, an escutcheon
  • plate, a slip-on cowl base and
  • a rotating cowl top.
  • The 3.6 m is the supplied length,
  • not an installed height.
  • 05 HEARTH, FROM ABOVE (SMALLER SCALE)
  • 350 in front
  • 200 at the side
  • 200 at the side
  • White: the hearth. Front at the bottom.
  • 06 CLEARANCES, FRONT VIEW (SMALLER SCALE)
  • 200
  • to wood trusses
  • 1,000
  • to combustibles
  • PLANNING NOTES
  • These are product sizes. Your installer confirms the clearances and the hearth for your room and your floor.
  • Keep furniture, curtains and other combustibles at least 1,000 away.
  • Extend the hearth at least 350 in front of the fireplace and at least 200 at the sides.
  • Keep the metal flue at least 200 from wood trusses. Your installer plans the route through the ceiling and the roof.
  • Included: a three-sided glass shield, a fire grate, a grid, an ash drawer and a built-in damper.
  • Also included: insulation material, touch-up paint and a guarantee certificate. We supply this model on order.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The Alpine 1000 in black mild steel, with a separate three-sided glass shield, a fire grate, a grid, an ash drawer and a built-in damper. The flue kit comes with it too: a 3.6 m flue pipe, joining collars, an escutcheon plate, a slip-on cowl base and a rotating cowl top. Insulation material, touch-up paint and a guarantee certificate are in the box.

Which fuel does it burn?

Wood or anthracite. Build the fire on the fire grate and use the built-in damper to manage it.

How much heat does it give?

Ask us for the heating guidance before you plan your room. The figures for this model differ, so we confirm them with the supplier before we give you a number.

Is the flue included?

Yes. A 3.6 m flue pipe with joining collars, an escutcheon plate, a slip-on cowl base and a rotating cowl top come with the fireplace. It connects at the octagonal outlet, 425 mm across the flats. For a taller flue, add extra flue pipe and collars on this page. Send a photo and your ceiling and roof details, and we will confirm what your setup needs.

How much space does it need?

The base is 1,225 mm wide and 1,225 mm deep, and the fireplace is 1,265 mm high without the flue. Keep furniture, curtains and other combustibles at least 1,000 mm away. These are the fireplace's own sizes; your installer confirms the clearances for your room.

What hearth does it need?

Extend the hearth at least 350 mm in front of the fireplace and at least 200 mm at the sides. Your independent installer confirms the hearth for your floor.

How close can the flue be to the roof timbers?

Keep the metal flue at least 200 mm from timber trusses. Your installer plans the route through the ceiling and roof.

How do I clear the ash?

The ash falls into the ash drawer in the base. Let it cool fully before you empty it.

What does the guarantee cover?

A Home Fires guarantee certificate comes with the fireplace. Ask us for the full terms before you order.

Can you help with my setup?

Yes. Send a photo, your room measurements and roof details for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
