THE GRID
Room across the grid.
The 750 × 460 mm full-length cooking grid has room for chops, wors and sosaties at once, with the potjie hook for something slow on the side.
Sale!
About your braai
- Body
- Black mild steel
- Included
- Grid and lifters, ember maker, ash pan and drawer, top and bottom doors, potjie hook, light fitting
- Not included
- Flue pipes and cowl (optional add-ons), building materials, installation
- Guarantee
- 15 years on the firebox

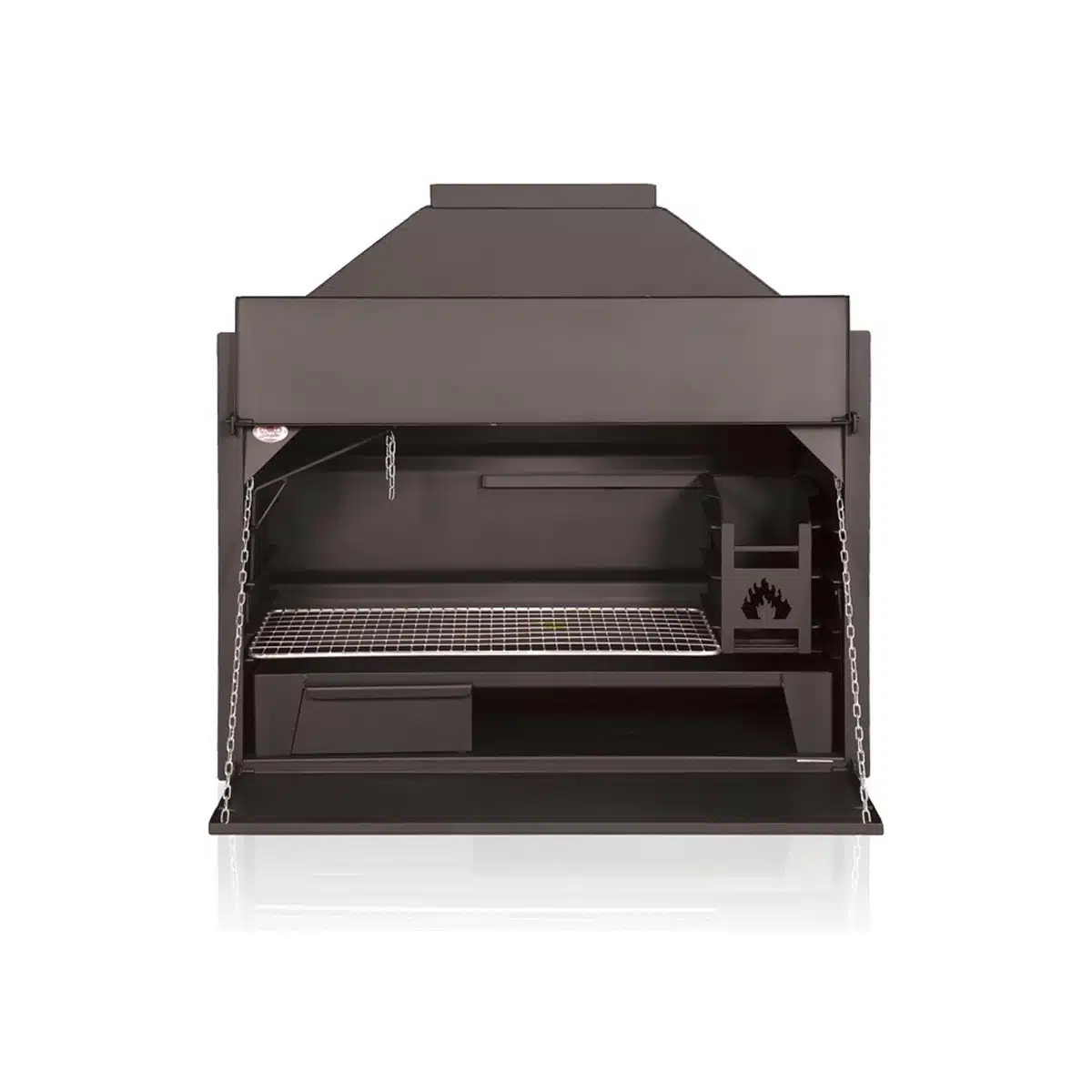

Homefires 1000 Deluxe Built-in Braai
Room for the whole braai, with fresh coals beside the grid and an ash drawer below.
From: Original price was: R15,580.00.R14,699.00Current price is: R14,699.00.
Save R881In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsHOW IT WORKS
Room to cook.
Ready to build in.
Build the fire in the ember maker on the right, then move fresh coals under the full-length grid as you cook. Hang a potjie from the hook for something slow. When the fire is done, cold ash goes through a disposal trap into the ash drawer, and the top and bottom doors close it all up.
- Ember maker on the rightFresh coals beside the grid
- Ash disposal trap and ash drawerCold ash drops through to the drawer
- Top and bottom doorsClose the braai when the fire is out
- Poker, insulation and touch-up paintIn the box, with the guarantee certificate
- Installation manualUnder Plan your setup
MAKE YOURSELF AT HOME OUTSIDE
Keep lunch around the fire.
Chops on the grid, fresh coals in the ember maker and a potjie on the hook. With the braai built into the patio, the cooking stays part of the conversation.
Surround, chimney, counters, furniture and food are not included. Have an independent installer confirm the support and installation.
BUILT FOR BRAAI DAYS
Keep the coals coming.
THE FIRE
Coals on the side.
Burn wood in the ember maker on the right and rake fresh coals under the grid whenever the fire needs them.
THE ASH
Ash has its own place.
An ash disposal trap and ash drawer make clearing cold ash simpler. Close the top and bottom doors once the braai is cool.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 1,030 × 535 mm
- Body height
- 855 mm
- Front frame width × height
- 1,090 × 880 mm
- Gather above the body
- 320 mm
- Flue outlet width × depth
- 440 × 350 mm
- Open lower-door projection
- 455 mm
- Cooking grid
- 750 × 460 mm
- Material
- Black mild steel
- Fuel
- Wood or charcoal
Plan the body, frame and gather together.
Body and gather heights add to 1,175 mm before the flue. These are product dimensions, not a building opening, so have your installer check the actual unit, door movement and safe clearances.
The drawing as text
- BRAAI CULTURE / DIMENSIONS
- Homefires 1000 Deluxe
- ALL SIZES IN MILLIMETRES
- 01 FRONT VIEW
- 02 SIDE VIEW
- 1,090 frame width
- 1,030 body width
- 855 body height
- 880 frame height
- Black body · right ember maker
- 535 body depth
- 455 lower door projection
- 320 gather rise
- 03 COOKING GRID
- 04 FLUE OUTLET
- 750 grid width
- 460 grid depth
- 440 outlet width
- 350 outlet depth
- 440 pipe width
- 340 pipe depth
- 440 × 340 flue pipe
- Body and frame dimensions are distinct. Unlabelled component shapes are schematic.
- Flue, cowl and masonry are separate. Keep direct access to the appliance front.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
See also: Homefires 800 Deluxe Braai · Homefires 700 Basic Economaster Braai · Homefires 700 Deep Economaster Braai
What is included?
The 1000 Deluxe braai with top and bottom doors, a 750 × 460 mm full-length cooking grid, grid lifters, an ember maker, an ash pan, an ash disposal trap and ash drawer, a potjie hook and a light fitting. A poker, insulation material, touch-up paint, the instruction manual and a guarantee certificate also come with it.
Which fuel can I use?
Wood or charcoal. Burn wood in the ember maker beside the grid and rake the coals across as you cook.
How much cooking space is there?
The full-length cooking grid is 750 × 460 mm, with the ember maker to its right. Grid lifters come with it, and the potjie hook takes a potjie.
Is the flue included?
No. This is the braai on its own, without a flue bundle. Flue pipes and the cowl are sold separately. The flue outlet is 440 × 350 mm. Send a photo and measurements for a flue and configuration quote.
How much space do I need?
The body is 1,030 mm wide, 535 mm deep and 855 mm high, and the gather rises 320 mm above it. The front frame is 1,090 mm wide and 880 mm high. The lower door projects 455 mm when open. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances before building.
Does it have a warming drawer?
No. The 1000 Deluxe has an ash pan and ash drawer below the fire, but no warming drawer.
Can it be installed indoors?
Yes. Homefires built-in braais are listed for indoor or outdoor installation. Your installer must follow the installation manual that comes with the unit. The braai needs suitable masonry support and a correctly designed chimney. Ask a competent installer to confirm the location, clearances and ventilation.
What does the guarantee cover?
The firebox has a 15-year Homefires guarantee from the date of purchase against faulty workmanship or materials, including warping, when the fire is made in the ember maker or the ash pan. The grid, ember maker, ash pan and other replaceable parts are not covered, and neither is rust from missing maintenance, misuse or water leaks, or damage from incorrect installation. Keep the braai painted and maintained. The guarantee certificate in the box has the full terms.
How do I look after the finish?
Touch-up paint comes with the braai, so you can refresh small marks on the black mild steel. Keep the braai dry and empty cold ash regularly.
Can you help with my setup?
Yes. Send a photo and measurements for a product and flue configuration quote; we can include a visual preview. Arrange installation with an independent installer.
