THE FIRE
Coals when you need them.
Burn wood in the ember maker and rake fresh coals under the grid whenever the fire needs them. Charcoal works too, so pick the fuel that suits the day.
Sale!
About your braai
- Body
- 3 mm mild steel, high-heat black paint
- Included
- Grid and lifters, ember maker, ash pan and drawer, doors, potjie holder, light fitting, poker
- Not included
- Flue pipe, collar and cowl (options), building work and installation
- Guarantee
- 15 years on the firebox

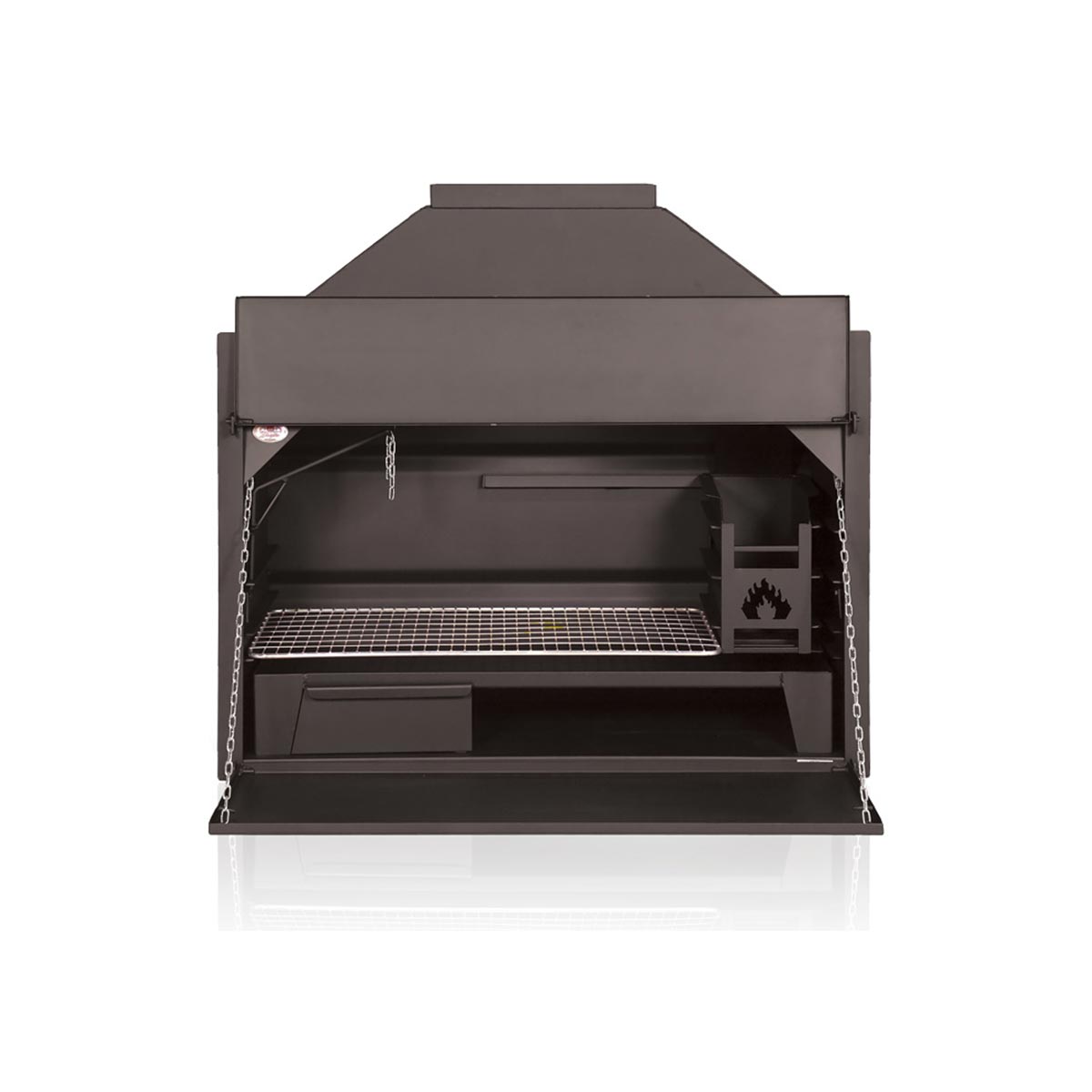

Homefires 1200 Deluxe Built-in Braai
A built-in braai with an ember maker, so fresh coals are ready for every round.
From: Original price was: R16,720.00.R15,799.00Current price is: R15,799.00.
Save R921In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE 1200 DELUXE
Fresh coals, a potjie and a light for later.
Burn wood in the ember maker and rake fresh coals under the grid whenever the next round is ready. Hang a potjie for something slow and switch on the light as the sun goes down. Afterwards, the ash pan, ash drawer and ash disposal trap take care of the clean-up, and the top and bottom doors close it all away.
- Ember makerFresh coals for every round
- Ash drawer and ash disposal trapFor an easier clean-up
- Insulation material and touch-up paintIn the box
- Installs indoors or outdoorsFollow the manual for the flue
- Leave a 20 mm expansion gapAt the sides and back of the body
- Installation manualUnder Plan your setup
THE WHOLE FAMILY, ONE FIRE
Wors on the grid.
Lunch at the table.
Boerewors and chicken over the coals, one person on the tongs, another with the plate, and the kids already at the table. Built into a sunny back-yard wall, the 1200 Deluxe keeps the fire close to the family, from a quick lunch to a long, slow afternoon.
The wall, pergola, table, chairs, plants, food and drinks are not included. Plan the flue and clearances with an independent installer.
A LITTLE PRACTICAL THINKING
Keep the next round ready.
THE GRID
Room for chops, wors and a potjie.
The cooking grid is 950 mm wide, with grid lifters to move it while it is hot. Hang a potjie from the potjie holder for something slow alongside the braai.
THE BODY
Solid steel, easy to keep smart.
The body is 3 mm mild steel with a high-heat black paint. Touch-up paint comes in the box for small marks, and the top and bottom doors close the braai when it is not in use.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 1,230 × 535 mm
- Body height, without the gather
- 855 mm
- Gather above the body
- 320 mm
- Front frame width × height
- 1,290 × 880 mm
- Gather neck width × depth, outside
- 500 × 350 mm
- Open lower door, in front of the body
- 455 mm
- Cooking grid width
- 950 mm
- Expansion gap, sides and rear
- 20 mm
- Minimum chimney height
- 2,500 mm
- Material
- 3 mm mild steel, high-heat black paint
Plan the body, gather and flue together.
The 855 mm body height does not include the 320 mm gather above it, or the flue. These are product dimensions, not a building opening: have your installer check the actual unit, the open door and safe clearances.
The drawing as text
- ALL SIZES IN MILLIMETRES
- Homefires 1200 Deluxe Built-in Braai
- Built-in braai: wood and charcoal, with an ember maker and two doors
- 01 FRONT VIEW
- 500 gather neck
- 880 frame height
- 950 cooking grid
- 1,230 body width
- 1,290 including frame
- 02 SIDE VIEW
- 350 neck depth
- 535 body depth
- 455 door open
- 320 gather
- 855 body
- Front at the right. Lower door open.
- 03 COOKING GRID
- 950 width
- Ask us for the grid depth.
- 04 TOP VIEW
- 1,230 body width
- 535 body depth
- Front at the bottom. White: the gather neck.
- 05 ASH PAN FROM ABOVE
- 1,170 width
- 470 depth
- Front at the bottom.
- 06 ASH PAN FROM THE FRONT
- 1,170 width
- 160 high
- PLANNING NOTES
- These are product sizes, not a building-opening size. Ask us for the opening size before you build.
- Leave a 20 mm expansion gap at the sides and back.
- The minimum chimney height is 2,500 mm. The flue offset angle is at most 45 degrees.
- The chimney inner sizes must be at least the size of the flue outlet opening.
- Finished brickwork must not protrude past the flange, so that the top door can stay open.
- The lower door opens 455 in front of the body: keep this space clear.
- The steel is 3 mm thick.
- The flue, the collar and the cowl are options and are sold separately.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The 1200 Deluxe braai in black, with top and bottom doors, a cooking grid and grid lifters, an ember maker, an ash pan, an ash drawer and an ash disposal trap, a potjie holder, a light fitting and a poker. Insulation material, touch-up paint, the guarantee certificate and the instruction manual come with it too. The flue pipe, collar and cowl are options on this page, sold separately.
Which fuel can I use?
Wood or charcoal. Burn wood in the ember maker and rake the fresh coals under the grid as you cook.
How much cooking space is there?
The cooking grid is 950 mm wide, and grid lifters come with it. Ask us for the grid depth if you need it, for example before you order a replacement grid. The potjie holder takes a potjie for something slow.
Is the flue included?
No. You can add a Homefires flue pipe, a collar and a cowl on this page: a rotating cowl or a fixed cowl, each with a slip-on base. A cowl helps keep rain out of the flue. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.
Where does the flue connect?
At the neck on top of the gather. The gather rises 320 mm above the body, and the neck measures 500 × 350 mm on the outside. The inside of the chimney must be at least as big as the flue outlet opening, so have your installer measure the unit before building.
How tall must the chimney be?
At least 2.5 m. If the flue must be offset, keep the angle to 45 degrees or less and use brackets so the flue does not sag. Roofs differ, so ask us about your roof, and have an independent installer plan the route.
How much space do I need?
The body is 1,230 mm wide, 535 mm deep and 855 mm high, and the gather rises 320 mm above it. The front frame is 1,290 mm wide and 880 mm high. Opened, the lower door reaches 455 mm in front of the body. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances.
How is it built in?
Leave a 20 mm expansion gap between the body and the brickwork at the sides and the back. Cover the sides, back and top with fibreglass insulation. Insulation material comes with the braai. Your installer must follow the installation manual that comes with the unit. Keep the finished brickwork from sticking out past the flange, so the top door can stay open.
Can it go indoors?
Yes. The 1200 Deluxe may be installed indoors or outdoors, following the installation instructions and with the right flue. Have an independent installer plan the flue and the safe clearances for your space.
How do I look after it?
Let the ash cool fully, then empty the ash pan and ash drawer. The ash pan measures 1,170 × 470 mm and is 160 mm high. Touch-up paint comes with the braai for small marks on the black finish, and the instruction manual covers care and maintenance.
What does the guarantee cover?
The firebox has a 15-year Homefires guarantee against faulty workmanship or material under normal use. Replaceable parts, rust, misuse, water leakage and incorrect installation are not covered. A guarantee certificate comes with the braai. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
