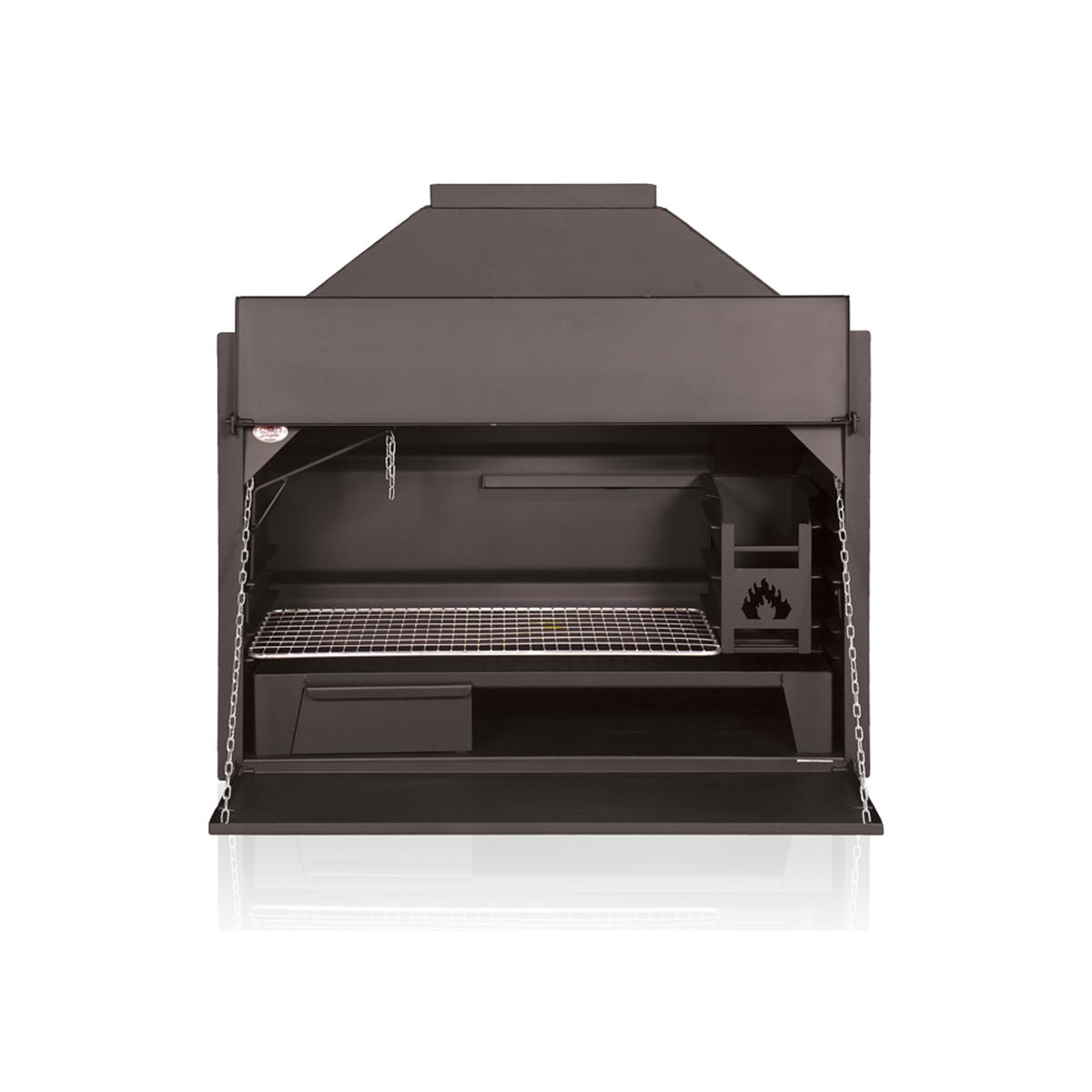

Homefires 800 Deluxe Built-in Braai

A compact Deluxe braai with fresh coals on the side and an ash drawer below.

From: Original price was: R14,550.00.Current price is: R13,699.00.

Save R851
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU BRAAIB800DL

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

SMALL SPACE, FULL KIT

Compact, with its own fresh coals.

The Homefires 800 Deluxe Braai fits a smaller built-in space and still makes its own fresh coals: the ember maker sits on the right, beside the grid. Cold ash goes through a disposal trap into the ash drawer, and the top and bottom doors close it up once the braai is cool. Insulation material and touch-up paint come in the box.

  1. Ember maker on the rightBeside the full-length grid
  2. Ash disposal trap and ash drawerFor cold ash
  3. Top and bottom doorsClose them when the braai is cool
  4. Insulation material and touch-up paintIn the box
  5. Keep direct access to the braai frontWhen you plan the surround
  6. Installation manualUnder Plan your setup
Homefires 800 Deluxe Braai in a cream surround with steaks and peppers on the grid, logs stacked below and a woman smiling at a table by the open doors

MAKE YOURSELF AT HOME OUTSIDE

A little room.
A proper Homefires 800 Deluxe Braai.

A smaller patio can still have a fire at its heart. Fresh coals from the ember maker, a potjie on the hook and friends close enough to help with the tongs.

Surround, chimney, counters, furniture and food are not included. Have an independent installer confirm the support and installation.

BUILT FOR BRAAI DAYS

Fresh coals, tidy ash.

THE FIRE

Fresh coals at hand.

An ember maker sits beside the 550 × 460 mm cooking grid. Burn wood in it and rake fresh coals across as you cook, so the heat keeps up with the meal.

THE ASH

Ash has its own place.

An ash disposal trap and ash drawer make clearing cold ash simpler. Close the top and bottom doors once the braai is cool.

IN THE BOX

Tools and touch-ups included.

Grid lifters and a poker for the fire, plus insulation material and touch-up paint for the build. The instruction manual and guarantee certificate come with it.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires 800 Deluxe Braai dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Body width × depth
830 × 535 mm
Body height
855 mm
Front frame width × height
890 × 880 mm
Gather above the body
320 mm
Flue outlet width × depth
430 × 235 mm
Open lower-door projection
455 mm
Cooking grid
550 × 460 mm
Material
Black mild steel
Fuel
Wood or charcoal

Plan the body, frame and gather together.

Body and gather heights add to 1,175 mm before the flue. These are product dimensions, not a building opening, so have your installer check the actual unit, door movement and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The 830 × 535 × 855 body sits behind the 890 × 880 frame. The frame height is not the body height.
  • Allow for the 320 gather above the body and the 455 open lower door.
  • It is made for a planned masonry surround.
  • Included: top and bottom doors, the cooking grid and grid lifters, an ember maker, an ash pan and ash drawer.
  • Also included: a potjie hook, a light fitting, a poker, insulation and touch-up paint.
  • Close the doors when the braai is cool.
  • The flue pipes, the collars and the cowl are not included.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 800 Deluxe Built-in Braai
  • Built-in braai for wood or charcoal, with an ember maker, an ash drawer and two doors
  • 01 FRONT VIEW
  • 880 frame height
  • 430 outlet width
  • 550 cooking grid
  • 830 body width
  • 890 including frame
  • 02 SIDE VIEW
  • 235 outlet depth
  • 535 body depth
  • 455 door open
  • 320 gather
  • 855 body
  • Front at the right. Lower door open.
  • 03 COOKING GRID
  • 550 width
  • 460 depth
  • Front at the bottom.
  • 04 TOP VIEW
  • 830 body width
  • 535 body depth
  • Front at the bottom. White: the flue outlet.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The 830 × 535 × 855 body sits behind the 890 × 880 frame. The frame height is not the body height.
  • Allow for the 320 gather above the body and the 455 open lower door.
  • It is made for a planned masonry surround.
  • Included: top and bottom doors, the cooking grid and grid lifters, an ember maker, an ash pan and ash drawer.
  • Also included: a potjie hook, a light fitting, a poker, insulation and touch-up paint.
  • Close the doors when the braai is cool.
  • The flue pipes, the collars and the cowl are not included.

GOOD TO KNOW

Plan your setup.

Read the instruction manual in the box before you plan the surround.

Read the instruction manual

What is included?

The 800 Deluxe braai with top and bottom doors, a 550 × 460 mm full-length cooking grid, grid lifters, an ember maker, an ash pan, an ash disposal trap and ash drawer, a potjie hook and a light fitting. A poker, insulation material, touch-up paint, the instruction manual and a guarantee certificate also come with it.

Which fuel can I use?

Wood or charcoal. Burn wood in the ember maker beside the grid and rake the coals across as you cook.

How much cooking space is there?

The full-length cooking grid is 550 × 460 mm, with the ember maker to its right. Grid lifters come with it, and the potjie hook takes a potjie.

Is the flue included?

No. Flue pipes, collars and cowl are sold separately. The flue outlet is 430 × 235 mm. Send a photo and measurements for a flue and configuration quote.

How much space do I need?

The body is 830 mm wide, 535 mm deep and 855 mm high, and the gather rises 320 mm above it. The front frame is 890 mm wide and 880 mm high. The lower door projects 455 mm when open. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances before building.

Can it be installed indoors?

Yes. Homefires built-in braais are listed for indoor or outdoor installation. Your installer must follow the installation manual that comes with the unit. The braai needs suitable masonry support and a correctly designed chimney. Ask a competent installer to confirm the location, clearances and ventilation.

What does the guarantee cover?

The firebox has a 15-year Homefires guarantee from the date of purchase against faulty workmanship or materials, including warping, when the fire is made in the ember maker or the ash pan. The grid, ember maker, ash pan and other replaceable parts are not covered, and neither is rust from missing maintenance, misuse or water leaks, or damage from incorrect installation. Keep the braai painted and maintained. The guarantee certificate in the box has the full terms.

How do I look after the finish?

Touch-up paint comes with the braai, so you can refresh small marks on the black mild steel. Keep the braai dry and empty cold ash regularly.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote; we can include a visual preview. Arrange installation with an independent installer.
