Homefires 1000 Double Sided Built-in Fireplace

One wood fire for two rooms, with glass doors on both sides.

From: Original price was: R32,750.00.Current price is: R30,799.00.

Save R1,951
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU F/PLACEB1000DUB

In stock Delivery ETA: 5–7 working days

Complete your setup

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE 1000

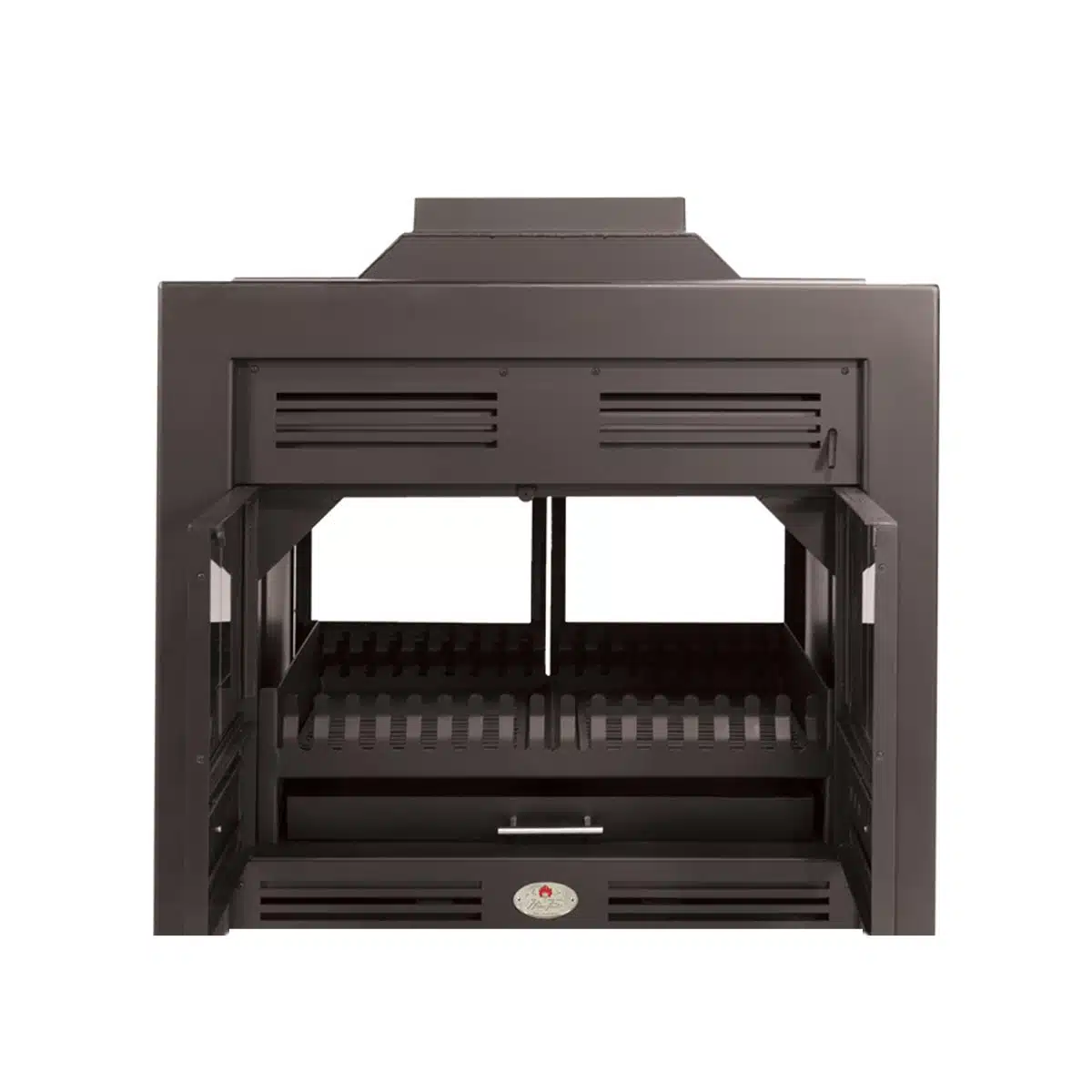

Glass on both sides of the Homefires 1000 Double-sided Fireplace.

The Homefires 1000 Double-sided Fireplace is built in with a face on each side, so one fire shows in two spaces, behind four hinged glass doors. Burn wood or anthracite on the fire grate, set the built-in damper and let natural convection spread the warmth. The ash drops into the ash drawer, and touch-up paint keeps the black finish looking fresh.

  1. Four hinged glass doorsBoth faces fitted
  2. Fire grate, fire grid and ash drawer
  3. Built-in damper and natural convection system
  4. Insulation material and touch-up paint
  5. Installation manualUnder Plan your setup
Homefires 1000 double-sided fireplace alight in a stone dividing wall, a grandmother and grandchild reading by a window and a kitchen behind the glass

SLOW AFTERNOONS, TOGETHER

Story time by the fire, on both sides.

Gran settles into her chair with a picture book, a little one curls up close and the fire crackles in the stone wall. On the other side, the kitchen gets the same warm view while supper slowly comes together. One fire, two rooms, and nobody misses out.

The stone wall, firewood, furniture, rugs and décor are not included. The flue and cowl are options. Plan the hearth, flue and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Wood on the grate, glass on both sides.

THE FIRE

Wood or anthracite.

Burn wood or anthracite on the fire grate, and use the built-in damper to manage the fire. Don't burn coal or briquettes in it. The ash drops into the ash drawer, ready to empty once it is cold.

THE DOORS

Glass doors on both faces.

Four hinged glass doors come with the fireplace, and both faces are fitted with them, so you can watch the flames from either side.

THE HEAT

Natural convection, built in.

A natural convection system is built in. The 1000 has a listed heating volume of 210 m³, so send us your room sizes and we will check them with you.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires 1000 Double-sided Fireplace dimension drawing, page 1 of 2: front, side and top views and flue, in millimetres.
Page 1 of 2
Body width × depth
1,120 × 595 mm
Body height, without the gather
755 mm
Gather and outlet above the body
195 mm
Frame width × height
1,190 × 835 mm
Outlet width × depth
495 × 305 mm
Fuel
Wood or anthracite
Material
Black mild steel

Plan the body, gather and flue together.

The 755 mm body height does not include the 195 mm gather and outlet on top, or the flue. These are product sizes, not the masonry opening: leave a 20 mm expansion gap at the sides and back, and have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not the masonry opening. Ask us for the opening size before you build.
  • Your installer plans the wall, the hearth, the clearances and the flue route for your building.
  • Leave a 20 mm expansion gap between the sides and back of the body and the brickwork.
  • Keep the metal flue at least 200 mm from wood trusses.
  • Included: four hinged glass doors, a fire grate, a fire grid and an ash drawer.
  • Also included: a built-in damper, a natural convection system, insulation material and touch-up paint.
  • A guarantee certificate comes with it. The heating volume is 210 m³.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1000 Double Sided Built-in Fireplace
  • Built-in fireplace: a fire face on both sides, four glass doors, for wood or anthracite
  • 01 FRONT VIEW, BOTH FACES
  • 495 gather outlet
  • 835 frame height
  • 1,120 body width
  • 1,190 including frame
  • 02 SIDE VIEW
  • 305 outlet depth
  • 595 body depth
  • 195 gather
  • 755 body
  • A fire face at the left and at the right.
  • 03 TOP VIEW
  • 495 gather outlet
  • 305 outlet depth
  • 1,190 including frame
  • A fire face at the top and at the bottom. White: the gather outlet.
  • 04 FLUE PIPES, SOLD SEPARATELY (SMALLER SCALE)
  • 595 body depth
  • The 300 x 500 flue pipes,
  • joining collars, a large
  • slip-on cowl base and a large
  • cowl top are options. Choose
  • them on this page.
  • 1,200 short pipe
  • 2,400 long pipe
  • 05 CLEARANCES FROM THE FRONT (SMALLER SCALE)
  • 450 mantel
  • 300 side
  • 300 side
  • Keep a shelf or mantel at least 450 above the hot-air
  • outlet. Keep heat-sensitive materials at the sides
  • 300 away.
  • 06 HEARTH FROM ABOVE (SMALLER SCALE)
  • 350 front
  • 350 front
  • 200 side
  • 200 side
  • Dashed: the edge of the hearth.
  • The hearth extends at each fire face and at the sides.
  • PLANNING NOTES
  • These are product sizes, not the masonry opening. Ask us for the opening size before you build.
  • Your installer plans the wall, the hearth, the clearances and the flue route for your building.
  • Leave a 20 mm expansion gap between the sides and back of the body and the brickwork.
  • Keep the metal flue at least 200 mm from wood trusses.
  • Included: four hinged glass doors, a fire grate, a fire grid and an ash drawer.
  • Also included: a built-in damper, a natural convection system, insulation material and touch-up paint.
  • A guarantee certificate comes with it. The heating volume is 210 m³.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 1000 double-sided fireplace in black mild steel, with four hinged glass doors (both faces fitted), a fire grate, a fire grid, an ash drawer, a built-in damper system and a natural convection system. Insulation material, touch-up paint and a guarantee certificate come with it. The flue pipes, joining collars and cowl are options, sold separately.

Which fuel does it burn?

Wood or anthracite. Do not burn coal or briquettes in it.

How much heat does it give?

The 1000 has a listed heating volume of 210 m³. We do not have a heat output rating for this model, so send us your room sizes and we will check them with you before you order.

Is the flue included?

No. The 300 x 500 flue pipes, joining collars, a large slip-on cowl base and a large cowl top are options that you choose on this page. The flue pipes come in 1.2 m and 2.4 m lengths. Send a photo and measurements for a flue and configuration quote, and we will confirm the parts for your setup.

Where does the flue connect?

At the outlet on top of the gather. The gather and outlet rise 195 mm above the body, and the outlet measures 495 × 305 mm. Have an independent installer plan the flue route, height and support for your building.

How much space does it need?

The body is 1,120 mm wide, 595 mm deep and 755 mm high, and the gather and outlet rise 195 mm above it. The frame is 1,190 mm wide and 835 mm high. These are product sizes, not the masonry opening. Have your installer check the actual unit and safe clearances before building.

What clearances does it need?

Leave a 20 mm expansion gap between the sides and back of the body and the brickwork. Keep heat-sensitive materials at the sides 300 mm away, and keep a shelf or mantel at least 450 mm above the hot-air outlet. The manual has the full instructions.

What hearth does it need?

Extend the hearth at least 350 mm in front of the fireplace and at least 200 mm at the sides. Keep the metal flue at least 200 mm from wood trusses. Your independent installer confirms the details for your building.

What does the guarantee cover?

The firebox has a 15-year Homefires guarantee from purchase against faulty workmanship or material, under normal use. Replaceable parts such as the glass doors, grids, grates and ash pans are not covered, and neither is rust from adverse conditions or no maintenance, misuse, water leakage or installation damage. Ask us for the full terms.

How do I look after it?

Paint and maintain the fireplace regularly, as the guarantee asks; touch-up paint comes with it. Empty the ash drawer once the ash is cold.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
