Homefires 1000 Super Deluxe Built-in GAS Braai

A built-in gas braai with a wide stainless-steel griller, ready at the turn of a knob.

From: Original price was: R29,220.00.Current price is: R27,499.00.

Save R1,721
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU BRAAIB1000GAS+GASBRSH9905FLAT

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE GAS GRILLER, UP CLOSE

Five burners.
Room for the whole round.

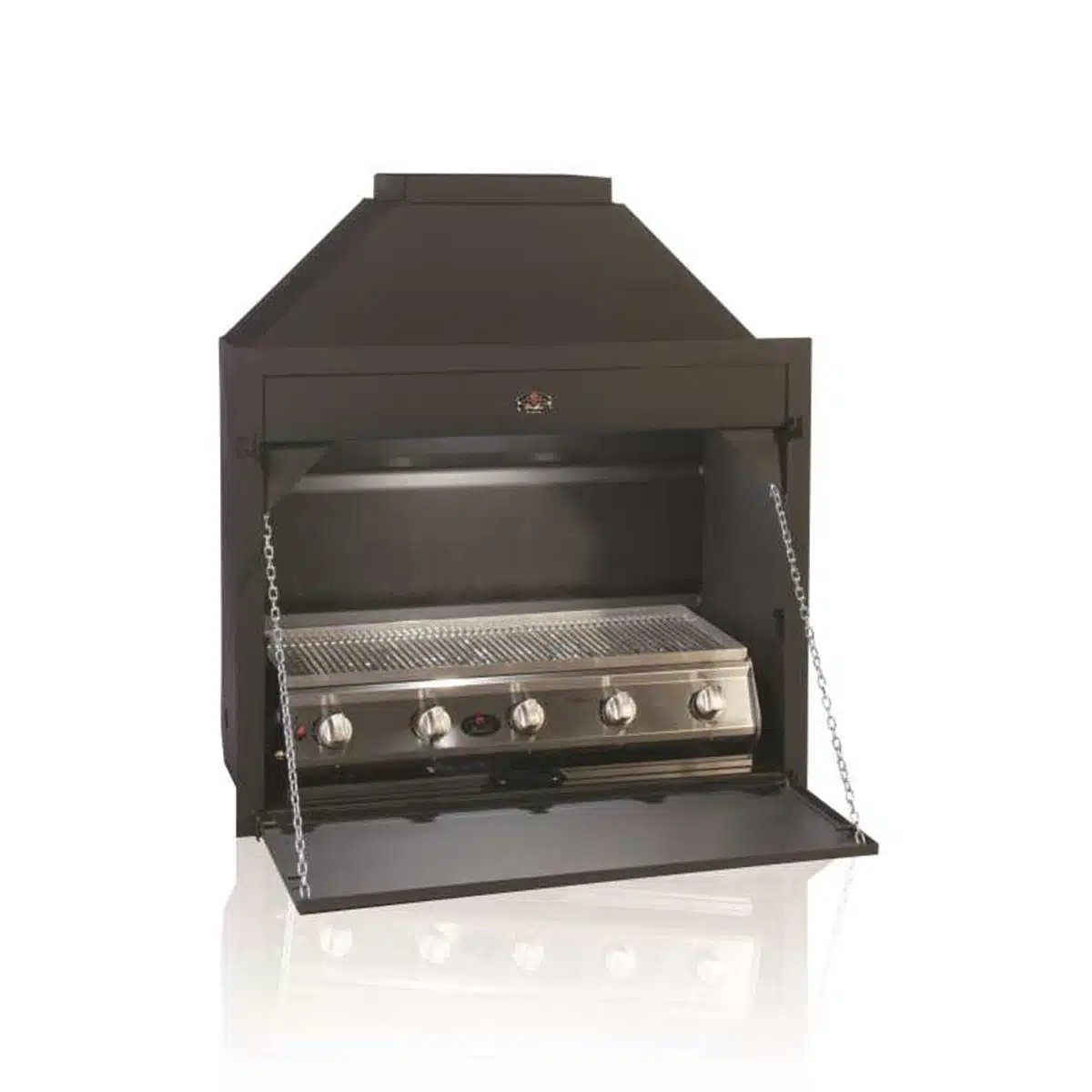

The 9905 flat-top griller of the Homefires 1000 Super Deluxe Gas Braai puts five cast-iron burners under stainless round-bar grids, with stainless vaporiser plates between. Press the piezo ignition, cook across the whole surface, then empty the drip tray and replace the dust cover lid. The black 3 mm mild-steel body has top and bottom doors to close it away.

  1. Homefires 9905 flat-top gas grillerFive cast-iron burners, piezo ignition
  2. Stainless round-bar grid panelsTwo of 340 × 397 mm, one of 200 × 397 mm
  3. Stainless vaporiser plates and drip tray
  4. Dust cover lidKeeps the griller clean between braais
  5. 3 mm mild-steel body with top and bottom doorsBlack finish, light fitting
  6. Installation manualUnder Plan your setup
Homefires 1000 Super Deluxe Built-in Gas Braai in a concrete wall on a roof terrace, two men at the grill with skewers and prawns, a city skyline at sunset

SUNDOWNERS ON THE ROOF

Espetada and prawns as the sun goes down.

Up on the roof terrace with the city turning gold, the espetada and prawns sizzle side by side on the gas griller. One man turns the prawns, the other keeps him company, and nobody waits for coals. Supper is ready before the city lights come on.

The concrete wall, counters, table, chairs, planters, food and drinks are not included. Plan the flue, gas connection and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Gas made easy on the Homefires 1000 Super Deluxe Gas Braai.

THE GRILL

Everything on at once.

The cooking surface is 880 × 400 mm, across three stainless round-bar grid panels, so a full round of chops, sosaties or prawns goes on together.

THE CLEAN-UP

Easy to keep tidy.

Drips fall onto the stainless vaporiser plates and into the drip tray. Lift out the grid panels to clean them, empty the tray, and put the dust cover lid on when you're done.

THE BUILD

Closes away after the braai.

The body is 3 mm mild steel with a black finish. Top and bottom doors close the front when you're done, and the light fitting helps once the sun goes down.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

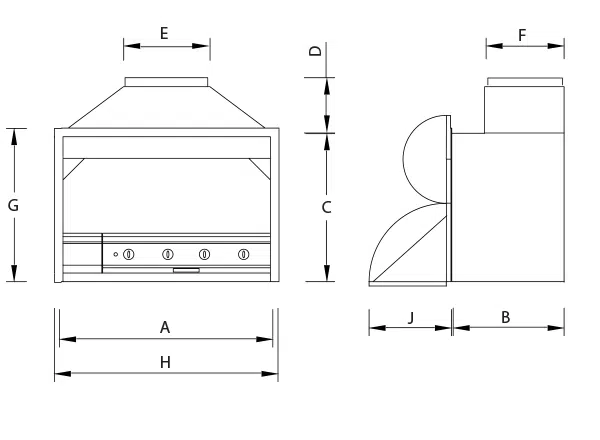

Homefires 1000 Super Deluxe Gas Braai dimension drawing, page 1 of 2: front and side views and gas griller, in millimetres.
Page 1 of 2
Body width × depth
1,035 × 535 mm
Body height, without the gather
855 mm
Gather above the body
325 mm
Front frame width × height
1,090 × 880 mm
Gather outlet width × depth
440 × 350 mm
Open lower door, in front of the body
455 mm
Gas griller width × depth
900 × 500 mm
Gas griller height
222 mm
Gas cooking surface
880 × 400 mm
Material
3 mm mild steel, black

Plan the body, gather and flue together.

The 855 mm body height does not include the 325 mm gather or the flue, and these are product dimensions, not a building opening.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 455 in front of the body: keep this space clear.
  • The body steel is 3 mm thick.
  • The gas griller needs a registered gas installer and a completion certificate.
  • The flue pipe (440 x 340), the collar and the cowl are options and are sold separately.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1000 Super Deluxe Built-in GAS Braai
  • Built-in gas braai: a 5-burner gas griller in a steel body with top and bottom doors
  • 01 FRONT VIEW
  • 440 gather outlet
  • 880 frame height
  • 880 gas cooking surface
  • 900 gas griller
  • 1,035 body width
  • 1,090 including frame
  • 02 SIDE VIEW
  • 350 outlet depth
  • 455 door open
  • 325 gather
  • 855 body
  • Front at the right. Lower door open.
  • The body is 535 deep.
  • 03 GAS GRILLER FROM THE FRONT
  • 900 width
  • 222 high
  • A 5-burner griller, model 9905.
  • 04 GAS GRILLER FROM THE SIDE
  • 500 depth
  • 222 high
  • Front at the right.
  • 05 GAS COOKING SURFACE
  • 880 cooking surface
  • 400 depth
  • 397 grid panels
  • 340 grid
  • 200 grid
  • 340 grid
  • Front at the bottom. Three grid panels.
  • 06 CLEARANCES (SMALLER SCALE)
  • 250 side
  • 250 side
  • 1,500 above the cooking surface
  • No combustible material inside the dashed line.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 455 in front of the body: keep this space clear.
  • The body steel is 3 mm thick.
  • The gas griller needs a registered gas installer and a completion certificate.
  • The flue pipe (440 x 340), the collar and the cowl are options and are sold separately.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 1000 Super Deluxe Gas braai: a black 3 mm mild-steel body with top and bottom doors and a Homefires 9905 stainless-steel flat-top gas griller with five burners, grid panels, vaporiser plates, a drip tray and a dust cover lid. A light fitting, insulation material and touch-up paint come with it. The flue pipe, collar and cowl are optional add-ons.

Which gas does it use?

It is listed for LPG at 2.8 kPa. There's also a natural-gas setting of 2.0 kPa, but only Homefires can convert the griller, so tell us which gas you have before you order. The 9905 griller has a listed heat output of 17.5 kW. That figure is for cooking, not for heating a room.

How much cooking space is there?

The gas cooking surface is 880 × 400 mm. It is made up of three removable stainless round-bar grid panels: two of 340 × 397 mm and one of 200 × 397 mm.

What size is the gas griller?

The griller is 900 mm wide, 500 mm deep and 222 mm high, without the gas connection.

Is the flue included?

No. The flue pipe, collar and cowl are optional add-ons that you can choose on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.

Where does the flue connect?

At the outlet on top of the gather. The gather rises 325 mm above the body, and the outlet is 440 × 350 mm. The Homefires flue parts on this page have a nominal size of 440 × 340 mm. Homefires' installation guidance gives a minimum chimney height of 2,500 mm.

How much space do I need?

The body is 1,035 mm wide, 535 mm deep and 855 mm high, and the gather rises 325 mm above it. The front frame is 1,090 mm wide and 880 mm high, and the open lower door reaches 455 mm in front of the body. Homefires' guidance leaves a 20 mm expansion gap at the sides and the back. These are product dimensions, not a building opening.

How far must the gas griller be from combustible materials?

Keep 250 mm at the sides of the griller and 1,500 mm above the cooking surface. Your installer applies these together with the braai's own installation instructions.

Can I get it in stainless steel?

The version on this page has the standard body: mild steel with a black finish. Homefires also makes the body in 3CR12 or 304 stainless steel as a special order, so ask us for a quote if you would like one.

How do I look after it?

Touch-up paint comes with the braai, so you can refresh small marks on the black finish. Lift out the grid panels to clean them, empty the drip tray, put the dust cover lid on after use, and read the instruction manual for use and care.

What does the guarantee cover?

The firebox has a 15-year Homefires guarantee against faulty workmanship or material under normal use. Replaceable parts are not covered, and maintenance, corrosion and installation exclusions apply. The gas griller has its own 12-month Homefires warranty from the date of purchase, subject to its conditions. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product, gas and flue configuration quote. We do not install. It needs a registered gas installer and a completion certificate, so arrange the installation and the gas connection with an independent, registered installer.
