Homefires 700 Basic EconoMaster Built-in Braai

A compact built-in braai for good food and proper get-togethers.

From: Original price was: R6,830.00.Current price is: R6,599.00.

Save R231
Rated 4.7 out of 515 reviews

SKU BRAAIB700BEMAST

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE ESSENTIALS, SORTED

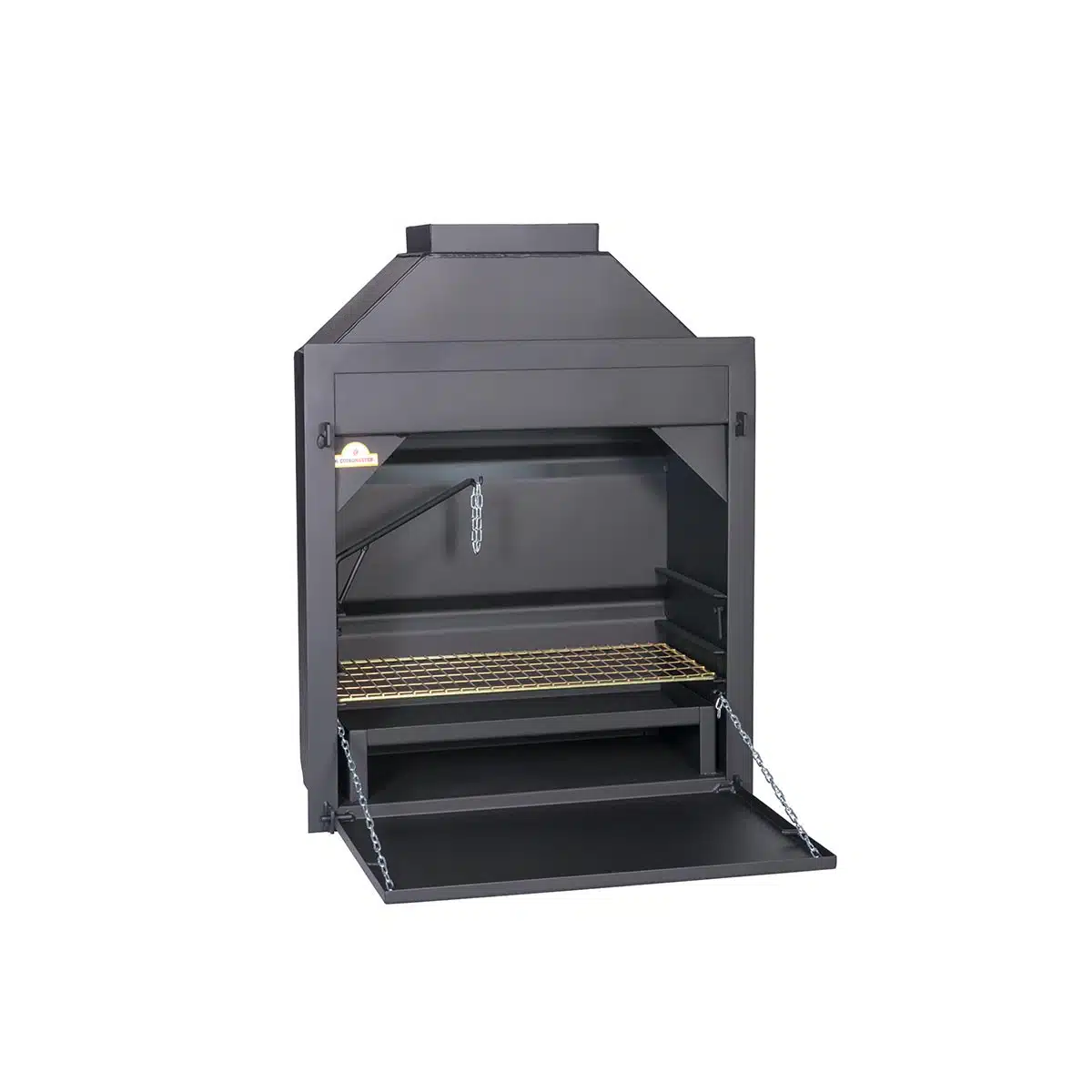

The Homefires 700 Basic Economaster Braai is simple and solid.

The Homefires 700 Basic Economaster Braai keeps it simple: a full-width electroplated grid for the food, an ash pan below and a potjie hook for something slow-cooked on the side. Top and bottom doors close it up when the fire is out. Build it in indoors or outdoors, on proper masonry support with a correctly designed chimney.

  1. Full-width electroplated grid
  2. Ash panBelow the fire
  3. Potjie hookFor something slow on the side
  4. Light fittingGlobe sold separately
  5. Indoor or outdoor installationNeeds masonry support and a chimney
  6. Installation manualUnder Plan your setup
Homefires 700 Basic Economaster Braai in a warm plaster wall on a sunny terrace, lower door open, beside a stone counter with lemons and an olive tree behind

MAKE ROOM FOR GOOD TIMES

Your braai.
Your gathering place.

Picture a compact braai built into a masonry wall, with space alongside to prep, plate up and keep the conversation going. Chops on the grid, a potjie on the hook and friends close by.

Surround, counters and styling are not included. A qualified installer must confirm the installation.

SIMPLE BY DESIGN

From the fire to the clean-up.

THE COOKING

One grid. One potjie hook.

The 680 × 310 mm electroplated grid runs the full width, and the potjie hook takes something slow on the side. There is no separate ember maker, so let the fire burn down to coals before you cook.

THE CLEAN-UP

Ash pan below. Doors in front.

Ash collects in the pan under the fire; empty it once it is cold. Close the top and bottom doors when the braai is done.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

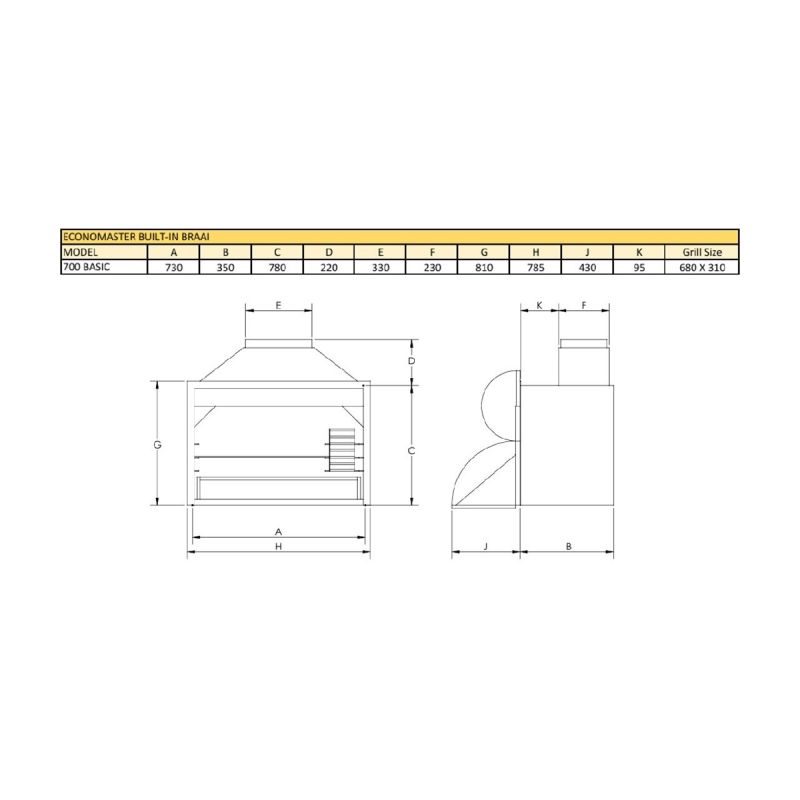

Homefires 700 Basic Economaster Braai dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Body width × depth
730 × 350 mm
Body height
780 mm
Front frame width × height
785 × 810 mm
Hood rise above the body
220 mm
Open bottom-door projection
430 mm
Cooking grid
680 × 310 mm
Optional flue pipe
220 × 320 mm
Material
2.5 mm mild steel
Fuel
Wood or charcoal

Plan the body, frame and hood together.

Body and hood heights add to 1,000 mm before the flue. These are product sizes, not opening sizes, so have your installer check the opening and safe clearances before building.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Have your installer confirm the opening and the safe clearances. Allow for the 430 open lower door.
  • Included: top and bottom doors, an ash pan, a cooking grid, a potjie hook and a light fitting.
  • The globe for the light fitting is sold separately.
  • It has a full-width cooking grid. A separate ember maker is not included.
  • The flue pipe, the joining collar and the cowl are optional extras. The optional flue pipe is 220 × 320.
  • The flue length and the chimney depend on your installation.
  • It can be built in indoors or outdoors, with masonry support and a correctly designed chimney.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 700 Basic EconoMaster Built-in Braai
  • Built-in braai: 2.5 mm mild steel, with a full-width cooking grid and an ash pan
  • 01 FRONT VIEW
  • 330 flue outlet
  • 810 frame height
  • 680 cooking grid
  • 730 body width
  • 785 including frame
  • 02 SIDE VIEW
  • 95 front face to outlet
  • 430 door open
  • 350 body depth
  • 220 hood
  • 780 body
  • Front at the right. Lower door open.
  • 03 COOKING GRID
  • 680 width
  • 310 depth
  • Front at the bottom.
  • 04 TOP VIEW
  • 230 flue outlet
  • 730 body width
  • 350 body depth
  • Front at the bottom. White: the flue outlet.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Have your installer confirm the opening and the safe clearances. Allow for the 430 open lower door.
  • Included: top and bottom doors, an ash pan, a cooking grid, a potjie hook and a light fitting.
  • The globe for the light fitting is sold separately.
  • It has a full-width cooking grid. A separate ember maker is not included.
  • The flue pipe, the joining collar and the cowl are optional extras. The optional flue pipe is 220 × 320.
  • The flue length and the chimney depend on your installation.
  • It can be built in indoors or outdoors, with masonry support and a correctly designed chimney.

GOOD TO KNOW

Plan your setup.

Plan the opening, hood and flue route together before building starts.

Read the instruction manual

What is included?

The 2.5 mm mild-steel braai with top and bottom doors, an ash pan, an electroplated cooking grid, a potjie hook and a light fitting. The light globe, flue pipe, joining collar and cowl are not included.

Which fuel can I use?

Wood or charcoal. There is no separate ember maker, so make the fire in the braai and let it burn down to coals before you cook.

How much space do I need?

The body is 730 mm wide, 350 mm deep and 780 mm high, and the hood rises 220 mm above it. The front frame is 785 mm wide and 810 mm high. Allow for the 430 mm open bottom-door projection. The cooking grid is 680 × 310 mm. These are product dimensions. Have your installer confirm the opening and safe clearances.

Is the flue included?

No. The flue pipe, joining collar and cowl are optional extras. The optional flue pipe is 220 × 320 mm. The correct flue length and chimney arrangement depend on your installation.

Can it be installed indoors or outdoors?

The product is listed for indoor or outdoor installation. It needs suitable masonry support and a correctly designed chimney. Ask a qualified installer to confirm the location, clearances and ventilation.

Does this model include an ember maker?

The 700 Basic has a full-width cooking grid and ash pan. A separate ember-maker basket is not included in the listed equipment.

What is shown in the installation image?

The braai is shown within an illustrative outdoor kitchen. The wall, chimney construction, cabinets, counters and styling are not part of the product.

What does the guarantee cover?

The EconoMaster firebox has a 5-year Homefires guarantee from the date of purchase against faulty workmanship or materials, when the fire is made in the ash pan. Loose, replaceable parts such as the grid and the ash pan are not covered, and neither is rust for any reason, misuse or water leaks, or damage from incorrect installation. Keep the braai painted and maintained. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote; we can include a visual preview. Arrange installation with an independent installer.
