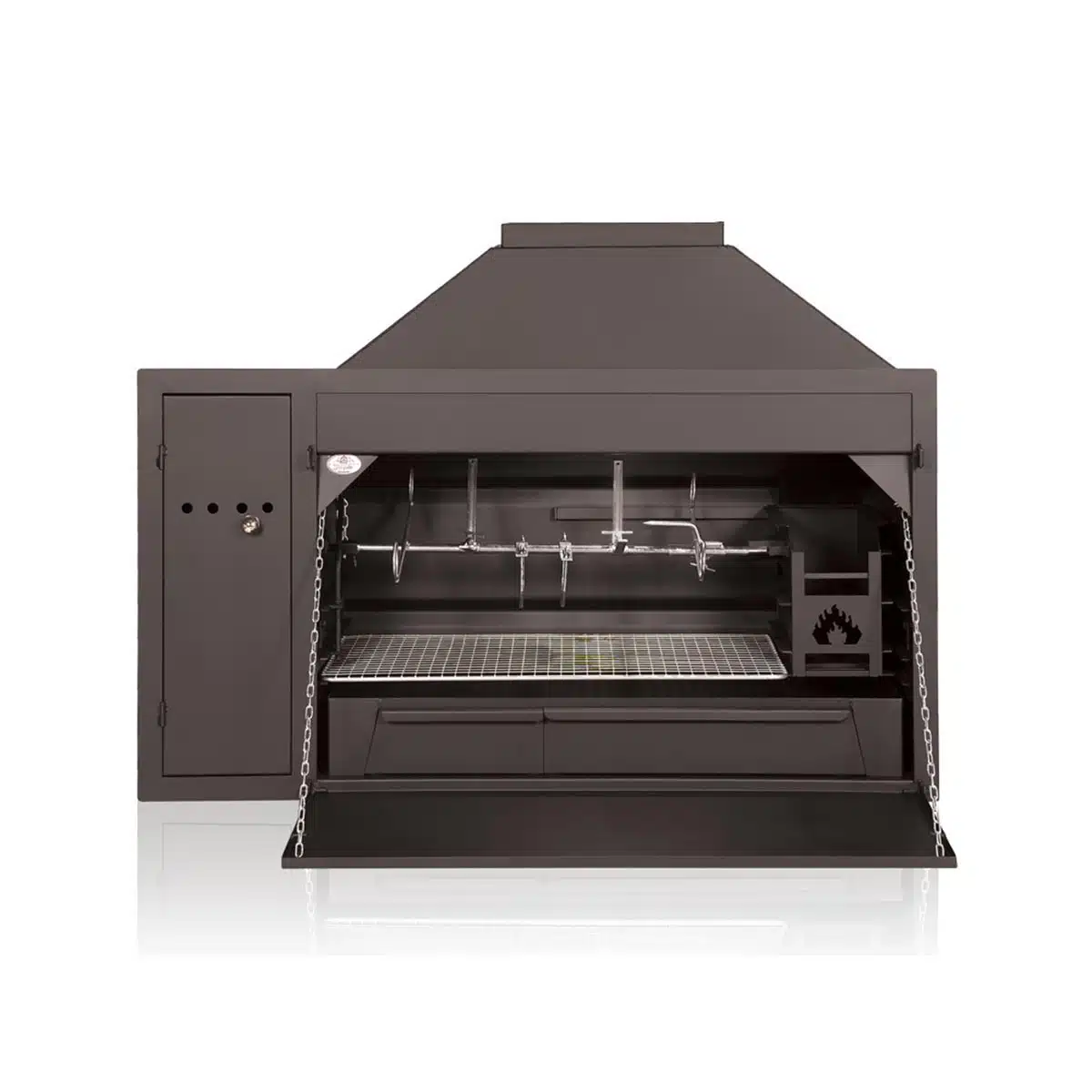

Homefires 1500 Super Deluxe Spit Built-in Braai

A wide built-in braai with a heavy-duty spit, made for long days round the fire.

From: Original price was: R47,140.00.Current price is: R45,999.00.

Save R1,141

SKU BRAAIB1500SPIT

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

FOR THE SPIT AND THE GRID

Slow roasts and long afternoons.

Let the heavy-duty spit motor of the Homefires 1500 Super Deluxe Spit Braai turn the roast on the nickel-plated arm, or braai across the wide grid. The ember maker keeps fresh coals coming, the warming drawer holds what's ready, and the 220 V light fitting sees you into the evening. Open the lower door and it doubles as a work surface.

Regular painting and maintenance keep the 15-year firebox guarantee valid.

  1. Heavy-duty spit motor in its own motor boxNickel-plated spit arm
  2. Lower door opens as a work surface
  3. Warming drawer, ash pan and ash drawer
  4. Indoor or outdoor installation20 mm expansion gap at the sides and back
  5. Chimney at least 2,500 mm high
  6. Installation manualUnder Plan your setup
Homefires 1500 Super Deluxe Spit built into a face-brick wall in a thatched lapa at golden hour, a roast on the spit and friends at a long table

LONG LUNCHES, LATE LIGHT

Some days are made for the spit.

The roast is on the spit, the coals glow underneath and the table under the thatch is filling up. Someone checks the meat, someone brings the salad, and nobody is in a hurry. Built into your braai wall, the 1500 Super Deluxe Spit makes room for long, slow days with friends.

The face-brick wall and chimney, thatch, counters, table, benches, braai fork, food and plants are not included. Plan the flue and clearances with an independent installer.

BUILT FOR LONG SPIT DAYS

Keep the coals coming, and the food warm.

THE SPIT

Slow roasts on the Homefires 1500 Super Deluxe Spit Braai.

Roast on the heavy-duty, nickel-plated spit arm over a bed of coals. Burn wood in the ember maker and rake fresh coals under the meat whenever the fire needs them, for as long as the roast takes.

THE GRID

Room for chops, wors and a potjie.

The 1,225 × 550 mm grid comes with grid lifters, and the potjie holder takes a potjie for something slow. Keep the first round in the warming drawer while the next one cooks.

THE BUILD

Heavy steel. Handy details.

Homefires builds the firebox from hot-rolled 3 mm mild steel. Open, the lower door makes a work surface for your tools, and the 220 V light fitting helps once the sun goes down.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires 1500 Super Deluxe Spit Braai dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Complete front width × height
1,955 × 1,105 mm
Braai section width × depth
1,525 × 645 mm
Spit motor compartment width
305 mm
Body height, below the hood
1,050 mm
Hood rise, to the top of the outlet
305 mm
Flue outlet width × depth
600 × 485 mm
Open lower door, in front of the body
400 mm
Cooking grid width × depth
1,225 × 550 mm
Material
Black mild steel
Fuel
Wood or charcoal

Plan the braai, hood and flue together.

These are product dimensions, not a brick opening. Keep 400 mm clear in front for the open lower door, and leave a 20 mm expansion gap at the sides and back. Ask us to confirm the overall height, and have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 400 in front of the body and is a work surface when open: keep this space clear.
  • The spit motor, the motor box and the spit arm are included.
  • The flue, the collar and the cowl are options and are sold separately.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1500 Super Deluxe Spit Built-in Braai
  • Built-in braai: wood and charcoal, with a spit, an ember maker and a spit motor box
  • 01 FRONT VIEW
  • 600 flue outlet
  • 1,105 front height
  • 1,225 cooking grid
  • 305 motor box
  • 1,525 braai section
  • 1,955 complete front
  • 02 SIDE VIEW
  • 485 flue outlet
  • 645 body depth
  • 400 door open
  • 305 hood rise
  • 1,050 body
  • Front at the right. Lower door open.
  • 03 COOKING GRID
  • 1,225 width
  • 550 depth
  • 04 TOP VIEW
  • 1,525 braai section
  • 1,955 complete front
  • 645 body depth
  • Front at the bottom. White: the flue outlet.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 400 in front of the body and is a work surface when open: keep this space clear.
  • The spit motor, the motor box and the spit arm are included.
  • The flue, the collar and the cowl are options and are sold separately.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 1500 Super Deluxe Spit braai in black mild steel, with its heavy-duty spit motor, the spit motor box and a single slide-in door. It comes with a heavy-duty, nickel-plated spit arm, a cooking grid and grid lifters, an ember maker, a warming drawer, an ash pan and ash drawer, a potjie holder, a 220 V light fitting, a spade and a poker. The flue pipe, joining collar and cowl are optional extras, sold separately.

Does it come with a spit motor?

Yes. The braai comes with its heavy-duty spit motor and the spit motor box, plus a heavy-duty, nickel-plated spit arm.

Which fuel can I use?

Wood or charcoal. Burn wood in the ember maker and rake the fresh coals under the spit or the grid as you cook.

How much cooking space is there?

The cooking grid is 1,225 mm wide and 550 mm deep, and grid lifters come with it. The potjie holder takes a potjie for slow cooking, and the warming drawer keeps the first round warm.

Is the flue included?

No. The flue pipe, joining collar and cowl are optional extras, sold separately: add them on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.

Where does the flue connect?

At the flue outlet on top of the hood. The outlet measures 600 × 485 mm. The minimum chimney height is 2.5 m for a proper draw. Ask us about the right height for your roof, and have an independent installer plan the flue route and support.

How much space do I need?

The complete front is 1,955 mm wide, spit motor compartment included, and 1,105 mm high. The braai section is 1,525 mm wide and 645 mm deep, and the motor compartment is 305 mm wide. The body is 1,050 mm high, and the hood rises 305 mm to the top of the flue outlet. Opened, the lower door reaches 400 mm in front of the body. Ask us to confirm the overall height before you build.

How do I plan the brick opening?

Start with the instruction manual. These are product dimensions, not a brick opening. Leave a 20 mm expansion gap between the sides and back of the braai and the brickwork. Allow for insulation and access too, and have an independent installer plan the opening, flue and safe clearances from the actual unit.

Can it go indoors?

Yes. The unit may be installed indoors or outdoors. Follow the instruction manual, and have an independent installer plan the chimney, ventilation and safe clearances for your space.

Can I get it in stainless steel?

This listing is the standard braai in black mild steel. Homefires can also make it in 3CR12 steel or 304 stainless steel on special order. Ask us for a quote.

What does the guarantee cover?

The firebox has a 15-year Homefires guarantee from the date of purchase, against faulty workmanship or material under normal use. Regular painting and maintenance keep the guarantee valid. Replaceable parts such as the grid, ember maker and ash pan are not covered, nor are rust, water leaks, misuse or installation damage. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
