THE FIRE
Fresh coals, close at hand.
Burn wood in the ember maker and rake fresh coals under the grid whenever the fire needs them. Charcoal works too, so pick the fuel that suits the day.
Sale!
About your braai
- Body
- 2.5 mm mild steel, high-heat paint · 90 kg
- Included
- Electroplated grid, ember maker, ash pan, potjie holder, light fitting, top and bottom doors
- Not included
- Flue pipe, collar and cowl (options), building work and installation
- Guarantee
- 5 years on the firebox

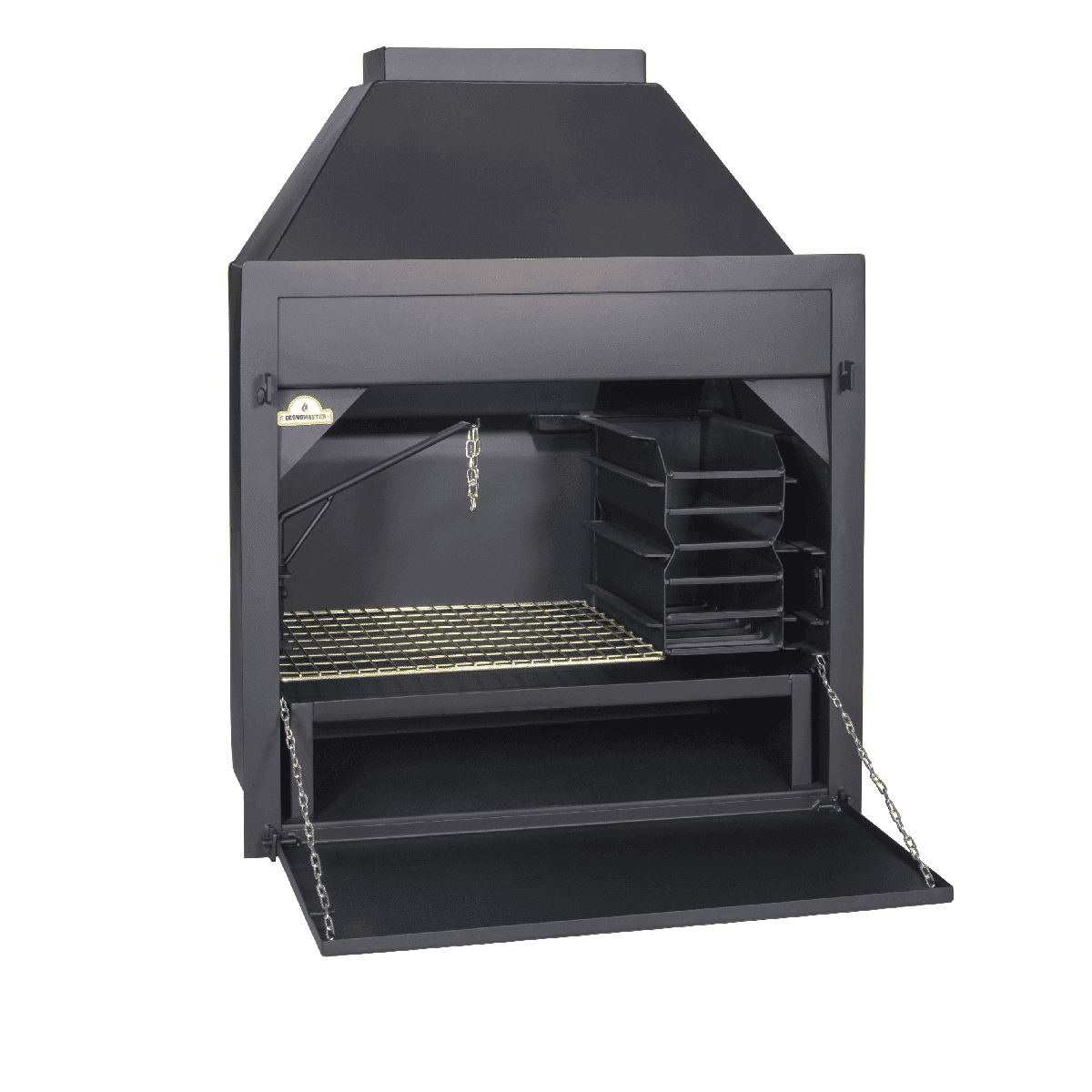

Homefires 800 (deep) EconoMaster Built-in Braai
An EconoMaster built-in braai with an ember maker, so fresh coals are close at hand.
From: Original price was: R11,290.00.R10,699.00Current price is: R10,699.00.
Save R591In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE 800 DEEP
Simple, solid and ready to build in.
The 800 Deep EconoMaster does the essentials well. Build the fire in the ember maker, then rake fresh coals under the electroplated grid as you cook. Hang a potjie on the holder for something slow and switch on the light when the evening comes. The ash pan catches what falls, and the doors close up the black body when the fire is out.
- Ember makerFresh coals as you cook
- Electroplated mild-steel cooking grid
- Suits an indoor buildIn a well-ventilated room
- Leave a 20 mm expansion gapAt the sides and back of the body
- Chimney at least 2.5 m highFlue offset at most 45 degrees
- Installation manualUnder Plan your setup
A SLOW MORNING IN THE GARDEN
Chops on the coals.
Roosterkoek next.
Herbs from the garden, four chops over the coals and the roosterkoek dough waiting its turn on the counter. Built into the wall, the 800 Deep EconoMaster turns an easy morning into a proper braai, with fresh coals from the ember maker whenever the grid needs them.
The wall, counters, plants, food, bread dough and kitchen items are not included. Plan the flue and clearances with an independent installer.
A LITTLE PRACTICAL THINKING
Keep the next round ready.
THE GRID
Room for chops and a potjie.
The electroplated mild-steel grid measures 550 × 450 mm. Hang a potjie from the potjie holder for something slow while the chops cook.
THE BODY
Made from 2.5 mm mild steel.
The body is 2.5 mm mild steel with a high-heat black paint, and the braai weighs 90 kg, so plan the lift into place. Close the top and bottom doors when the braai is not in use.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width
- 830 mm
- Body height, without the gather
- 780 mm
- Gather above the body
- 320 mm
- Front frame width × height
- 885 × 810 mm
- Gather neck width × depth, outside
- 430 × 230 mm
- Neck set back from the body front
- 120 mm
- Open lower door, in front of the body
- 430 mm
- Cooking grid width × depth
- 550 × 450 mm
- Weight
- 90 kg
- Material
- 2.5 mm mild steel, high-heat black paint
Plan the body, gather and flue together.
The 780 mm body height does not include the 320 mm gather above it, or the flue. Ask us to confirm the body depth before you build. These are product dimensions, not a building opening: have your installer check the actual unit and safe clearances.

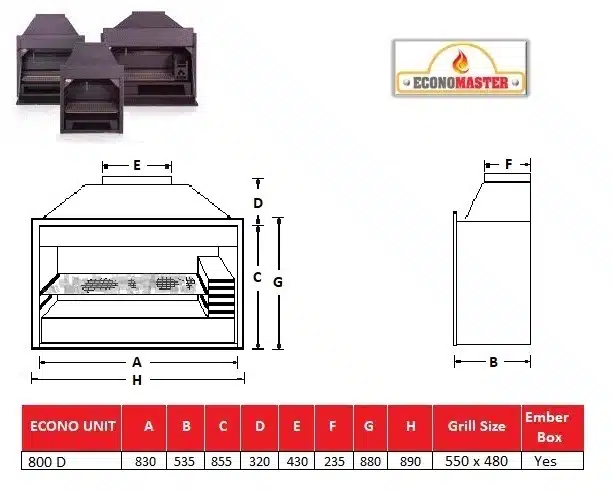

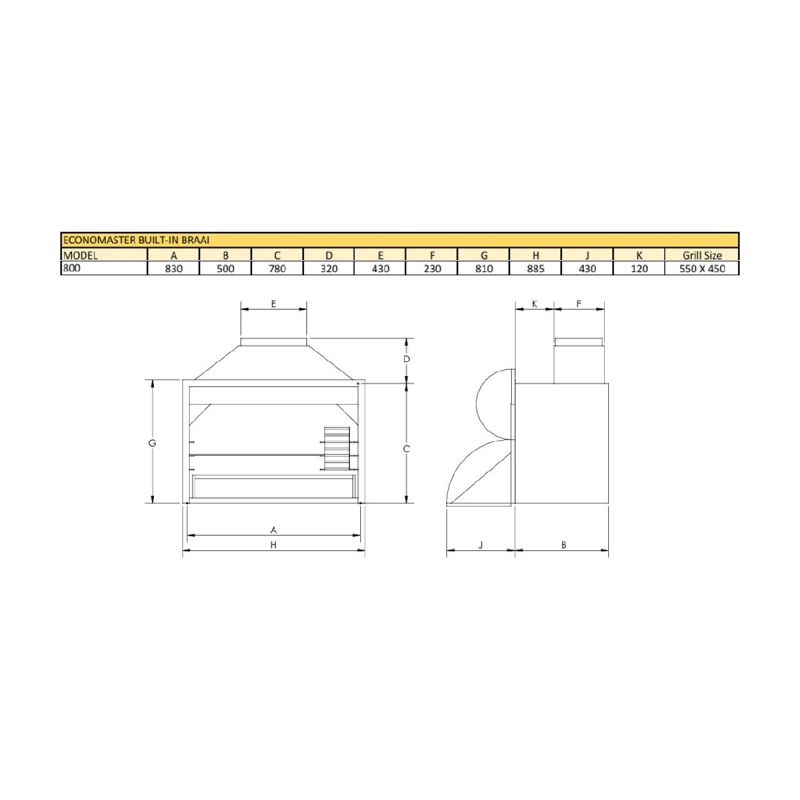

The drawing as text
- ALL SIZES IN MILLIMETRES
- Homefires 800 Deep EconoMaster Built-in Braai
- Built-in braai: 2.5 mm black mild steel for wood or charcoal, with an ember maker
- 01 FRONT VIEW
- 430 gather neck
- 810 frame height
- 550 cooking grid
- 830 body width
- 885 including frame
- 02 SIDE VIEW
- 230 neck depth
- 120 neck set back
- 430 door open
- 320 gather
- 780 body
- Front at the right. Lower door open.
- Ask us for the body depth before you build the opening.
- 03 COOKING GRID
- 550 width
- 450 depth
- 04 TOP VIEW
- 430 gather neck
- 230 neck depth
- 120 set back
- 885 including frame
- Front at the bottom. White: the gather neck.
- 05 ASH PAN FROM ABOVE
- 760 width
- 450 depth
- Front at the bottom.
- 06 ASH PAN FROM THE FRONT
- 760 width
- 160 high
- PLANNING NOTES
- These are product sizes, not a building-opening size. Ask us for the opening size before you build.
- Leave a 20 mm expansion gap at the sides and back. Cover the sides, back and top with fibreglass insulation.
- Finished brickwork must not protrude past the flange, so that the top door can stay open.
- The minimum chimney height is 2,500 mm. Keep any flue offset to 45 degrees or less.
- The inside of the chimney must be at least as big as the flue outlet opening.
- The lower door opens 430 in front of the body: keep this space clear.
- Included: top and bottom doors, an ember maker, an ash pan, a potjie holder and a light fitting.
- The flue pipe, the collar and the cowl are options and are sold separately.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The 800 Deep EconoMaster braai in black, with top and bottom doors, an ash pan, an electroplated mild-steel grid, an ember maker, a potjie holder and a light fitting. The instruction manual comes with it. The flue pipe, collar and cowl are options on this page, sold separately.
Which fuel can I use?
Wood or charcoal. Burn wood in the ember maker and rake the fresh coals under the grid as you cook.
How much cooking space is there?
The electroplated mild-steel grid is 550 mm wide and 450 mm deep. The potjie holder takes a potjie for something slow alongside.
Is the flue included?
No. You can add a Homefires flue pipe, a collar and a cowl on this page: a fixed cowl or a rotating cowl, each with a slip-on base. A cowl helps keep rain out of the flue. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.
Where does the flue connect?
At the neck on top of the gather, which rises 320 mm above the body. The neck measures 430 × 230 mm on the outside, and its front sits 120 mm back from the front of the body. The inside of the chimney must be at least as big as the flue outlet opening, so have your installer measure the unit before building.
How tall must the chimney be?
At least 2.5 m. If the flue must be offset, keep the angle to 45 degrees or less and use brackets so the flue does not sag. Roofs differ, so ask us about your roof, and have an independent installer plan the route.
How much space do I need?
The body is 830 mm wide and 780 mm high, and the gather rises 320 mm above it. The front frame is 885 mm wide and 810 mm high. Opened, the lower door reaches 430 mm in front of the body. Ask us to confirm the body depth before you build the opening. These are product dimensions, not a building opening; have your installer check the actual unit and safe clearances.
How is it built in?
Leave a 20 mm expansion gap between the body and the brickwork at the sides and the back. Cover the sides, back and top with fibreglass insulation, and plan it with your installer. Keep the finished brickwork from sticking out past the flange, so the top door can stay open.
Can it go indoors?
Yes. It can be installed indoors, in a well-ventilated room. Follow the instruction manual, and have an independent installer plan the chimney, the clearances and the ventilation.
How do I look after it?
Let the ash cool fully before you empty the ash pan. The ash pan measures 760 × 450 mm and is 160 mm high. Close the top and bottom doors when the braai is not in use, and keep it maintained as the instruction manual describes.
What does the guarantee cover?
The EconoMaster firebox has a 5-year Homefires guarantee against faulty workmanship or material under normal use. Loose, replaceable parts are not covered, and neither are rust, lack of maintenance, misuse, water leakage or incorrect installation. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
