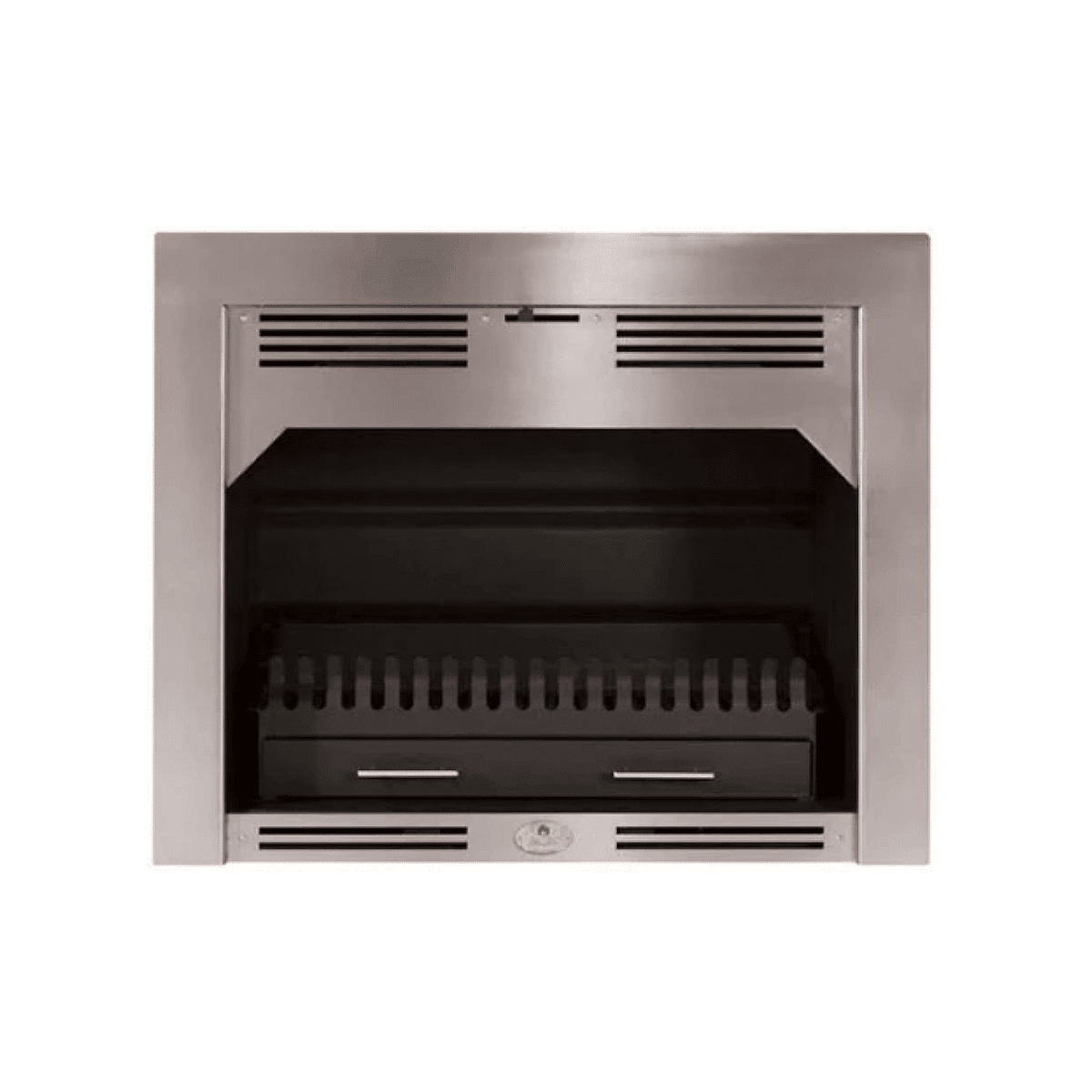

HomeFires 850 Built-in Fireplace New Shape (Stainless Steel Trim)

A built-in wood fire, framed in bright stainless steel.

From: Original price was: R27,850.00.Current price is: R26,999.00.

Save R851
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU F/PLACEB850SSSQ

Made to order Delivery ETA: 20–30 working days

Complete your setup

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE 850 NEW SHAPE

Warmth all round from the Homefires 850 Stainless Trim Fireplace.

The Homefires 850 Stainless Trim Fireplace is an open fire that you build in, with a mild-steel body and a stainless-steel trim up front. Burn wood or anthracite on the fire grate, set the built-in damper and let the natural convection system carry the warmth into the room. The trim plate is detachable and the top is flat, which helps in an existing cavity.

  1. Stainless-steel trim plateDetachable
  2. Flat topFor easier fitting into an existing cavity
  3. Fire grate, grid and ash drawer
  4. Built-in damper and natural convection system
  5. Insulation material and touch-up paint
  6. Installation manualUnder Plan your setup
Homefires 850 New Shape fireplace alight in a plastered chimney breast, a mother and son reading a book together on a couch beside it in afternoon light

AFTERNOONS AT HOME

Story time goes better by the fire.

A favourite book on the couch, the afternoon sun coming in and a fire going in the wall. The 850 New Shape keeps the family room warm while the pages turn, and the stainless trim catches the glow. Later, the same fire sees everyone through supper and one more story.

The chimney breast, hearth, furniture, artwork, plants and décor are not included. Plan the flue, hearth and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Plan the trim, the top and the flue.

THE FIRE

Wood or anthracite.

Burn wood or anthracite on the fire grate, and use the built-in damper to manage the fire. The ash drops into the ash drawer, ready to empty once it is cold.

THE TRIM

Made for an existing cavity.

The trim plate is detachable and the top is flat, so the fireplace is easier to fit into an existing cavity. Your installer confirms the opening for your wall.

THE FLUE

Flue parts in the 420 × 220 size.

The outlet opening on the flat top measures 430 × 230 mm. The flue parts on this page use the 420 × 220 nominal size: pipes in 1,200 mm and 2,400 mm lengths, joining collars and a cowl.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires 850 Stainless Trim Fireplace dimension drawing, page 1 of 2: front, side and top views and flue, in millimetres.
Page 1 of 2
Body front width
845 mm
Body depth × height, without the trim
480 × 755 mm
Trim plate width × height
1,045 × 835 mm
Top width, outer × inner span
885 × 860 mm
Outlet opening width × depth
430 × 230 mm
Nominal flue size
420 × 220 mm
Fuel
Wood or anthracite
Material
Mild steel, stainless-steel trim

Plan the body, trim and flue together.

The 1,045 × 835 mm trim plate is wider and taller than the body. These are product sizes, not the masonry opening: leave a 20 mm expansion gap at the sides and back, and have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The flat-top casing fits into an existing cavity. The trim plate comes off.
  • The body is mild steel with a stainless steel trim at the front. It is a vented open fireplace.
  • Leave a 20 mm expansion gap at the sides and back of the casing.
  • The minimum chimney height is 3.6 m. Keep the metal flue at least 200 mm from wood trusses.
  • Included: a fire grate, a grid, an ash drawer, a built-in damper and a natural convection system.
  • Also included: insulation material, touch-up paint and a guarantee certificate.
  • Burn wood or anthracite. The heating volume is 140 m³.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 850 Built-in Fireplace New Shape, Stainless
  • Built-in open fireplace for wood or anthracite: flat-top casing and a stainless steel trim
  • 01 FRONT VIEW
  • 835 trim height
  • 845 front
  • 1,045 trim width
  • 02 SIDE VIEW
  • 755 casing height
  • 480 depth
  • Front at the left. The top is flat.
  • 03 TOP VIEW
  • 885 top, outside
  • 860 top, inside
  • 430 outlet
  • 230 outlet
  • 480 depth
  • Front at the bottom, at the trim. White: the flue outlet.
  • 04 FLUE PIPE FROM ABOVE (SMALLER SCALE)
  • 420 flue pipe
  • 220
  • The nominal flue pipe size.
  • Flue pipes of 1,200 mm and 2,400 mm,
  • joining collars and a medium cowl
  • are sold separately.
  • 05 CLEARANCES FROM THE FRONT (SMALLER SCALE)
  • 450 mantel
  • 300 side
  • 300 side
  • Keep a heat-sensitive mantel or shelf at least 450
  • above the hot-air outlet. Keep other heat-sensitive
  • material at least 300 from the front edges.
  • 06 HEARTH FROM ABOVE (SMALLER SCALE)
  • 350 front
  • 200 side
  • 200 side
  • Dashed: the edge of the hearth. Front at the bottom.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The flat-top casing fits into an existing cavity. The trim plate comes off.
  • The body is mild steel with a stainless steel trim at the front. It is a vented open fireplace.
  • Leave a 20 mm expansion gap at the sides and back of the casing.
  • The minimum chimney height is 3.6 m. Keep the metal flue at least 200 mm from wood trusses.
  • Included: a fire grate, a grid, an ash drawer, a built-in damper and a natural convection system.
  • Also included: insulation material, touch-up paint and a guarantee certificate.
  • Burn wood or anthracite. The heating volume is 140 m³.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 850 New Shape built-in fireplace: a mild-steel convection body with a stainless-steel trim, a fire grate, a grid, an ash drawer, a built-in damper system and a natural convection system. Insulation material, touch-up paint and a guarantee certificate come with it. The flue pipes, joining collars and cowl are options, sold separately.

Which fuel does it burn?

Wood or anthracite, on the fire grate. It is a vented, open fireplace, so it needs a flue.

How much heat does it give?

The 850 New Shape has a listed heating volume of 140 m³. We do not have a heat output rating for this model, so send us your room sizes and we will check them with you before you order.

Is it all stainless steel?

No. The body is mild steel and the trim, the fascia up front, is stainless steel. Fully stainless versions are separate special orders: ask us if you need one.

Is the flue included?

No. The 420 × 220 flue pipes (1,200 mm and 2,400 mm lengths), joining collars and a cowl are options that you choose on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the parts, including the right cowl, for your setup.

Where does the flue connect?

At the outlet opening on the flat top, 430 × 230 mm. The flue parts use the 420 × 220 nominal size. It needs a chimney at least 3.6 m high; your installer confirms the height for your roof. Your installer must follow the installation manual that comes with the unit.

How much space does it need?

The body front is 845 mm wide, and the body is 480 mm deep and 755 mm high. The trim plate is 1,045 mm wide and 835 mm high. On top, the outer span is 885 mm and the inner span 860 mm. These are product sizes, not the masonry opening. Have your installer check the actual unit and safe clearances before building.

What clearances does it need?

Leave a 20 mm expansion gap between the sides and back of the body and the brickwork. Keep heat-sensitive materials at the sides 300 mm away, and keep a mantel at least 450 mm above the hot-air outlet. The manual has the full instructions.

What hearth does it need?

Extend the hearth at least 350 mm in front of the fireplace and at least 200 mm at the sides. Keep the metal flue at least 200 mm from wood trusses. Your independent installer confirms the details for your building.

How do I look after it?

Touch-up paint comes with the fireplace, so you can refresh small marks. Empty the ash drawer once the ash is cold.

What does the guarantee cover?

A guarantee certificate comes with the fireplace. Ask us for the full Homefires guarantee terms before you order.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
