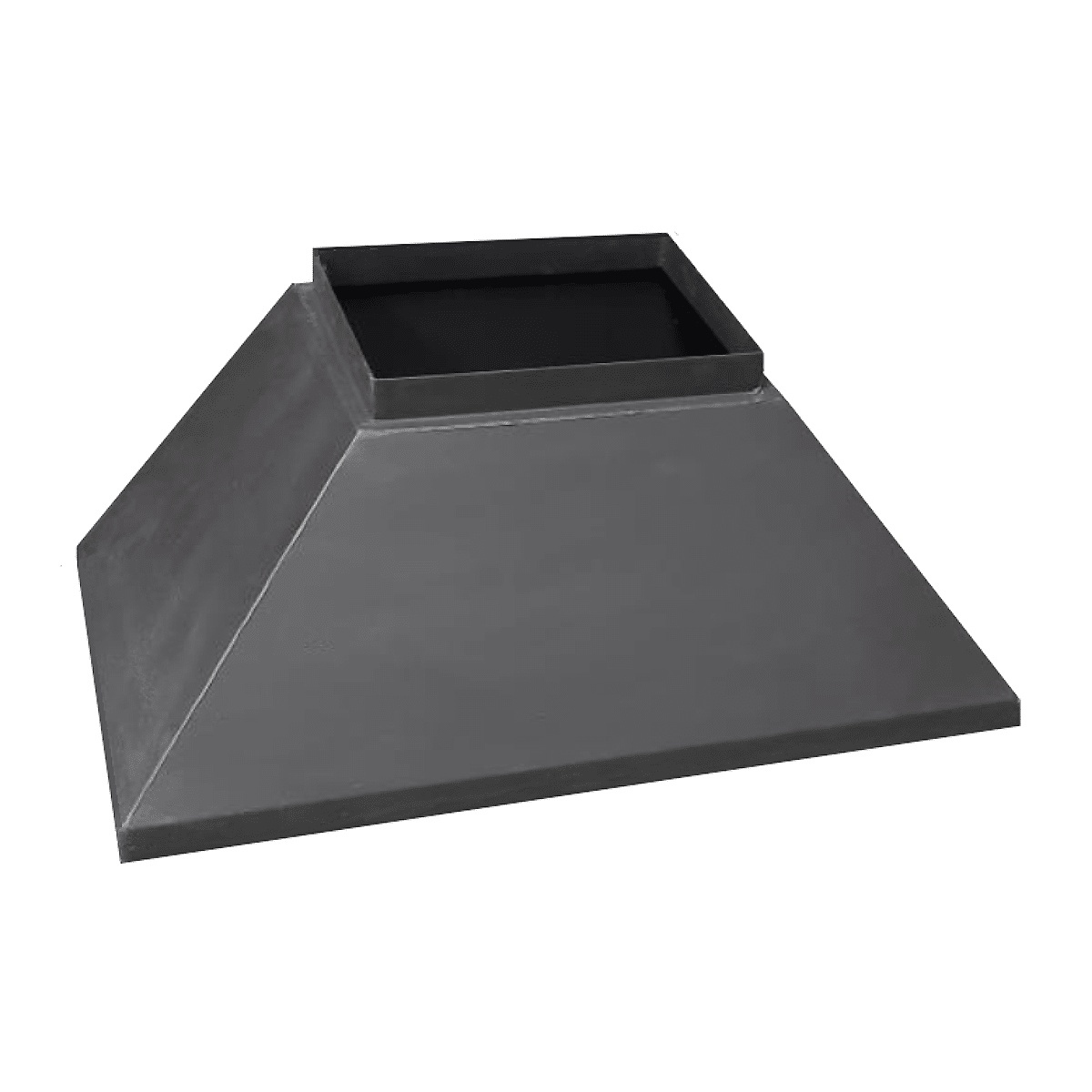

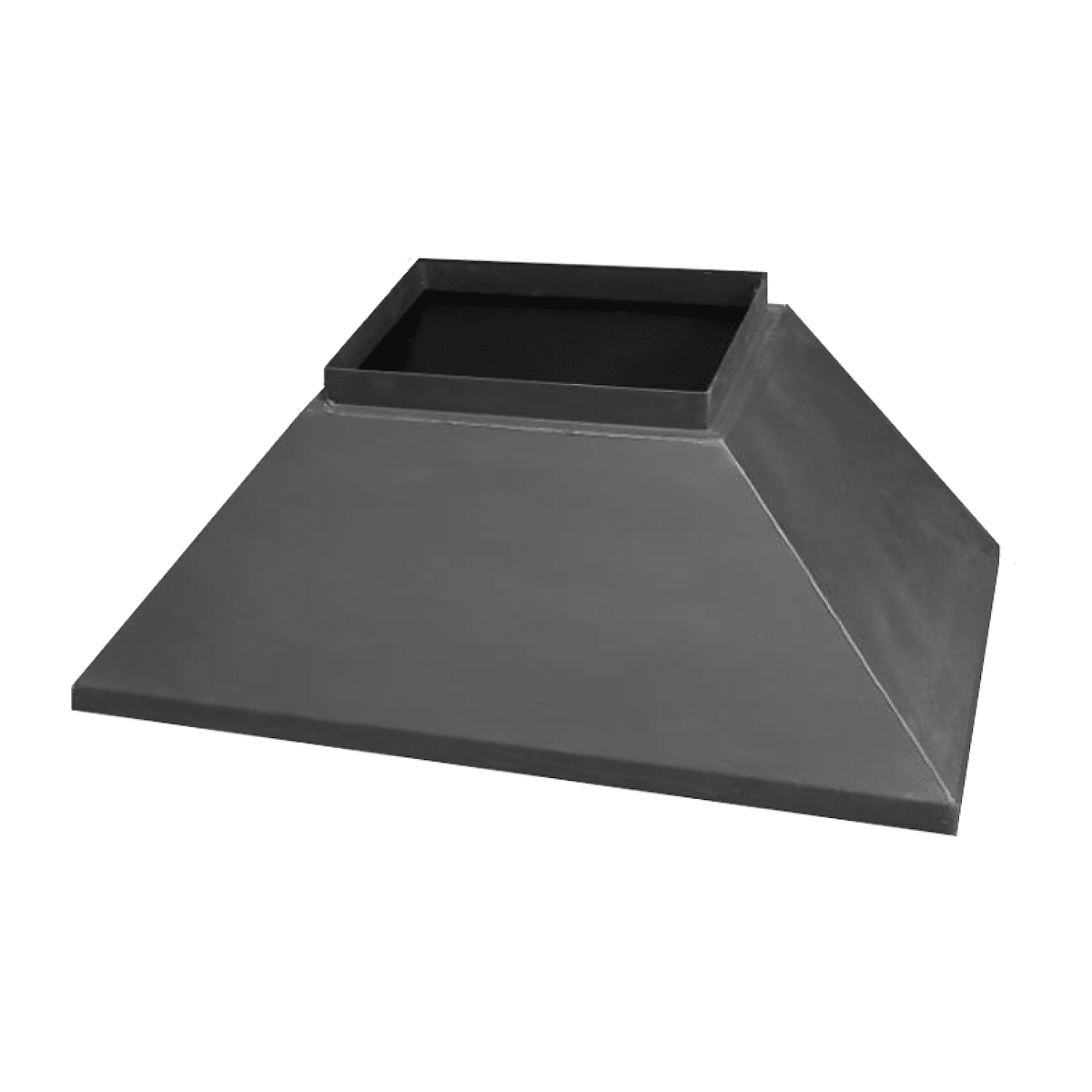

Homefires Braai Canopy, black tapered canopy with rectangular top connection

Your braai, up close

Will it fit my space?

About your braai

Construction: Black mild steel · heat-resistant coating
Included: The canopy in your chosen size, with a rectangular top connection
Not included: The braai, flue pipes, cowls, fittings, wall fixings and installation

HomeFires Braais

Homefires Braai Canopy

Channel smoke from your braai into a connected flue.

From: R4,999.00

Save R191

SKU

In stock Delivery ETA: 5–7 working days

Choose your built-in size

1200R5,199.001500R6,699.001000R4,999.00

Clear

Free delivery in Central Gauteng on orders from R5,500. Other areas: delivery cost on request.

How delivery works

Your total R4,999.00

Delivery cost to be confirmed.

Get a Quote

14-day returns on the unit* Secure payments

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

A SIMPLE ADDITION

Your braai below.
A canopy above.

Mount the canopy on the wall above a countertop braai or a fitted gas griller. Its wide lower opening narrows towards the top, guiding rising smoke into a connected flue or chimney. Pick the width that suits your braai, then plan the flue around it. Keep the coating in good condition, especially in damp or coastal air.

Wall mounted, above a countertop braai or gas griller
Tapered hood guides smoke into the flue
Works with a connected flue or chimneyNo powered extractor
The flue size depends on the canopy widthCheck it before you order pipes
Your installer sets the mounting heightAnd checks support and clearances

Homefires Braai Canopy above a counter-mounted grill on a covered patio overlooking a pool

MAKE YOURSELF AT HOME OUTSIDE

A place to cook.
A reason to linger.

Bring the cooking into your entertainment area and let the canopy guide the smoke up into the flue. The fire stays the centre of the afternoon, with everyone close by.

1,000 mm canopy shown. Braai, flue, counter, fittings and furnishings are not included. Have an independent installer confirm the mounting height, ventilation and clearances.

THE CANOPY, UP CLOSE

Simple steel with a clear job.

THE SHAPE

A tapered steel hood.

The wide lower opening narrows towards the top connection to guide rising smoke into the flue.

THE SIZES

Three widths to choose from.

Pick 1,000, 1,200 or 1,500 mm to suit the braai below. The 1,000 and 1,200 mm canopies are 540 mm deep; the 1,500 mm canopy is 600 mm deep.

THE FINISH

Simple black steel.

A heat-resistant coating finishes the mild steel. Ask us about care for damp or coastal conditions.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

Download the dimension drawing

1,000 canopy · width × depth: 1,000 × 540 mm
1,200 canopy · width × depth: 1,200 × 540 mm
1,500 canopy · width × depth: 1,500 × 600 mm
Overall height with collar (all sizes): 450 mm
Canopy body height: 400 mm
Collar above the body: 50 mm
1,000 canopy · top section width × depth: 440 × 350 mm
1,000 canopy · specified flue: 440 × 340 mm
1,200 and 1,500 · top section and specified flue: 500 × 350 mm
Material: Black mild steel · heat-resistant coating

Plan the canopy and braai together.

These are canopy dimensions, not heat clearances. Have your installer confirm the mounting height, wall support, clearances and flue connection for your braai; the flue route depends on your building.

The drawing as text

ALL SIZES IN MILLIMETRES
Homefires Braai Canopy
Wall-mounted braai canopy: black mild steel, in three widths
01 FRONT VIEW, 1,000 CANOPY
440 top section
1,000 canopy width
450 overall
50 lower fascia
02 SIDE VIEW, 1,000 CANOPY
350 top section
540 depth
50 collar
400 body
Front at the left. Straight back at the right.
03 TOP VIEW, 1,000 CANOPY
1,000 canopy width
540 depth
350 top
Back at the top. White: the open top section.
04 THE THREE SIZES
SIZE
WIDTH × DEPTH
HEIGHT
TOP SECTION
FLUE
1,000
1,000 × 540
450
440 × 350
440 × 340
1,200
1,200 × 540
450
500 × 350
500 × 350
1,500
1,500 × 600
450
500 × 350
500 × 350
Height with the collar. Flue: the flue size for each canopy.
PLANNING NOTES
These are canopy sizes. Do not use them as heat clearances.
Choose 1,000, 1,200 or 1,500. Check the width and depth of your braai and the position of the flue.
The body is 400 high and includes the 50 lower fascia. The collar adds 50 above it.
Have your installer check the mounting height, wall support, heat clearances and flue connection for your braai.
Have your installer check the mating connection and the full flue route before you order pipes or fittings.
Included: the canopy in your chosen size. The braai, flue pipes, cowls, fittings and installation are not included.
It works with a connected flue or chimney. A powered extractor is not included.

GOOD TO KNOW

Plan your setup.

Choose your size, then plan the braai, flue and wall together.

What is included?

The canopy in your chosen size is included. The braai, flue pipes, cowls, fittings and installation are not included. Your installer must choose fixings that suit the supporting wall.

Which size should I choose?

Check the width and depth of your braai and the position of the flue. The 1,000 and 1,200 mm canopies are 540 mm deep. The 1,500 mm canopy is 600 mm deep. All three are 450 mm high with the collar.

Which flue connection does it need?

The 1,000 mm canopy specifies a 440 × 340 mm flue. The 1,200 and 1,500 mm canopies specify 500 × 350 mm. Have your installer check the mating connection and the full flue route before ordering pipes or fittings.

How is the 450 mm height measured?

The canopy body is 400 mm high. The collar adds 50 mm above it. The lower fascia is 50 mm high and is part of the 400 mm body.

Can it be used above a gas griller?

It can be positioned above a countertop or tabletop braai, or a fitted gas griller. Your installer must check the griller requirements, ventilation, clearances and canopy coverage. This canopy does not replace the griller’s installation instructions.

Can I fit it indoors?

Yes. The canopy can be wall mounted outside or inside. Indoors or out, have an independent installer confirm the ventilation, flue route and clearances for your braai.

How high should it be mounted?

The mounting height depends on your braai and installation. Have an independent installer confirm the height, wall support, flue route and safe distance from combustible materials. Do not use a general canopy dimension as a heat-clearance measurement.

Does it include a fan?

No. The canopy works with a connected flue or chimney. A powered extractor is not included.

How do I care for the finish?

Keep the heat-resistant coating in good condition. Ask us about suitable maintenance for your location, especially where the canopy is exposed to damp or coastal air.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We supply the canopy; arrange installation with an independent installer.
