THE GAS
LPG, at most 0.64 kg an hour.
The coal gas grate comes set up for LPG and uses at most 0.64 kg of gas an hour, which helps you plan your gas supply. Home Fires also makes natural-gas grates for this range: ask us before you order.
Sale!
HomeFires Built-in 1090 Firebox Vent Free Stainless Steel Face Fireplace
Real flames on a coal grate, built into your wall, with no chimney to build.
Original price was: R36,840.00.R33,799.00Current price is: R33,799.00.
Save R3,041Built for order Delivery ETA: 4–6 weeks
About your fireplace
- Gas
- LPG · up to 0.64 kg an hour
- Included
- The firebox with its stainless-steel façade and the coal gas grate, set up for LPG
- Not included
- Gas supply, gas connection and building work
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE 1090, UP CLOSE

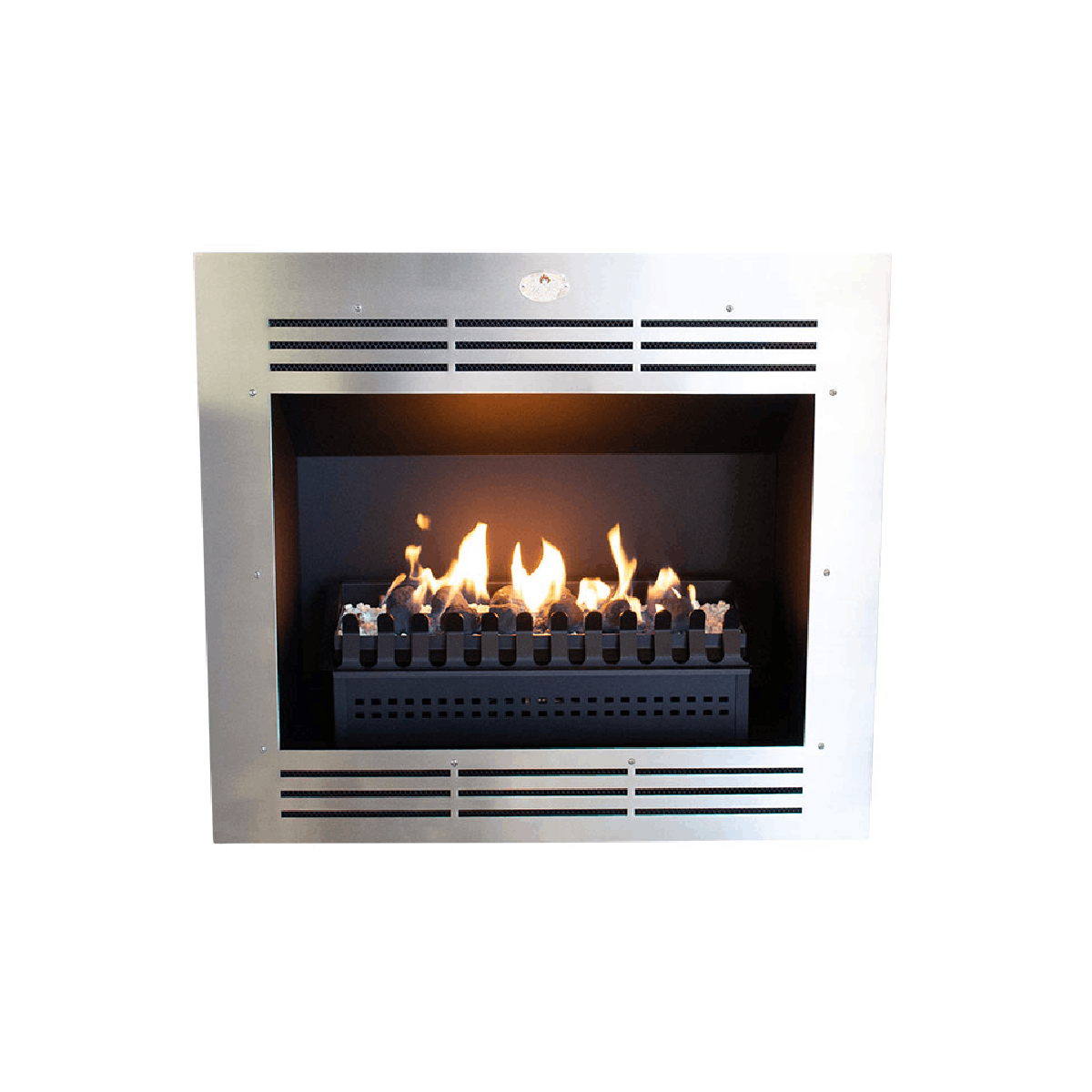

A wide stainless frame around a coal-bed fire.
The 1090 builds into your wall, with a stainless-steel façade framing an open gas fire on a coal grate. It is vent-free, so there is no flue to plan, and it runs on LPG, using at most 0.64 kg of gas an hour. Behind the façade, the body is mild steel. No wood to carry in, no chimney to sweep: just a warm room.
A registered gas installer must fit and connect the fireplace.
- Stainless-steel façade1,090 × 935 mm
- Coal gas grate750 mm wide, set up for LPG
- Mild-steel bodyBuilt into the wall
- Vent-freeNo flue or chimney
- Gas use at most0.64 kg an hour
TEA BY THE FIRE
Tea for two, and the fire is going.
Mugs of tea, socks up on the couch and the coal bed glowing in the wall. With gas there is no wood to carry in, so a fire becomes part of an ordinary weeknight, not just a weekend plan. Stay for one more episode.
The wall, shelves, furniture, plants and candles are not included. A registered gas installer fits and connects the fireplace.
GAS, PLANNED PROPERLY
Fit it once, enjoy it all winter.
THE WALL
Built in, with no flue.
The firebox builds into a wall and is vent-free, so there is no chimney or flue to plan. Your registered gas installer confirms that your room and its ventilation suit it.

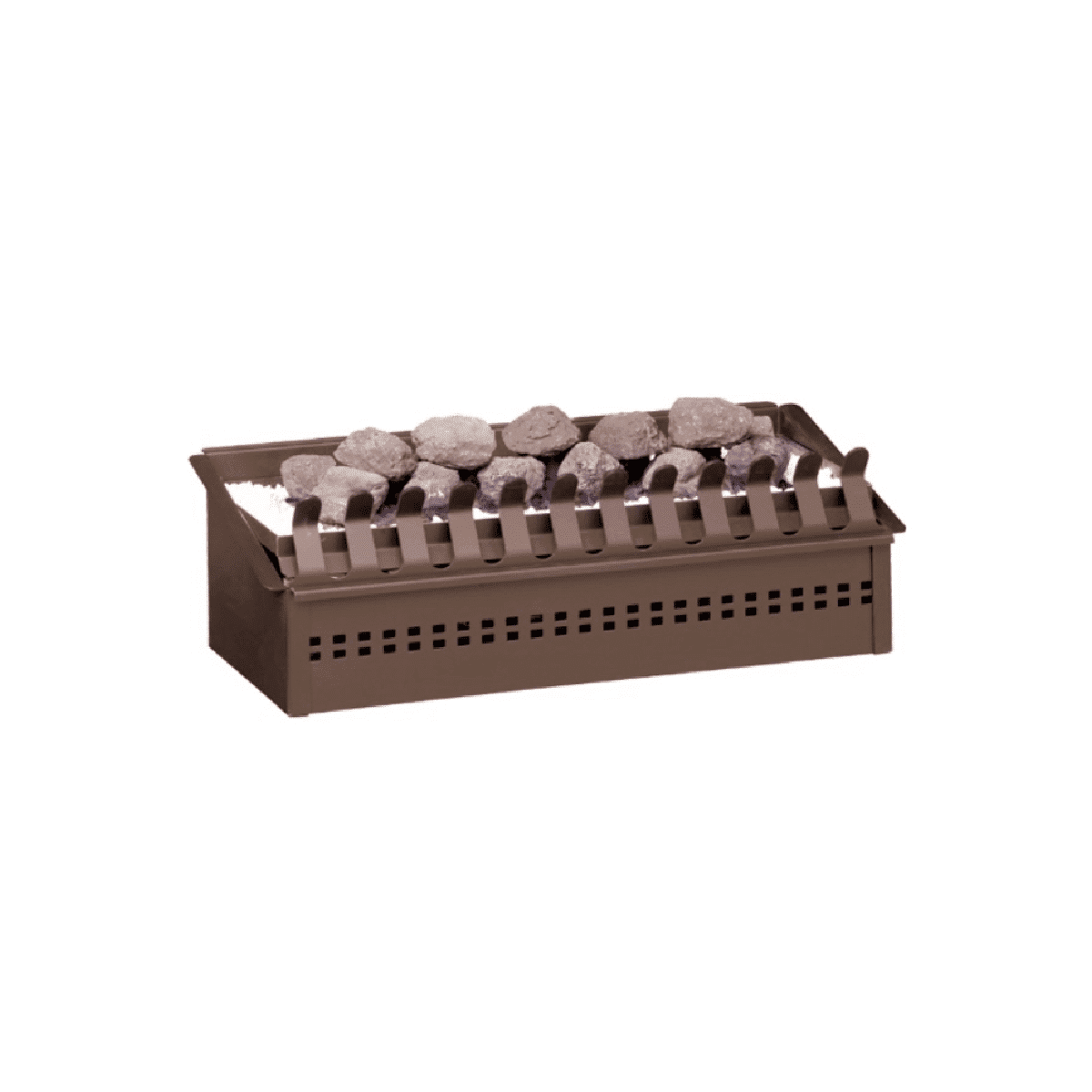

THE GRATE
A wide coal bed.
The coal gas grate is 750 mm wide, 270 mm deep and 200 mm high. It sits in the mild-steel body, behind the stainless-steel façade.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Façade width × height
- 1,090 × 935 mm
- Body width × height
- 910 × 835 mm
- Body depth
- 450 mm
- Body height at the rear
- 575 mm
- Flat top depth, before the slope
- 100 mm
- Façade beyond the body side
- 90 mm
- Façade below the body
- 40 mm
- Coal gas grate width × depth
- 750 × 270 mm
- Coal gas grate height
- 200 mm
- Material
- Mild-steel body, stainless-steel façade
Plan the façade and the body together.
The façade is 1,090 × 935 mm, and the body behind it is 910 mm wide, 835 mm high and 450 mm deep. These are product dimensions, not a cut-out, so have your registered gas installer plan the opening and clearances.
The drawing as text
- Home Fires 1090 stainless-faced gas firebox. All dimensions in mm.
- Front: B façade width 1,090 mm
- Front: A façade height 935 mm
- Side: C body depth 450 mm
- Side: D body height 835 mm, at the front
- Side: E body height 575 mm, at the rear
- Side: H flat top depth 100 mm, before the slope
- Side: K façade 40 mm below the body
- Plan: F body width 910 mm
- Plan: G façade 90 mm beyond the body side
GOOD TO KNOW
Plan your setup.
A registered gas installer must fit and connect this fireplace. Plan the wall and the gas line together.
What is included?
The 1090 vent-free gas firebox, with its stainless-steel façade on a mild-steel body, and the coal gas grate, set up for LPG. The gas supply, the gas connection and the building work are not included.
Which gas does it use?
LPG. At its maximum, the coal gas grate uses 0.64 kg of gas an hour.
Can I use natural gas?
This firebox comes with the LPG grate. Home Fires also makes natural-gas grates for this range, with their own gas specification. If your home has natural gas, ask us before you order, so we can confirm the right grate with Home Fires.
Does it need a flue or chimney?
No flue: this is an open, vent-free gas firebox. Your registered gas installer confirms that your room and its ventilation suit the fireplace before it is fitted.
How much space do I need?
The stainless-steel façade is 1,090 mm wide and 935 mm high. Behind it, the body is 910 mm wide, 835 mm high at the front, 575 mm high at the rear and 450 mm deep. The façade reaches 90 mm beyond each side of the body and 40 mm below it. These are product dimensions, not a cut-out. Have your installer plan the opening and safe clearances.
How big a room will it warm?
Send us the size of the room you want to warm, and we will confirm with Home Fires that the 1090 suits it before you order.
What does the guarantee cover?
Ask us for the Home Fires guarantee terms for this firebox before you order.
Can you help with my setup?
Yes. Send a photo and measurements for a product and configuration quote. A registered gas installer must fit and connect the fireplace.
