THE HEAT
10 kW nominal, up to 12 kW.
The B4 gives 10 kW nominal and up to 12 kW maximum heat output, with a listed efficiency of 82%. The Output Calculator uses 11 kW, the middle of the two, to compare with your room.
Sale!

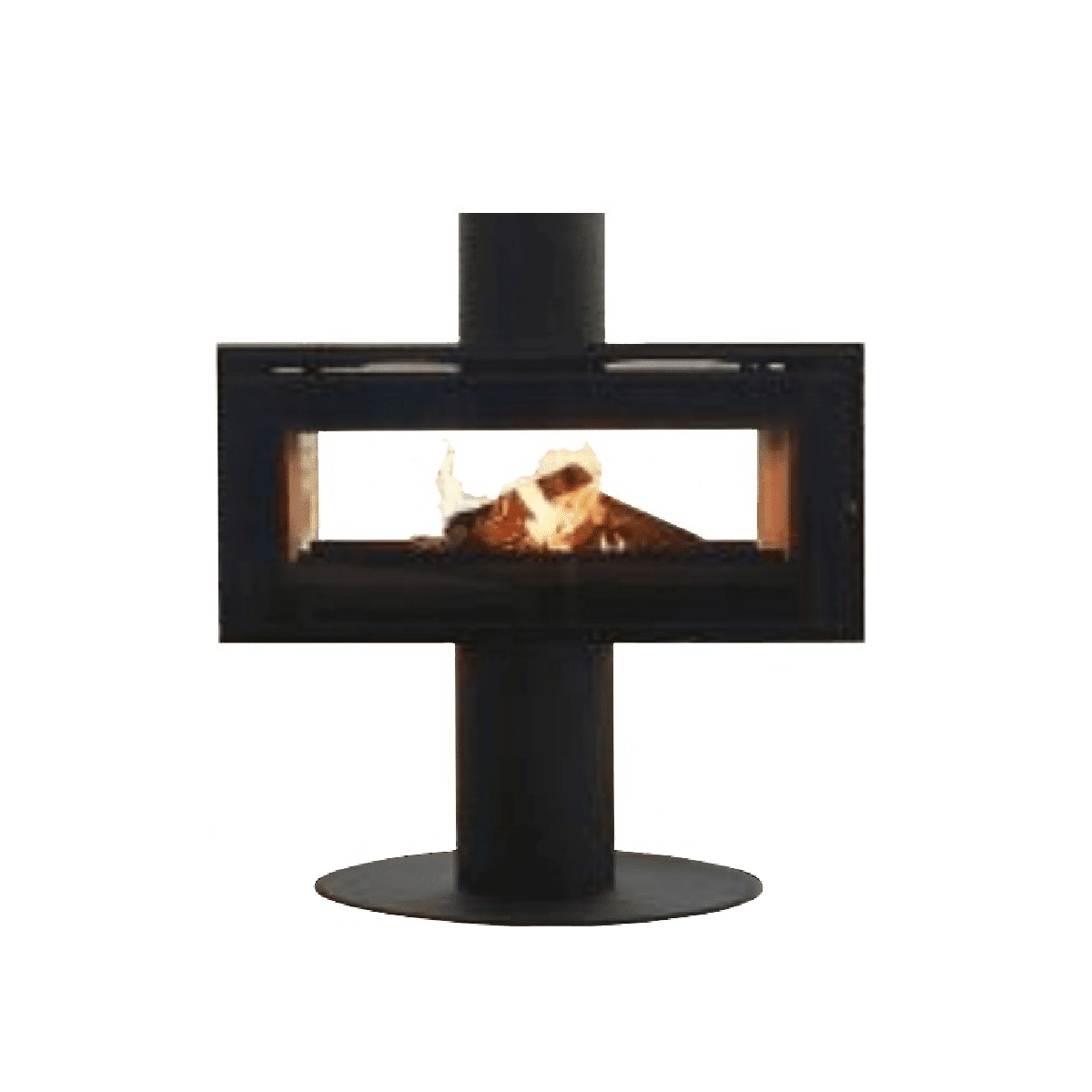

FLAMM B4 Double Sided on rotatable pedestal – Closed Combustion Freestanding Fireplace
One fire, two views: glass on both sides, on a pedestal base that turns.
Original price was: R35,680.00.R34,999.00Current price is: R34,999.00.
Save R681In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat
- 10 kW nominal · 12 kW maximum
- Included
- The double-sided fireplace on its rotatable pedestal, with the ash pan
- Not included
- Flue pipes, accessories and installation
- Guarantee
- 5 years on the main body (limited)
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE B4, UP CLOSE
Glass on both sides.
Steel all round.
The B4 shows its fire through glass on both sides, so it can stand between two spaces or right in the middle of one. The firebox is 5 mm steel in a black high-heat finish, with firebricks inside and an ash pan for the clean-up. It burns wood, the flue connects on top, and its listed efficiency is 82%.
- Glass on both sidesGlass sheet 781 × 377 mm
- 5 mm steel fireboxBlack high-heat finish
- Firebricks insideSide bricks 289 × 272 mm
- Ash panIncluded
- Top flue outletFor a 200 mm nominal flue
- Installation manualUnder Plan your setup
ONE FIRE, TWO SPACES
Supper on one side, the couch on the other.
Friends linger over supper while the fire glows through to the lounge. With glass on both sides, the B4 stands between the two spaces, so the table and the couch both get a view of the flames. Pour another glass. Nobody needs to rush home tonight.
The flue pipe, furniture, lights, plants and tableware are not included. Have an independent installer confirm the hearth, flue route and clearances.
BEFORE THE FIRST FIRE
Heat, stand and flue, sorted.
THE PEDESTAL
One round foot, a base that turns.
The firebox stands on a pedestal with a 600 mm round foot and a rotatable base. Plan its position and the flue with your installer before you plan to turn it, and we recommend keeping furnishings 1,000 mm away.
THE FLUE
One outlet, on top.
The flue connects on top, through a socket 204 mm across inside, for a 200 mm nominal flue pipe. Send us a photo and measurements for a flue quote.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 830 × 435 mm
- Depth including front and rear projections
- 483 mm
- Firebox height
- 450 mm
- Floor to the top of the body
- 858 mm
- Pedestal height, floor to firebox
- 408 mm
- Round foot diameter
- 600 mm
- Visible fire opening width × height
- 660 × 255 mm
- Flue size (nominal)
- 200 mm
- Clearance to combustible materials
- 800 mm
- Fuel · finish
- Wood · black high-heat finish
Plan the stand, the flue and the clearances together.
The body is 830 mm wide, and its top stands 858 mm above the floor. These are product dimensions, so have an independent installer check the actual unit, the hearth and the safe clearances on site.
The drawing as text
- ALL SIZES IN MILLIMETRES
- FLAMM B4 Double Sided on Rotatable Pedestal
- Freestanding wood fireplace: closed combustion, with glass on both sides
- 01 FRONT VIEW
- 830 body width
- 450 firebox
- 408 pedestal
- 858 floor to body top
- 660 visible opening
- 255 high
- Ø600 round foot
- 02 SIDE VIEW
- 435 firebox depth
- 483 with projections
- Glass door at the left and at the right.
- 03 TOP VIEW
- 830 body width
- 435 firebox depth
- 483 with projections
- Thin line: the round foot. Flue outlet on top.
- 04 FLUE OUTLET (LARGER SCALE)
- For a nominal Ø200 flue pipe.
- Ø209 outside
- Ø204 inside
- Ø200 nominal
- 05 GLASS SHEET
- 781 wide
- 377 high
- The visible opening is smaller than the glass.
- 06 SIDE FIREBRICK
- 289 deep
- 272 high
- 07 COMBUSTIBLES, FRONT VIEW (SMALLER SCALE)
- 1,200 to the ceiling
- 800 to the side
- 08 FURNISHINGS, TOP VIEW (SMALLER SCALE)
- 1,000 furnishings
- 1,000 furnishings
- 09 FLOOR PROTECTOR, TOP VIEW (SMALLER SCALE)
- 200 at the rear
- 400 in front
- 200 side
- Front (loading side) at the bottom. Plan the second glass side too.
- PLANNING NOTES
- These are product sizes. Have an independent installer check the unit, the hearth and the safe clearances on site.
- The 858 ends at the top of the body. The flue collar stands above it.
- Keep 800 to combustible materials, 1,200 to a combustible ceiling and 1,000 to household furnishings.
- Keep household furnishings 1,000 away on every side the fire faces.
- A flue of about 4,500 could be satisfactory. Your installer decides the route for your building.
- The flue connects at the top. Ask us how the pedestal turns with a fixed flue before you plan around it.
- The hearth, the firewall, the recess gaps and the flue route are in the instruction manual on this page.
- Flue pipes, accessories and installation are not included. Send us a photo and measurements for a flue quote.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The FLAMM B4 double-sided closed combustion fireplace in a black high-heat finish, on its rotatable pedestal, with the ash pan. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Which fuel does it burn?
Wood. It is a closed combustion fireplace, with the fire behind glass on both sides.
How much heat does it give?
10 kW nominal and up to 12 kW maximum heat output, with a listed efficiency of 82%. The Output Calculator uses 11 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.
Does the pedestal turn?
The B4 stands on a pedestal with a rotatable base. Ask us how it turns with a fixed flue before you plan around it, and plan the position and the flue with your independent installer. We recommend keeping household furnishings 1,000 mm away on every side the fire faces.
Where does the flue connect?
At the top. The flue socket is 204 mm across inside and 209 mm outside, for a 200 mm nominal flue pipe. Have an independent installer plan the flue route, height and support for your building.
Is the flue included?
No. Chimney flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The body is 830 mm wide and 435 mm deep, or 483 mm across its front and rear projections. The 450 mm firebox sits on a 408 mm pedestal, so the top of the body is 858 mm above the floor, and the round foot is 600 mm across. Leave at least 1,200 mm to a combustible ceiling. We recommend 1,000 mm to household furnishings and at least 800 mm from combustible materials. Your installer must follow the installation manual that comes with the unit.
What does it need underneath?
Use a floor protector that reaches 400 mm in front of the loading side and 200 mm beyond the sides and the rear. With glass on both sides, have your installer plan the second side too. Depending on your floor, the hearth can be a 125 mm constructional hearth or, in some cases, a 12 mm non-combustible board.
Can it stand in a recess?
In a recess, leave a free air gap of 200 mm at the sides and the top and 50 mm at the rear. These gaps are for airflow and do not define a cut-out. Where a firewall is needed, use 100 mm of brick, concrete or stone.
How high should the flue go?
A flue of about 4,500 mm could be satisfactory. Where an offset is allowed, a horizontal run is limited to 300 mm, followed by 2,500 mm of vertical flue, and in the manual's roof diagram the flue rises 600 mm. Your installer decides the route for your building and wind.
What does the guarantee cover?
The main body has a five-year limited Home Fires warranty against manufacturing defects. Register it within 30 days, or the term drops to 12 months. It covers the first owner at the first installed location, for a unit bought from Home Fires or an authorised retailer and installed correctly; keep your purchase and installation records. Glass, bricks, baffles, handles, paint and seals are excluded. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
