THE HEAT
8 kW nominal, 10 kW maximum.
The R0801 is rated at a nominal output of 8 kW on wood and a maximum heat output of 10 kW, with 80.5% efficiency on wood at nominal output. Our Output Calculator uses 9 kW, the middle.

A closed-combustion stove for wood or anthracite, with a cast-iron door.
Original price was: R18,840.00.R17,799.00Current price is: R17,799.00.
Save R1,041Pay in interest-free instalments with Float
In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE R0801

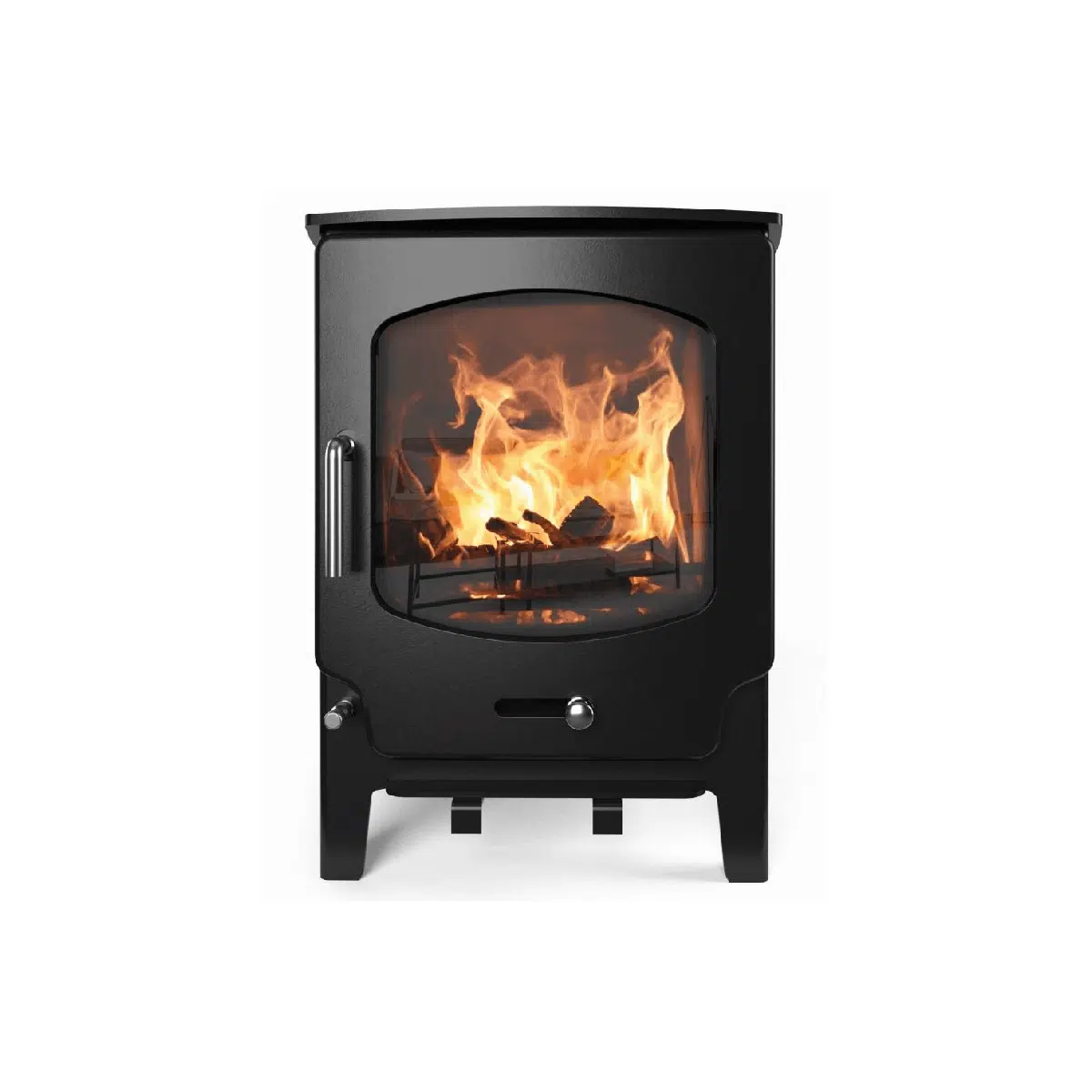

The HomeFires R0801 Freestanding Fireplace is a closed-combustion stove with a precision-welded steel body and a cast-iron door. Thermo-refractory firebrick lines the firebox, and the ash drawer makes the clean-out simple. Burn wood logs or anthracite, and connect the 125 mm flue pipe on top or at the rear, whichever suits your room best.
EVENINGS AT HOME
The day is done, the mugs are full and the R0801 is glowing behind its cast-iron door. Pile on the cushions, put your feet up and let the stove keep the lounge warm while the conversation runs on long after supper.
The flue pipe, hearth plate, couch, coffee table, rug and décor are not included. Flue pipes and a cowl are sold separately; plan the hearth and clearances with an independent installer.
A LITTLE PRACTICAL THINKING
THE HEAT
The R0801 is rated at a nominal output of 8 kW on wood and a maximum heat output of 10 kW, with 80.5% efficiency on wood at nominal output. Our Output Calculator uses 9 kW, the middle.
THE FLUE
Connect a 125 mm flue pipe on top or at the rear. The rear outlet centre sits 560 mm above the bottom of the feet, and the top outlet centre 120 mm in from the back. Flue pipes are sold separately.
THE SPACE
Keep 800 mm to a combustible back wall and 700 mm to a combustible side wall. In a non-combustible recess we recommend an 80 mm gap. The hearth must be at least 12 mm thick.
MEASURE THE WHOLE SETUP
Plan the clearances with the stove.
Ask us to confirm the main width, height and depth before you plan a tight space. From the back to the front of the handle, the stove is 452 mm deep. Your installer checks the actual unit and the safe clearances.

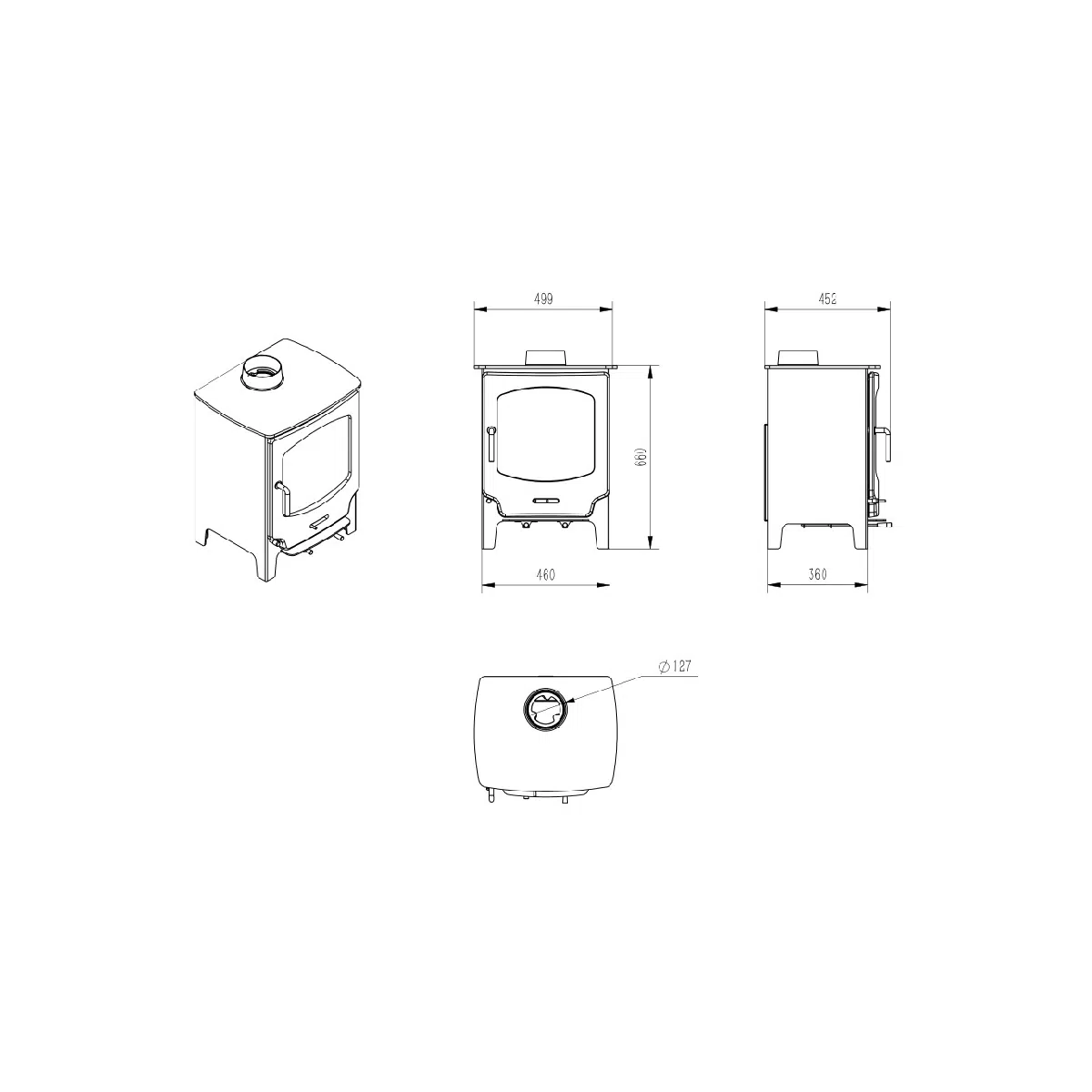

Download printable drawing (A4 PDF)
GOOD TO KNOW
Plan the flue and the clearances with your installer before the stove arrives.
See also: All fireplaces · More from Homefires · HomeFires 740 Built-in Vent Free Gas Fireplace
The HomeFires R0801 closed-combustion fireplace, with its precision-welded steel body, cast-iron door, thermo-refractory firebrick lining and ash drawer. Flue pipes, a cowl, the hearth and installation are not included. Send a photo and measurements for a flue quote.
It's rated at a nominal output of 8 kW on wood and a maximum heat output of 10 kW. Our Output Calculator uses 9 kW, the middle of the two, to compare the stove with your room. The indicative heating volume is listed at 224 m³.
It is a multi-fuel stove: wood logs or anthracite.
It's rated at an efficiency of 80.5% on wood at nominal output.
On top or at the rear, for a 125 mm nominal flue pipe; the outlet collar measures 127 mm across on the drawing. The rear outlet centre is 560 mm above the bottom of the feet, and the top outlet centre is 120 mm in from the back edge of the top plate.
No. Flue pipes and a cowl are sold separately. Send a photo and measurements for a flue and configuration quote, and we confirm the parts for your setup.
Keep at least 800 mm between the back of the stove and a combustible wall, and at least 700 mm between its side and a combustible wall. Your installer must follow the installation manual that comes with the unit. In a non-combustible recess, we recommend an 80 mm gap at the sides and back. Stand it on a hearth at least 12 mm thick. Your installer checks your room.
Ask us to confirm the main width, height and casing depth before you plan a tight space: we check them with Home Fires. From the back to the front of the handle it measures 452 mm, and the legs stand 360 mm deep. Add the clearances to these sizes.
The window in the cast-iron door is 350 mm wide and up to 337 mm high.
Ask us for the guarantee terms before you order.
Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
