THE FLAME
A spark, then flames.
The coal gas grate lights with a piezo spark and runs on LPG. At most it uses 0.79 kg of gas an hour, which helps you plan your gas supply.
Sale!

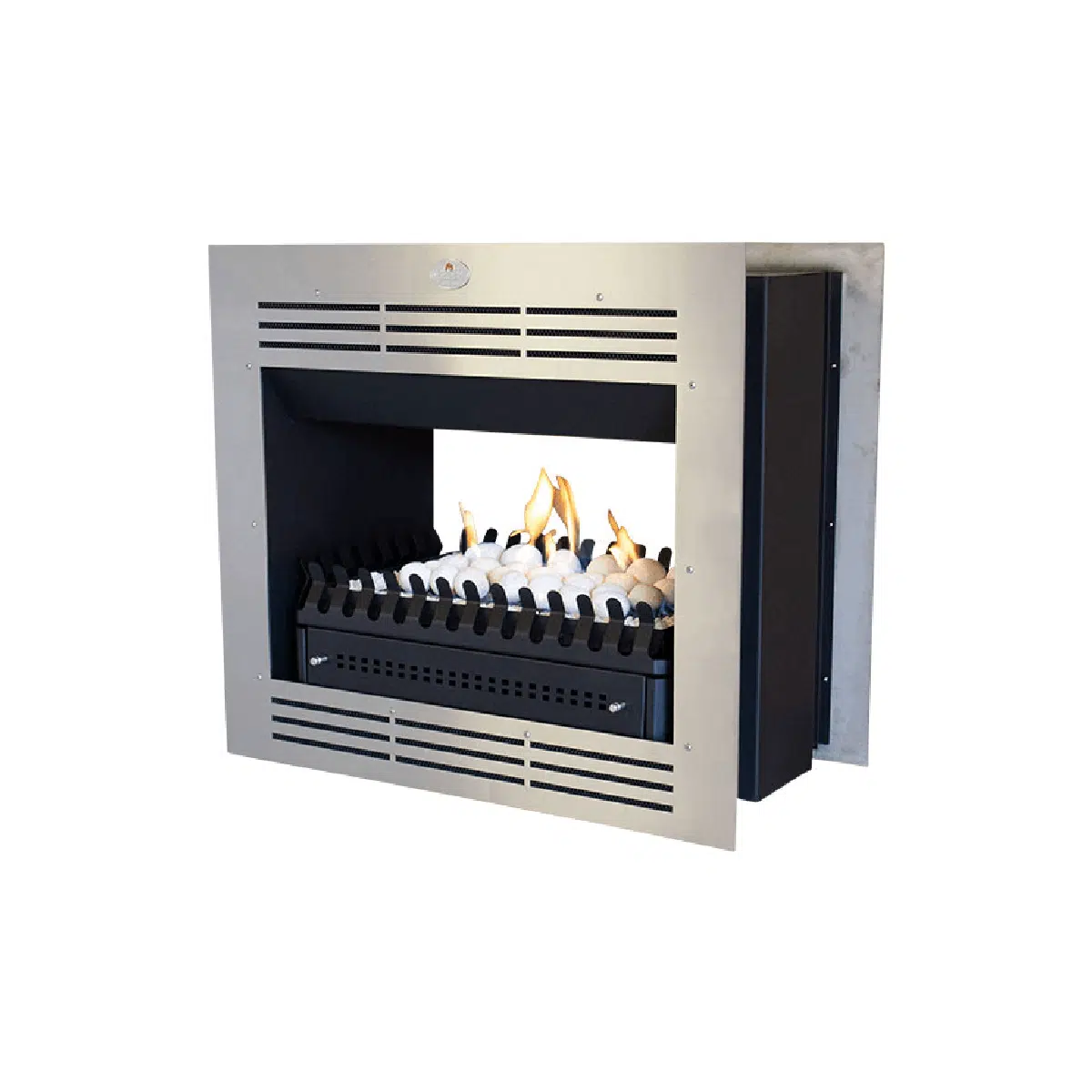

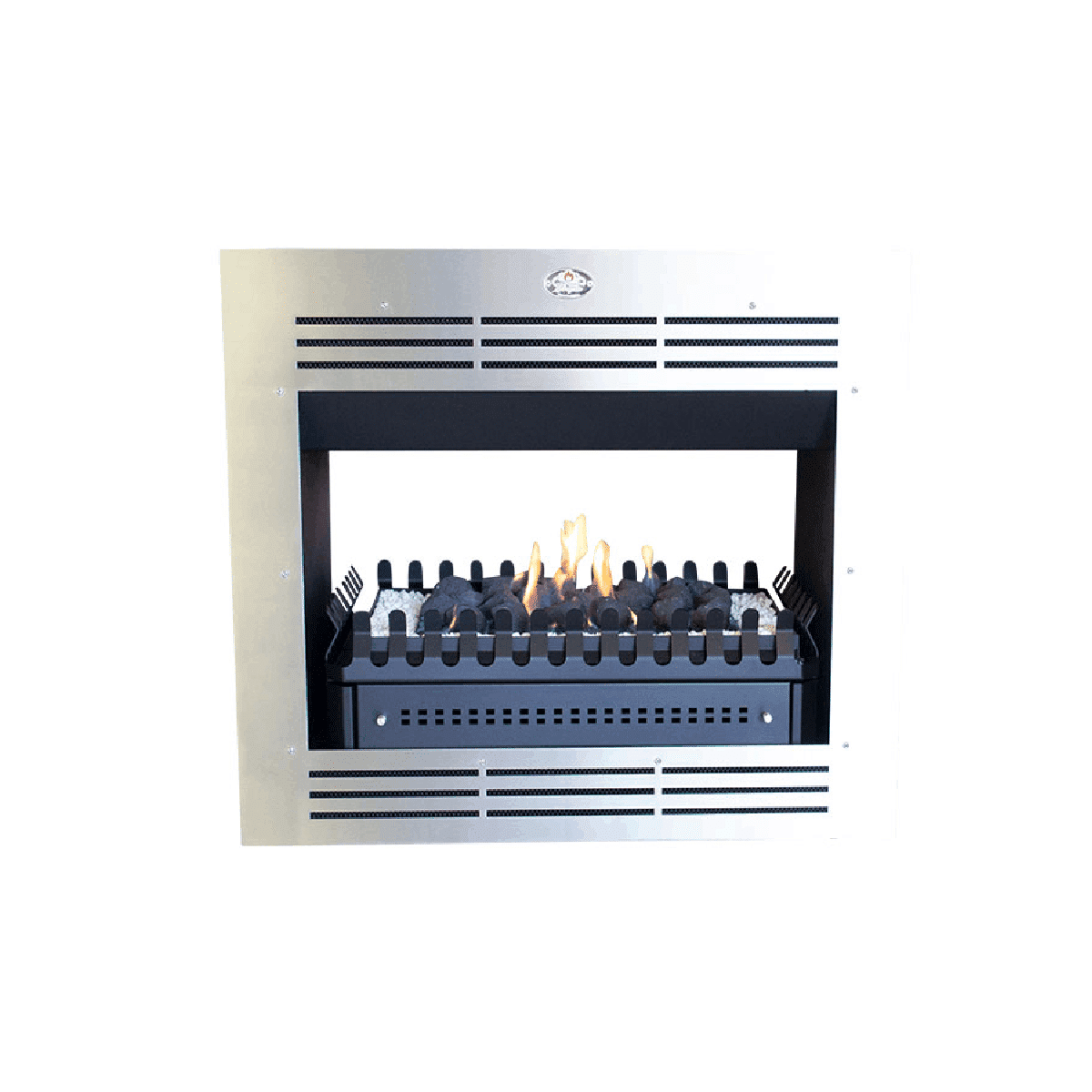

HomeFires Built-in 940 Double sided Stainless Steel faced Firebox Vent Free Fireplace
One gas fire, seen from both sides: between two rooms or as a room divider.
Original price was: R48,570.00.R44,599.00Current price is: R44,599.00.
Save R3,971Built for order Delivery ETA: 4–6 weeks
About your fireplace
- Gas
- LPG · up to 0.79 kg an hour
- Included
- Double-sided firebox with stainless-steel façade and coal gas grate, set up for LPG
- Not included
- Gas supply, gas connection and building work
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsONE FIRE, TWO ROOMS
Gas flames on both sides of the wall.
Build the 940 into the wall between two rooms, or use it as a room divider, and the same fire glows on both sides. The coal gas grate runs on LPG and lights with a piezo spark, with an ODS safety system on guard. The silver stainless-steel façade on the black body keeps the look clean and bright, and there is no wood to carry in.
A registered gas installer must fit and connect the fireplace.
- Coal gas grateRuns on LPG
- Piezo-spark ignition
- ODS safety systemOxygen depletion sensor
- Vent-free gas firebox
- Stainless-steel façadeOn a black mild-steel body
THE WARMEST SEAT IN THE HOUSE
Wine on one side, supper on the other.
Settle into the couch with a glass of red while the flames dance on the coal bed, and catch a glimpse of the dinner table through the fire. With one gas fire between two spaces, nobody has to choose where to sit on a winter evening.
The wall, mantel shelf, furniture, plants and candles are not included. A registered gas installer fits and connects the fireplace.
GAS, MADE SIMPLE
Light it, sit back, enjoy.
THE SAFETY
An ODS on guard.
The gas grate has an ODS (oxygen depletion sensor) safety system. A registered gas installer must fit and connect the fireplace and confirm the setup for your room.
THE ROOMS
Two rooms, one fire.
The firebox is made to be built in between two rooms or used as a room divider, so the fire is on show from both sides.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Façade width × height
- 940 × 835 mm
- Body width × height
- 765 × 760 mm
- Body depth
- 480 mm
- Width across the side housings
- 870 mm
- Façade above the body
- 50 mm
- Façade below the body
- 25 mm
- Side housing depth
- 205 mm
- Side housing setback from the front
- 135 mm
- Side housing projection, right
- 50 mm
- Material
- Mild-steel body, stainless-steel façade
Plan the façade and the side housings together.
The façade is 940 × 835 mm, and the side housings take the body to 870 mm wide. These are product dimensions, not a building opening, so have your registered gas installer check the actual unit and safe clearances.
The drawing as text
- Home Fires 940 double-sided stainless-faced gas firebox. All dimensions in mm.
- Front: frame width 940 mm
- Front: frame height 835 mm
- Side: body depth 480 mm
- Side: body height 760 mm
- Side: façade 50 mm above the body (top)
- Side: façade 25 mm below the body (bottom)
- Plan: body width 765 mm
- Plan: 870 mm across the side housings
- Plan: side housing setback 135 mm
- Plan: side housing projection 50 mm
- Plan: side housing depth 205 mm
- Coal gas grate, top view (no measurements)
- Dimensions describe the appliance and its parts; plan the recess with your installer.
GOOD TO KNOW
Plan your setup.
A registered gas installer must fit and connect this fireplace. Plan the wall and the gas line together.
What is included?
The double-sided firebox, with its silver stainless-steel façade on a black mild-steel body, and the coal gas grate, set up for LPG. The gas supply, the gas connection and the building work are not included.
Which gas does it use?
LPG. At its maximum, the coal gas grate uses 790 g of gas an hour (0.79 kg).
Does it need a flue or chimney?
No flue: this is a vent-free gas firebox. Your registered gas installer confirms that your room and its ventilation suit the fireplace before it is fitted.
How do I light it?
The gas grate has piezo-spark ignition, so there are no matches or firelighters involved.
What safety features does it have?
The gas grate has an ODS (oxygen depletion sensor) safety system. A registered gas installer must fit and connect the fireplace.
Can it go between two rooms?
Yes. It is made to be built in between two rooms or used as a room divider, with the fire on show from both sides.
How much space do I need?
The stainless-steel façade is 940 mm wide and 835 mm high. Behind it, the body is 765 mm wide, 760 mm high and 480 mm deep, and the side housings take the width to 870 mm. The façade reaches 50 mm above and 25 mm below the body. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances.
Where are the side housings?
Seen from above, each side housing starts 135 mm back from the front and is 205 mm deep. The right housing stands 50 mm out from the body. Plan the recess around them with your installer.
How big a room will it warm?
Send us the size of the rooms you want to warm, and we will confirm with Home Fires that the 940 suits them before you order.
Can you help with my setup?
Yes. Send a photo and measurements for a product and configuration quote. A registered gas installer must fit and connect the fireplace.
