Jetmaster 1000 Nova Braai, black one-door braai with charcoal starter on the right

Your braai, up close

Will it fit my space?

About your braai

Body: Heavy-duty black mild steel
Included: Firebox and gather, nickel-plated grid, charcoal tray and starter, potjie hook, light fitting, clip-on door
Not included: Flue pipes, cowl, insulation blanket and building materials
Guarantee: 5 years on the braai box

Jetmaster Braais

Jetmaster 1000 Nova Built-in Braai (1 Door)

Name: Jetmaster 1000 Nova Braai | Braai Culture
Brand: Jetmaster
SKU: D3000016
Price: 10799.00 ZAR
Availability: InStock

A black built-in braai with the essentials and a clip-on door.

From: Original price was: R12,227.00.Current price is: R10,799.00.

Save R1,428

SKU D3000016

In stock Delivery ETA: 5–15 working days

Complete your setup

Guide

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE NOVA ESSENTIALS

One door.
Everything for the fire.

Braai on the nickel-plated grid while fresh coals get going in the starter on the right. Hang a potjie from the swivel arm, and switch on the light when the braai runs past sunset. When the fire is out, clip the door back on for a tidy finish in your masonry braai area.

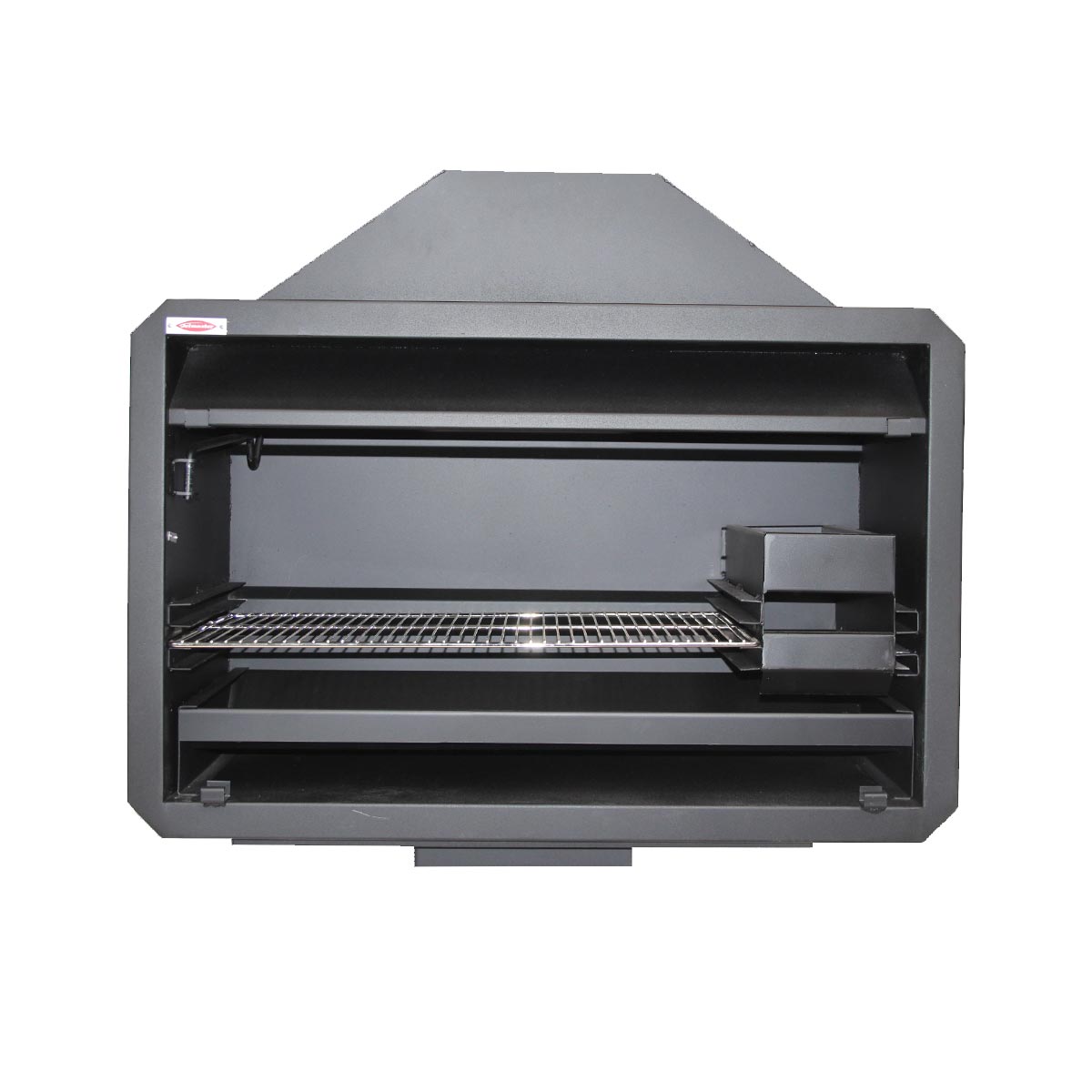

Charcoal starterOn the right-hand side of the grid
Swivel arm with potjie hook
Light fittingFor a conventional light bulb

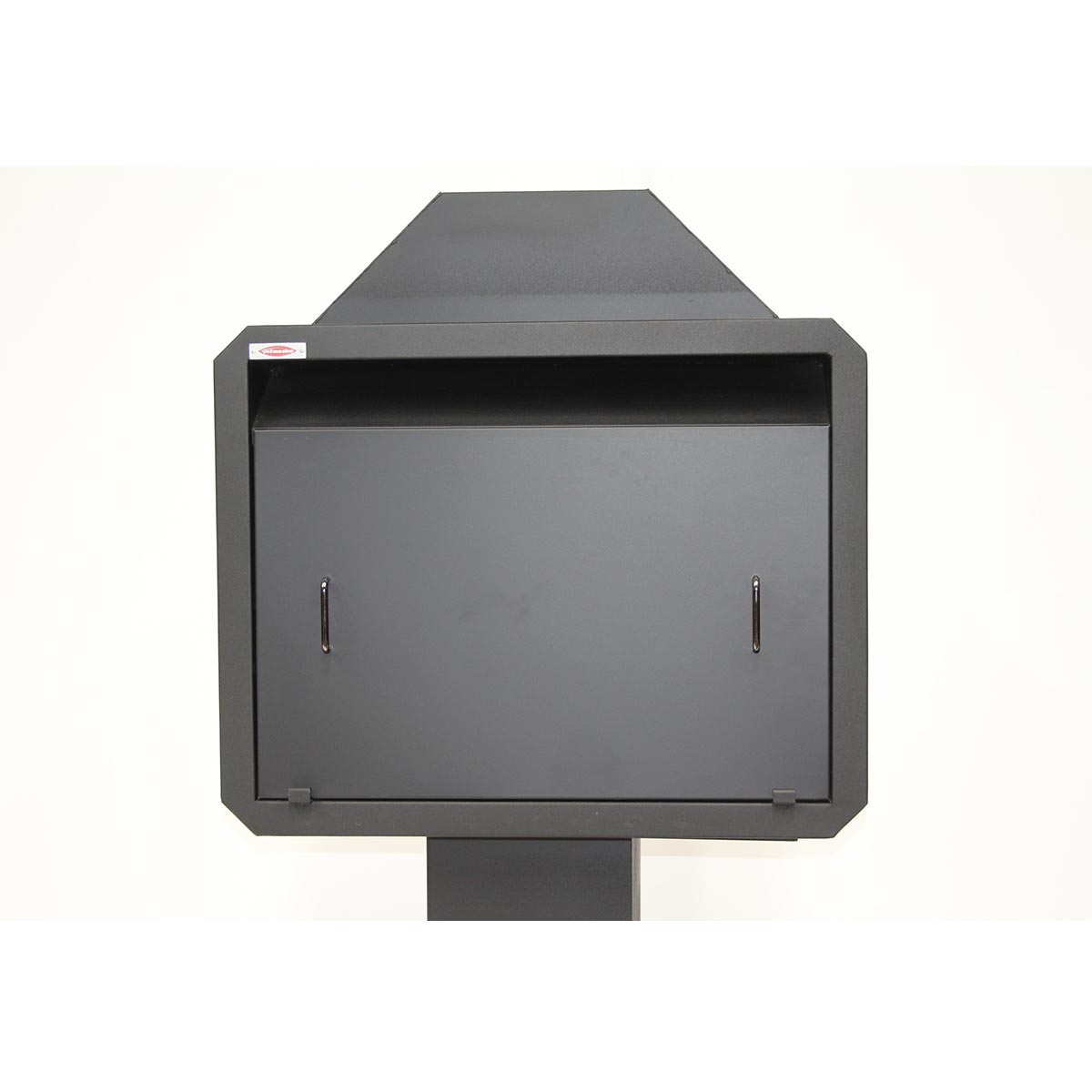

Reinforced clip-on doorClips to the bottom frame, with handles
Check the door movementOn the actual unit, before nearby finishes

Jetmaster 1000 Nova Braai built into an ochre outdoor wall beside a preparation counter

COME HUNGRY, STAY LATE

A fire at the heart of lunch.

Boerewors on the grid, a potjie on the hook and friends around the table. Build the Nova into your braai area, keep a counter close by and let the coals set the pace.

The plastered surround, counters, cabinets and furniture are not included. Confirm the final flue route, support and clearances with an independent installer.

SIMPLE THINGS, DONE WELL

Keep the coals coming.

THE FIRE

Fresh coals on the side.

The charcoal starter sits to the right of the grid, so fresh coals are ready for the next round.

THE DOOR

Clip it on, clip it off.

The reinforced door has handles and clips to the bottom frame. Clip it on between braais for a tidy finish.

AFTER DARK

A light for late braais.

The light fitting takes a conventional bulb, so the braai can carry on after sunset.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

Download the dimension drawing

Body width × depth: 1,000 × 450 mm
Width including front frame: 1,100 mm
Body height: 615 mm
Gather above the body: 251 mm
Cooking grid: 758 × 420 mm
Round flue diameter: 250 mm
Optional flue pipe length, each: 1,200 mm
Material: Black mild steel
Fuel: Wood or charcoal

Plan the body, gather and flue together.

The 251 mm gather sits on top of the 615 mm body, before the flue. These are product dimensions, not a building opening, so have your installer check the actual unit, insulation and safe clearances.

The drawing as text

ALL SIZES IN MILLIMETRES
Jetmaster 1000 Nova Built-in Braai (1 Door)
Built-in braai: mild steel, for wood or charcoal, with a charcoal starter and one removable door
01 FRONT VIEW
Ø250 round flue
758 cooking grid
1,000 body width
1,100 frame width
02 SIDE VIEW
450 body depth
251 gather
615 body
Front at the right. Door off.
03 COOKING GRID
758 width
420 depth
Front at the bottom.
04 TOP VIEW
1,000 body width
450 body depth
1,100 frame width
Front at the bottom. White: the round flue outlet.
PLANNING NOTES
These are product sizes, not a building-opening size. Ask us for the opening size before you build.
The frame is 1,100 wide. Ask us for the frame height before you build.
Included: the Nova firebox with gather, a nickel-plated cooking grid, a charcoal tray and a charcoal starter.
Also included: a potjie hook, a light fitting and a single removable door.
The door clips to the lower frame. Check its movement on the actual unit before you plan nearby finishes.
No flue or cowl is included. Plan the 250 round flue route separately.

GOOD TO KNOW

Plan your setup.

Your Nova comes with an installation manual. Read it before you plan the build.

What comes with the Nova?

The heavy-duty mild-steel firebox and smoke gather, a 758 × 420 mm nickel-plated grid, the charcoal tray and charcoal starter, a swivel arm with potjie hook, a light fitting and one reinforced clip-on door. An installation manual is included.

Which fuel can I use?

Wood or charcoal. Prepare fresh coals in the charcoal starter on the right while you braai.

Are the flue, cowl and insulation included?

No. Flue pipes, the cowl and an insulation blanket are sold separately. Send a photo and measurements for a flue and configuration quote. Building materials and installation are separate.

How much height should I allow?

The body is 615 mm high, and the gather above it rises a further 251 mm before the flue. The body is 1,000 mm wide and 450 mm deep; the front frame is 1,100 mm wide. Check the actual unit before building the surround.

How much cooking space is there?

The nickel-plated grid is 758 × 420 mm. The charcoal starter sits to the right. The potjie hook and light fitting are also included.

How do I choose the flue route?

The Nova uses a 250 mm round flue. The optional mild-steel flue pipes slip on and are 1,200 mm long each. The fitted length depends on joint overlap. Have an independent installer check the height, support, roof exit and any bends. Send your measurements for a flue and configuration quote.

How does the door work?

The single reinforced door has handles and clips on and off the bottom frame. Have your installer check its movement on the actual unit before fixing counters or cabinetry nearby.

Can you help with my configuration?

Send a photo and measurements for a quote and a visual preview. We can help with the product and flue configuration. Arrange installation with an independent installer.

What does the warranty cover?

The warranty is five years, excluding corrosion and discolouration. Ask us for the full terms.
