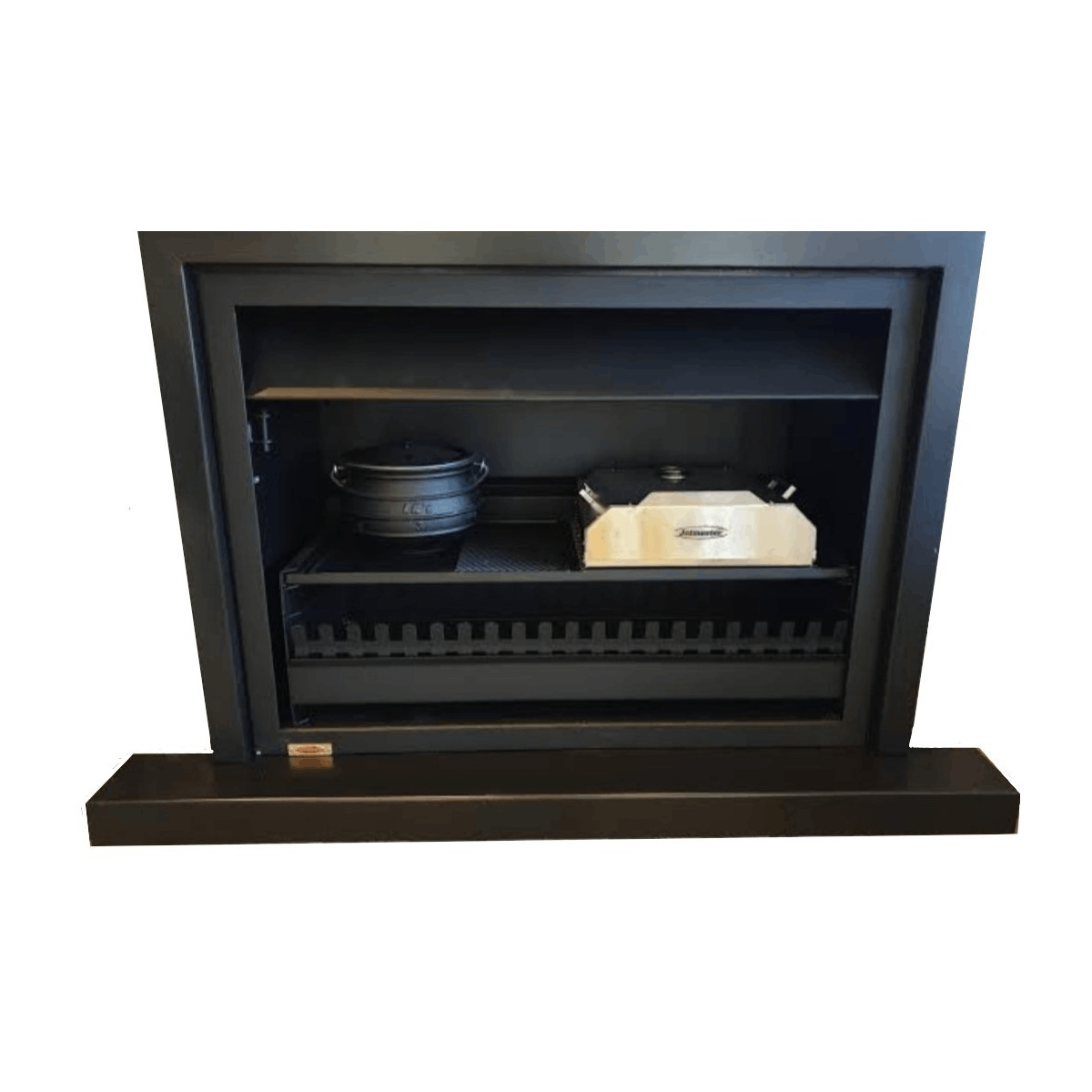

Jetmaster 4 in 1 Quadro built-in braai and fireplace in black, front view, with a potjie pot on the grid and the stainless-steel pizza insert on the right

Your fireplace, up close

Will it fit my space?

About your fireplace

Pizza insert: 304 stainless steel
Included: Log pan, cast-iron grid, steak plate, pizza insert, paddle, potjie hook, size 3 potjie, gauge, poker
Not included: Flue pipes, cowl, insulation blanket, building work and installation
Guarantee: 5 years; corrosion excluded

Jetmaster Braais

Jetmaster 4 in 1 QUADRO MK2 (braai / fireplace / pizza oven / potjie pot) mild steel Built-in

Name: Jetmaster 4 in 1 Quadro Built-in Braai | Braai Culture
Brand: 4 in 1 Quadro
SKU: 40240435
Price: 21499.00 ZAR
Availability: InStock

One built-in fire for braai, pizza and potjie, and a fireplace after dinner.

From: Original price was: R28,084.00.Current price is: R21,499.00.

Save R6,585

SKU 40240435

In stock Delivery ETA: 5–15 working days

Complete your setup

Guide

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE QUADRO

Four ways to cook.
One fire to gather round.

Braai on the cast-iron grid, sear on the cast-steel steak plate, then slide in the stainless-steel pizza insert for pizza night. The potjie hook takes the size 3 pot that comes with it. Burn wood or charcoal in the log pan, and when the cooking is done, the same fire carries on as your fireplace.

Confirm the flue parts with us before you order: the flue outlet on the current drawing is round and 300 mm.

Cast-iron grid and cast-steel steak plateGrid 480 × 400 mm
304 stainless-steel pizza oven insertWith a pizza paddle
Potjie hook and size 3 potjie pot
Log pan with built-in runnersFor wood or charcoal
Temperature gauge and poker
Mild-steel bodyBuilt in

Jetmaster 4 in 1 Quadro built into a face-brick wall on a covered patio, a fire lit, a father topping a pizza beside it and two children eating at a table

PIZZA NIGHT ON THE PATIO

One fire.
The whole menu.

Dad tops the next pizza while the first ones disappear at the table, and the potjie waits its turn on the grid. Later, with the cooking done, the same fire becomes the fireplace you sit around until the evening winds down. One fire, built in, for every part of the meal.

The face-brick wall and ledge, counters, cupboards, furniture, plants, food and tableware are not included. Flue pipes and a cowl are options.

A LITTLE PRACTICAL THINKING

Plan the meal around the fire.

THE PIZZA

A pizza oven, built in.

Slide in the 304 stainless-steel insert and the braai becomes a pizza oven. A pizza paddle and a temperature gauge come with it.

THE POTJIE

Something slow on the side.

Hang the size 3 potjie pot from the potjie hook and let it simmer while you braai on the cast-iron grid or sear on the cast-steel steak plate.

THE FIRE

After dinner, a fireplace.

Burn wood or charcoal in the log pan with its built-in runners. When the cooking is done, keep the fire going and the Quadro carries on as a fireplace.

MEASURE THE WHOLE SETUP

Will it fit your space?

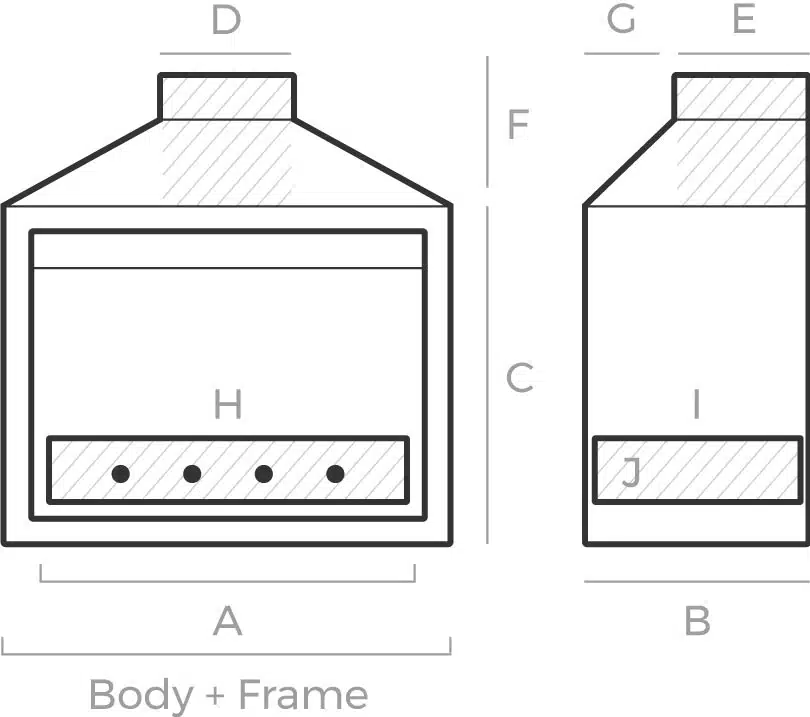

Open dimension drawing

Download the dimension drawing

Body width: 1,050 mm
Cooking surface width × depth: 960 × 400 mm
Grid width × depth: 480 × 400 mm
Pan width × depth: 480 × 400 mm
Round flue diameter: 300 mm
Flue section length, sold separately: 1,200 mm
Material: Mild steel
Fuel: Wood or charcoal

Confirm the depth and height before you build.

The Quadro is 1,050 mm wide. Ask us for the depth and height of the current unit before you plan the opening; we confirm them with Jetmaster. Your installer then checks the actual unit and the safe clearances.

The drawing as text

ALL SIZES IN MILLIMETRES
Jetmaster 4 in 1 QUADRO MK2 Built-in
Built-in braai, fireplace, pizza oven and potjie pot: wood or charcoal, mild steel body
01 FRONT VIEW
Ø300 flue
480 grid
480 pan
960 cooking surface
1,050 body width
02 SIDE VIEW
Ø300 flue
Front at the right. Dashed: the cooking level.
03 COOKING SURFACE, FROM ABOVE
960 cooking surface
480 grid
480 pan
400 front to rear
04 TOP VIEW
1,050 body width
Ø300 flue
Front at the bottom. Round flue outlet on top.
05 OPTIONAL FLUE SECTION (SMALLER SCALE)
Ø300
1,200 flue section
Flue pipes, a cowl and an insulation blanket are options, sold separately.
Send us a photo and measurements, and we confirm the right flue parts for your setup.
PLANNING NOTES
These are product sizes, not a building-opening size.
Ask us for the depth and the height of the current unit before you plan the opening.
Have your installer check the actual unit and the safe clearances before building.
The grid is 480 × 400 and the pan is 480 × 400.
Included: a log pan with runners, a cast-iron grid, a cast-steel steak plate,
a 304 stainless-steel pizza oven insert, a potjie hook and a size 3 potjie pot.

GOOD TO KNOW

Plan your setup.

Ask us for the installation details of the current Quadro before you build.

What is included?

The Quadro built-in body in mild steel, with a log pan with built-in runners, a cast-iron grid, a cast-steel steak plate, a 304 stainless-steel pizza oven insert, a pizza paddle, a temperature gauge, a potjie hook, a size 3 potjie pot and a poker. Flue pipes, a cowl and an insulation blanket are options on this page, sold separately.

What can I cook on it?

Braai on the cast-iron grid, sear on the cast-steel steak plate, bake pizza in the stainless-steel pizza insert and hang the size 3 potjie from the potjie hook. When the food is done, the Quadro works as a fireplace too.

Which fuel can I use?

Wood or charcoal, as listed. Build the fire in the log pan.

How big is the cooking surface?

The cooking surface is 960 mm wide and 400 mm deep. It has two halves side by side: the grid, 480 × 400 mm, and the pan, 480 × 400 mm.

Is the flue included?

No. Flue pipes and a cowl are options, sold separately. The flue outlet on the current drawing is round and 300 mm, and the round flue is listed in separate 1,200 mm sections. Send us a photo and measurements, and we confirm the right flue parts for your setup before you order. Your installer must follow the unit's installation manual.

How much space do I need?

The body is 1,050 mm wide. Ask us for the depth and height of the current unit before you plan the opening; we confirm them with Jetmaster. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances before building.

Do I need an insulation blanket?

An insulation blanket is not included. You can add one on this page. Ask your installer whether your build needs one.

What does the guarantee cover?

The Quadro has a listed five-year Jetmaster warranty. Corrosion is excluded. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
